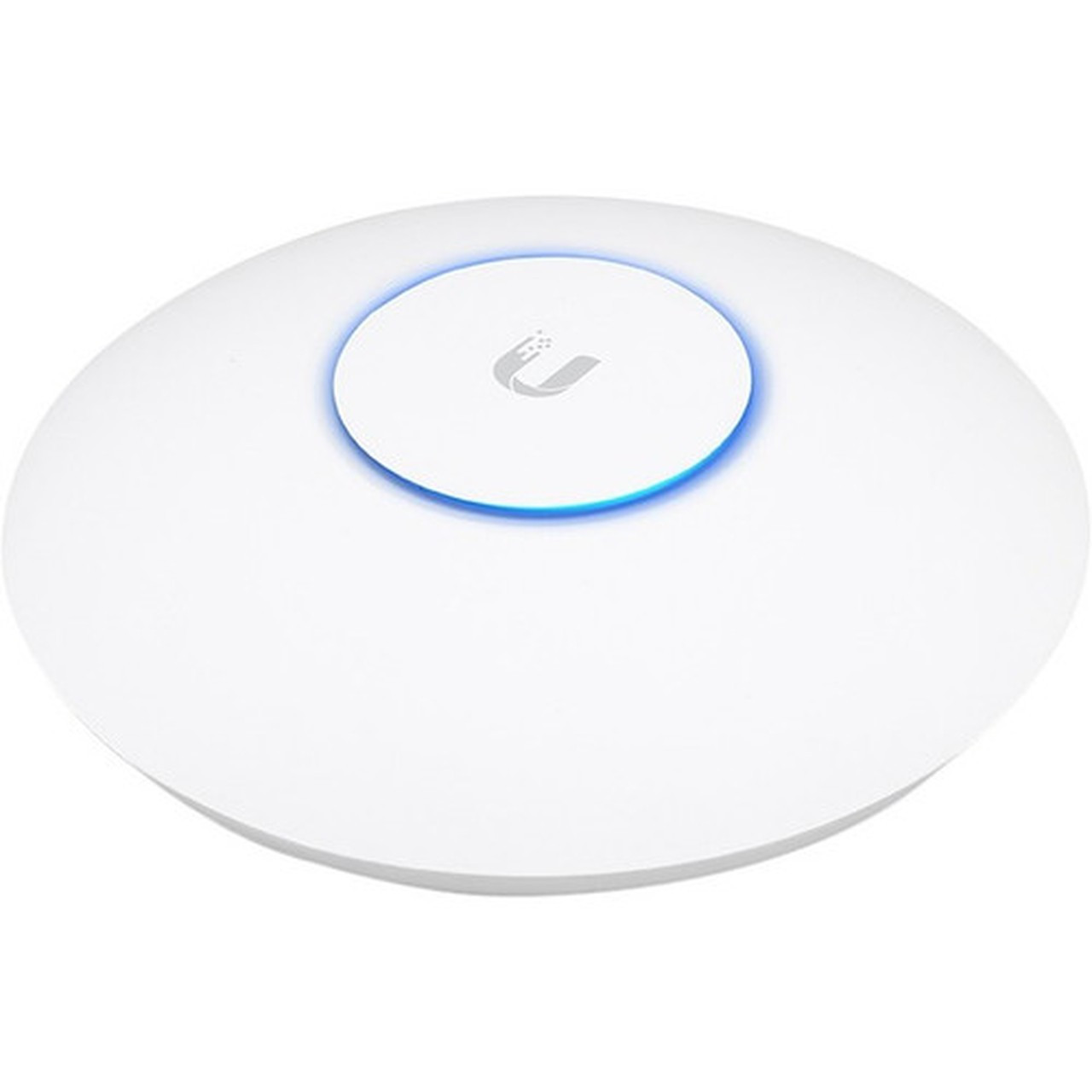

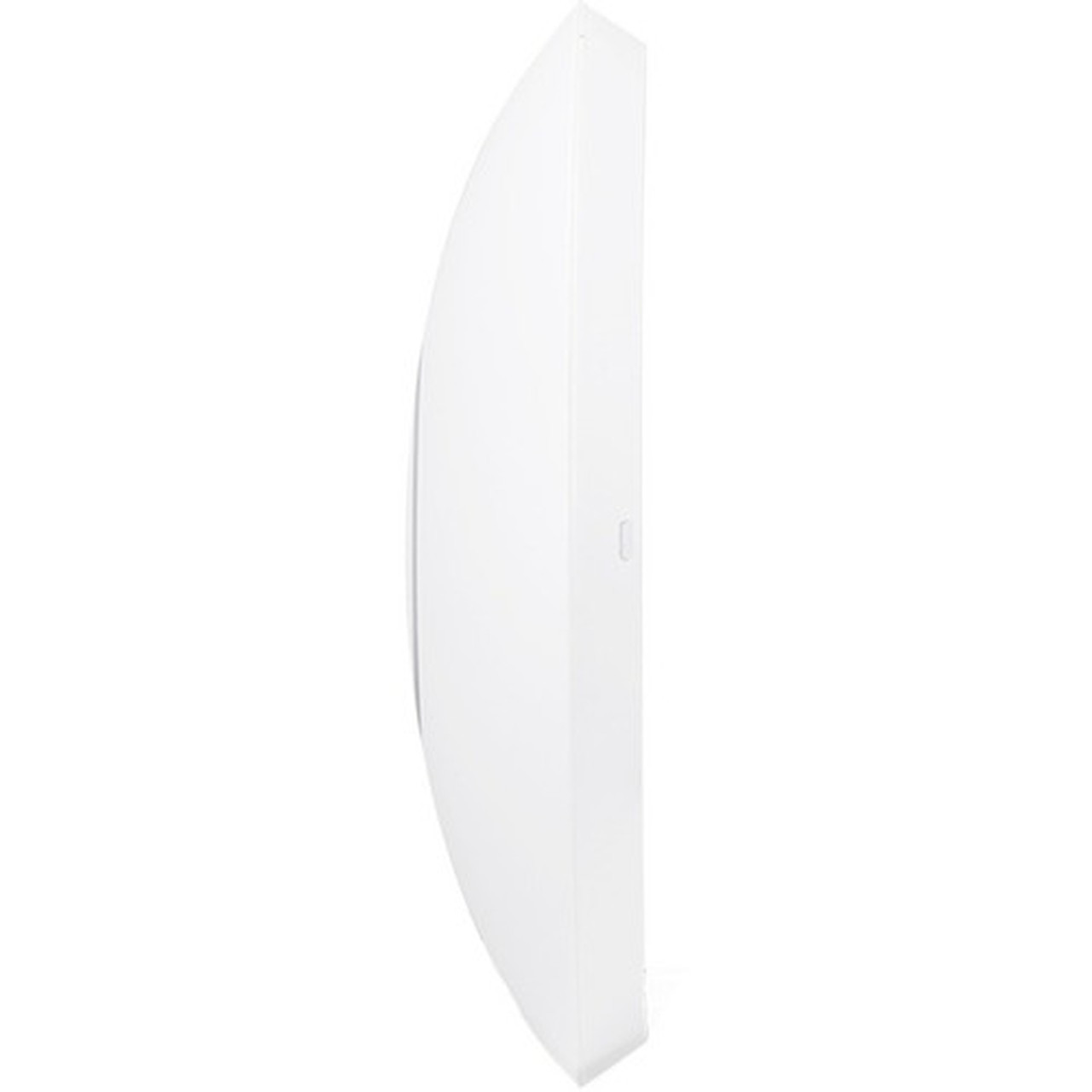

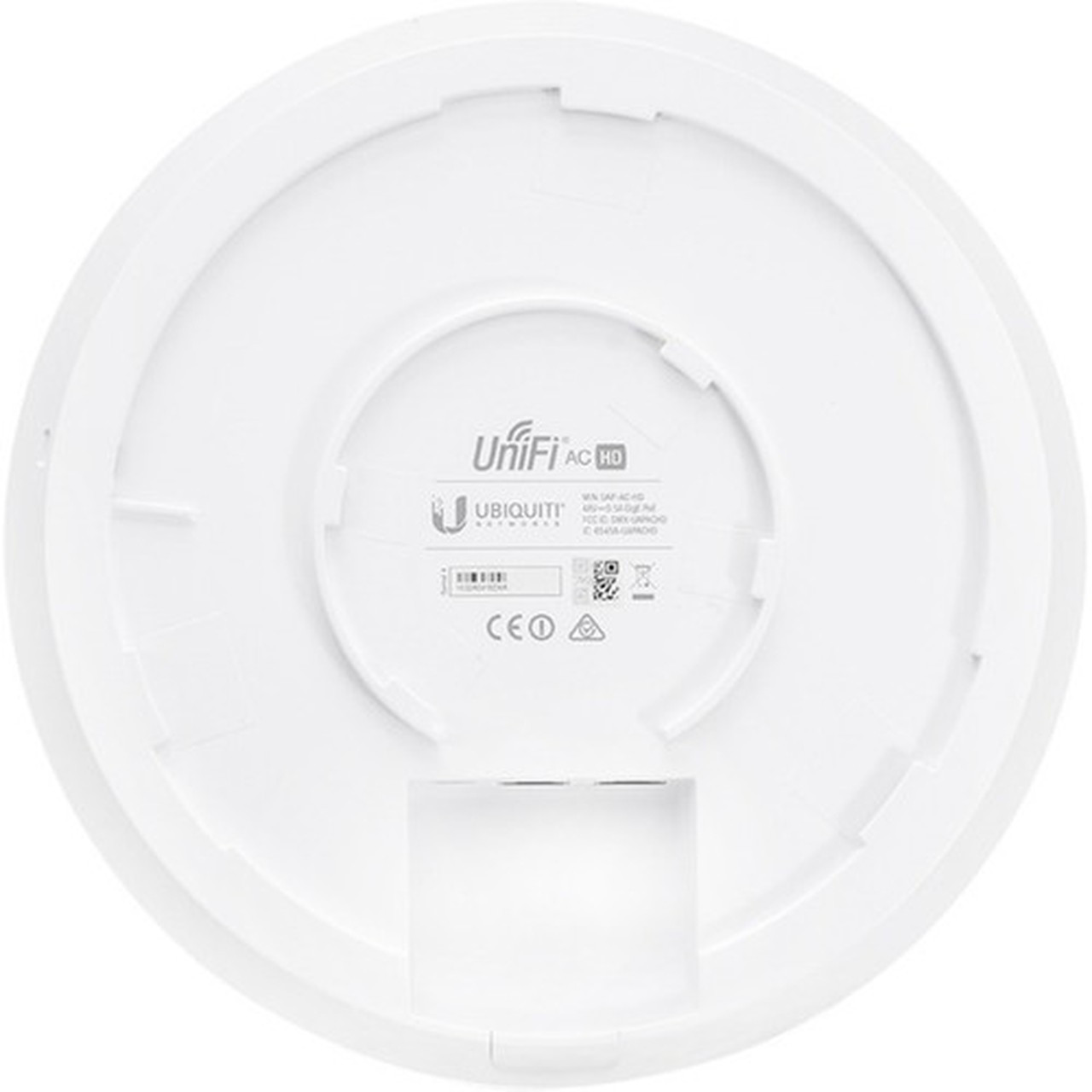

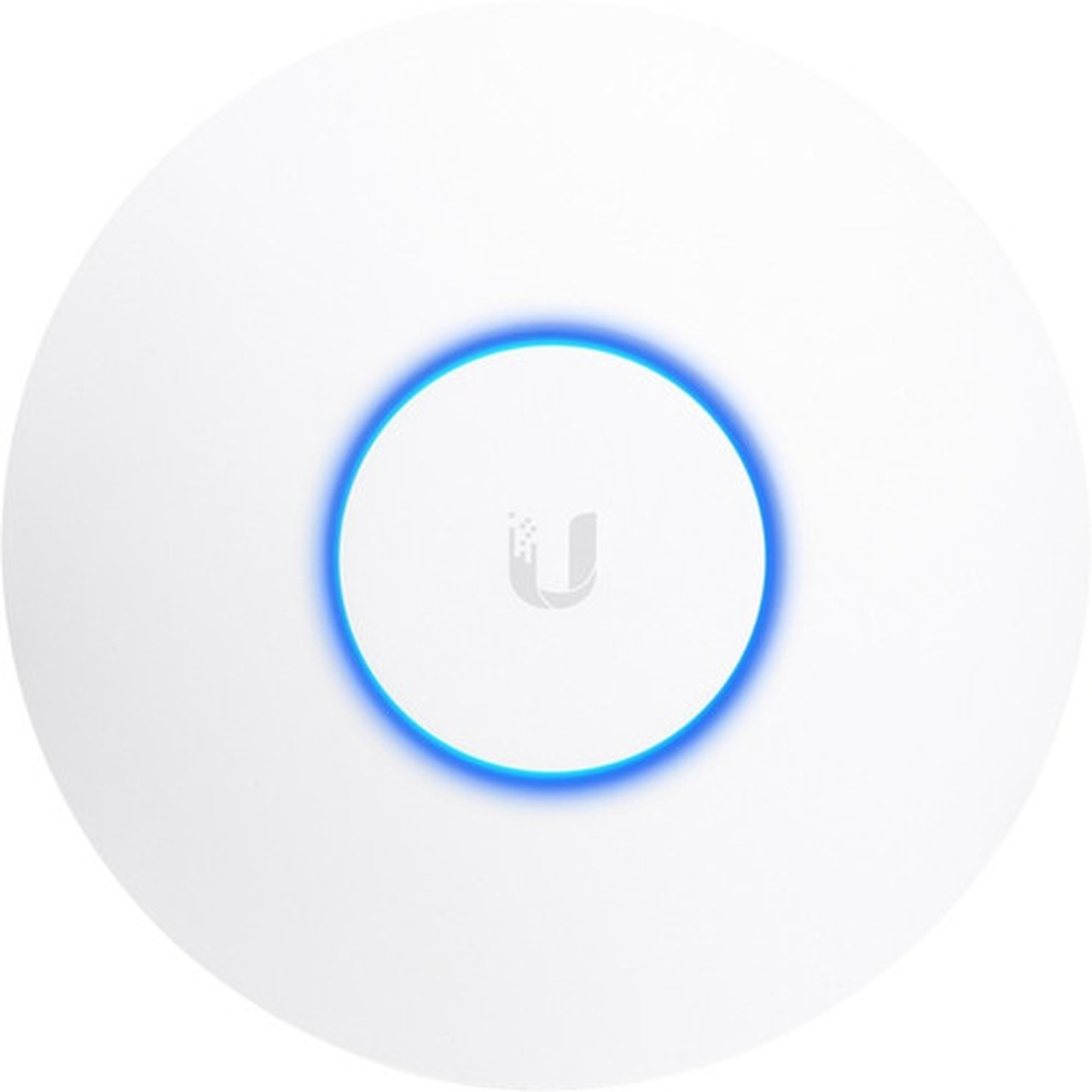

Ubiquiti UniFi AC HD Wireless Access Point - 802.11ac, 1.69 Gbit/s, MU-MIMO, Dual Band (UAP-AC-HD)

Marketing Information:

High-Density Applications Powered by MU-MIMO Technology

802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time - significantly increasing multi-user throughput and overall user experience.

Radio Hardware Acceleration

Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi-user throughput and reduced latency

CPU Hardware Acceleration

Dedicated hardware offload for QoS, Guest Control, and Client Management

Optimized for MU-MIMO

Antenna System Optimized for 802.11ac Wave 2 MU-MIMO Beamforming

Beamforming

Data is sent and received using multiple antennas to increase throughput and range.

Advanced Features in UniFi Controller

UniFi is quickly expanding to a full Software Defined Networking (SDN) solution with seamless integration of high-performance switching, gateways, and more..

Wireless LAN Standard: IEEE 802.11ac

Frequency Band: 2.40 GHz,5 GHz

Wireless Transmission Speed: 1.69 Gbit/s

MIMO Technology: Yes

Beamforming Technology: Yes

Ethernet Technology: Gigabit Ethernet

Number of Network (RJ-45) Ports: 2

PoE (RJ-45) Port: No

PoE PD Port: Yes

VGA: No

HDMI: No

USB: No

Powerline: No

Management Port: No

Form Factor: Ceiling Mountable,Wall Mountable

Height: 1.89" (48.10 mm)

Diameter: 8.66" (220 mm)

Weight (Approximate): 700 g
