SonicWall 03-SSC-0317 SonicWave 681 Wi-Fi 6 Dual-Band Indoor Access Point - 12 Internal Antennas - MU-MIMO - PoE - Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SonicWave 681 leverages Wi-Fi 6 technology to enhance network efficiency, capacity, and performance in high-density environments. It supports key Wi-Fi 6 features like Target Wake Time (TWT) for improved power management on client devices, contributing to longer battery life for mobile devices. The access point uses Orthogonal Frequency Division Multiple Access (OFDMA) to divide channels into smaller sub-channels, allowing multiple devices to transmit data simultaneously and reducing latency.
Security is integrated with WPA3 encryption, providing stronger protection against brute-force attacks. The system also supports WPA2-Enterprise for RADIUS-based authentication, making it suitable for enterprise networks. Advanced wireless intrusion detection and prevention (WIDS/WIPS) capabilities help identify and mitigate threats like rogue access points and unauthorized devices. Management options include a dedicated management port and support for SSL-secured communication protocols.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SonicWave 681 combines high-performance wireless hardware with enterprise-grade security and management features, making it a reliable choice for business and institutional deployments. Its Wi-Fi 6 foundation ensures future-ready connectivity that maximizes bandwidth utilization and supports growing numbers of IoT and mobile devices.
Enhanced Performance
Twelve internal antennas and MU-MIMO technology deliver strong signal coverage and efficient multi-device handling, ideal for crowded wireless environments.
- Increased throughput for data-intensive applications
- Reduced latency for real-time communication and streaming
- Better management of neighboring network interference
Robust Security Suite
Built-in security features protect the network from external threats and unauthorized access, maintaining data integrity and compliance.
- WPA3 and WPA2-ENT encryption for secure authentication
- WIDS/WIPS for active threat detection and remediation
- Rogue AP and device detection to prevent network breaches
Deployment / Use Cases
The SonicWave 681 is tailored for indoor installations where reliable, high-speed wireless access is critical. Its ceiling-mountable form factor and PoE support streamline deployment in environments where running separate power cables is impractical or costly. The access point is well-suited for modern office layouts, educational campuses, healthcare facilities, and retail stores that require consistent coverage and the ability to support numerous connected devices.
In enterprise settings, the SonicWave 681 integrates into existing network infrastructures, supporting RADIUS authentication for secure employee and guest access. For IoT deployments, its Bluetooth 5 capability enables proximity-based services and device management. The included ceiling mounting kit facilitates quick installation, reducing setup time and ensuring a professional finish.
Office & Corporate Networks
Provides stable Wi-Fi for employees, conference rooms, and common areas, with security features that align with corporate IT policies.
Education & Campus Environments
Supports high-density student and faculty connectivity, with management tools for network oversight and threat prevention.
Physical Profile

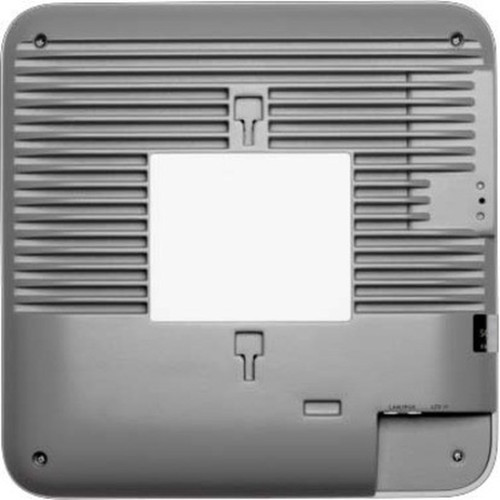

The SonicWave 681 features a compact, low-profile design optimized for ceiling mounting. With dimensions of 8.39 inches in height and width and a depth of 1.54 inches, it blends discreetly into overhead installations. The internal antenna design eliminates external protrusions, maintaining a clean aesthetic. Weighing approximately 2.43 pounds, the access point is lightweight yet durable, built for long-term operation in commercial environments. The form factor includes pre-configured mounting points for secure attachment to standard ceiling tiles or surfaces.
- Width
- 8.39" (213 mm)
- Depth
- 1.54" (39 mm)
- Height
- 8.39" (213 mm)
- Weight
- 2.43 lb (1100 g)
What's in the Box
The package includes all necessary components for immediate deployment of the access point.
Package contents include SonicWave 681 Wireless Access Point Ceiling Mounting Kit, SonicWave 681 Wireless Access Point. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Wi-Fi 6 (802.11ax) dual-band access point for modern wireless networks
- 12 internal antennas with MU-MIMO and beamforming for enhanced coverage and capacity
- Power over Ethernet (PoE) support simplifies installation and reduces cabling
- WPA3 encryption and WIDS/WIPS provide enterprise-grade security
- Ceiling-mountable form factor with included mounting kit for easy deployment
- Bluetooth 5 enables additional connectivity for IoT and proximity services
- USB 3.0 port for peripheral expansion or additional functionality
- TAA compliant and meets environmental standards including RoHS and WEEE
Specifications
| Specifications | |
|---|---|
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 03-SSC-0317 |
| Brand Name | SonicWall |
| Product Line | SonicWave |
| Product Series | 600 |
| Product Model | 681 |
| Product Name | SonicWave 681 Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 12 |
| Number of Internal Antennas | 12 |
| Indoor/Outdoor | Indoor |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,AES,WPA2-ENT |
| Interfaces/Ports | |
| Ethernet Technology | 5 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | RADIUS,SSL |
| Power Description | |
| Power Consumption | 34 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 8.39" (213 mm) |
| Width | 8.39" (213 mm) |
| Depth | 1.54" (39 mm) |
| Weight (Approximate) | 2.43 lb (1100 g) |
| Miscellaneous | |
| Package Contents | SonicWave 681 Wireless Access Point Ceiling Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
User Manual
FAQ
What Wi-Fi standards does the SonicWave 681 support?
The SonicWave 681 supports the latest Wi-Fi 6 standard (IEEE 802.11ax) along with full backward compatibility to earlier standards including 802.11a, b, g, n, and ac. This ensures it works with a wide range of client devices, from legacy equipment to the newest Wi-Fi 6-enabled laptops, smartphones, and tablets.
Does this access point support Power over Ethernet (PoE)?
Yes, the SonicWave 681 includes a PoE PD (Powered Device) port. This allows it to receive both power and data over a single Ethernet cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
How many antennas does the SonicWave 681 have, and are they internal or external?
This access point features 12 internal antennas. The internal design provides a clean, low-profile appearance suitable for ceiling-mounted installations without external antenna protrusions, while still delivering strong signal coverage and performance through MU-MIMO and beamforming technologies.
What security features are included with this wireless access point?
The SonicWave 681 includes WPA3 encryption for enhanced security, along with support for WPA2 and WPA2-Enterprise (WPA2-ENT) with AES encryption. It also features Wireless Intrusion Detection and Prevention Systems (WIDS/WIPS) for active threat monitoring and remediation, plus rogue access point and device detection to protect against unauthorized network intrusions.
Is the SonicWave 681 designed for indoor or outdoor use?
This access point is designed specifically for indoor use. It is optimized for deployment in indoor environments such as offices, schools, retail stores, and healthcare facilities. Its ceiling-mountable form factor and internal antennas make it ideal for overhead installation in commercial buildings.
What is included in the package with the SonicWave 681?
The package includes the SonicWave 681 Wireless Access Point itself and a ceiling mounting kit. The mounting kit contains all necessary hardware for secure installation on standard ceiling surfaces, ensuring you have everything needed for immediate deployment without requiring additional purchases.
