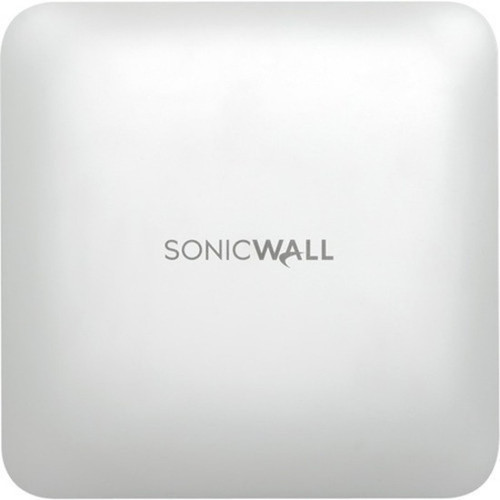

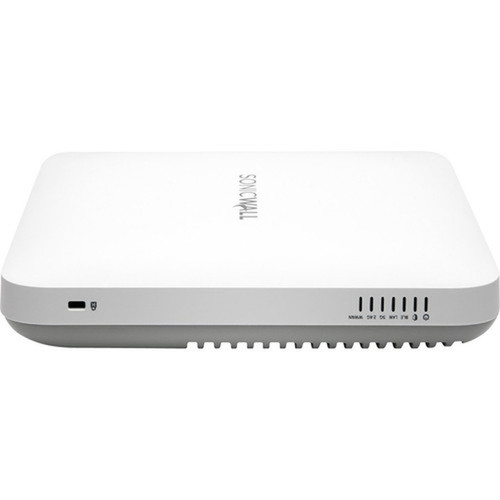

SonicWall 03-SSC-0323 SonicWave 681 Indoor Wi-Fi 6 Access Point - Dual Band - 12 Internal Antennas - PoE - Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point operates as a fully indoor unit with a ceiling-mountable form factor, making it ideal for office ceilings, classrooms, or retail spaces. It draws power via Power over Ethernet (PoE), simplifying installation by eliminating the need for a separate power outlet near the mounting location.
The single RJ-45 Ethernet port supports 5 Gigabit, Gigabit, and Fast Ethernet speeds, providing flexible uplink connectivity. A USB 3.0 port is available for peripheral expansion or firmware updates. Security is robust with WPA3 and WPA2-ENT encryption, while management features include a dedicated management port and support for RADIUS and SSL protocols.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SonicWave 681 combines high-density Wi-Fi 6 performance with enterprise-grade security and flexible deployment options. Its 12 internal antennas and MU-MIMO technology ensure reliable connectivity for multiple concurrent users, reducing latency and improving overall network responsiveness.
Advanced Radio Design
Twelve internal antennas and beamforming technology focus wireless signals toward connected devices, enhancing coverage and stability in crowded RF environments.
Simplified Installation
PoE support allows the access point to receive both power and data over a single Ethernet cable, reducing cabling complexity and installation time.
Enhanced Security Suite
WPA3 encryption provides stronger protection against brute-force attacks, while WPA2-ENT supports enterprise authentication frameworks for secure network access.
Deployment / Use Cases
This access point is suited for medium to large indoor spaces where reliable, high-performance Wi-Fi is critical. Its ceiling-mount design and PoE capability make it a practical choice for offices, educational institutions, healthcare facilities, and retail stores.
In office environments, the SonicWave 681 supports bandwidth-intensive applications like video conferencing and cloud-based collaboration tools. For educational settings, it handles high-density student and faculty connectivity during peak usage periods. Retail locations benefit from its stable coverage for point-of-sale systems, inventory management, and customer Wi-Fi.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The access point features a low-profile, circular design with dimensions of 8.39 inches in width and depth, and a slim 1.54-inch height. Its internal antenna design maintains a clean aesthetic without external protrusions. The unit is constructed for ceiling mounting and includes a mounting kit in the package for straightforward installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 8.39" (213 mm), 8.39" (213 mm), 1.54" (39 mm), 2.43 lb (1100 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.39" (213 mm)
- Depth
- 1.54" (39 mm)
- Height
- 8.39" (213 mm)
- Weight
- 2.43 lb (1100 g)
What's in the Box
The package includes the SonicWave 681 wireless access point and a ceiling mounting kit, providing all necessary hardware for installation.
Package contents include SonicWave 681 Wireless Access Point Ceiling Mounting Kit, SonicWave 681 Wireless Access Point. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Wi-Fi 6 (802.11ax) for increased throughput and reduced latency
- Dual-band operation on 2.40 GHz and 5 GHz frequencies
- 12 internal antennas with MU-MIMO and beamforming technology
- Power over Ethernet (PoE) support for simplified installation
- WPA3, WPA2, AES, and WPA2-ENT encryption standards
- Bluetooth 5 for IoT and location-based services
- Single RJ-45 port supporting 5 Gigabit, Gigabit, and Fast Ethernet
- USB 3.0 port for peripheral expansion
- Ceiling-mountable form factor with included mounting kit
- TAA compliant and environmentally friendly (RoHS, WEEE)
Specifications
| Specifications | |
|---|---|
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 03-SSC-0323 |
| Brand Name | SonicWall |
| Product Line | SonicWave |
| Product Series | 600 |
| Product Model | 681 |
| Product Name | SonicWave 681 Wireless Access Point |
| Packaged Quantity | 4 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 12 |
| Number of Internal Antennas | 12 |
| Indoor/Outdoor | Indoor |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,AES,WPA2-ENT |
| Interfaces/Ports | |
| Ethernet Technology | 5 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | RADIUS,SSL |
| Power Description | |
| Power Consumption | 34 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 8.39" (213 mm) |
| Width | 8.39" (213 mm) |
| Depth | 1.54" (39 mm) |
| Weight (Approximate) | 2.43 lb (1100 g) |
| Miscellaneous | |
| Package Contents | SonicWave 681 Wireless Access Point Ceiling Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
User Manual
FAQ
What Wi-Fi standard does the SonicWave 681 support?
The SonicWave 681 supports Wi-Fi 6, also known as IEEE 802.11ax. This latest standard improves network efficiency, increases throughput, and reduces latency compared to previous Wi-Fi generations like 802.11ac. It maintains backward compatibility with older devices using 802.11 a/b/g/n/ac.
Does this access point support Power over Ethernet?
Yes, the SonicWave 681 includes a PoE PD (Powered Device) port. This allows it to receive both power and data over a single Ethernet cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the ceiling mount location.
How many antennas does the SonicWave 681 have?
This access point features 12 internal antennas. The internal design provides a clean aesthetic without external antenna protrusions, while supporting advanced technologies like MU-MIMO and beamforming to optimize wireless coverage and performance for multiple connected devices.
What security encryption does this access point offer?
The SonicWave 681 supports multiple encryption standards including WPA3, WPA2, AES, and WPA2-ENT. WPA3 provides enhanced protection against brute-force attacks, while WPA2-ENT supports enterprise-grade authentication methods like RADIUS for secure network access in business environments.
Can this access point be mounted on a ceiling?
Yes, the SonicWave 681 is designed for ceiling mounting with a form factor specifically suited for this installation method. The package includes a ceiling mounting kit with all necessary hardware, making it ready for deployment in office ceilings, classrooms, or other indoor overhead locations.
What is the purpose of the USB 3.0 port?
The USB 3.0 port allows for peripheral expansion or firmware updates. While specific compatible peripherals depend on SonicWall's firmware support, this port typically enables connections to storage devices for logging, or to dongles for additional wireless capabilities, providing flexibility for network administrators.
