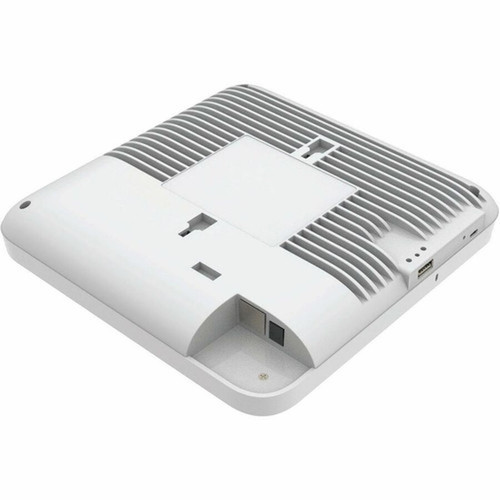

SonicWall 03-SSC-0334 SonicWave 681 Wi-Fi 6 Dual-Band Indoor Access Point - 4. 80 Gbit/s - 12 Internal Antennas - Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SonicWave 681 operates on dual-band frequencies (2.40 GHz and 5 GHz) and incorporates advanced Wi-Fi 6 features such as Target Wake Time (TWT) for improved power efficiency and neighboring network avoidance to reduce interference. Its 12 internal antennas are optimized for consistent coverage and performance in indoor settings.
Connectivity is handled through a single network (RJ-45) port that supports 5 Gigabit Ethernet, Gigabit Ethernet, and Fast Ethernet, with Power over Ethernet (PoE) PD capability for simplified installation. A USB 3.0 port provides additional expansion options, while integrated Bluetooth 5 enables enhanced device connectivity and management.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This access point combines enterprise-grade security with high-speed wireless performance, offering a future-proof solution for growing networks. Its Wi-Fi 6 foundation ensures compatibility with the latest devices while improving overall network efficiency and client experience.
Enhanced Security Suite
Built-in WIDS (Wireless Intrusion Detection System) and WIPS (Wireless Intrusion Prevention System) provide active threat detection and remediation, alongside rogue AP and device detection to safeguard your wireless environment.
- WPA3/WPA2 encryption
- RADIUS/SSL support
- WIDS/WIPS capabilities
Optimized Radio Performance
With 12 internal antennas and beamforming technology, the SonicWave 681 delivers focused signal coverage and reduced latency, supporting more concurrent users and applications without degradation.
- Beamforming technology
- MU-MIMO support
- 4.80 Gbit/s throughput
Deployment / Use Cases
The SonicWave 681 is ideal for medium to large enterprise deployments where reliable, high-speed Wi-Fi is essential. Its ceiling-mountable form factor and PoE support make it well-suited for offices, schools, healthcare facilities, and retail environments that require seamless wireless coverage.
Common use cases include supporting dense client environments with multiple devices per user, enabling bandwidth-heavy applications like video conferencing and cloud-based software, and providing secure guest access with advanced threat protection. The access point's management port and USB connectivity allow for flexible network integration and monitoring.
Enterprise Office Networks
Deploy in corporate offices to deliver stable Wi-Fi for employees, supporting productivity tools, VoIP systems, and collaborative applications with minimal latency.
Education and Healthcare
Install in classrooms or medical facilities to handle high device density, ensuring reliable connectivity for learning platforms, electronic health records, and IoT devices.
Physical Profile
The SonicWave 681 features a compact, low-profile design optimized for ceiling mounting, with dimensions of 8.39" (213 mm) in width and height, and a depth of 1.54" (39 mm). Its internal antenna form factor maintains a clean aesthetic while providing robust wireless performance. Weighing approximately 2.43 lb (1100 g), it is easy to install and integrates discreetly into indoor environments.
- Width
- 8.39" (213 mm)
- Depth
- 1.54" (39 mm)
- Height
- 8.39" (213 mm)
- Weight
- 2.43 lb (1100 g)
What's in the Box
The package includes everything needed for immediate deployment, ensuring a straightforward setup process.
Package contents include SonicWave 681 Wireless Access Point Ceiling Mounting Kit, SonicWave 681 Wireless Access Point. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Wi-Fi 6 (802.11ax) dual-band access point
- 4.80 Gbit/s wireless transmission speed
- 12 internal antennas with beamforming technology
- Power over Ethernet (PoE) PD support
- Ceiling-mountable form factor for easy installation
- WPA3, WPA2, AES, and WPA2-ENT encryption
- Integrated Bluetooth 5 for enhanced connectivity
- USB 3.0 port for expansion options
- WIDS and WIPS for advanced threat protection
- TAA compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 03-SSC-0334 |
| Brand Name | SonicWall |
| Product Line | SonicWave |
| Product Series | 600 |
| Product Model | 681 |
| Product Name | SonicWave 681 Wireless Access Point |
| Packaged Quantity | 8 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 12 |
| Number of Internal Antennas | 12 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 4.80 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,AES,WPA2-ENT |
| Interfaces/Ports | |
| Ethernet Technology | 5 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | RADIUS,SSL |
| Power Description | |
| Power Consumption | 34 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 8.39" (213 mm) |
| Width | 8.39" (213 mm) |
| Depth | 1.54" (39 mm) |
| Weight (Approximate) | 2.43 lb (1100 g) |
| Miscellaneous | |
| Package Contents | SonicWave 681 Wireless Access Point Ceiling Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
User Manual
FAQ
What Wi-Fi generation does the SonicWave 681 support?
The SonicWave 681 supports Wi-Fi 6 (IEEE 802.11ax), the latest Wi-Fi standard that offers improved throughput, reduced latency, better power management, and enhanced performance in high-density environments compared to previous generations.
Does this access point support Power over Ethernet (PoE)?
Yes, the SonicWave 681 includes a PoE PD (Power over Ethernet Powered Device) port. This allows the access point to receive both power and data over a single Ethernet cable, simplifying installation and reducing the need for additional power outlets near the mounting location.
How many antennas does the SonicWave 681 have, and are they internal or external?
The SonicWave 681 features 12 internal antennas. These integrated antennas provide optimized wireless coverage and performance while maintaining a sleek, low-profile design suitable for ceiling mounting in indoor environments.
What is the wireless transmission speed of this access point?
The SonicWave 681 delivers a wireless transmission speed of up to 4.80 Gbit/s. This high throughput supports bandwidth-intensive applications and multiple concurrent users, making it ideal for enterprise deployments requiring fast and reliable Wi-Fi connectivity.
Can the SonicWave 681 be mounted on ceilings?
Yes, the SonicWave 681 is designed with a ceiling-mountable form factor. The package includes a ceiling mounting kit, allowing for easy installation in offices, schools, or other indoor spaces where overhead placement optimizes wireless coverage and minimizes obstructions.
What security features are included with this access point?
The SonicWave 681 offers comprehensive security features, including WPA3, WPA2, AES, and WPA2-ENT encryption standards. It also supports communication protocols like RADIUS and SSL, and includes WIDS (Wireless Intrusion Detection System) and WIPS (Wireless Intrusion Prevention System) for active threat detection and remediation, along with rogue AP and device detection.
