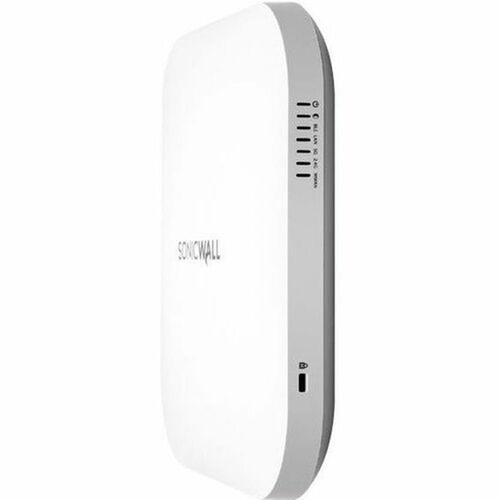

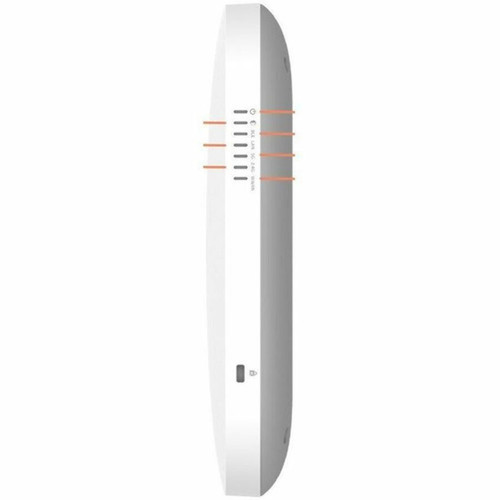

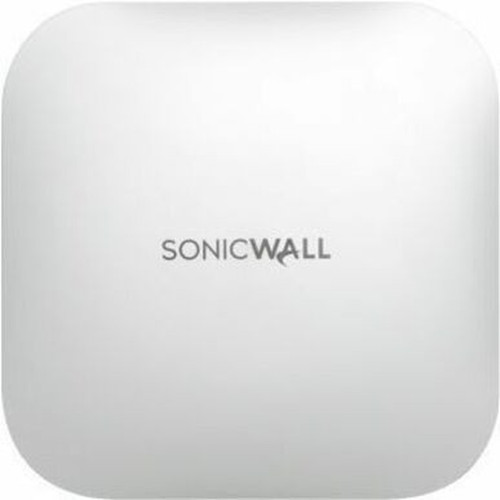

SonicWall 03-SSC-0336 SonicWave 641 Wi-Fi 6 Dual-Band Indoor Wireless Access Point - 4. 80 Gbit/s - 8 Internal Antennas - PoE - Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SonicWave 641 operates on dual frequency bands (2.40 GHz and 5 GHz) with a maximum wireless transmission speed of 4.80 Gbit/s. It incorporates Multi-User MIMO (MU-MIMO) and beamforming technologies to optimize signal direction and capacity, supporting multiple concurrent users without performance degradation.
This access point features a single 2.5 Gigabit Ethernet port with Power over Ethernet (PoE) support, simplifying installation by delivering both data and power over a single cable. A USB 3.0 port is included for additional connectivity options, while integrated Bluetooth 5 enables proximity-based services and device management.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SonicWave 641 provides significant advantages for network administrators seeking to deploy future-proof wireless infrastructure. Its Wi-Fi 6 capabilities deliver increased throughput and reduced latency, essential for bandwidth-intensive applications like video conferencing, cloud computing, and IoT device management.
Enhanced Security Features
Built-in Wireless Intrusion Detection System (WIDS) and Wireless Intrusion Prevention System (WIPS) offer active threat detection and remediation, while rogue access point and device detection help maintain network integrity.
- WPA3 encryption support
- RADIUS and SSL protocols
- WPA2-ENT for enterprise authentication
Power Efficiency
Target Wake Time (TWT) technology improves power management for connected devices, extending battery life for mobile endpoints while maintaining network responsiveness.
- Better power management
- Longer client battery life
- Reduced network congestion
Deployment / Use Cases
The SonicWave 641 is particularly well-suited for medium to large business environments where reliable, high-speed wireless connectivity is critical. Its ceiling-mountable design and internal antennas make it ideal for office buildings, conference centers, and retail spaces where aesthetic considerations are important.
Educational institutions can benefit from the access point's ability to handle dense client environments, supporting classrooms with multiple devices simultaneously. Healthcare facilities appreciate the security features and stable connections for medical devices and patient records systems.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Enterprise Office Deployment
Provides consistent coverage throughout open-plan offices and meeting rooms, supporting video collaboration tools and cloud applications with minimal latency.
Retail & Hospitality Environments
Delivers reliable guest Wi-Fi while maintaining secure backend connections for point-of-sale systems and inventory management applications.
Physical Profile
The SonicWave 641 features a compact, square design measuring 7.87 inches in width and height, with a slim 1.46-inch depth that facilitates discreet ceiling installation. Its internal antenna design eliminates external protrusions, creating a clean appearance suitable for professional environments. The unit weighs approximately 1.87 pounds, making it easy to handle during installation while providing sufficient stability when mounted.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.87" (200 mm), 7.87" (200 mm), 1.46" (37 mm), 1.87 lb (850 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 7.87" (200 mm)
- Depth
- 1.46" (37 mm)
- Height
- 7.87" (200 mm)
- Weight
- 1.87 lb (850 g)
What's in the Box
Each package includes the complete hardware needed for immediate deployment of the wireless access point.
Highlights
- Wi-Fi 6 (802.11ax) technology for enhanced performance
- Dual-band operation on 2.40 GHz and 5 GHz frequencies
- 4.80 Gbit/s maximum wireless throughput
- Eight internal antennas for optimized coverage
- Power over Ethernet (PoE) support for simplified installation
- MU-MIMO and beamforming technologies
- WPA3, WPA2, AES, and WPA2-ENT encryption standards
- Ceiling-mountable form factor with internal antennas
- Bluetooth 5 for proximity services
- TAA compliant and environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 03-SSC-0336 |
| Brand Name | SonicWall |
| Product Line | SonicWave |
| Product Series | 600 |
| Product Model | 641 |
| Product Name | SonicWave 641 Wireless Access Point |
| Packaged Quantity | 4 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/e/i/r/k/v/w |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 8 |
| Number of Internal Antennas | 8 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 4.80 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,AES,WPA2-ENT |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | RADIUS,SSL |
| Power Description | |
| Power Consumption | 23 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 7.87" (200 mm) |
| Width | 7.87" (200 mm) |
| Depth | 1.46" (37 mm) |
| Weight (Approximate) | 1.87 lb (850 g) |
| Miscellaneous | |
| Package Contents | SonicWave 641 Wireless Access Point Ceiling Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
User Manual
FAQ
What Wi-Fi generation does the SonicWave 641 support?
The SonicWave 641 supports Wi-Fi 6 (IEEE 802.11ax), the latest generation of wireless technology. This provides significant improvements over previous standards, including higher throughput, reduced latency, better performance in dense environments, and enhanced power efficiency for connected devices through features like Target Wake Time.
Does this access point support Power over Ethernet?
Yes, the SonicWave 641 includes a PoE PD (Power over Ethernet Powered Device) port. This allows the access point to receive both data and electrical power over a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location. The unit consumes approximately 23 watts of power.
How many antennas does the SonicWave 641 have and what type are they?
The SonicWave 641 features eight internal antennas. These integrated antennas provide optimized radio coverage while maintaining a clean, professional appearance without external antenna protrusions. The internal design is particularly suitable for ceiling-mounted installations in office environments where aesthetics are important.
What is the maximum wireless throughput of this access point?
The SonicWave 641 delivers a maximum wireless transmission speed of 4.80 Gbit/s. This high throughput capacity supports bandwidth-intensive applications like video conferencing, large file transfers, and cloud-based services while maintaining network responsiveness for multiple concurrent users across both 2.40 GHz and 5 GHz frequency bands.
What security features are included with the SonicWave 641?
The access point includes comprehensive security features with support for WPA3, WPA2, AES, and WPA2-ENT encryption standards. It also incorporates Wireless Intrusion Detection System (WIDS) and Wireless Intrusion Prevention System (WIPS) capabilities for threat detection and remediation, along with rogue access point and device detection to maintain network integrity.
Is the SonicWave 641 suitable for ceiling mounting?
Yes, the SonicWave 641 is specifically designed for ceiling mounting with a form factor optimized for this installation method. The package includes a ceiling mounting kit, and the unit's compact dimensions (7.87" x 7.87" x 1.46") and internal antenna design make it ideal for discreet installation in office ceilings, conference rooms, and other commercial spaces.
