SonicWall 03-SSC-0338 SonicWave 681 Wi-Fi 6 Dual-Band Indoor Wireless Access Point - 12 Internal Antennas - PoE - Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SonicWave 681 implements the complete Wi-Fi 6 feature set, including Target Wake Time (TWT) for better power management of client devices and neighboring network avoidance to reduce interference. This access point features comprehensive wireless intrusion detection and prevention capabilities, with WIDS for threat detection and WIPS for active threat remediation against rogue access points and unauthorized devices.
Connectivity is handled through a single RJ-45 network port that supports multiple Ethernet standards up to 5 Gigabit Ethernet and includes Power over Ethernet (PoE) PD functionality for simplified installation. The integrated USB 3.0 port provides additional expansion possibilities, while the dedicated management port offers administrative access for configuration and monitoring.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SonicWave 681 combines enterprise-grade wireless performance with simplified deployment features. The ceiling-mountable form factor with included mounting hardware enables clean, professional installations in office environments, educational facilities, and retail spaces where aesthetic considerations matter.
Advanced Security Features
Beyond standard encryption, this access point includes sophisticated wireless security capabilities that detect and respond to threats in real-time, protecting your network from unauthorized access attempts and malicious activity.
- WPA3 encryption support
- Rogue AP detection
- Active threat remediation
Efficient Network Management
With support for RADIUS authentication and SSL communication protocols, the SonicWave 681 integrates seamlessly into existing network security infrastructures while providing administrators with robust management options.
- RADIUS authentication
- SSL communication
- Dedicated management port
Deployment / Use Cases
The SonicWave 681 is specifically designed for indoor environments where high-density client connectivity is required. Its ceiling-mountable design makes it ideal for office buildings, schools, hospitals, and retail establishments where centralized wireless coverage needs to reach multiple floors or large open areas.
This access point excels in environments with mixed device types, from legacy 802.11n devices to the latest Wi-Fi 6 compatible smartphones, tablets, and laptops. The dual-band operation allows network administrators to segregate traffic by frequency band, optimizing performance for different application requirements while maintaining backward compatibility with older wireless standards.
High-Density Office Environments
With 12 internal antennas and MU-MIMO technology, the SonicWave 681 efficiently handles numerous simultaneous connections in crowded office spaces, conference rooms, and collaborative work areas.
Educational Institution Deployments
The ceiling-mounted installation keeps access points secure and out of reach while providing consistent coverage throughout classrooms, libraries, and administrative areas with support for diverse educational devices.
Physical Profile

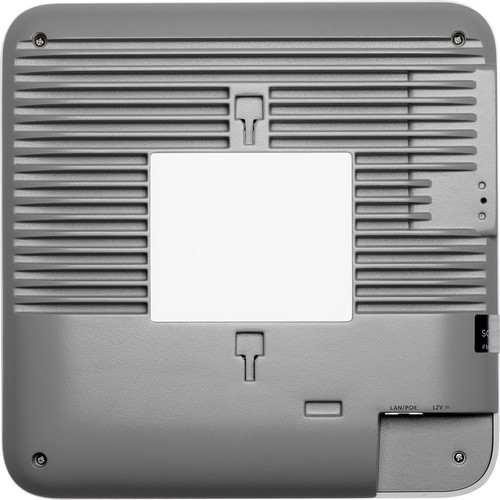

The SonicWave 681 features a compact, circular design measuring 8.39 inches in both height and width with a depth of just 1.54 inches. Weighing approximately 2.43 pounds, this access point installs cleanly into ceiling tiles or mounts directly to ceiling surfaces using the included mounting kit. The internal antenna design eliminates external protrusions, creating a low-profile appearance that blends discreetly into commercial environments.
- Width
- 8.39" (213 mm)
- Depth
- 1.54" (39 mm)
- Height
- 8.39" (213 mm)
- Weight
- 2.43 lb (1100 g)
What's in the Box
Each SonicWave 681 wireless access point ships complete with all necessary components for immediate deployment.
Highlights
- Wi-Fi 6 (802.11ax) wireless standard with dual-band operation
- 12 internal antennas with Multi User MIMO and beamforming technology
- Power over Ethernet (PoE) PD support for simplified installation
- Ceiling-mountable form factor with included mounting hardware
- Advanced security with WPA3 encryption and wireless intrusion prevention
- Single RJ-45 port supporting up to 5 Gigabit Ethernet
- USB 3.0 port for additional connectivity options
- Target Wake Time (TWT) for improved client device power management
- RADIUS and SSL communication protocol support
- TAA compliant and meets multiple environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 03-SSC-0338 |
| Brand Name | SonicWall |
| Product Line | SonicWave |
| Product Series | 600 |
| Product Model | 681 |
| Product Name | SonicWave 681 Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 12 |
| Number of Internal Antennas | 12 |
| Indoor/Outdoor | Indoor |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,AES,WPA2-ENT |
| Interfaces/Ports | |
| Ethernet Technology | 5 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | RADIUS,SSL |
| Power Description | |
| Power Consumption | 34 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 8.39" (213 mm) |
| Width | 8.39" (213 mm) |
| Depth | 1.54" (39 mm) |
| Weight (Approximate) | 2.43 lb (1100 g) |
| Miscellaneous | |
| Package Contents | SonicWave 681 Wireless Access Point Ceiling Mounting Kit |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
User Manual
FAQ
What Wi-Fi standard does the SonicWave 681 support?
The SonicWave 681 supports the latest Wi-Fi 6 standard (IEEE 802.11ax) along with backward compatibility for previous standards including 802.11a/b/g/n/ac. This ensures compatibility with both modern Wi-Fi 6 devices and legacy wireless equipment while delivering improved throughput, reduced latency, and better power management features characteristic of the Wi-Fi 6 specification.
Does this access point support Power over Ethernet?
Yes, the SonicWave 681 includes a Power over Ethernet (PoE) PD port on its single RJ-45 network interface. This allows the access point to receive both data connectivity and electrical power through a single Ethernet cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
How many antennas does this access point have and are they internal or external?
The SonicWave 681 features 12 total antennas, all of which are internal to the device housing. The internal antenna design provides a clean, low-profile appearance while still delivering strong wireless performance through advanced Multi User MIMO and beamforming technologies that focus signals toward connected devices for improved coverage and reliability.
What mounting options are available for this wireless access point?
This access point is designed specifically for ceiling mounting and includes a complete ceiling mounting kit in the package. The form factor and mounting hardware support installation in standard ceiling tile grids or direct mounting to ceiling surfaces, making it ideal for commercial environments where access points need to be positioned centrally for optimal coverage while maintaining aesthetic considerations.
What security features does the SonicWave 681 include?
The SonicWave 681 provides comprehensive wireless security including support for WPA3, WPA2, AES, and WPA2-ENT encryption standards. Beyond encryption, it features wireless intrusion detection (WIDS) for threat monitoring and wireless intrusion prevention (WIPS) for active threat remediation, along with rogue access point and unauthorized device detection capabilities to protect your network from security threats.
What is included in the package with the SonicWave 681?
Each SonicWave 681 wireless access point package contains the access point unit itself plus a complete ceiling mounting kit. The mounting kit includes all necessary hardware for installing the access point in ceiling tile grids or on ceiling surfaces, providing everything needed for immediate deployment without requiring additional purchase of mounting components.
