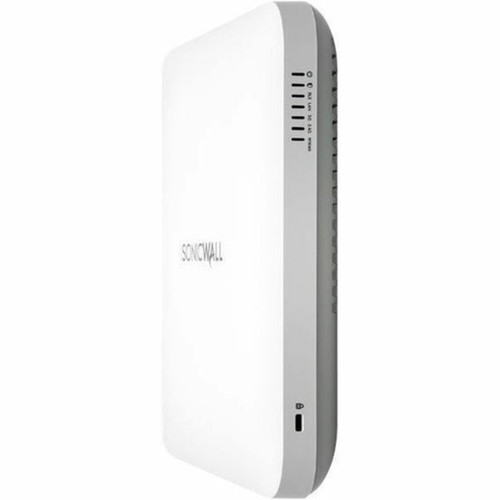

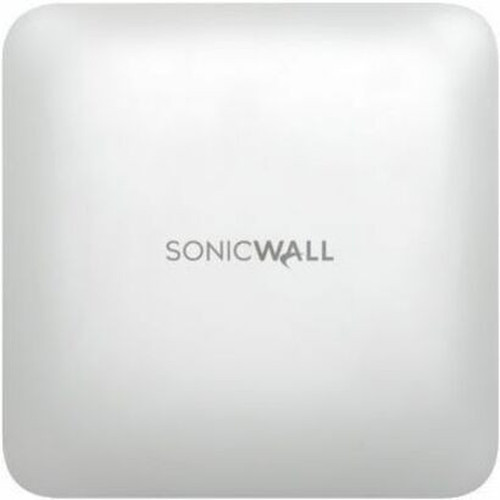

SonicWall 03-SSC-0343 SonicWave 681 Wi-Fi 6 Dual-Band Indoor Access Point - 4. 80 Gbit/s - 12 Internal Antennas - Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SonicWave 681 implements the latest IEEE 802.11ax (Wi-Fi 6) wireless standard, which includes technologies like OFDMA and Target Wake Time (TWT) to improve efficiency in congested networks. These advancements help reduce latency, improve power management for connected devices, and provide better neighboring network avoidance compared to previous Wi-Fi generations.
Security is comprehensive with support for WPA3, WPA2, AES, and WPA2-ENT encryption standards. The access point includes Wireless Intrusion Detection System (WIDS) for threat detection and Wireless Intrusion Prevention System (WIPS) for active threat remediation, along with rogue access point and device detection capabilities. Management options include a dedicated management port and USB 3.0 connectivity for additional configuration flexibility.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SonicWave 681 provides several distinct advantages for organizations deploying or upgrading their wireless infrastructure. Its Wi-Fi 6 implementation delivers significantly higher throughput and reduced latency compared to previous generations, while improved power management extends battery life for connected mobile devices.
Advanced Radio Performance
With 12 internal antennas and MU-MIMO technology, the access point maintains strong, consistent connections to multiple clients simultaneously, even in challenging RF environments.
- 12 internal antennas for optimal coverage
- Beamforming technology focuses signal toward clients
- Dual-band operation reduces congestion
Enterprise Security Features
Comprehensive security capabilities protect against wireless threats while maintaining compliance with modern encryption standards.
- WPA3 encryption for enhanced security
- WIDS/WIPS for threat detection and prevention
- Rogue AP and device detection
Deployment / Use Cases
The SonicWave 681 is designed for ceiling-mounted indoor installations in commercial, educational, healthcare, and enterprise environments. Its form factor and PoE support make it ideal for deployment in offices, classrooms, retail spaces, and other areas where discreet, high-performance wireless coverage is required.
This access point excels in high-density scenarios such as conference rooms, lecture halls, and open office spaces where multiple devices compete for bandwidth. The Wi-Fi 6 technology efficiently manages numerous concurrent connections while maintaining performance for latency-sensitive applications like video conferencing, VoIP, and real-time collaboration tools.
Office & Commercial Spaces
Provide reliable, high-speed Wi-Fi for employee devices, guest networks, and IoT equipment throughout office buildings and commercial facilities.
Educational Environments
Support classroom technology, student devices, and administrative systems with robust wireless connectivity that scales with device density.
Physical Profile
The SonicWave 681 features a compact, ceiling-mountable design measuring 8.39" (213 mm) in width and height, with a depth of 1.54" (39 mm). This low-profile form factor blends discreetly into ceiling tiles while providing omnidirectional coverage. The unit weighs approximately 2.43 lb (1100 g) and includes all necessary hardware for ceiling installation in the mounting kit.
- Width
- 8.39" (213 mm)
- Depth
- 1.54" (39 mm)
- Height
- 8.39" (213 mm)
- Weight
- 2.43 lb (1100 g)
What's in the Box
The package includes everything needed for immediate deployment of the access point.
Package contents include SonicWave 681 Wireless Access Point Ceiling Mounting Kit, SonicWave 681 Wireless Access Point. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Wi-Fi 6 (802.11ax) wireless standard for improved performance
- Dual-band operation on 2.4 GHz and 5 GHz frequencies
- 4.80 Gbit/s maximum wireless transmission speed
- 12 internal antennas with MU-MIMO and beamforming technology
- Single 5 Gigabit Ethernet port with PoE support
- WPA3, WPA2, AES, and WPA2-ENT encryption standards
- Bluetooth 5.0 for location services and device management
- Ceiling-mountable form factor for discreet installation
- WIDS/WIPS for wireless threat detection and prevention
- USB 3.0 port for additional configuration options
Specifications
| Specifications | |
|---|---|
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 03-SSC-0343 |
| Brand Name | SonicWall |
| Product Line | SonicWave |
| Product Series | 600 |
| Product Model | 681 |
| Product Name | SonicWave 681 Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 12 |
| Number of Internal Antennas | 12 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 4.80 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,AES,WPA2-ENT |
| Interfaces/Ports | |
| Ethernet Technology | 5 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | RADIUS,SSL |
| Power Description | |
| Power Consumption | 34 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 8.39" (213 mm) |
| Width | 8.39" (213 mm) |
| Depth | 1.54" (39 mm) |
| Weight (Approximate) | 2.43 lb (1100 g) |
| Miscellaneous | |
| Package Contents | SonicWave 681 Wireless Access Point Ceiling Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
User Manual
FAQ
What Wi-Fi generation does the SonicWave 681 support?
The SonicWave 681 supports Wi-Fi 6, also known as IEEE 802.11ax. This latest wireless standard provides significant improvements over previous generations, including higher throughput, reduced latency, better power management for connected devices, and more efficient operation in congested environments with multiple clients.
Does this access point support Power over Ethernet (PoE)?
Yes, the SonicWave 681 includes a PoE PD (Powered Device) port. This allows the access point to receive both data and electrical power over a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location. The unit consumes approximately 34 watts of power.
How many antennas does the SonicWave 681 have and what type are they?
The access point features 12 internal antennas. These integrated antennas provide omnidirectional coverage while maintaining a clean, low-profile appearance. The internal design protects the antennas from physical damage and environmental factors, making the unit suitable for various indoor installation scenarios.
What security features are included with this wireless access point?
The SonicWave 681 includes comprehensive security features with support for WPA3, WPA2, AES, and WPA2-ENT encryption standards. It also incorporates Wireless Intrusion Detection System (WIDS) for threat detection, Wireless Intrusion Prevention System (WIPS) for active threat remediation, and rogue access point/device detection capabilities to identify unauthorized wireless devices on the network.
What is the maximum wireless throughput of the SonicWave 681?
This access point delivers a maximum wireless transmission speed of 4.80 Gbit/s. This high throughput capacity supports bandwidth-intensive applications and high-density client environments, making it suitable for modern enterprise deployments where multiple users simultaneously access network resources, stream media, or use real-time collaboration tools.
How is the SonicWave 681 typically mounted and installed?
The SonicWave 681 is designed for ceiling mounting and includes a complete ceiling mounting kit in the package. The compact form factor measures 8.39" × 8.39" × 1.54" and weighs approximately 2.43 lb, allowing for discreet installation in standard ceiling tiles. The PoE capability simplifies deployment by requiring only a single Ethernet cable run to each installation point.
