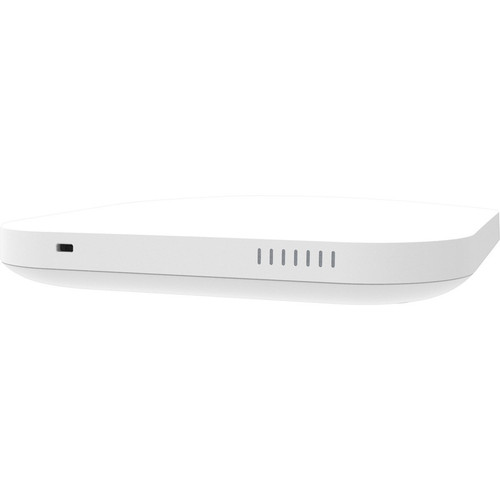

SonicWall 03-SSC-0348 SonicWave 641 Wi-Fi 6 Dual-Band Indoor Wireless Access Point - 8 Internal Antennas - 2. 5GbE - PoE - MU-MIMO - Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SonicWave 641 implements Wi-Fi 6 (802.11ax) technology, which includes support for advanced standards like 802.11e, i, r, k, v, and w. This comprehensive protocol support enables features such as improved quality of service, faster roaming, and enhanced network management. The access point utilizes Multi User MIMO (MU-MIMO) technology to communicate with multiple devices simultaneously, reducing latency and improving overall network efficiency.
Beamforming technology focuses wireless signals directly toward connected devices, strengthening connections and extending effective range. The single 2.5 Gigabit Ethernet port provides high-speed uplink connectivity, while Power over Ethernet (PoE) support simplifies installation by delivering both data and power through a single cable. The integrated USB 3.0 port offers expansion capabilities for additional peripherals or storage.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SonicWave 641 delivers several distinct advantages for business wireless deployments. Its Wi-Fi 6 implementation provides increased throughput and reduced latency compared to previous generations, while advanced power management features help extend battery life for connected devices. The access point includes sophisticated wireless intrusion detection and prevention systems (WIDS/WIPS) that identify and remediate security threats in real time.
Enhanced Security Features
Beyond standard encryption, the SonicWave 641 includes rogue access point and device detection capabilities. This helps network administrators identify unauthorized devices attempting to connect to the network or mimic legitimate access points.
- WPA3 encryption support
- RADIUS authentication
- Rogue AP detection
- Active threat remediation
Advanced Wi-Fi 6 Capabilities
The access point implements Target Wake Time (TWT) technology, which allows devices to schedule their wake periods for data transmission. This significantly reduces power consumption for battery-powered IoT devices and mobile endpoints.
- Target Wake Time (TWT)
- Neighboring network avoidance
- Increased spectral efficiency
- Better congestion management
Deployment / Use Cases
The SonicWave 641 is particularly well-suited for medium to large office environments where consistent wireless coverage and high client density are priorities. Its ceiling-mountable design makes it ideal for open-plan offices, conference rooms, and collaborative workspaces where wall or desk mounting might be impractical. The access point's PoE support simplifies installation in locations where power outlets are limited or difficult to access.
Educational institutions benefit from the SonicWave 641's ability to handle numerous simultaneous connections in classrooms and lecture halls. Retail environments can leverage the Bluetooth 5 capability for proximity marketing, asset tracking, or customer engagement applications alongside traditional Wi-Fi connectivity. The TAA compliance makes this access point suitable for government and public sector deployments where sourcing requirements must be met.
Office Environment Deployment
In corporate settings, multiple SonicWave 641 access points can be deployed to create seamless roaming throughout office floors. The ceiling mounting keeps devices out of sight while providing optimal radio coverage from above work areas.
- Ceiling mounting for discreet installation
- Seamless roaming between access points
- High-density client support
- Centralized management capabilities
Education & Campus Use
Schools and universities can deploy these access points in classrooms, libraries, and common areas to support student devices, interactive whiteboards, and campus IoT deployments. The advanced security features help protect sensitive student data and network resources.
- High-density classroom support
- IoT device connectivity
- Student device management
- Secure testing environments
Physical Profile
The SonicWave 641 features a compact square design measuring 7.87 inches (200 mm) in both width and height, with a depth of just 1.46 inches (37 mm). This slim profile allows for discreet ceiling mounting that blends seamlessly with most office environments. The access point weighs approximately 1.87 pounds (850 grams), making it lightweight enough for secure ceiling installation without requiring heavy-duty mounting hardware.
All eight antennas are internal to the device, creating a clean aesthetic without protruding elements. The form factor is specifically designed for ceiling mounting, with appropriate mounting points and cable routing considerations. The internal antenna design protects radio components from physical damage while maintaining optimal signal propagation characteristics.
- Width
- 7.87" (200 mm)
- Depth
- 1.46" (37 mm)
- Height
- 7.87" (200 mm)
- Weight
- 1.87 lb (850 g)
What's in the Box
The SonicWave 641 package includes everything needed for immediate deployment. Each unit comes with the wireless access point itself along with a complete ceiling mounting kit that contains all necessary hardware for secure installation.
Highlights
- Wi-Fi 6 (802.11ax) technology for increased throughput and reduced latency
- Dual-band operation on 2.4 GHz and 5 GHz frequencies
- Eight internal antennas for comprehensive coverage
- 2.5 Gigabit Ethernet port with PoE support for simplified installation
- Multi User MIMO (MU-MIMO) for simultaneous client communication
- Beamforming technology for stronger, more focused connections
- WPA3 encryption alongside WPA2 and AES security standards
- Bluetooth 5 for additional device connectivity options
- Ceiling-mountable form factor for discreet office installation
- TAA compliant for government and public sector deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 03-SSC-0348 |
| Brand Name | SonicWall |
| Product Line | SonicWave |
| Product Series | 600 |
| Product Model | 641 |
| Product Name | SonicWave 641 Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/e/i/r/k/v/w |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 8 |
| Number of Internal Antennas | 8 |
| Indoor/Outdoor | Indoor |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,AES,WPA2-ENT |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | RADIUS,SSL |
| Power Description | |
| Power Consumption | 23 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 7.87" (200 mm) |
| Width | 7.87" (200 mm) |
| Depth | 1.46" (37 mm) |
| Weight (Approximate) | 1.87 lb (850 g) |
| Miscellaneous | |
| Package Contents | SonicWave 641 Wireless Access Point Ceiling Mounting Kit |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
User Manual
FAQ
What Wi-Fi standards does the SonicWave 641 support?
The SonicWave 641 supports Wi-Fi 6 (802.11ax) along with backward compatibility for 802.11a, b, g, n, and ac standards. It also includes support for advanced management protocols like 802.11e, i, r, k, v, and w, which enable features such as quality of service, fast roaming, and enhanced network optimization for improved performance in dense client environments.
Does this access point support Power over Ethernet?
Yes, the SonicWave 641 includes a PoE PD (Power over Ethernet Powered Device) port. This allows the access point to receive both data connectivity and electrical power through a single Ethernet cable, simplifying installation in locations where power outlets may be limited or difficult to access. The 2.5 Gigabit Ethernet port delivers both high-speed data and power from compatible PoE switches or injectors.
How many antennas does the access point have and are they external?
The SonicWave 641 features eight total antennas, all of which are internal to the device housing. This internal antenna design provides a clean aesthetic without protruding elements while protecting the radio components from physical damage. The eight-antenna configuration supports advanced MIMO technologies and helps deliver comprehensive wireless coverage throughout the installation area.
What security features are included with this wireless access point?
The SonicWave 641 includes multiple layers of security protection. For encryption, it supports WPA3, WPA2, AES, and WPA2-ENT standards. Beyond encryption, it features wireless intrusion detection (WIDS) and prevention systems (WIPS) that actively monitor for and remediate security threats. The access point also includes rogue access point and device detection capabilities to identify unauthorized devices attempting to connect to or mimic the network.
Can this access point be mounted on ceilings?
Yes, the SonicWave 641 is specifically designed for ceiling mounting and includes a complete ceiling mounting kit in the package. The form factor is optimized for discreet installation in office environments, with dimensions of 7.87 x 7.87 x 1.46 inches (200 x 200 x 37 mm) and a weight of approximately 1.87 pounds (850 grams). The ceiling mounting hardware provides secure attachment while allowing for proper cable management and airflow.
What is the purpose of the USB 3.0 port on this access point?
The integrated USB 3.0 port provides expansion capabilities for additional functionality. This port can be used to connect external storage devices for local content caching, attach peripherals for specialized applications, or support additional connectivity options. The USB 3.0 standard ensures high-speed data transfer when connected devices require it, offering flexibility for future use cases or custom deployments.
