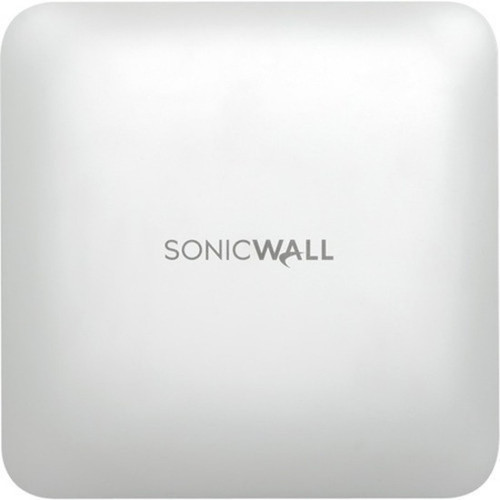

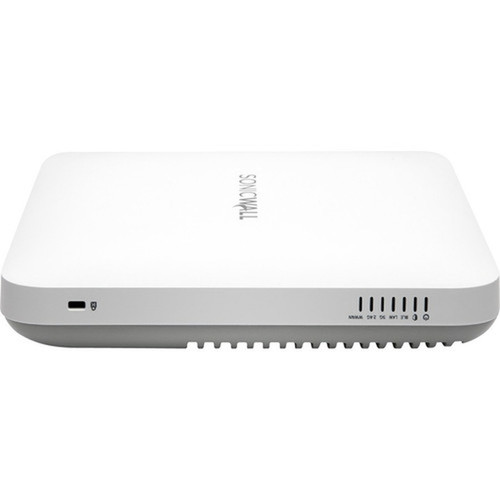

SonicWall 03-SSC-0461 SonicWave 681 Wi-Fi 6 Dual-Band Indoor Wireless Access Point - 12 Internal Antennas - MU-MIMO - PoE - Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SonicWave 681 operates on Wi-Fi 6 (802.11ax) standards, providing backward compatibility with earlier 802.11 a/b/g/n/ac devices. Its dual-band radio supports simultaneous operation on 2.4 GHz and 5 GHz bands, with 12 internal antennas arranged for optimal spatial streaming and signal consistency. Multi-User MIMO (MU-MIMO) allows the access point to communicate with multiple client devices simultaneously, reducing latency and improving aggregate throughput in high-density environments.
Beamforming technology focuses wireless signals toward connected devices, enhancing signal strength and reliability at range. The access point supports modern encryption protocols including WPA3 for enhanced security, along with WPA2, AES, and WPA2-Enterprise for flexible deployment in varied network environments.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SonicWave 681 combines advanced Wi-Fi 6 performance with enterprise-grade management and security features, making it suitable for demanding wireless deployments. Its integrated design eliminates external antennas, providing a clean aesthetic while maintaining strong radio performance.
High-Density Ready
With 12 internal antennas and MU-MIMO, the access point efficiently handles numerous concurrent clients in crowded environments like classrooms, conference halls, and open-plan offices.
- Simultaneous multi-device communication
- Reduced airtime contention
- Improved per-client performance
Enhanced Security Suite
Beyond standard encryption, the SonicWave 681 includes Wireless Intrusion Detection System (WIDS) and Wireless Intrusion Prevention System (WIPS) capabilities for proactive threat management.
- Rogue AP and device detection
- Active threat remediation
- Integrated with SonicWall security ecosystem
Simplified Deployment
Ceiling-mountable design with included mounting kit and PoE support allows for flexible placement without requiring nearby power outlets, reducing installation complexity and cost.
- Single cable for data and power
- Included ceiling mounting hardware
- Management port for out-of-band configuration
Deployment / Use Cases
The SonicWave 681 is engineered for indoor environments where reliable, high-performance wireless connectivity is critical. Its ceiling-mounted form factor and PoE capability make it ideal for installations where aesthetics and cable management are priorities.
In educational settings, the access point supports dense classroom deployments with numerous tablets, laptops, and IoT devices. For enterprise offices, it provides consistent coverage across open workspaces and meeting rooms while integrating with existing network security infrastructure. Retail environments benefit from its support for point-of-sale systems, inventory management devices, and customer Wi-Fi with appropriate segmentation and security controls.
Enterprise Office Deployment
Provides seamless roaming and consistent performance for mobile workers across floors and departments, with centralized management through SonicWall network controllers.
Education & Campus Wi-Fi
Supports high-density student device connections in classrooms and libraries, with advanced QoS for educational applications and secure network segmentation.
Physical Profile
The SonicWave 681 features a compact, circular design measuring 8.39" in diameter and 1.54" in depth, with a weight of approximately 2.43 pounds. Its low-profile form factor blends discreetly into ceiling environments while providing 360-degree radio coverage. The all-internal antenna design eliminates protrusions, maintaining a clean installation appearance. The unit is constructed from materials compliant with RoHS, China RoHS, and WEEE environmental standards.
- Width
- 8.39" (213 mm)
- Depth
- 1.54" (39 mm)
- Height
- 8.39" (213 mm)
- Weight
- 2.43 lb (1100 g)
What's in the Box
The SonicWave 681 ships with all necessary components for immediate deployment.
Package contents include SonicWave 681 Wireless Access Point Ceiling Mounting Kit, SonicWave 681 Wireless Access Point. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Wi-Fi 6 (802.11ax) for increased throughput and reduced latency
- Dual-band operation on 2.4 GHz and 5 GHz frequencies
- 12 internal antennas with MU-MIMO and beamforming
- Power over Ethernet (PoE) support for simplified installation
- WPA3 encryption with WPA2, AES, and WPA2-Enterprise compatibility
- Ceiling-mountable form factor with included mounting kit
- Bluetooth 5 for peripheral and IoT connectivity
- USB 3.0 port for additional device connections
- Integrated WIDS/WIPS for threat detection and remediation
- TAA compliant and environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 03-SSC-0461 |
| Brand Name | SonicWall |
| Product Line | SonicWave |
| Product Series | 600 |
| Product Model | 681 |
| Product Name | SonicWave 681 Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 12 |
| Number of Internal Antennas | 12 |
| Indoor/Outdoor | Indoor |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,AES,WPA2-ENT |
| Interfaces/Ports | |
| Ethernet Technology | 5 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | RADIUS,SSL |
| Power Description | |
| Power Consumption | 34 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 8.39" (213 mm) |
| Width | 8.39" (213 mm) |
| Depth | 1.54" (39 mm) |
| Weight (Approximate) | 2.43 lb (1100 g) |
| Miscellaneous | |
| Package Contents | SonicWave 681 Wireless Access Point Ceiling Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
User Manual
FAQ
What Wi-Fi standards does the SonicWave 681 support?
The SonicWave 681 supports the latest Wi-Fi 6 (IEEE 802.11ax) standard along with backward compatibility for 802.11 a/b/g/n/ac devices. This ensures connectivity with both modern Wi-Fi 6 clients and legacy devices across its dual-band 2.4 GHz and 5 GHz radio spectrum.
Does this access point support Power over Ethernet?
Yes, the SonicWave 681 includes a PoE PD (Power over Ethernet Powered Device) port. This allows the access point to receive both data and electrical power over a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
How many antennas does the SonicWave 681 have and are they external?
The access point features 12 internal antennas. All antennas are integrated within the housing, providing a clean aesthetic without external antenna protrusions. This internal design supports advanced beamforming and MU-MIMO technologies while maintaining a low-profile appearance suitable for ceiling-mounted deployments.
What security features are included with this wireless access point?
The SonicWave 681 supports multiple encryption standards including WPA3, WPA2, AES, and WPA2-Enterprise. Additionally, it includes Wireless Intrusion Detection System (WIDS) and Wireless Intrusion Prevention System (WIPS) capabilities for detecting and remediating threats such as rogue access points and unauthorized devices on the network.
Is the SonicWave 681 suitable for high-density environments?
Yes, with its Wi-Fi 6 capabilities, 12 internal antennas, Multi-User MIMO (MU-MIMO), and beamforming technologies, the SonicWave 681 is designed to handle high-density client environments effectively. These features allow simultaneous communication with multiple devices, reduced latency, and improved overall throughput in crowded settings like classrooms, conference centers, and open offices.
What mounting options are available for this access point?
The SonicWave 681 is designed for ceiling mounting and includes a ceiling mounting kit in the package. Its form factor is specifically optimized for ceiling installation, providing 360-degree coverage while maintaining a discreet appearance. The unit does not include wall-mount brackets but can be adapted with third-party mounting solutions if needed.
