SonicWall 03-SSC-1248 SonicWave 621 Dual-Band Wi-Fi 6 Access Point - Indoor - Ceiling Mountable - 4 Internal Antennas - 2. 5GbE - PoE PD - Bluetooth 5
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SonicWave 621 operates on dual-band frequencies (2.4 GHz and 5 GHz) with Wi-Fi 6 certification, supporting the IEEE 802.11 a/b/g/n/ac/ax/e/i/r/k/v/w standards for broad interoperability. Its radio architecture includes four internal antennas configured for Multi-User MIMO (MU-MIMO) and beamforming, which dynamically direct signals to connected clients to enhance throughput and reduce latency in high-density environments.
Network security is reinforced with WPA3 and WPA2 encryption, along with enterprise-grade protocols like RADIUS and SSL for secure authentication and management. The access point communicates over a 2.5 Gigabit Ethernet uplink, which also serves as a PoE PD port, allowing it to be powered remotely from a compatible switch or injector. A management port and USB 3.0 interface provide additional configuration and expansion capabilities, while Bluetooth 5 enables auxiliary wireless connections.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The SonicWave 621 combines advanced wireless technologies with practical deployment features to deliver a robust access point solution. Its Wi-Fi 6 foundation provides increased throughput, reduced latency, and improved power efficiency for client devices, making it ideal for bandwidth-intensive applications and IoT deployments.
Enhanced Wireless Performance
Wi-Fi 6 with MU-MIMO and beamforming optimizes network capacity and signal quality, supporting more concurrent users with stable connections.
- Target Wake Time (TWT) for better power management
- Neighboring network avoidance to reduce interference
Integrated Security Features
Built-in Wireless Intrusion Detection System (WIDS) and Wireless Intrusion Prevention System (WIPS) actively monitor for threats, detecting rogue access points and devices to maintain network integrity.
- WPA3 encryption for enhanced data protection
- RADIUS and SSL protocols for secure management
Simplified Installation

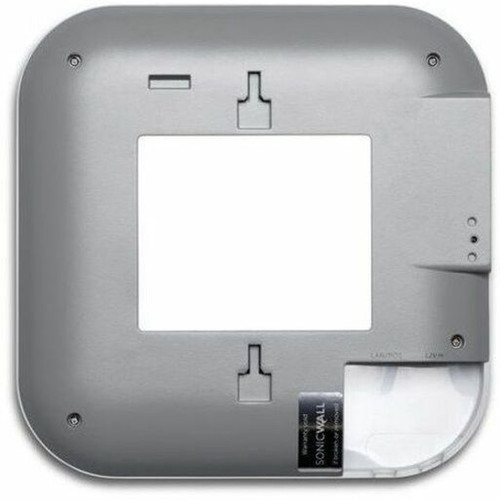

Ceiling-mountable design with included mounting kit and PoE PD support allows for quick, clean installations without separate power outlets, reducing setup time and costs.
- Compact form factor for discreet placement
- Single cable for both data and power
Deployment / Use Cases
The SonicWave 621 is designed for indoor environments where reliable, high-performance wireless access is critical. Its ceiling-mountable form factor and PoE compatibility make it suitable for fixed installations in offices, schools, hospitals, and retail stores, where aesthetics and cable management are important considerations.
In enterprise settings, this access point supports dense client deployments with its Wi-Fi 6 capabilities, handling video conferencing, cloud applications, and large file transfers efficiently. For IoT and BYOD scenarios, Bluetooth 5 and advanced security features like WIDS/WIPS provide additional layers of connectivity and protection, ensuring a secure and scalable wireless infrastructure.
Corporate Office Networks
Deploy in open-plan offices or meeting rooms to deliver high-speed Wi-Fi for employees and guests, with MU-MIMO ensuring consistent performance during peak usage.
Education and Healthcare Facilities
Install in classrooms or patient areas to support e-learning platforms, medical devices, and staff communications, leveraging PoE for easy power sourcing and ceiling mounting for unobtrusive placement.
Physical Profile

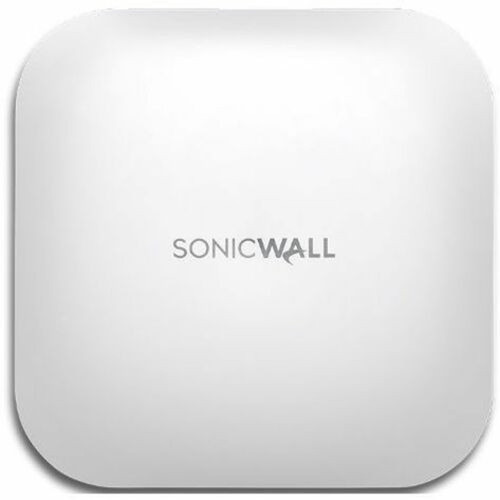

The SonicWave 621 features a compact, square design measuring 6.85 inches in width and height, with a depth of 1.18 inches (174 mm x 174 mm x 30 mm). Weighing approximately 1.50 pounds (680 g), its lightweight construction facilitates easy handling and mounting. The internal antenna design maintains a clean aesthetic, while the ceiling-mountable form factor includes a mounting kit for secure installation. The access point is built for indoor use, with materials compliant with environmental standards like RoHS and WEEE.
- Width
- 6.85" (174 mm)
- Depth
- 1.18" (30 mm)
- Height
- 6.85" (174 mm)
- Weight
- 1.50 lb (680 g)
What's in the Box
Each package includes the SonicWave 621 wireless access point and a ceiling mounting kit, providing all necessary hardware for immediate deployment.
Package contents include SonicWave 621 Wireless Access Point Ceiling Mounting Kit, SonicWave 621 Wireless Access Point. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Wi-Fi 6 (802.11ax) for increased throughput and reduced latency
- Dual-band operation on 2.4 GHz and 5 GHz frequencies
- Four internal antennas with MU-MIMO and beamforming technology
- Single 2.5 Gigabit Ethernet port with PoE PD support
- WPA3, WPA2, AES, and WPA2-ENT encryption standards
- Bluetooth 5 for low-energy wireless connectivity
- Ceiling-mountable design with included mounting kit
- Wireless Intrusion Detection and Prevention Systems (WIDS/WIPS)
- USB 3.0 port for peripheral expansion
- Compliant with RoHS, China RoHS, and WEEE environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 03-SSC-1248 |
| Brand Name | SonicWall |
| Product Line | SonicWave |
| Product Series | 600 |
| Product Model | 621 |
| Product Name | SonicWave 621 Wireless Access Point |
| Packaged Quantity | 8 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/e/i/r/k/v/w |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 4 |
| Number of Internal Antennas | 4 |
| Indoor/Outdoor | Indoor |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2,AES,WPA2-ENT |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| USB | Yes |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | RADIUS,SSL |
| Power Description | |
| Power Consumption | 21 W |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 6.85" (174 mm) |
| Width | 6.85" (174 mm) |
| Depth | 1.18" (30 mm) |
| Weight (Approximate) | 1.50 lb (680 g) |
| Miscellaneous | |
| Package Contents | SonicWave 621 Wireless Access Point Ceiling Mounting Kit |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What Wi-Fi standards does the SonicWave 621 support?
The SonicWave 621 supports Wi-Fi 6 (IEEE 802.11ax) along with backward compatibility for older standards including 802.11 a/b/g/n/ac/e/i/r/k/v/w. This ensures it can connect to a wide range of devices, from legacy equipment to the latest smartphones and laptops, providing flexible network integration.
Does this access point support Power over Ethernet (PoE)?
Yes, the SonicWave 621 features a PoE PD (Power over Ethernet Powered Device) port on its single RJ-45 Ethernet connection. This allows the access point to receive both data and power over a single cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
How many antennas does the SonicWave 621 have, and are they external?
This access point has four internal antennas, meaning they are built into the unit's housing rather than being external. This design provides a cleaner aesthetic and reduces the risk of damage, while still delivering strong signal coverage through technologies like MU-MIMO and beamforming to optimize wireless performance.
What security features are included with this wireless access point?
The SonicWave 621 includes multiple security layers: encryption standards like WPA3 and WPA2 with AES and WPA2-ENT for data protection, plus communication protocols such as RADIUS and SSL for secure authentication. It also has Wireless Intrusion Detection System (WIDS) and Wireless Intrusion Prevention System (WIPS) to monitor for and remediate threats like rogue access points.
Can the SonicWave 621 be mounted on ceilings?
Yes, the SonicWave 621 is designed for ceiling mounting and comes with a ceiling mounting kit in the box. Its form factor is specifically suited for indoor ceiling installations, making it ideal for offices, schools, or retail spaces where wall or desk placement might not be optimal for coverage or aesthetics.
What is the purpose of the USB 3.0 port on this access point?
The USB 3.0 port on the SonicWave 621 allows for peripheral expansion, such as connecting storage devices, printers, or other USB-enabled equipment to extend network functionality. This adds versatility to the access point, enabling it to support additional services or devices within the wireless network environment.
