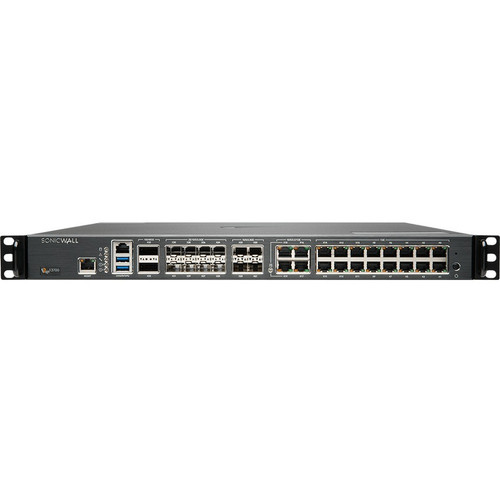

SonicWall 02-SSC-8401 NSsp 13700 Network Security/Firewall Appliance - 20 Port - 100 Gigabit Ethernet - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This appliance provides a robust technical foundation with 20 network ports, all supporting RJ-45 connectivity, and a USB port for administrative functions. Its 100 Gigabit Ethernet core ensures high-speed data transfer, compatible with standards from 10/100/1000Base-T up to 100GBase-X, facilitating seamless integration into diverse network infrastructures.
The expansion framework includes 14 slots, with 4 dedicated to SFP+, allowing for flexible fiber or copper uplink configurations. The device is fully manageable, supporting frequencies of 50 Hz and 60 Hz for global power compatibility, and employs a range of encryption standards including DES, 3DES, and AES up to 256-bit for secure communications.
This section brings together practical product details such as Firewall Protection Supported, Encryption Standard, Number of VPN Supported, Total Number of Ports, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The NSsp 13700 stands out with its combination of high throughput, advanced security features, and scalable design. It offers enterprise-grade protection with low total cost of ownership, integrating cloud sandboxing and on-premises threat intelligence for comprehensive defense against modern cyber threats.
Advanced Threat Protection
Incorporates stateful packet filtering, intrusion prevention, anti-virus, anti-spyware, malware protection, and cloud sandboxing to detect and mitigate sophisticated attacks across the network edge.
- Reassembly-free Deep Packet Inspection
- Application Control
- Web & URL Filtering
- DDoS Protection
- DNS Security
High Port Density & Expansion
With 20 ports and 14 expansion slots, the appliance supports dense connectivity and future growth, accommodating high-speed modules for 10G, 40G, and 100G networks without requiring a chassis upgrade.
Deployment / Use Cases
Ideal for large enterprises, data centers, and service providers, the NSsp 13700 serves as a primary security gateway at network edges, internet gateways, or between network segments. Its high throughput and port count make it suitable for environments with substantial inbound and outbound traffic requiring rigorous inspection.
Common deployments include securing corporate headquarters, hosting provider infrastructures, and educational or government networks where compliance, scalability, and threat prevention are paramount. The appliance integrates into existing SonicWall security ecosystems, supporting centralized management for streamlined operations.
Enterprise Edge Security
Deploy as the first line of defense at internet entry points, inspecting all traffic with high-speed threat prevention to protect internal networks from external attacks.
Data Center Segmentation
Use within data centers to enforce security policies between segments, leveraging high port density and 100G throughput to secure east-west traffic without performance bottlenecks.
Physical Profile
The appliance features a compact 1U rack-mountable form factor, measuring 1.80" in height, 16.90" in width, and 12.80" in depth, with an approximate weight of 20.06 lb. This design optimizes rack space in standard data center cabinets while providing robust construction for continuous operation. The form factor supports efficient cooling and easy integration into existing rack infrastructures.
- Width
- 16.90" (429.26 mm)
- Depth
- 12.80" (325.12 mm)
- Height
- 1.80" (45.72 mm)
- Weight
- 20.06 lb (9100 g)
Highlights
- 20-port high-density connectivity for extensive network integration
- 100 Gigabit Ethernet throughput for high-speed data transfer
- Up to 100 Gbps firewall inspection and 80+ Gbps threat prevention
- Supports 6,000 VPN connections for secure remote access
- 14 expansion slots with SFP+, QSFP28, and SFP28 support
- 1U rack-mountable form factor for space-efficient deployment
- Advanced security with cloud sandboxing and intrusion prevention
- Single pane of glass management for centralized control
- TLS 1.3 support and millions of simultaneous TLS connections
- Environmentally compliant with WEEE, RoHS, and REACH standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | SonicWall Inc. |
| Manufacturer Part Number | 02-SSC-8401 |
| Brand Name | SonicWall |
| Product Line | NSsp |
| Product Model | 13700 |
| Product Name | NSsp 13700 Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Stateful Packet Filtering,Intrusion Prevention,Threat Protection,Application Control,Antivirus,Dead Peer Detection,Anti-spyware,Gateway Antivirus,Reassembly-free Deep Packet Inspection,Malware Protection,Web Content Filtering,URL Filtering,Data Protection,Distributed Denial of Service (DDoS),DNS Security,Secure IPsec VPN Connectivity,Cloud Sandboxing |
| Encryption Standard | DES,3DES,AES (128-bit),AES (192-bit),AES (256-bit),MD5,SHA-1 |
| Number of VPN Supported | 6000 |
| Interfaces/Ports | |
| Total Number of Ports | 20 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 20 |
| Network & Communication | |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T,10GBase-T,40GBase-X,100GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 14 |
| Expansion Slot Type | SFP+,QSFP28,SFP28 |
| Number of SFP+ Slots | 4 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.80" (45.72 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 12.80" (325.12 mm) |
| Weight (Approximate) | 20.06 lb (9100 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
User Manual
FAQ
What is the total number of ports on the SonicWall NSsp 13700?
The SonicWall NSsp 13700 has 20 total ports, all of which are network (RJ-45) ports, providing high-density connectivity for enterprise environments. This includes a USB port for administrative purposes, supporting flexible deployment in data centers or network perimeters.
What throughput performance does this firewall appliance offer?
This appliance delivers up to 100 Gbps firewall inspection throughput and over 80 Gbps threat prevention throughput, handling high-volume traffic with advanced security inspection. It supports 100 Gigabit Ethernet technology, making it suitable for demanding network edges.
How many VPN connections does the NSsp 13700 support?
The NSsp 13700 supports up to 6,000 VPN connections, enabling secure remote access for large-scale deployments. It uses IPsec VPN connectivity with encryption standards like AES up to 256-bit for robust data protection.
What expansion options are available with this appliance?
It includes 14 total expansion slots supporting SFP+, QSFP28, and SFP28 modules, with 4 dedicated SFP+ slots. This allows for flexible uplink configurations using fiber or copper transceivers to adapt to various network speeds and distances.
Is the SonicWall NSsp 13700 rack-mountable?
Yes, the appliance has a 1U rack-mountable form factor, compatible with standard EIA racks. Its dimensions are 1.80" height, 16.90" width, and 12.80" depth, weighing approximately 20.06 lb, designed for efficient data center integration.
What security features does this firewall include?
It offers comprehensive security with stateful packet filtering, intrusion prevention, anti-virus, anti-spyware, malware protection, web content filtering, DDoS protection, DNS security, and cloud sandboxing. These features provide layered defense against modern threats across network traffic.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is 4, giving buyers a clearer picture of expected coverage after purchase.
