TRENDnet TEW-740APBO2K Wireless N300 Outdoor PoE Point-to-Point Bridge Kit - 10dBi Antenna - 2 Pre-configured APs - Fast Ethernet - IP56 Rated
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Operating on the 2.4 GHz frequency band with IEEE 802.11n wireless technology, this bridge kit delivers up to 300 Mbps throughput for data-intensive applications. The built-in 10dBi directional antennas focus signal strength for longer-range connections with reduced interference, making them ideal for point-to-point deployments where signal integrity is critical.
Each access point features Fast Ethernet connectivity with one 10/100Mbps port that supports PoE power delivery. The devices accept power through proprietary PoE injectors, eliminating the need for standard 802.3af/at compatibility while maintaining reliable operation in outdoor installations.
Relevant factors for this section include Wireless LAN Standard, Frequency Band, Wireless Transmission Speed, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This bridge kit offers several distinct advantages for outdoor wireless deployments. The pre-configured access points arrive ready for immediate installation, significantly reducing setup time and technical complexity. The IP56 weather rating ensures reliable operation in rain, dust, and temperature extremes that would compromise standard indoor equipment.
Complete Deployment Package

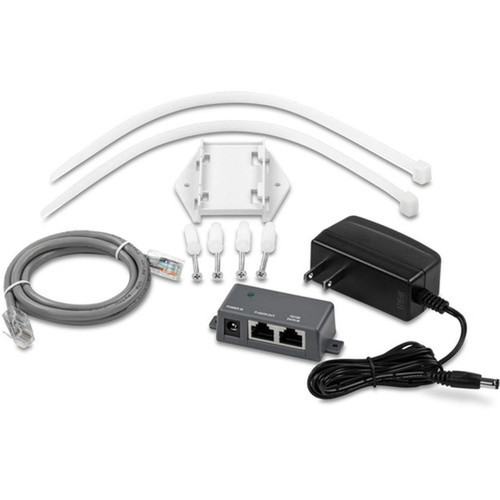

Includes all necessary components for installation: two access points, PoE injectors, power adapters, mounting hardware, grounding wires, and weather seals.

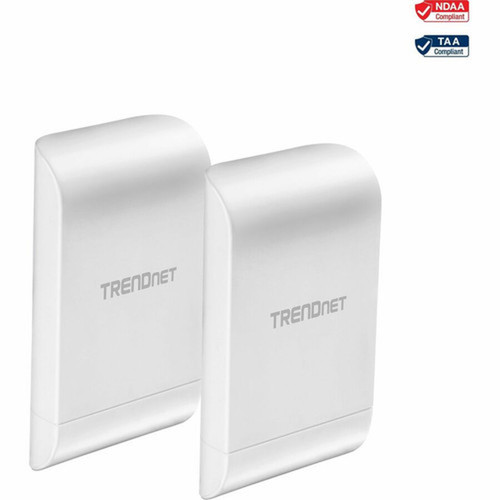

- Two TEW-740APBO access points
- Proprietary PoE injectors
- Mounting hardware for various surfaces
Operational Flexibility
Supports multiple wireless modes including Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge for versatile deployment scenarios.
- Point-to-point bridging
- Wireless distribution system
- Client connectivity options
Deployment / Use Cases
The TEW-740APBO2K bridge kit excels in scenarios requiring reliable wireless connectivity between separate physical locations. Its outdoor-rated construction and directional antennas make it particularly suitable for connecting buildings across parking lots, linking surveillance cameras to network infrastructure, or extending network access to remote structures without trenching for cable runs.
Educational campuses can use these bridges to connect separate buildings while maintaining network security. Small businesses with multiple locations in close proximity can establish secure connections without monthly service fees. The wall and pole mounting options provide installation flexibility for various architectural environments.
Building-to-Building Connectivity
Establish secure wireless links between office buildings, warehouses, or retail locations up to several hundred meters apart with clear line of sight.
Outdoor Network Extension
Connect outdoor security cameras, access control systems, or digital signage to existing network infrastructure without running new cabling.
Physical Profile
Each access point measures 7.60" × 4.60" × 2.40" (193.04 × 116.84 × 60.96 mm) and weighs approximately 10.70 oz (303.34 g), making them compact enough for discreet installation while housing robust wireless components. The wall and pole mounting options, combined with included hardware and rubber seals, ensure secure attachment and weather protection in outdoor environments.
- Width
- 4.60" (116.84 mm)
- Depth
- 2.40" (60.96 mm)
- Height
- 7.60" (193.04 mm)
- Weight
- 10.70 oz (303.34 g)
What's in the Box
This complete kit includes all components necessary for immediate deployment of a point-to-point wireless bridge system.
Highlights
- Complete point-to-point bridge kit with two pre-configured wireless N300 access points
- Built-in 10dBi directional antenna for focused, long-range signal transmission
- IP56-rated weatherproof housing for reliable outdoor operation
- Supports multiple wireless modes: Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge
- Includes proprietary PoE injectors for simplified power delivery over Ethernet
- Fast Ethernet connectivity with 10/100Mbps ports
- Wall and pole mounting options with included hardware
- TAA compliant for U.S. and Canadian government procurement
- 3-year limited warranty for long-term reliability assurance
- Compact design measuring 7.60" × 4.60" × 2.40" for discreet installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEW-740APBO2K |
| Brand Name | TRENDnet |
| Product Series | N300 |
| Product Model | TEW-740APBO2K |
| Product Name | 10 dBi Wireless N300 Outdoor PoE Preconfigured Pointto-Point Bridge Kit |
| Product Condition | New |
| Packaged Quantity | 2 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11n |
| Frequency Band | 2.40 GHz |
| Wireless Transmission Speed | 300 Mbit/s |
| Interfaces/Ports | |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE (RJ-45) Port | No |
| PoE PD Port | Yes |
| VGA | No |
| HDMI | No |
| USB | No |
| Powerline | No |
| Management Port | No |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Pole-mountable |
| Height | 7.60" (193.04 mm) |
| Width | 4.60" (116.84 mm) |
| Depth | 2.40" (60.96 mm) |
| Weight (Approximate) | 10.70 oz (303.34 g) |
| Miscellaneous | |
| Package Contents | 2 x TEW-740APBO Quick Installation Guide Proprietary/Passive PoE injectors Power adapters (12V DC, 1A) Grounding wires Mounting hardware 2 x Rubber seals |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What wireless standards does this bridge kit support?
The TRENDnet TEW-740APBO2K kit operates on the IEEE 802.11n wireless standard, providing up to 300 Mbps throughput on the 2.4 GHz frequency band. This technology offers improved range and reliability compared to earlier 802.11g standards, making it suitable for outdoor point-to-point applications where consistent connectivity is essential.
Does this kit include Power over Ethernet support?
Yes, each access point includes a PoE PD (Power Device) port that accepts power through the included proprietary PoE injectors. These injectors deliver both data and power over a single Ethernet cable, simplifying installation by eliminating the need for separate power outlets at mounting locations. The kit does not include standard 802.3af/at PoE support.
What is the antenna gain and how does it affect performance?
Each access point features a built-in 10dBi directional antenna that focuses wireless signal in a specific direction rather than radiating equally in all directions. This directional characteristic increases effective range for point-to-point connections while reducing interference from other wireless devices. The higher gain improves signal strength over distance compared to omnidirectional antennas.
Is this equipment suitable for outdoor installation?
Yes, the access points feature IP56-rated weatherproof housing that protects against dust ingress and water jets from any direction. This rating ensures reliable operation in rain, snow, and temperature extremes. The included mounting hardware, rubber seals, and grounding wires provide complete outdoor installation components for various mounting surfaces including walls and poles.
What wireless modes are supported by these access points?
These access points support five operational modes: Access Point for creating wireless networks, WDS Bridge for connecting two wired networks wirelessly, WDS Access Point for extending wireless coverage, WDS Station for connecting to another WDS device, and Client Bridge for connecting wired devices to a wireless network. This flexibility allows deployment in various network architectures.
What compliance certifications does this product have?
The TEW-740APBO2K is TAA (Trade Agreements Act) compliant, making it eligible for U.S. and Canadian government procurement. It also meets NDAA (National Defense Authorization Act) requirements. The product comes with a 3-year limited warranty and is manufactured in Taiwan, with all necessary documentation and support materials included in the package.
