TRENDnet TEW940APBO2K-CA 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point Bridge Kit - 5 GHz Single Band - 2x Gigabit Ports - IP55 Rated
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This bridge operates on the 5 GHz frequency band with support for IEEE 802.11 a/n/ac/ax/k standards, ensuring backward compatibility with existing wireless networks while leveraging the efficiency gains of WiFi 6. The 1.20 Gbit/s maximum wireless transmission speed facilitates high-bandwidth applications like video surveillance backhaul, temporary event networking, or connecting remote offices.

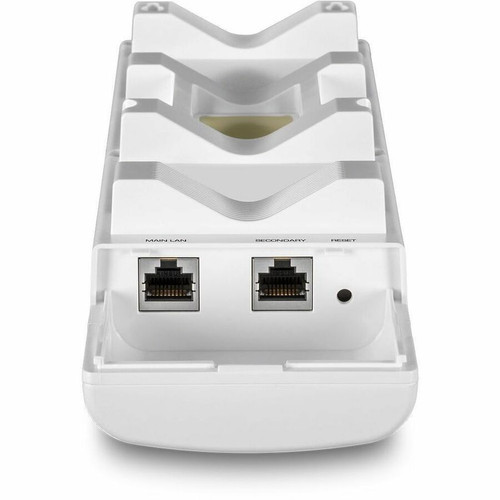

Each access point features two Gigabit Ethernet ports, with one supporting Power over Ethernet (PoE) for simplified installation using the included proprietary PoE injectors. The system supports advanced networking protocols including RADIUS for authentication, IPv6 for modern addressing, and management via HTTP, HTTPS, SSH, SNMP v2c/v3, and STP for network loop prevention.
This section brings together practical product details such as Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Outdoor Durability, Preconfigured for Simplicity, Comprehensive Security.
Outdoor Durability
The IP55-rated housing protects against dust and water jets, ensuring reliable operation in rain, snow, and variable outdoor conditions without requiring protective enclosures.
Preconfigured for Simplicity
Both access points arrive pre-paired and configured for point-to-point bridging, eliminating complex setup steps and reducing deployment time for installers.
Comprehensive Security
Supports modern encryption standards including WPA3-ENT, WPA3-PSK (SAE), and Opportunistic Wireless Encryption (OWE), alongside traditional WPA/WPA2 options for robust network protection.
Deployment / Use Cases
This wireless bridge kit is ideal for establishing dedicated wireless links between separate structures where trenching for fiber or Ethernet cable is not feasible. Common applications include connecting security cameras in remote parking lots, providing network access to temporary construction site offices, linking warehouse facilities to main office networks, or extending connectivity to outdoor recreational areas.
The pole-mountable and wall-mountable design offers flexible installation options on light poles, building exteriors, or tower structures. The included proprietary PoE injectors deliver power over standard Ethernet cables, allowing placement up to 100 meters from power sources while maintaining data connectivity.
Campus Connectivity
Connect academic buildings, athletic facilities, or parking structures across school or corporate campuses without disruptive cabling projects.
Temporary Event Networking
Quickly establish reliable network links for outdoor festivals, markets, or construction sites where permanent infrastructure is unavailable.
Physical Profile
Each access point measures 10.12" (257 mm) in height, 3.23" (82 mm) in width, and 1.97" (50 mm) in depth, with a weight of approximately 1.32 lb (598 g). The compact form factor and integrated internal antennas create a low-profile installation that minimizes visual impact while maintaining structural integrity in windy conditions.
The housing is specifically engineered for outdoor mounting with corrosion-resistant materials and sealed connectors. The included mounting hardware supports secure attachment to various surfaces, and the directional antenna design optimizes signal focus toward the paired unit for maximum link reliability.
- Width
- 3.23" (82 mm)
- Depth
- 1.97" (50 mm)
- Height
- 10.12" (257 mm)
- Weight
- 1.32 lb (598 g)
What's in the Box
This kit contains all necessary components for immediate deployment of a complete point-to-point wireless bridge system.
Highlights
- Complete outdoor WiFi 6 bridge kit with two preconfigured access points
- 5 GHz single band operation with 1.20 Gbit/s maximum throughput
- 14 dBi internal directional antennas for focused signal strength
- IP55 weather-rated housing for reliable outdoor operation
- Includes proprietary PoE injectors for simplified power delivery
- Supports Access Point, Client Bridge, and Repeater operating modes
- Two Gigabit Ethernet ports per unit with PoE PD support
- TAA compliant for U.S. and Canadian government procurement
- 3-year limited warranty from TRENDnet
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEW940APBO2K-CA |
| Brand Name | TRENDnet |
| Product Model | TEW-940APBO2K |
| Product Name | 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point Bridge Kit |
| Packaged Quantity | 2 |
| Product Type | Wireless Bridge |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/n/ac/ax/k |
| Network Band | Single Band |
| Frequency Band | 5 GHz |
| Indoor/Outdoor | Outdoor |
| Wireless Transmission Speed | 1.20 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Data Encryption | Yes |
| Encryption Standard | Opportunistic Wireless Encryption (OWE),WPA,WPA2,WPA3-ENT,WPA-PSK,WPA2-PSK,WPA3-PSK (SAE) |
| Ingress Protection (IP) Rating | IP55 |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | RADIUS,LLDP,IPv6,HTTP,HTTPS,SSH,SNMP v2c,SNMP v3,STP |
| Power Description | |
| Power Consumption | 10.10 W |
| Physical Characteristics | |
| Form Factor | Pole-mountable,Wall Mountable |
| Antenna Form Factor | Internal |
| Height | 10.12" (257 mm) |
| Width | 3.23" (82 mm) |
| Depth | 1.97" (50 mm) |
| Weight (Approximate) | 1.32 lb (598 g) |
| Miscellaneous | |
| Package Contents | 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point Bridge Kit 2 x Proprietary/Passive PoE Injectors (54V DC, 0.6A) Mounting Hardware |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is included in this wireless bridge kit?
The kit contains two preconfigured TEW-940APBO outdoor access points, two proprietary passive PoE injectors (54V DC, 0.6A), and all necessary mounting hardware. Both access points arrive ready for point-to-point bridging deployment without additional configuration.
What wireless standards does this bridge support?
It supports IEEE 802.11 a/n/ac/ax/k standards, operating specifically on the 5 GHz frequency band. This includes backward compatibility with older 802.11a/n/ac devices while providing the efficiency benefits of WiFi 6 (802.11ax) technology.
Can this system be powered via Power over Ethernet?
Yes, each access point includes a PoE PD (Powered Device) port that accepts power from the included proprietary PoE injectors. This allows both data and power to be delivered over a single Ethernet cable, simplifying installation in locations without convenient power outlets.
What is the IP55 rating and why does it matter?
IP55 indicates protection against dust ingress (level 5) and water jets from any direction (level 5). This rating ensures the access points can withstand outdoor environmental conditions including rain, snow, and dust exposure without requiring additional protective enclosures.
What management options are available for these access points?
Management is available through multiple protocols including HTTP, HTTPS, SSH, SNMP v2c, and SNMP v3. The devices also support RADIUS for authentication, LLDP for network discovery, IPv6 for modern addressing, and STP (Spanning Tree Protocol) to prevent network loops.
What is the warranty coverage for this product?
TRENDnet provides a 3-year limited warranty for this wireless bridge kit. The product is also TAA (Trade Agreements Act) compliant, making it eligible for procurement by U.S. and Canadian government entities under applicable trade agreements.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
