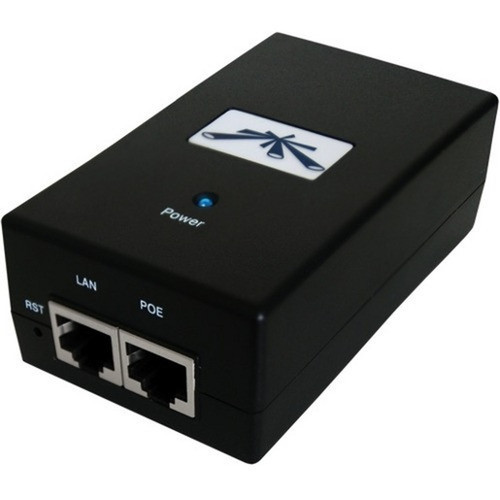

Ubiquiti POE-24-12W Power over Ethernet Injector - 24V DC - 12W - 500mA Output - 120/230V AC Input - Surge Protection
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PoE injector converts standard AC power to 24V DC power, transmitting it alongside data through a single Ethernet cable. The device features built-in surge, clamping, and peak pulse current protection to safeguard connected equipment from electrical disturbances.
The compact form factor measures 3.43" wide by 3.31" deep by 1.15" high (87.12 x 84.07 x 29.21 mm) and weighs just 92 grams, making it easy to install in space-constrained environments. The unit meets multiple international safety and emissions standards including IEC 60950-1, UL60950-1, EN55022 Class B, EN55024, FCC Class B, and CE marking.
Relevant factors for this section include Protection Type, Input Voltage, Maximum Output Voltage, Maximum Input Current. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The POE-24-12W simplifies network deployments by eliminating the need for separate power cables and outlets near remote devices. This reduces installation complexity and improves cable management in both commercial and residential settings.
Dual Voltage Support
Operates with both 120V and 230V AC input, making it suitable for international deployments without requiring voltage converters.
- 120V AC input
- 230V AC input
- Global compatibility
Built-in Protection
Incorporates multiple protection mechanisms to prevent damage from electrical surges and transients.
- Surge protection
- Clamping protection
- Peak pulse current protection
Space-Efficient Design
Compact dimensions and lightweight construction allow for flexible placement options including wall mounting, under-desk installation, or integration into network cabinets.
- 3.43" x 3.31" x 1.15"
- 92 grams
- Minimal footprint
Deployment / Use Cases
This PoE injector is ideal for powering Ubiquiti and other compatible 24V PoE devices in scenarios where PoE switches are not available or where only a single device requires power. Common applications include small office networks, retail environments, educational facilities, and residential installations.
The unit works particularly well with wireless access points, IP cameras, VoIP phones, and other network devices that support 24V passive PoE. Its compact size makes it suitable for installations where space is limited, such as in ceiling mounts, wall enclosures, or network cabinets.
Wireless Network Expansion
Power Ubiquiti wireless access points in locations where electrical outlets are unavailable or inconveniently placed.
- Access point deployment
- Mesh network nodes
- Outdoor installations
Surveillance System Support
Provide power to IP security cameras while maintaining clean cable runs without separate power adapters.
- IP camera power
- Clean installation
- Reduced cable clutter
Physical Profile
The POE-24-12W features a compact, rectangular design with dimensions of 3.43" wide by 3.31" deep by 1.15" high (87.12 x 84.07 x 29.21 mm). Weighing just 92 grams, the injector is lightweight enough for various mounting options while remaining sturdy enough for reliable operation. The small footprint allows for installation in tight spaces, and the simple port configuration (one Ethernet input, one Ethernet output) ensures straightforward connectivity.
- Width
- 3.43" (87.12 mm)
- Depth
- 3.31" (84.07 mm)
- Height
- 1.15" (29.21 mm)
- Weight
- 92 g
Highlights
- Delivers 24V DC power at 500mA (12W total output)
- Supports both 120V and 230V AC input voltages
- Built-in surge, clamping, and peak pulse current protection
- Compact dimensions: 3.43" W x 3.31" D x 1.15" H
- Lightweight design at just 92 grams
- Single Ethernet input and output ports
- Compliant with IEC, UL, EN, FCC, and CE standards
- Ideal for powering compatible wireless access points and network devices
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | POE-24-12W |
| Brand Name | Ubiquiti |
| Product Model | POE-24-12W |
| Product Name | POE-24-12W Power over Ethernet Injector |
| Product Type | PoE Injector |
| Technical Information | |
| Protection Type | Surge Protection,Clamping Protection,Peak Pulse Current |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Output Voltage | 24 V DC |
| Maximum Input Current | 300 mA |
| Maximum Output Current | 500 mA |
| Maximum Output Power | 12 W |
| Interfaces/Ports | |
| Input Ports | 1 x Ethernet |
| Output Ports | 1 x Ethernet |
| Physical Characteristics | |
| Height | 1.15" (29.21 mm) |
| Width | 3.43" (87.12 mm) |
| Depth | 3.31" (84.07 mm) |
| Weight (Approximate) | 92 g |
| Miscellaneous | |
| Certifications & Standards | IEC 60950-1:2005+A1 UL60950-1 EN55022:2010 (CISPR22) Class B EN55024:2010 FCC Class B CE |
| Country of Origin | China |
FAQ
What devices are compatible with the POE-24-12W PoE injector?
The POE-24-12W is compatible with network devices that support 24V passive Power over Ethernet. This includes many Ubiquiti wireless access points, some IP cameras, and other networking equipment designed for 24V PoE. Always verify your device's power requirements before connecting to ensure compatibility.
What input voltages does this PoE injector support?
This injector supports both 120V AC and 230V AC input voltages, making it suitable for use in North America (120V) and many international locations (230V). The dual-voltage capability eliminates the need for separate voltage converters when deploying equipment in different regions.
What is the maximum power output of the POE-24-12W?
The maximum output power is 12 watts at 24V DC with a maximum current of 500mA. This provides sufficient power for many PoE-enabled network devices while maintaining efficient operation. The injector automatically regulates output to stay within these limits.
Does this PoE injector include any protection features?
Yes, the POE-24-12W incorporates multiple protection mechanisms including surge protection, clamping protection, and peak pulse current protection. These features help safeguard connected network equipment from electrical disturbances, voltage spikes, and transient events that could otherwise damage sensitive electronics.
What certifications does this product have?
The injector is certified to IEC 60950-1:2005+A1, UL60950-1, EN55022:2010 (CISPR22) Class B, EN55024:2010, FCC Class B, and carries CE marking. These certifications ensure compliance with international safety and electromagnetic compatibility standards for reliable operation in commercial environments.
How do I install and use this PoE injector?
Connect the injector to a standard electrical outlet (120V or 230V AC). Connect an Ethernet cable from your network switch or router to the injector's input port. Connect another Ethernet cable from the injector's output port to your PoE-enabled device. The injector will automatically provide both power and data through the single cable to the connected device.
