Ubiquiti PS-5AC PrismStation AC Wireless Bridge - IEEE 802.11ac - 500 Mbps - 5 GHz & 2.4 GHz - MIMO - Gigabit Ethernet - PoE PD - Pole-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the PrismStation AC leverages a proprietary Ubiquiti airMAX ac processor and AirPrism active RF filtering to maintain clean signal transmission across crowded wireless spectrums. The dedicated management radio ensures that configuration and monitoring traffic does not interfere with data throughput, providing stable operational control.
The bridge achieves a wireless transmission speed of 500 Mbps, supported by Gigabit Ethernet for high-speed backbone connectivity. Its single RJ-45 port functions as a PoE PD (Power over Ethernet Powered Device) port, accepting standard 24V passive PoE from the included adapter for streamlined deployment.
Relevant factors for this section include Wireless LAN Standard, Frequency Band, Wireless Transmission Speed, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PrismStation AC PS-5AC stands out with its focused design for wireless bridging, combining robust hardware with Ubiquiti's specialized firmware for network stability. Its dual-band operation allows administrators to select the optimal frequency based on environmental conditions, while the integrated AirPrism filtering minimizes co-channel interference.
Enhanced Radio Design
Features a dedicated management radio separate from the data plane, ensuring configuration changes and monitoring do not impact throughput performance.
- Proprietary airMAX ac processor
- AirPrism active RF filtering
- Dedicated management Wi-Fi radio
Simplified Deployment
Includes a 24V, 1A Gigabit PoE adapter and pole-mount kit, reducing the need for additional power outlets and mounting hardware at installation sites.
Deployment / Use Cases
This wireless bridge is ideal for creating wireless links between separate network segments where running physical cabling is impractical or cost-prohibitive. Common applications include connecting buildings across a campus, providing internet access to remote structures, or establishing backhaul for surveillance cameras and IoT devices in outdoor settings.
The pole-mountable form factor makes it suitable for mounting on rooftops, light poles, or towers, while the PoE support allows placement in locations without direct power access. It is often deployed in pairs or groups to form point-to-point or point-to-multipoint networks, extending LAN connectivity over wireless distances.
Campus Connectivity
Link administrative buildings, dormitories, or classrooms across a school or corporate campus without trenching fiber or Ethernet cables.
Outdoor Infrastructure
Provide network backhaul for security cameras, wireless access points, or environmental sensors in parks, parking lots, or industrial yards.

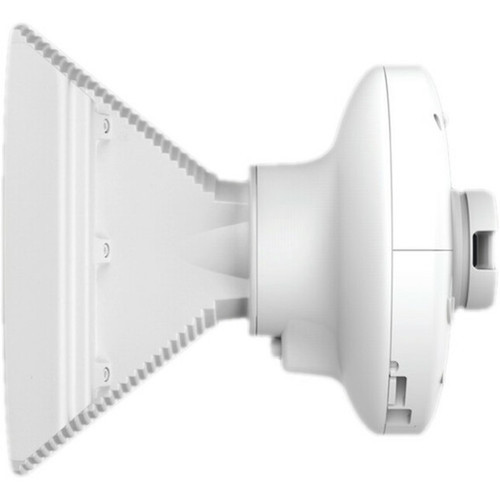

Physical Profile
The PrismStation AC features a cylindrical design with a height of 4.09 inches (104 mm) and a diameter of 6.10 inches (155 mm), weighing approximately 1.70 pounds (770 g). Its compact size and lightweight construction facilitate easy mounting on standard poles or masts using the included hardware kit. The enclosure is built to withstand outdoor exposure, supporting reliable operation in various environmental conditions.
- Height
- 4.09" (104 mm)
- Weight
- 1.70 lb (770 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Package contents include PrismStation AC PS-5AC Wireless Bridge 24V, 1A Gigabit PoE Adapter Pole-Mount Kit, PrismStation AC PS-5AC Wireless Bridge. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- IEEE 802.11ac wireless bridge for point-to-point and point-to-multipoint links
- Dual-band operation on 5 GHz and 2.4 GHz frequencies
- 500 Mbps wireless transmission speed with MIMO technology
- Gigabit Ethernet port with PoE PD support for simplified power and data
- Pole-mountable form factor for flexible outdoor installation
- Includes 24V PoE adapter and mounting kit in the box
- Proprietary Ubiquiti airMAX ac processor for optimized performance
- AirPrism active RF filtering to reduce interference
- Dedicated management radio separate from data traffic
- Backed by a 1-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | PS-5AC |
| Brand Name | Ubiquiti |
| Product Line | PrismStation AC |
| Product Model | PS-5AC |
| Product Name | PrismStation AC PS-5AC Wireless Bridge |
| Product Type | Wireless Bridge |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Frequency Band | 5 GHz,2.40 GHz |
| Wireless Transmission Speed | 500 Mbit/s |
| MIMO Technology | Yes |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Physical Characteristics | |
| Form Factor | Pole-mountable |
| Height | 4.09" (104 mm) |
| Diameter | 6.10" (155 mm) |
| Weight (Approximate) | 1.70 lb (770 g) |
| Miscellaneous | |
| Package Contents | PrismStation AC PS-5AC Wireless Bridge 24V, 1A Gigabit PoE Adapter Pole-Mount Kit |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum wireless throughput of the Ubiquiti PS-5AC?
The PrismStation AC PS-5AC delivers a wireless transmission speed of 500 Mbps. This throughput supports efficient data transfer for bridging applications, making it suitable for backhauling network traffic between locations without sacrificing performance.
Does this wireless bridge support Power over Ethernet (PoE)?
Yes, the PS-5AC includes a PoE PD (Powered Device) port. It accepts standard 24V passive PoE from the included Gigabit PoE adapter, allowing both power and data to be delivered over a single Ethernet cable for cleaner installations.
What frequency bands does the PrismStation AC operate on?
This bridge operates on dual bands: 5 GHz and 2.4 GHz. The dual-band capability provides flexibility to choose the best frequency based on environmental conditions, helping to avoid interference and optimize link stability.
How is the PS-5AC typically mounted for installation?
The PrismStation AC is designed as a pole-mountable device. The package includes a pole-mount kit, allowing it to be securely attached to standard poles, masts, or similar structures for elevated outdoor placement.
What is included in the box with the wireless bridge?
The package contains the PrismStation AC PS-5AC wireless bridge unit, a 24V, 1A Gigabit PoE adapter for power, and a pole-mount kit with necessary hardware for installation. No additional accessories are required for basic deployment.
What warranty coverage does Ubiquiti provide for this product?
Ubiquiti backs the PrismStation AC PS-5AC with a 1-year limited warranty. This coverage applies to defects in materials and workmanship under normal use, providing assurance for your investment.
