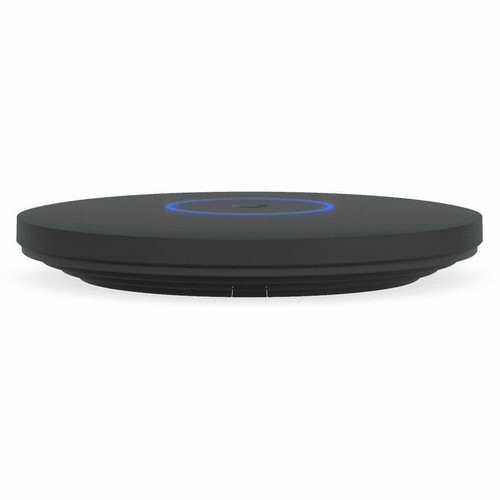

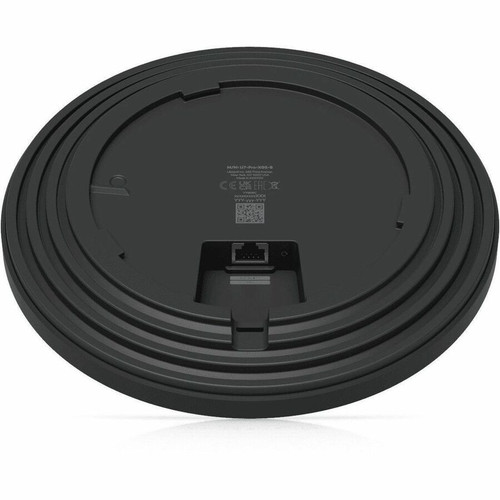

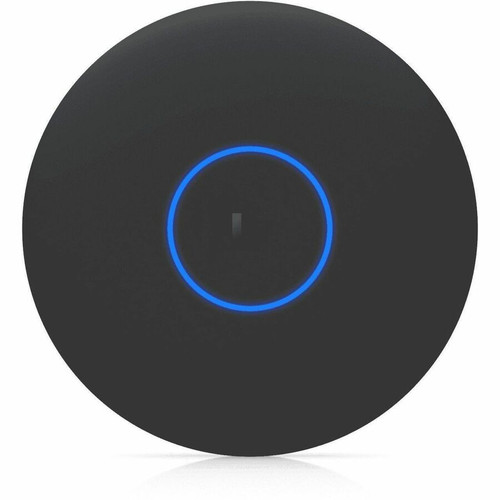

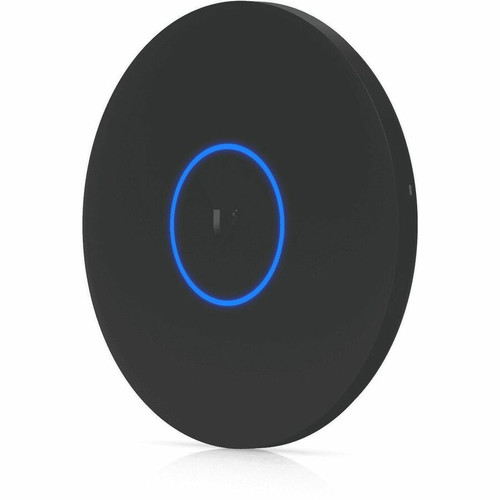

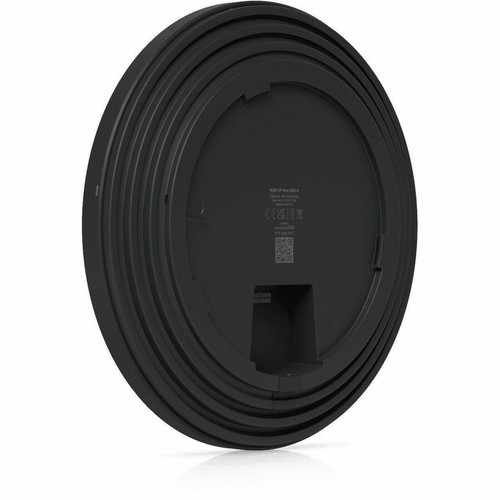

Ubiquiti U7-PRO-XGS-B-US U7 Pro XGS Tri-Band Wi-Fi 7 Wireless Access Point - 8. 60 Gbit/s - 10GbE - PoE - Ceiling/Wall Mount - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point operates on the IEEE 802.11n/ac/ax/be/v/r/k wireless LAN standard, providing backward compatibility with previous Wi-Fi generations while leveraging Wi-Fi 7 enhancements. It utilizes tri-band frequencies at 2.40 GHz, 5 GHz, and 6 GHz to distribute network traffic and reduce congestion, supporting a total of eight bandwidth streams for improved spatial reuse and throughput.
Network security is reinforced with TLS encryption and support for RADIUS and RADSEC communication protocols, enabling secure authentication and management. The unit also supports mesh networking for scalable wireless coverage expansion without additional wired backhaul.
This section brings together practical product details such as Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The U7 Pro XGS stands out with its combination of cutting-edge wireless technology and practical deployment features. Its Wi-Fi 7 foundation ensures future-ready performance, while the integrated 10GbE Ethernet port provides a high-speed wired backbone that prevents bottlenecks in mixed wired/wireless networks.
High-Speed Wireless Backbone
Delivers 8.60 Gbit/s aggregate throughput across three frequency bands, making it ideal for supporting high-density client environments, 4K/8K video streaming, and low-latency applications.
- Wi-Fi 7 standard
- Tri-band operation
- 8 bandwidth streams
Simplified Installation & Power
Features a single PoE PD port that supports 10GbE, 5GbE, 2.5GbE, and Gigabit Ethernet, allowing for both data and power delivery over a single cable to reduce installation complexity and costs.
- PoE powered
- 10GbE capable
- Ceiling/wall mountable
Deployment / Use Cases
The Ubiquiti U7 Pro XGS is tailored for commercial and enterprise settings where reliable, high-performance wireless connectivity is critical. Its ceiling or wall-mountable design and PoE support make it a versatile choice for offices, retail spaces, educational institutions, and hospitality venues.
This access point excels in environments with high client density, such as conference rooms, open-plan offices, and public areas, where its tri-band technology and MU-MIMO capabilities efficiently manage multiple simultaneous connections. It is also suitable for mesh deployments to extend wireless coverage across larger floors or buildings without running additional Ethernet cables.
Enterprise Office Networks
Provides stable, high-speed Wi-Fi for employee devices, VoIP systems, and collaborative tools, with TLS encryption and RADIUS support for secure network access.
High-Density Public Venues
Handles numerous concurrent users in areas like lobbies, cafeterias, or auditoriums, leveraging tri-band frequencies to minimize interference and maintain performance.
Physical Profile
The U7 Pro XGS features a circular design with a diameter of 8.46 inches (215 mm) and a slim depth of 1.28 inches (32.50 mm), allowing for discreet installation on ceilings or walls. Its black finish blends seamlessly with most interior aesthetics, and the lightweight construction at approximately 1.76 pounds (800 g) simplifies handling and mounting.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 8, 1.28" (32.50 mm), 1.76 lb (800 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8
- Depth
- 1.28" (32.50 mm)
- Weight
- 1.76 lb (800 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Package contents include U7 Pro XGS Wireless Access Point Ceiling, Wall Lite Mount, U7 Pro XGS Wireless Access Point. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Wi-Fi 7 wireless access point with tri-band support (2.4 GHz, 5 GHz, 6 GHz)
- Maximum wireless transmission speed of 8.60 Gbit/s for high-throughput applications
- Single 10GbE-capable RJ-45 port with PoE PD support for simplified installation
- Multi-User MIMO technology with eight bandwidth streams for efficient client handling
- Supports mesh networking for scalable wireless coverage expansion
- TLS encryption and RADIUS/RADSEC protocols for enhanced network security
- Ceiling and wall-mountable form factor with a sleek black finish
- Low power consumption of 29 watts for energy-efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | U7-PRO-XGS-B-US |
| Brand Name | Ubiquiti |
| Product Line | U7 Pro XGS |
| Product Name | U7 Pro XGS Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11n/ac/ax/be/v/r/k |
| Network Band | Tri Band |
| Frequency Band | 2.40 GHz,5 GHz,6 GHz |
| Wireless Transmission Speed | 8.60 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Number of Bandwidth Streams | 8 |
| Data Encryption | Yes |
| Encryption Standard | TLS |
| Mesh Supported | Yes |
| Interfaces/Ports | |
| Ethernet Technology | 10 Gigabit Ethernet,5 Gigabit Ethernet,2.5 Gigabit Ethernet,Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 7 |
| Communication Protocols | RADIUS,RADSEC |
| Power Description | |
| Power Consumption | 29 W |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Ceiling Mountable,Wall Mountable |
| Depth | 1.28" (32.50 mm) |
| Diameter | 8.46" (215 mm) |
| Weight (Approximate) | 1.76 lb (800 g) |
| Miscellaneous | |
| Package Contents | U7 Pro XGS Wireless Access Point Ceiling, Wall Lite Mount |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
FAQ
What Wi-Fi generation does the Ubiquiti U7 Pro XGS support?
The Ubiquiti U7 Pro XGS supports Wi-Fi 7, the latest wireless standard, which includes advancements in speed, capacity, and efficiency. It is backward compatible with previous Wi-Fi generations (IEEE 802.11n/ac/ax/be/v/r/k) to ensure connectivity with older devices while delivering improved performance for newer clients.
What is the maximum wireless speed of this access point?
This access point delivers a maximum aggregate wireless transmission speed of 8.60 Gbit/s across its tri-band frequencies. This high throughput supports bandwidth-intensive tasks such as 4K/8K video streaming, large file transfers, and low-latency applications in dense network environments.
Does the U7 Pro XGS support Power over Ethernet (PoE)?
Yes, the U7 Pro XGS includes a PoE PD (Powered Device) port. This allows the access point to receive both data and power over a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location and reducing cable clutter.
What Ethernet speeds are supported by the network port?
The single RJ-45 network port supports multiple Ethernet technologies: 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, and Gigabit Ethernet. This flexibility ensures compatibility with various network switches and provides a high-speed wired backbone to prevent bottlenecks in mixed wired/wireless setups.
Can this access point be used in a mesh network?
Yes, the U7 Pro XGS supports mesh networking. This feature allows multiple access points to wirelessly connect with each other to extend Wi-Fi coverage across larger areas without requiring Ethernet cabling between each unit, making it ideal for expanding network reach in buildings with challenging wiring layouts.
What mounting options are available for the U7 Pro XGS?
The U7 Pro XGS is designed for ceiling or wall mounting, offering flexibility in placement to optimize wireless coverage. Its included Ceiling, Wall Lite Mount facilitates secure installation in commercial environments, and its compact dimensions (8.46" diameter, 1.28" depth) allow for discreet integration into various spaces.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
What management, monitoring, or control option is listed?
10 Gigabit Ethernet,5 Gigabit Ethernet,2.5 Gigabit Ethernet,Gigabit Ethernet.
