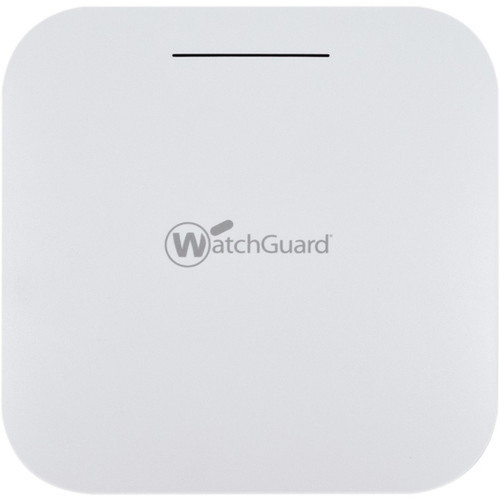

WatchGuard WGA13000000 AP130 Indoor Wi-Fi 6802.11ax Dual-Band Access Point - 1.73 Gbit/s - 4 Internal Antennas - PoE+
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The AP130 operates on both 2.4 GHz and 5 GHz frequency bands, with a maximum aggregate wireless transmission speed of 1.73 Gbit/s. It utilizes MIMO technology to improve throughput and reliability, with a 2x2 radio configuration that supports data rates up to 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.
Connectivity is handled by a single Gigabit Ethernet port that also serves as a PoE PD (Powered Device) port, compatible with 802.3at PoE+ standards for power delivery up to 30W. The built-in management port facilitates network configuration and monitoring.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The AP130 combines Wi-Fi 6 efficiency with enterprise-grade features to support demanding wireless networks. Its design prioritizes performance, security, and ease of deployment in indoor settings.
Enhanced Wi-Fi Performance
Wi-Fi 6 technology increases network capacity and reduces latency, ideal for offices, schools, and retail environments with multiple connected devices.
- 1.73 Gbit/s maximum speed
- Dual-band operation reduces congestion
- MIMO improves signal reliability
Simplified Installation

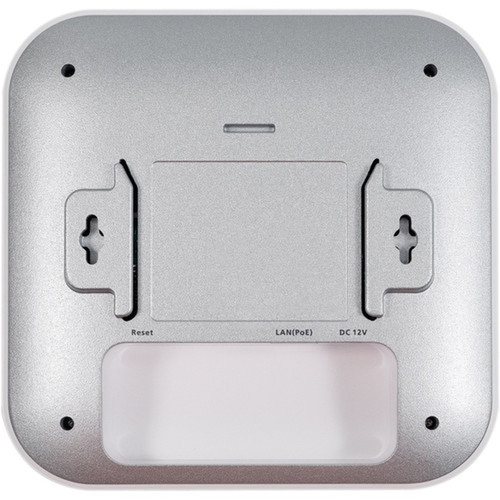

PoE+ support allows installation in locations without direct power outlets, reducing cabling complexity and enabling flexible ceiling or wall mounting.
- Single Ethernet for data and power
- Compact design fits discreetly
- Internal antennas require no assembly
Robust Security
WPA3 encryption provides stronger protection against brute-force attacks and enhances privacy for wireless communications.
- Latest Wi-Fi security standard
- Protects sensitive business data
- Supports secure client authentication
Deployment / Use Cases
The WatchGuard AP130 is suited for indoor environments where reliable, high-speed Wi-Fi is essential. Its PoE+ capability and compact size make it easy to integrate into existing network infrastructure.
Common deployment scenarios include office buildings, educational institutions, healthcare facilities, and retail spaces. The access point can be mounted on ceilings or walls to provide optimal coverage in open areas or partitioned rooms.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Enterprise Office Networks
Deliver stable Wi-Fi for employee devices, VoIP phones, and collaboration tools, with WPA3 securing corporate network access.
Education and Campus Wi-Fi
Support high-density student and faculty connectivity in classrooms, libraries, and common areas, with dual bands managing traffic load.
Physical Profile
The AP130 has a square footprint measuring 6.30 inches in width and height, with a slim depth of 1.31 inches. Its low-profile design and internal antennas allow for unobtrusive installation in visible locations. The unit weighs approximately 13.40 ounces (380 grams), making it lightweight for mounting on various surfaces. The environmentally friendly construction complies with RoHS standards, restricting hazardous substances.
- Width
- 6.30" (160 mm)
- Depth
- 1.31" (33.20 mm)
- Height
- 6.30" (160 mm)
- Weight
- 13.40 oz (380 g)
Highlights
- Wi-Fi 6 (802.11ax) dual-band access point for modern wireless networks
- Maximum wireless speed of 1.73 Gbit/s with MIMO technology
- Four internal antennas provide integrated coverage without external attachments
- Single Gigabit Ethernet port with PoE+ (802.3at) support for simplified installation
- WPA3 encryption ensures advanced security for business environments
- Compact design (6.30" x 6.30" x 1.31") suitable for ceiling or wall mounting
- Low power consumption at 13.88 watts for energy-efficient operation
- Indoor use only, optimized for offices, schools, and retail spaces
- Includes management port for network configuration and monitoring
- Compliant with RoHS environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | WatchGuard Technologies, Inc |
| Manufacturer Part Number | WGA13000000 |
| Brand Name | WatchGuard |
| Product Model | AP130 |
| Product Name | AP130 Indoor Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 4 |
| Number of Internal Antennas | 4 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 1.73 Gbit/s |
| MIMO Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3 |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE+ (RJ-45) Ports | Yes |
| PoE PD Port | Yes |
| Management Port | Yes |
| Power Description | |
| Power Consumption | 13.88 W |
| Physical Characteristics | |
| Antenna Form Factor | Internal |
| Height | 6.30" (160 mm) |
| Width | 6.30" (160 mm) |
| Depth | 1.31" (33.20 mm) |
| Weight (Approximate) | 13.40 oz (380 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What Wi-Fi standard does the WatchGuard AP130 support?
The AP130 supports Wi-Fi 6, based on the 802.11ax standard. This latest generation of Wi-Fi offers improved efficiency, higher capacity, and better performance in environments with many connected devices compared to older standards like 802.11ac.
Does this access point support Power over Ethernet?
Yes, the AP130 includes a single Gigabit Ethernet port that supports PoE+ (802.3at). This allows the access point to receive both data and power over a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
How many antennas does the AP130 have, and are they external?
The AP130 has four internal antennas. They are built into the unit's housing, providing a clean, low-profile appearance without external antenna attachments. This design is ideal for discreet ceiling or wall mounting in professional environments.
What security features are included with this access point?
The AP130 features WPA3 encryption, the latest Wi-Fi security standard. WPA3 provides stronger protection against password-guessing attacks and enhances privacy for wireless communications, making it suitable for securing business networks and sensitive data.
What are the physical dimensions and weight of the AP130?
The AP130 measures 6.30 inches in width and height, with a depth of 1.31 inches. It weighs approximately 13.40 ounces (380 grams). Its compact and lightweight design facilitates easy installation on ceilings or walls in indoor spaces.
Is the WatchGuard AP130 suitable for outdoor use?
No, the AP130 is designed for indoor use only. It is optimized for environments like offices, schools, and retail stores. For outdoor deployments, you would need an access point specifically rated for outdoor conditions with appropriate weatherproofing and temperature tolerances.
