WatchGuard WGA332003803 AP332CR Outdoor Wi-Fi 6 Access Point - Dual Band 802. 11ax - 1. 71 Gbit/s - 4 External Antennas - IP67 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the AP332CR utilizes the IEEE 802.11ax wireless standard, also known as Wi-Fi 6, which introduces technologies like OFDMA and Target Wake Time to improve efficiency, reduce latency, and increase overall network capacity. The access point operates across both the 2.4 GHz and 5 GHz frequency bands, providing broad compatibility with legacy and modern client devices while optimizing performance and minimizing interference.

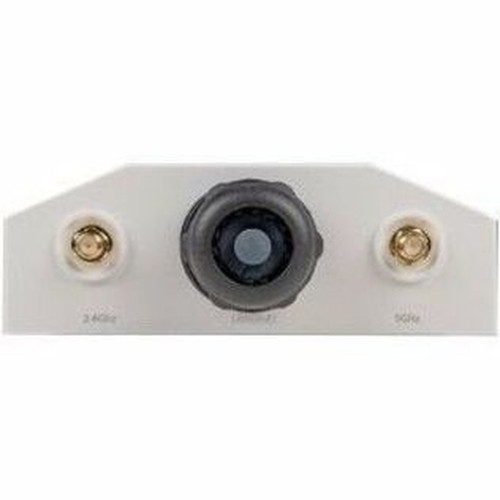

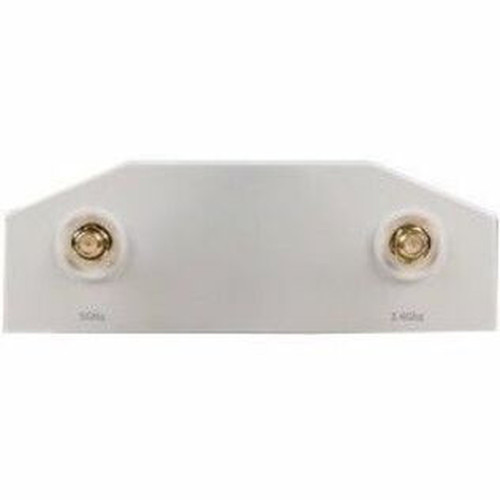

The unit is equipped with four external omnidirectional antennas, which are included in the package. This antenna configuration supports MIMO (Multiple Input, Multiple Output) technology, enhancing signal reliability and throughput by transmitting multiple data streams simultaneously. For network uplink, a single 2.5 Gigabit Ethernet port ensures high-speed wired backhaul connectivity, and this port also functions as a PoE PD (Powered Device) port, accepting power from a compatible PoE switch or injector.
Key Product Advantages
The AP332CR combines advanced wireless technology with a ruggedized design to deliver reliable outdoor connectivity. Its Wi-Fi 6 capabilities ensure efficient performance in crowded networks, while the external antenna design allows for optimized signal coverage and placement flexibility.
Rugged Outdoor Design
With an IP67 rating, this access point is built to withstand extreme weather conditions, including rain, snow, dust, and temperature variations, making it ideal for permanent outdoor installations.
- Dust-tight and waterproof enclosure
- Suitable for harsh environments
Enhanced Security
The access point supports WPA3 encryption, the latest Wi-Fi security standard, providing robust protection against unauthorized access and ensuring data integrity for connected devices.
- WPA3 encryption standard
- Secure wireless communications
Simplified Installation
PoE support eliminates the need for separate power wiring, reducing installation complexity and cost. The included external antennas are easy to mount and adjust for optimal coverage.
- Single-cable deployment with PoE
- Flexible antenna positioning
Deployment / Use Cases
The WatchGuard AP332CR is designed for outdoor wireless deployments where reliability and performance are critical. Its rugged construction and high-speed connectivity make it a versatile solution for various commercial and industrial applications.
Common use cases include providing Wi-Fi coverage in outdoor public spaces such as parks, stadiums, and campuses, where it can handle large numbers of concurrent users. It is also well-suited for industrial environments like manufacturing plants, warehouses, and logistics centers, where the IP67 rating protects against dust, moisture, and physical impacts. Additionally, the access point can be deployed in hospitality settings for outdoor patio or pool area coverage, ensuring guests have seamless connectivity.
Public Venue Coverage
Deliver high-capacity Wi-Fi in outdoor areas like parks, stadiums, and shopping centers to support guest and visitor connectivity.
Industrial Wireless Networks
Provide reliable wireless connectivity in harsh industrial settings for IoT devices, mobile scanners, and operational technology.
Physical Profile
The AP332CR has a compact and durable form factor designed for easy mounting on poles, walls, or ceilings in outdoor locations. Its dimensions of 7.48" (190 mm) in height, 4.88" (124 mm) in width, and 2.07" (52.50 mm) in depth allow for discreet installation without occupying excessive space. With an approximate weight of 8.97 lb (4070 g), the unit is substantial enough to withstand environmental forces while remaining manageable for installers.
- Width
- 4.88" (124 mm)
- Depth
- 2.07" (52.50 mm)
- Height
- 7.48" (190 mm)
- Weight
- 8.97 lb (4070 g)
What's in the Box
The package includes all necessary components for immediate deployment of the access point.
Highlights
- Wi-Fi 6 (802.11ax) dual-band access point for high-efficiency wireless
- Delivers up to 1.71 Gbit/s combined wireless transmission speed
- Rugged outdoor design with IP67 rating for dust and water resistance
- Includes 4 external omnidirectional antennas for optimized coverage
- Single 2.5 Gigabit Ethernet port with PoE PD support for easy installation
- Supports WPA3 encryption for enhanced network security
- MIMO technology improves signal reliability and throughput
- RoHS compliant for environmentally friendly manufacturing
Specifications
| Specifications | |
|---|---|
| Manufacturer | WatchGuard Technologies, Inc |
| Manufacturer Part Number | WGA332003803 |
| Brand Name | WatchGuard |
| Product Model | AP332CR |
| Product Name | AP332CR Outdoor/Rugged Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ax |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 4 |
| Number of External Antennas | 4 |
| Indoor/Outdoor | Outdoor |
| Wireless Transmission Speed | 1.71 Gbit/s |
| MIMO Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3 |
| Ingress Protection (IP) Rating | IP67 |
| Interfaces/Ports | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Power Description | |
| Power Consumption | 15.90 W |
| Physical Characteristics | |
| Antenna Form Factor | External |
| Height | 7.48" (190 mm) |
| Width | 4.88" (124 mm) |
| Depth | 2.07" (52.50 mm) |
| Weight (Approximate) | 8.97 lb (4070 g) |
| Miscellaneous | |
| Package Contents | AP332CR Outdoor/Rugged Access Point 4 x Omnidirectional External Antennas |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What Wi-Fi standard does the WatchGuard AP332CR support?
The WatchGuard AP332CR supports the IEEE 802.11ax wireless standard, commonly known as Wi-Fi 6. This standard provides improved network efficiency, higher data rates, and better performance in environments with many connected devices compared to previous Wi-Fi generations.
Is this access point suitable for outdoor use?
Yes, the AP332CR is designed specifically for outdoor deployment. It features an IP67 rating, which means it is completely dust-tight and can withstand temporary immersion in water up to 1 meter deep for 30 minutes, making it ideal for harsh weather conditions.
Does the AP332CR support Power over Ethernet (PoE)?
Yes, the access point includes a PoE PD (Powered Device) port. This allows it to receive both data and power over a single Ethernet cable from a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
How many antennas does this access point have, and are they included?
The AP332CR has four external omnidirectional antennas. These antennas are included in the package, providing flexible mounting options to optimize wireless coverage and signal strength for your specific deployment environment.
What is the wireless transmission speed of the AP332CR?
This access point offers a combined wireless transmission speed of up to 1.71 Gbit/s across its dual-band operation. This high-speed capability supports bandwidth-intensive applications and ensures smooth connectivity for multiple concurrent users.
What security features does this access point include?
The AP332CR supports WPA3 encryption, the latest Wi-Fi security standard. WPA3 provides stronger protection against brute-force attacks and enhances privacy on public networks, ensuring secure wireless communications for all connected devices.
