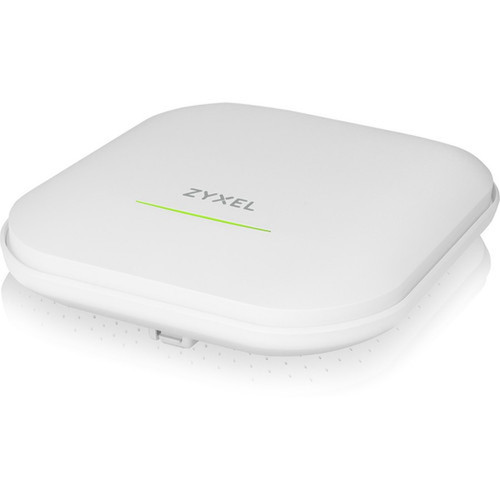

ZyXEL WAX620D-6E Tri-Band Wi-Fi 6E Access Point - Indoor - 5. 4 Gbps - 2. 4/5/6 GHz - 6 Internal Antennas - PoE - Wall/Ceiling Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This access point is built on the IEEE 802.11 a/b/g/n/ac/ax wireless standard, commonly known as Wi-Fi 6E, which extends Wi-Fi 6 capabilities into the 6 GHz band for additional clean spectrum. The tri-band design allows simultaneous operation on 2.4 GHz, 5 GHz, and 6 GHz frequencies, providing flexibility for legacy and modern client devices. The 5.4 Gbps wireless transmission speed is achieved through efficient channel utilization and advanced modulation techniques.
On the wired side, the device offers two RJ-45 network ports that support Gigabit and 2.5 Gigabit Ethernet, providing flexible uplink options. The PoE PD port accepts standard 802.3at or 802.3af power, enabling deployment in locations without convenient power outlets. For network integration and management, the access point supports RADIUS for secure authentication and SNMP for remote monitoring and configuration.
Relevant factors for this section include Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ZyXEL WAX620D-6E stands out with its future-ready Wi-Fi 6E support, providing access to the uncongested 6 GHz band for high-performance, low-latency connections. This is particularly valuable in crowded wireless environments like offices, schools, or hospitality venues where traditional bands may be saturated. The integrated six-antenna array, combined with MU-MIMO and beamforming, ensures reliable coverage and efficient multi-client handling.
Simplified Installation
Power over Ethernet support allows the access point to be installed in ceiling tiles, wall mounts, or T-bar grids using a single Ethernet cable for both data and power, reducing installation complexity and cost.
- PoE PD compliant
- Flexible mounting options
- Single-cable deployment
Enhanced Security
Comprehensive encryption support includes WPA3-ENT for enterprise-grade security, alongside WPA2 and legacy protocols, ensuring compatibility with diverse client devices while maintaining strong protection.
- WPA3-ENT support
- RADIUS authentication
- Multi-encryption standards
Deployment / Use Cases
The WAX620D-6E is ideal for medium to large business networks requiring high-density wireless coverage with support for the latest Wi-Fi 6E devices. Its tri-band operation makes it suitable for segmenting network traffic—for example, dedicating the 6 GHz band to high-performance applications like video conferencing or large file transfers, while using 2.4 GHz and 5 GHz for general connectivity and legacy devices.
Common deployment scenarios include corporate offices, educational campuses, healthcare facilities, and retail environments where reliable, high-speed wireless is critical. The wall, ceiling, and T-bar mounting options provide installation flexibility for various architectural layouts. In managed network environments, SNMP and RADIUS support enable seamless integration with existing network management systems and authentication servers.
Physical Profile
The access point has a compact, low-profile design with dimensions of 7.09" (180 mm) wide, 7.09" (180 mm) deep, and 1.65" (42 mm) high, weighing approximately 1.43 lb (650 g). Its internal antenna design contributes to a sleek appearance suitable for visible installations in office ceilings or walls. The unit is built for indoor use only and includes multiple mounting options—wall, ceiling, and T-bar—with the necessary hardware provided in the package.
- Width
- 7.09" (180 mm)
- Depth
- 7.09" (180 mm)
- Height
- 1.65" (42 mm)
- Weight
- 1.43 lb (650 g)
What's in the Box
The package includes the AXE5400 WiFi 6E Dual-Radio Access Point unit, a mount plate, and mounting screws for easy installation.
Package contents include AXE5400 WiFi 6E Dual-Radio Access Point Mount Plate Mounting Screws, AXE5400 WiFi 6E Dual-Radio Access Point. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Tri-band Wi-Fi 6E access point operating on 2.4 GHz, 5 GHz, and 6 GHz frequencies
- Maximum aggregate wireless speed of 5.4 Gbps for high-performance connectivity
- Six internal antennas with MU-MIMO and beamforming technology for optimized coverage
- Dual Ethernet ports supporting Gigabit and 2.5 Gigabit speeds
- Power over Ethernet (PoE) PD port for simplified installation and power delivery
- Supports WPA3-ENT encryption and RADIUS authentication for enterprise security
- Flexible mounting options: wall, ceiling, and T-bar mount compatible
- Compact design: 7.09" x 7.09" x 1.65" (180 mm x 180 mm x 42 mm)
- RoHS compliant for environmental responsibility
- Indoor deployment only
Specifications
| Specifications | |
|---|---|
| Manufacturer | ZYXEL Communications Corp. |
| Manufacturer Part Number | WAX620D-6E |
| Brand Name | ZYXEL |
| Product Model | WAX620D-6E |
| Product Name | AXE5400 WiFi 6E Dual-Radio Access Point |
| Packaged Quantity | 1 |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Network Band | Tri Band |
| Frequency Band | 2.40 GHz,5 GHz,6 GHz |
| Total Number of Antennas | 6 |
| Number of Internal Antennas | 6 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 5.40 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WEP,WPA,WPA2-PSK,WPA3,WPA2,WPA3-ENT |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6E |
| Communication Protocols | RADIUS,SNMP |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Ceiling Mountable,T-bar Mount |
| Antenna Form Factor | Internal |
| Height | 1.65" (42 mm) |
| Width | 7.09" (180 mm) |
| Depth | 7.09" (180 mm) |
| Weight (Approximate) | 1.43 lb (650 g) |
| Miscellaneous | |
| Package Contents | AXE5400 WiFi 6E Dual-Radio Access Point Mount Plate Mounting Screws |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
User Manual
FAQ
What is Wi-Fi 6E and how does it differ from Wi-Fi 6?
Wi-Fi 6E extends the Wi-Fi 6 standard by adding support for the 6 GHz frequency band, in addition to the traditional 2.4 GHz and 5 GHz bands. This provides more available channels and less interference, which is especially beneficial in crowded wireless environments. The ZyXEL WAX620D-6E is a tri-band access point that operates on all three bands, offering the latest Wi-Fi 6E capabilities for future-proof performance.
Does this access point support Power over Ethernet (PoE)?
Yes, the ZyXEL WAX620D-6E includes a PoE PD (Powered Device) port. This means it can receive both data and electrical power over a single Ethernet cable from a compatible PoE switch or injector. This feature simplifies installation by eliminating the need for a separate power outlet near the access point, which is ideal for ceiling or wall-mounted deployments.
What are the mounting options for this access point?
The access point is designed for flexible indoor mounting. It supports wall mounting, ceiling mounting, and T-bar grid mounting commonly found in drop ceilings. The package includes a mount plate and mounting screws to facilitate these installation methods, allowing the unit to be placed optimally for coverage in various environments like offices, schools, or retail spaces.
How many Ethernet ports does the WAX620D-6E have and what speeds do they support?
The access point has two RJ-45 Ethernet ports. These ports support both Gigabit Ethernet (1 Gbps) and 2.5 Gigabit Ethernet (2.5 Gbps) speeds. This provides flexible uplink options to your network switch, allowing you to choose the appropriate speed based on your network infrastructure and bandwidth requirements.
What security features are included with this access point?
The WAX620D-6E supports a wide range of encryption standards including WEP, WPA, WPA2-PSK, WPA3, WPA2, and WPA3-ENT. The inclusion of WPA3-ENT offers enterprise-grade security with stronger encryption protocols. Additionally, the access point supports RADIUS for centralized authentication and SNMP for secure network management, making it suitable for business and enterprise environments with strict security policies.
What is the wireless transmission speed and how is it achieved?
The access point has a maximum aggregate wireless transmission speed of 5.40 Gbit/s (5.4 Gbps). This speed is achieved through the combination of Wi-Fi 6E technology, tri-band operation (2.4 GHz, 5 GHz, and 6 GHz), Multi-User MIMO (MU-MIMO), and beamforming. These technologies work together to efficiently manage multiple client connections simultaneously, optimize signal direction, and utilize available spectrum, resulting in high throughput for demanding applications.
