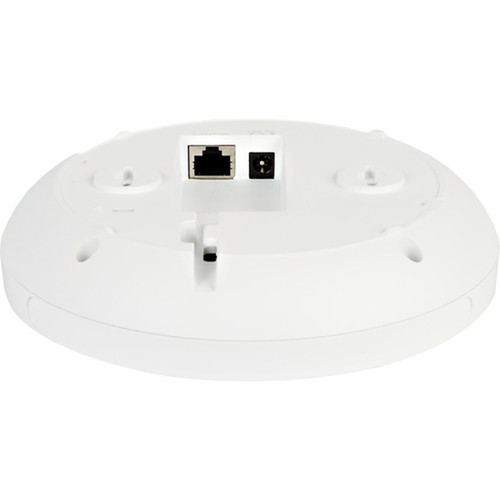

Fortinet FAP-221E-E FortiAP 221E Dual-Band 802. 11ac Wireless Access Point - 1. 14 Gbit/s - 4 Internal Antennas - PoE - Ceiling/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FortiAP 221E incorporates advanced wireless technologies to enhance signal quality and coverage. MIMO (Multiple Input, Multiple Output) technology improves data throughput and reliability by using multiple antennas for simultaneous data streams. Beamforming technology focuses the Wi-Fi signal toward connected devices, increasing effective range and reducing dead spots.
Connectivity is handled through a single Gigabit Ethernet port that supports Power over Ethernet (PoE) for simplified installation. The built-in USB port offers flexibility for peripheral connections or future expansions. A dedicated management port provides out-of-band access for network administration without disrupting user traffic.
Relevant factors for this section include Wireless LAN Standard, Frequency Band, Total Number of Antennas, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This access point combines robust wireless performance with enterprise-grade management features. The four internal antennas provide omnidirectional coverage without external antenna clutter, making it suitable for clean ceiling or wall installations.
Optimized Installation
Power over Ethernet support eliminates the need for separate power cabling, reducing installation complexity and costs. The included mounting kit accommodates ceiling tiles, T-rails, and wall surfaces.
- Single cable for power and data
- Versatile mounting hardware included
- Low-profile design blends into environments
Enhanced Wireless Performance
Dual-band operation allows devices to connect on less congested 5 GHz frequencies while maintaining compatibility with legacy 2.40 GHz devices. The 1.14 Gbit/s throughput supports multiple concurrent users without performance degradation.
- Simultaneous dual-band operation
- MIMO for improved throughput
- Beamforming for targeted coverage
Deployment / Use Cases
The FortiAP 221E is designed for deployment in office buildings, retail spaces, educational institutions, and healthcare facilities where reliable Wi-Fi coverage is essential. Its ceiling-mountable form factor makes it ideal for drop-ceiling installations in corridors, conference rooms, and open-plan areas.
For retail environments, the access point supports seamless roaming for mobile point-of-sale devices and customer Wi-Fi. In educational settings, it handles high-density student device connections during peak usage periods. The rail-mountable option allows for installation in server rooms or network closets where rack space is available.
Office Wi-Fi Deployment
Provide consistent coverage throughout office floors with ceiling-mounted access points. PoE simplifies deployment through existing network infrastructure.
Public Access Networks
Support guest Wi-Fi in hotels, airports, or cafes with dual-band operation that segregates traffic between public and private networks.
Physical Profile
The FortiAP 221E features a compact circular design with a diameter of 6.30 inches and height of 1.85 inches. Its low-profile form factor minimizes visual impact when installed on ceilings or walls. The unit weighs approximately 1.10 pounds, making it easy to handle during installation. The white finish complements most commercial interior designs.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.85" (46.99 mm), 1.10 lb (498.95 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 1.85" (46.99 mm)
- Weight
- 1.10 lb (498.95 g)
What's in the Box
The package includes all necessary components for immediate deployment of the wireless access point.
Highlights
- Dual-band 802.11ac wireless access point with 1.14 Gbit/s maximum throughput
- Four internal antennas with MIMO technology for improved signal quality and coverage
- Power over Ethernet (PoE) support simplifies installation with single-cable deployment
- Versatile mounting options for ceiling, wall, or rail installations
- Built-in USB port for peripheral connectivity and future expansion
- Dedicated management port for out-of-band network administration
- Beamforming technology focuses Wi-Fi signals toward connected devices
- Lifetime limited warranty for long-term investment protection
- RoHS compliant for environmentally responsible deployment
- Compact design with low visual impact in commercial environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FAP-221E-E |
| Brand Name | Fortinet |
| Product Line | FortiAP |
| Product Model | 221E |
| Product Name | FortiAP 221E Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Frequency Band | 5 GHz,2.40 GHz |
| Total Number of Antennas | 4 |
| Number of Internal Antennas | 4 |
| Wireless Transmission Speed | 1.14 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| VGA | No |
| HDMI | No |
| USB | Yes |
| Powerline | No |
| Management Port | Yes |
| Physical Characteristics | |
| Form Factor | Ceiling Mountable,Wall Mountable,Rail-mountable |
| Height | 1.85" (46.99 mm) |
| Diameter | 6.30" (160.02 mm) |
| Weight (Approximate) | 1.10 lb (498.95 g) |
| Miscellaneous | |
| Package Contents | FortiAP 221E Wireless Access Point Ceiling, T-Rail and Wall mount kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What wireless standards does the FortiAP 221E support?
The FortiAP 221E operates on the IEEE 802.11ac wireless standard, which is the Wi-Fi 5 generation. This standard provides improved data rates, capacity, and performance compared to previous 802.11n technology. The access point supports both 5 GHz and 2.40 GHz frequency bands simultaneously for optimal network traffic management.
Does this access point support Power over Ethernet?
Yes, the FortiAP 221E includes a PoE PD (Power over Ethernet Powered Device) port. This allows the access point to receive both power and data through a single Ethernet cable from a PoE switch or injector. PoE support simplifies installation by eliminating the need for separate power outlets near the mounting location.
How many antennas does the FortiAP 221E have and are they internal or external?
The FortiAP 221E has four total antennas, all of which are internal. The internal antenna design provides omnidirectional coverage without protruding external antennas, creating a cleaner installation appearance. These antennas work with MIMO technology to improve wireless performance and reliability.
What mounting options are available for this wireless access point?
The FortiAP 221E supports ceiling mounting, wall mounting, and rail-mountable installation. The included mounting kit contains hardware for all three installation methods. The low-profile circular design is particularly well-suited for drop-ceiling installations in commercial environments where discreet placement is preferred.
What is the maximum wireless transmission speed of this access point?
The FortiAP 221E delivers a maximum wireless transmission speed of 1.14 Gbit/s. This throughput supports high-bandwidth applications like video streaming, large file transfers, and VoIP communications. The dual-band operation allows this speed to be distributed across both 5 GHz and 2.40 GHz frequencies for optimal performance.
What warranty coverage does Fortinet provide for this access point?
Fortinet provides a lifetime limited warranty for the FortiAP 221E wireless access point. This warranty covers defects in materials and workmanship for the life of the product. The access point is also RoHS (Restriction of Hazardous Substances) compliant, meeting environmental standards for responsible electronics manufacturing.
