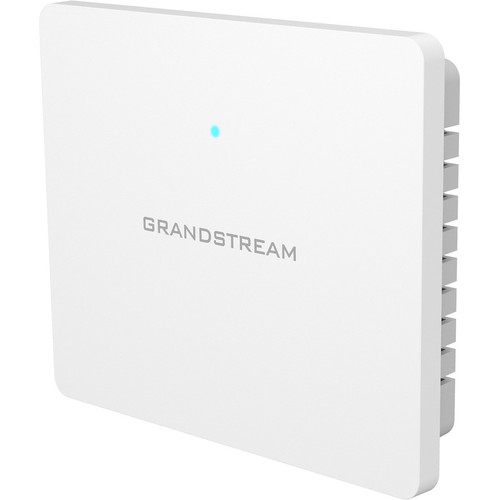

Grandstream GWN7602 Dual-Band 802.11ac Wireless Access Point - 1.17 Gbit/s - 4-Port Gigabit Ethernet - PoE - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GWN7602 leverages IEEE 802.11ac technology to achieve wireless transmission speeds of up to 1.17 Gbit/s, ensuring fast and stable connections for bandwidth-intensive applications. MIMO technology enhances signal reliability and coverage, while two internal antennas provide consistent performance without external clutter.
This access point includes four network (RJ-45) ports with support for both Fast Ethernet and Gigabit Ethernet, allowing seamless integration into existing wired networks. Power over Ethernet (PoE) capability simplifies installation by delivering both data and electrical power through a single cable, reducing the need for additional power outlets.
Relevant factors for this section include Wireless LAN Standard, Frequency Band, Total Number of Antennas, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Grandstream GWN7602 stands out with its combination of high-speed wireless performance, robust wired connectivity, and installation flexibility. Its integrated design reduces hardware footprint while maintaining full feature sets expected in professional networking equipment.
Unified Power and Data
PoE support allows the access point to receive power and data over a single Ethernet cable, streamlining deployment and reducing cable clutter in ceiling or wall installations.
Dual-Band Flexibility
Operate on 2.4 GHz for broader coverage or 5 GHz for less congested, higher-speed connections, giving network administrators control over performance optimization.
Integrated Switching
Four Ethernet ports enable direct connection of wired devices like computers, printers, or IP phones, eliminating the need for an additional switch in small deployments.
Deployment / Use Cases
The GWN7602 is ideal for extending Wi-Fi coverage in medium-sized offices, retail stores, classrooms, and hospitality environments where reliable wireless access is critical. Its wall-mountable form factor makes it particularly suitable for installations where ceiling mounting isn't feasible or desired.
This access point can serve as a primary wireless solution for small businesses or as a supplementary access point in larger networks to eliminate dead zones. The PoE capability makes it compatible with standard network switches and injectors, supporting deployment in locations without convenient power access.
Office Wi-Fi Expansion
Add wireless capacity to conference rooms, open workspaces, or remote office areas without running new power lines, using existing network infrastructure.
Retail and Hospitality
Provide guest Wi-Fi in hotels, restaurants, or stores with minimal installation footprint, maintaining aesthetic appeal while delivering connectivity.
Physical Profile
Measuring 5.31" high, 4.53" wide, and 1.18" deep (135 x 115 x 30 mm), the GWN7602 features a compact, low-profile design that blends discreetly into various environments. At just 6.63 ounces (188 grams), it's lightweight enough for secure wall mounting without requiring heavy-duty hardware. The wall-mountable form factor includes appropriate mounting provisions for stable installation on drywall, concrete, or other common building materials.
- Width
- 4.53" (115 mm)
- Depth
- 1.18" (30 mm)
- Height
- 5.31" (135 mm)
- Weight
- 6.63 oz (188 g)
What's in the Box
The package includes everything needed for basic installation and operation of the wireless access point.
Highlights
- Dual-band 802.11ac wireless access point with speeds up to 1.17 Gbit/s
- Four Gigabit Ethernet ports with Fast Ethernet fallback support
- Power over Ethernet (PoE) capable for simplified installation
- Two internal antennas with MIMO technology for improved coverage
- Wall-mountable compact design (5.31" H x 4.53" W x 1.18" D)
- Lightweight construction at just 6.63 oz (188 g)
- Integrated Ethernet switch eliminates need for separate switching hardware
- Environmentally compliant with WEEE and China RoHS standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Grandstream Networks, Inc |
| Manufacturer Part Number | GWN7602 |
| Brand Name | Grandstream |
| Product Model | GWN7602 |
| Product Name | Wi-Fi AP with Integrated Ethernet Switch |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 2 |
| Number of Internal Antennas | 2 |
| Wireless Transmission Speed | 1.17 Gbit/s |
| MIMO Technology | Yes |
| Interfaces/Ports | |
| Ethernet Technology | Fast Ethernet,Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 4 |
| PoE (RJ-45) Port | Yes |
| PoE PD Port | Yes |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 5.31" (135 mm) |
| Width | 4.53" (115 mm) |
| Depth | 1.18" (30 mm) |
| Weight (Approximate) | 6.63 oz (188 g) |
| Miscellaneous | |
| Package Contents | Wi-Fi AP with Integrated Ethernet Switch Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS) |
| Country of Origin | China |
User Manual
FAQ
What Wi-Fi standard does the Grandstream GWN7602 support?
The GWN7602 supports the IEEE 802.11ac wireless standard, which provides faster speeds and better performance compared to older standards like 802.11n. This standard operates on both 2.4 GHz and 5 GHz frequency bands, offering flexibility for different network environments and device compatibility.
How many Ethernet ports does this access point have?
This access point features four network (RJ-45) ports that support both Fast Ethernet (up to 100 Mbps) and Gigabit Ethernet (up to 1000 Mbps) connections. These ports allow you to connect wired devices directly to the access point, functioning as an integrated switch in addition to providing wireless connectivity.
Does the GWN7602 support Power over Ethernet?
Yes, the GWN7602 supports Power over Ethernet with both PoE (RJ-45) port and PoE PD (Powered Device) port capabilities. This means the access point can receive power through the Ethernet cable from a compatible PoE switch or injector, eliminating the need for a separate power adapter and simplifying installation in locations without convenient power outlets.
What are the mounting options for this wireless access point?
The GWN7602 is designed for wall mounting, with a form factor specifically optimized for this installation method. Its compact dimensions and lightweight construction make it suitable for mounting on various surfaces in offices, retail spaces, or other commercial environments where ceiling mounting might not be practical or desired.
What frequency bands does this access point operate on?
This is a dual-band access point that operates on both 2.40 GHz and 5 GHz frequency bands. The 2.4 GHz band provides better range and wall penetration, while the 5 GHz band offers faster speeds with less interference from other devices. You can configure the access point to use one or both bands depending on your network requirements.
What is included in the package with the GWN7602?
The package includes the Wi-Fi access point with integrated Ethernet switch and a quick start guide. The access point itself contains all necessary hardware components, while the quick start guide provides basic installation and configuration instructions to help you get the device operational quickly in your network environment.
