TP-LINK EAP603-OUTDOOR Omada AX1800 Wi-Fi 6 Indoor/Outdoor Access Point - Dual Band - 1. 8 Gbps - IP65/66 - PoE - Wall/Pole Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The EAP603-OUTDOOR implements the IEEE 802.11ax (Wi-Fi 6) standard, which introduces OFDMA and MU-MIMO technologies to improve efficiency in multi-user environments. It operates across the 2.4 GHz and 5 GHz frequency bands, automatically steering clients to the optimal band for reduced congestion and improved throughput.

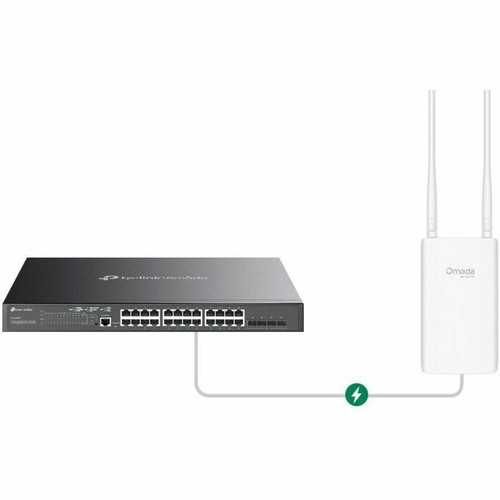

A single Gigabit Ethernet port with Power over Ethernet (PoE) support provides both data uplink and power delivery, simplifying installation by eliminating the need for a separate power outlet near the mounting location. The integrated AI-driven RF management optimizes channel selection and power levels dynamically to maintain stable performance as network conditions change.
This section brings together practical product details such as Wireless LAN Standard, Network Band, Frequency Band, Ethernet Technology, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This access point is built to address common challenges in business wireless deployments, offering a combination of performance, durability, and manageability that sets it apart from consumer-grade alternatives.
All-Weather Reliability
The IP65/IP66 enclosure ensures continuous operation in rain, snow, dust, and extreme temperatures, providing peace of mind for outdoor installations.
- Certified dust-tight
- Protected against powerful water jets
- Wide operating temperature range
Enterprise Security
Comprehensive encryption and authentication protocols safeguard network traffic and control access.
- WPA3 Personal & Enterprise support
- RADIUS integration
- SSH for secure management
Centralized Management Ready
When deployed with the Omada Software Controller or Omada Cloud, this access point enables unified configuration, monitoring, and troubleshooting across the entire network.
- Zero-touch provisioning
- Visual network mapping
- Automated firmware updates
Deployment / Use Cases
The EAP603-OUTDOOR is versatile enough to serve as a primary wireless solution for businesses that require coverage in mixed indoor-outdoor spaces or harsh environmental conditions.
Its flexible mounting hardware allows for installation on walls, poles, or ceilings, adapting to the physical constraints of the deployment site without compromising signal quality.
Outdoor Hospitality & Retail
Provide guest Wi-Fi in patio dining areas, pool decks, courtyards, and outdoor shopping plazas where weather resistance is critical.
Industrial & Warehouse Coverage
Extend network connectivity to loading docks, storage yards, and manufacturing floors where dust, moisture, and temperature fluctuations are common.
Campus & Education Networks
Cover quads, walkways, and athletic fields with consistent high-speed access for students, faculty, and IoT devices across large outdoor areas.
Physical Profile
Designed with a low-profile, rectangular form factor, the EAP603-OUTDOOR presents a discreet appearance while housing two external dual-band antennas. The included mounting bracket supports both wall and pole installations, with adjustable orientation to optimize antenna alignment. The compact dimensions allow for placement in space-constrained locations without obstructing pathways or sightlines.
- Width
- 9.06" (230 mm)
- Depth
- 8.17" (207.50 mm)
- Height
- 2.74" (69.70 mm)
Highlights
- Wi-Fi 6 (802.11ax) technology for improved efficiency and capacity
- Dual-band operation with 1.8 Gbps maximum aggregate throughput
- IP65/IP66 rated for reliable indoor/outdoor deployment
- Single Gigabit Ethernet port with PoE support (802.3af/at)
- Two external dual-band antennas for optimized coverage
- Supports MU-MIMO and OFDMA for better multi-client performance
- Enterprise-grade security with WPA3 and RADIUS integration
- Wall and pole mounting options for flexible installation
- AI-powered RF management for automatic optimization
- Compatible with Omada SDN for centralized network management
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | EAP603-OUTDOOR |
| Brand Name | Omada |
| Product Model | EAP603-OUTDOOR |
| Product Name | EAP603-Outdoor AX1800 Indoor/Outdoor Wi-Fi 6 Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 2 |
| Number of External Antennas | 2 |
| Indoor/Outdoor | Indoor/Outdoor |
| Wireless Transmission Speed | 1.80 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Data Encryption | Yes |
| Encryption Standard | WPA-Personal,WPA-ENT,WPA2-Personal,WPA2-ENT,WPA3-Personal,WPA3-ENT,EAP-TLS,EAP-TTLS,EAP-PEAP,EAP-SIM,EAP-AKA,EAP-GTC,EAP-FAST,EAP-MD5,EAP-MSCHAPv2,PEAPv0,PEAPv1,EAP-CHAP |
| Ingress Protection (IP) Rating | IP65/IP66 |
| AI-powered | Yes |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet,Fast Ethernet,Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | RADIUS,NTP,SNMPv1/v2c/v3,SSH |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Pole-mountable |
| Antenna Form Factor | External |
| Height | 2.74" (69.70 mm) |
| Width | 9.06" (230 mm) |
| Depth | 8.17" (207.50 mm) |
FAQ
What is the maximum wireless speed of this access point?
The EAP603-OUTDOOR is an AX1800-class Wi-Fi 6 access point with a maximum aggregate wireless throughput of 1.8 Gbps. This speed is achieved across both the 2.4 GHz and 5 GHz bands, with the 5 GHz band supporting higher data rates for compatible clients. Actual throughput will vary based on environmental factors, client capabilities, and network congestion.
Can this access point be used outdoors?
Yes, this is an indoor/outdoor access point with an IP65/IP66 ingress protection rating. It is certified dust-tight and protected against powerful water jets, making it suitable for installation in exposed outdoor locations such as patios, courtyards, loading docks, and building exteriors. The enclosure is designed to withstand typical weather conditions including rain, snow, and temperature extremes.
Does it support Power over Ethernet (PoE)?
Yes, the EAP603-OUTDOOR includes a PoE PD (Powered Device) port. It can receive both data and power over a single Ethernet cable from a compatible PoE switch or injector that supports the 802.3af or 802.3at standard. This simplifies installation by eliminating the need for a separate electrical outlet near the mounting location.
How many Ethernet ports does it have?
This access point has one Gigabit Ethernet port (RJ-45). This port serves as the wired uplink to your network and also supports PoE for power delivery. It is compatible with Gigabit Ethernet, Fast Ethernet, and Ethernet connections, providing flexibility for integration into existing network infrastructure.
What mounting options are available?
The EAP603-OUTDOOR supports both wall mounting and pole mounting. The included bracket allows for secure attachment to vertical surfaces or poles, with adjustable orientation to optimize antenna alignment. This flexibility makes it suitable for installation on building walls, light poles, fence posts, or ceiling surfaces in covered outdoor areas.
What security features does it support?
This access point supports a comprehensive set of enterprise security protocols including WPA3-Personal, WPA3-Enterprise, WPA2, and multiple EAP methods (EAP-TLS, EAP-TTLS, PEAP, etc.). It integrates with RADIUS servers for centralized authentication and supports SSH for secure management access. These features help protect against unauthorized access and ensure data privacy over the wireless network.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
