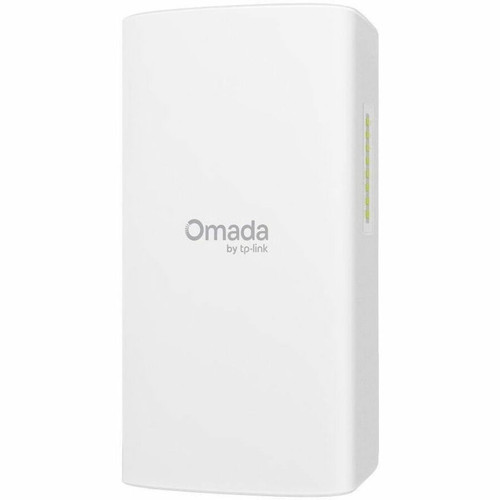

Omada FLEX BRIDGE 5 Flex Dual Band Wi-Fi 5 Wireless Bridge - IEEE 802. 11a/n/ac 867 Mbit/s - Indoor/Outdoor - 3 Internal Antennas - IP66 - Gigabit PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Flex Bridge 5 is a dual band radio supporting IEEE 802.11a/n/ac on both 2.40 GHz and 5 GHz frequencies. The 5 GHz band provides the high-speed 867 Mbit/s throughput used for long-range bridging, while the 2.40 GHz band offers additional flexibility for link establishment and compatibility. Multi User MIMO and three internal antennas work together to improve signal reliability and throughput in multipath environments, which is critical for maintaining stable bridge links over distance.
The bridge includes three Gigabit Ethernet RJ-45 ports. One port operates as a PoE PD (powered device) port, allowing the bridge to receive power over Ethernet from a compatible switch or the included passive PoE adapter. The other two ports function as PoE out ports, enabling the bridge to power downstream devices such as IP cameras directly. Power consumption is rated at 12 W. The unit also supports multiple power options, including 802.3at/af, passive PoE at 54V, and 12V DC, giving installers flexibility in how they power the bridge. Communication protocols include RADIUS, SNMP, SSH, and NTP, supporting secure management and network integration.
Key Product Advantages
The Flex Bridge 5 is engineered to reduce the complexity and cost of extending networks across outdoor and remote sites. Its combination of dual band Wi-Fi 5 performance, integrated Gigabit PoE switching, and weatherproof construction allows a single device to handle wireless backhaul and power delivery for edge devices. This can eliminate the need for separate power runs and additional switches at the bridge location, which is particularly valuable in surveillance and remote networking applications.
Installation and alignment are streamlined through the included mounting kit and ball joint design, which support wall and pole mounting with adjustable positioning. Role and DIP switches simplify pairing between bridges, and the Omada app provides real-time signal strength visualization for guided alignment. Management is equally flexible, with standalone operation and SDN cloud management options through the Omada app or web portal.
Integrated PoE Switch
Three Gigabit Ethernet ports, including two PoE out ports, let the bridge power IP cameras and other devices directly, reducing cabling and simplifying outdoor deployments.
Weatherproof and Durable
An IP66 ingress protection rating and 6 kV lightning protection make the Flex Bridge 5 suitable for harsh outdoor environments, from building rooftops to remote poles.
Simplified Pairing and Alignment
Role and DIP switches enable rapid bridge pairing, while the ball joint mount and Omada app signal strength visualization help achieve correct alignment with less trial and error.
Deployment / Use Cases
The Omada Flex Bridge 5 is designed for point-to-point and point-to-multipoint bridging scenarios where wired connectivity is not feasible. It is well suited to connecting separate buildings on a campus, linking remote structures to a main network, and extending connectivity to areas where trenching or running fiber is too costly or time-consuming. The 5 GHz band supports long-range links up to 3.1 miles, making it a practical option for covering significant distances between sites.
Beyond general network extension, the Flex Bridge 5 is particularly effective in video surveillance deployments. With two PoE out ports, it can power IP cameras directly at the edge, eliminating the need for separate power sources at camera locations. This makes it a strong fit for parking lots, perimeter security, construction sites, and other outdoor areas where cameras need both network connectivity and power. The bridge can operate standalone or integrate into an Omada SDN environment for centralized management.
Building-to-Building Connectivity
Connect separate offices, warehouses, or campus buildings with a wireless bridge link that avoids the cost and disruption of trenching cable.
Outdoor IP Camera Backhaul
Use the bridge to provide both network connectivity and PoE power to IP cameras in remote or outdoor locations, simplifying surveillance expansion.
Physical Profile
The Flex Bridge 5 measures 4.70 inches in height, 8.40 inches in width, and 2 inches in depth, with a weight of approximately 1.30 pounds. Its compact footprint allows it to be mounted on walls or poles with minimal visual impact, and the included mounting kit supports both installation types. A ball joint option provides additional flexibility for angle adjustment during alignment, which is important when establishing a stable bridge link between two points. The IP66-rated enclosure protects internal components from dust and water ingress, making the unit suitable for permanent outdoor installation in exposed locations. The internal antenna design eliminates external antenna protrusions, simplifying mounting and reducing the potential for physical damage.
- Width
- 8.40" (213.36 mm)
- Depth
- 2" (50.80 mm)
- Height
- 4.70" (119.38 mm)
- Weight
- 1.30 lb (590 g)
What's in the Box
The Flex Bridge 5 ships with the essential components needed to power and mount the device. The package includes the bridge unit itself, a passive PoE adapter, a power cord, a mounting kit, and an installation guide. Everything required for a basic installation is included, so no additional mounting hardware or power accessories are needed to get started.
Highlights
- Dual band Wi-Fi 5 operation on 2.40 GHz and 5 GHz with IEEE 802.11a/n/ac support
- Up to 867 Mbit/s wireless transmission speed on the 5 GHz band
- Three internal antennas with Multi User MIMO technology
- Three Gigabit Ethernet RJ-45 ports including two PoE out ports for powering devices
- Supports 802.3at/af, passive PoE (54V adapter included), and 12V DC power input
- IP66 weatherproof rating and 6 kV lightning protection for outdoor environments
- Wall and pole mounting with ball joint adjustment for easy alignment
- Role and DIP switches for simplified bridge pairing
- App-guided alignment with real-time signal strength visualization via the Omada app
- Standalone and Omada SDN cloud management options with RADIUS, SNMP, SSH, and NTP support
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | Flex Bridge 5 |
| Brand Name | Omada |
| Product Line | Flex |
| Product Name | Flex Bridge 5 |
| Packaged Quantity | 1 |
| Product Type | Wireless Bridge |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11a/n/ac |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 3 |
| Number of Internal Antennas | 3 |
| Indoor/Outdoor | Indoor/Outdoor |
| Wireless Transmission Speed | 867 Mbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Ingress Protection (IP) Rating | IP66 |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 3 |
| PoE (RJ-45) Port | Yes |
| PoE PD Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 5 |
| Communication Protocols | RADIUS,SNMP,SSH,NTP |
| Power Description | |
| Power Consumption | 12 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Pole-mountable,Ball Joint |
| Antenna Form Factor | Internal |
| Height | 4.70" (119.38 mm) |
| Width | 8.40" (213.36 mm) |
| Depth | 2" (50.80 mm) |
| Weight (Approximate) | 1.30 lb (590 g) |
| Miscellaneous | |
| Package Contents | Flex Bridge 5 Installation Guide Mounting Kit Passive PoE Adapter Power Cord |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What wireless standard and frequency bands does the Omada Flex Bridge 5 support?
The Flex Bridge 5 supports the IEEE 802.11a/n/ac wireless LAN standard and operates on both the 2.40 GHz and 5 GHz frequency bands. This dual band capability allows it to use the 5 GHz band for high-speed bridging up to 867 Mbit/s while retaining 2.40 GHz coverage for compatibility and flexibility in link planning.
How many Ethernet ports does the Flex Bridge 5 have, and do they support PoE?
The Flex Bridge 5 includes three Gigabit Ethernet RJ-45 ports. It supports PoE both as a powered device and as a power source. One port accepts PoE input to power the bridge, while two PoE out ports can supply power to downstream devices such as IP cameras. This allows the bridge to extend both network connectivity and power to edge equipment.
What power options are available for the Flex Bridge 5?
The Flex Bridge 5 can be powered through 802.3at/af PoE, passive PoE at 54V using the included adapter, or 12V DC. Its power consumption is rated at 12 W. This range of options gives installers the flexibility to use a PoE switch, the included passive PoE adapter, or a solar or DC power source depending on the site requirements.
Is the Omada Flex Bridge 5 suitable for outdoor installations?
Yes, the Flex Bridge 5 is designed for indoor and outdoor use. It carries an IP66 ingress protection rating, which indicates resistance to dust and water ingress, and it includes 6 kV lightning protection. The included mounting kit supports wall and pole mounting with ball joint adjustment, making it suitable for permanent outdoor deployment in exposed locations.
How is the Flex Bridge 5 managed and configured?
The Flex Bridge 5 can be managed in standalone mode using the Omada app, which supports on-site setup without an internet connection and provides real-time signal strength visualization for alignment. For larger deployments, it can be switched to Omada SDN for cloud management through the Omada app or web portal. It also supports RADIUS, SNMP, SSH, and NTP protocols.
What is included in the box with the Flex Bridge 5?
The package includes the Flex Bridge 5 unit, an installation guide, a mounting kit, a passive PoE adapter, and a power cord. These components cover the basic requirements for powering and mounting the bridge, so no additional power accessories or mounting hardware are needed for a standard installation.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
