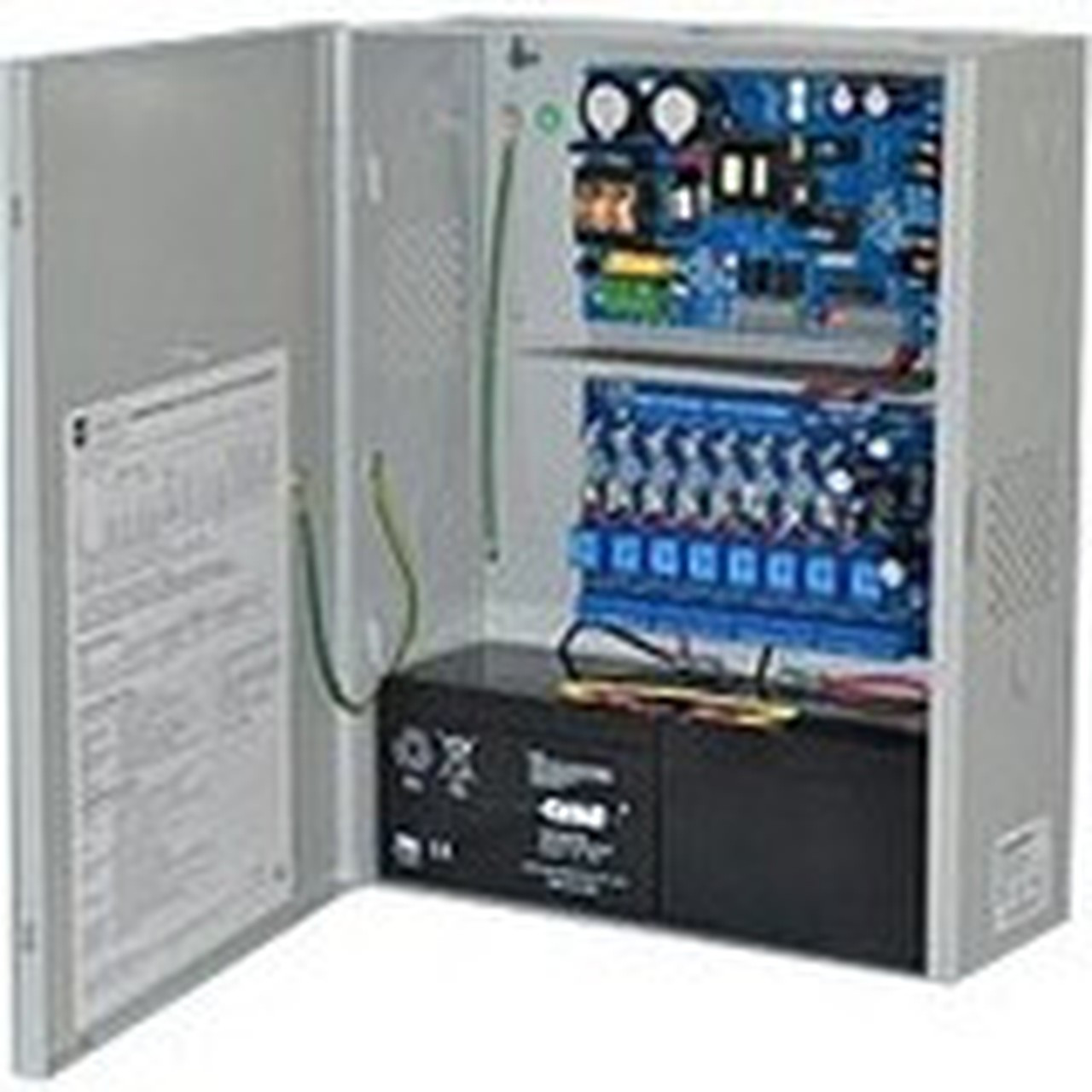

Altronix Proprietary Power Supply - Wall Mount - 120 V AC Input - 12 V DC, 24 V DC Output (EFLOW6NA8)

Marketing Information: eFlow6NA8 distributes and switches power to access control systems and accessories. It converts a 120VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC fuse protected outputs with a total of 6 amp continuos supply current. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Input Voltage: 120 V AC

Output Voltage: 12 V DC,24 V DC

Output Voltage Detail: 12 V DC @ 6 A,24 V DC @ 6 A

Output Current: 6 A

Form Factor: Wall Mount

Height: 15.50" (393.70 mm)

Width: 12.25" (311.15 mm)

Depth: 4.50" (114.30 mm)

Weight (Approximate): 3.90 kg

Package Contents:

• Proprietary Power Supply
• Multi-Output Access Power Controllers

Compatibility:

• Mag Locks
• Electric Strikes
• Magnetic Door Holders
• Emergency Egress

Country of Origin: United States

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
