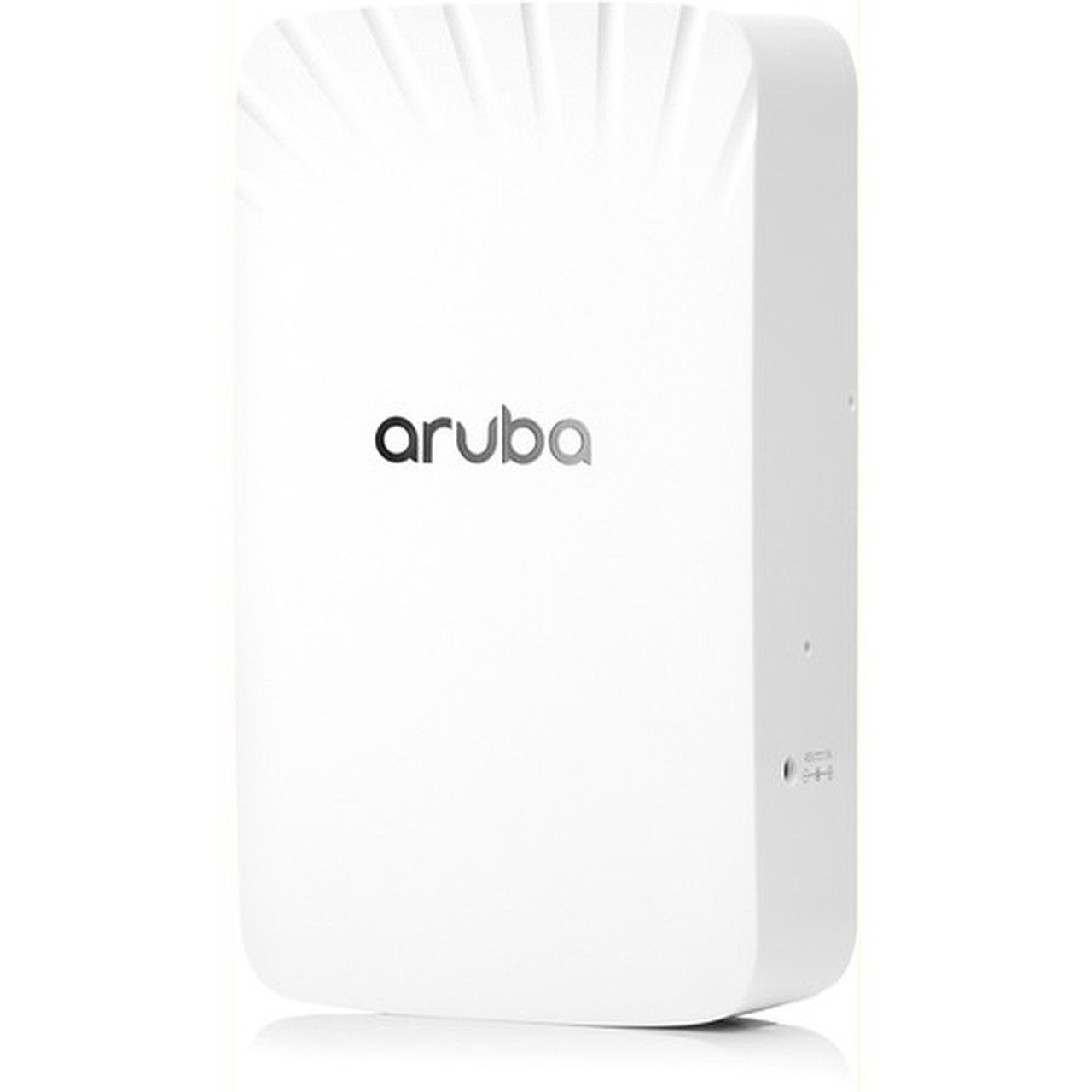

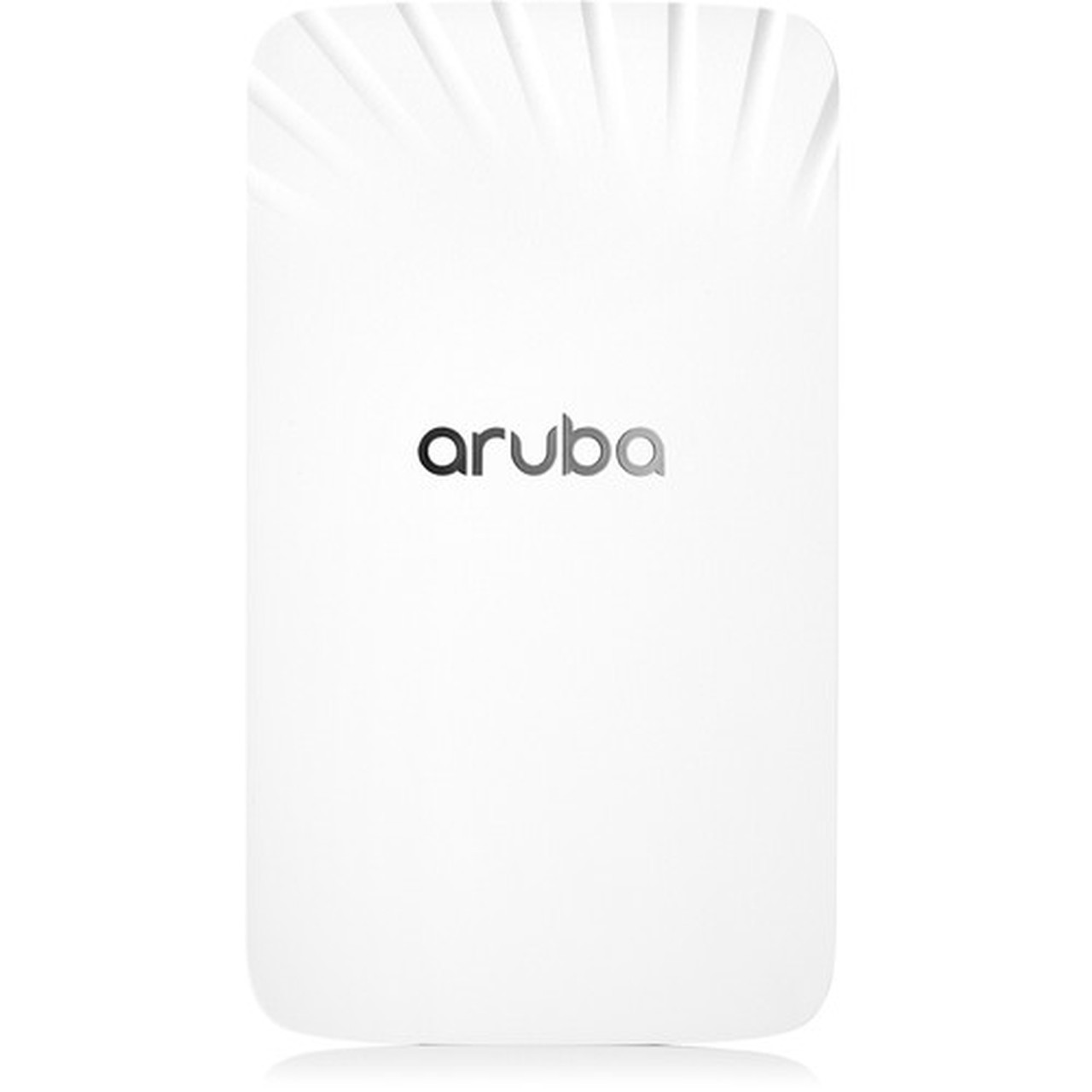

Aruba AP-505H 802.11ax 1.50 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 5 x Network (RJ-45) - 2.5 Gigabit Fast (R3V46A)

Marketing Information: High performance and cost-effective Wi-Fi 6 (802.11ax) for hospitality, branch, and teleworker deployments

These economical Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing mobile, cloud and IoT requirements. With a wireless aggregate data rate of up to 1.5 Gbps and gigabit local wired ports, they deliver the range of connectivity options needed for venues such as hotels, residence halls, and remote offices alike.

INCREDIBLE EFFICIENCY

The 500H Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.

Features include Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and cellular optimization. With up to 4 spatial streams (4SS) and 80MHz channel bandwidth, the 500H Series provides groundbreaking wireless capabilities for budget-conscious deployments. Read the Multi-User 802.11ax white paper for further information.

Advantages of OFDMA

This capability allows Aruba's APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.

Aruba Air Slice for Extended OFDMA Assurance

APs in controller-less mode (Instant) can provide SLA-grade performance by allocating RUs to specific traffic types. By combining Aruba's Policy Enforcement Firewall (PEF) and Layer 7 deep packet inspection (DPI) to identify user roles and applications, the APs will dynamically allocate the bandwidth needed. Non-Wi-Fi 6 clients can also benefit. Air Slice for APs in controller mode will be supported in a future software release. Learn more in the link to Air Slice tech brief that was staged for March 10 announcement.

Multi-user MIMO (MU-MIMO)

Similar to downlink MU-MIMO in Wi-Fi 5 (802.11ac Wave 2), the 500H Series can simultaneously connect clients using downlink - and now - uplink spatial streams. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity.

Wi-Fi 6 and MU-MIMO aware client optimization

Aruba's patented AI-powered ClientMatch technology eliminates sticky client issues by placing Wi-Fi 6 capable devices on the best available AP. Session metrics are used to steer mobile devices to the best AP based on available bandwidth, types of applications being used and traffic type - even as users roam.

Wireless LAN Standard: 802.11ax

Bluetooth Standard: Bluetooth 5

Frequency Band: 2.40 GHz,5 GHz

Total Number of Antennas: 2

Number of Internal Antennas: 2

Wireless Transmission Speed: 1.50 Gbit/s

MIMO Technology: Yes

Beamforming Technology: Yes

Ethernet Technology: 2.5 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet

Number of Network (RJ-45) Ports: 5

PoE (RJ-45) Port: Yes

PoE PD Port: Yes

USB: Yes

Management Port: Yes

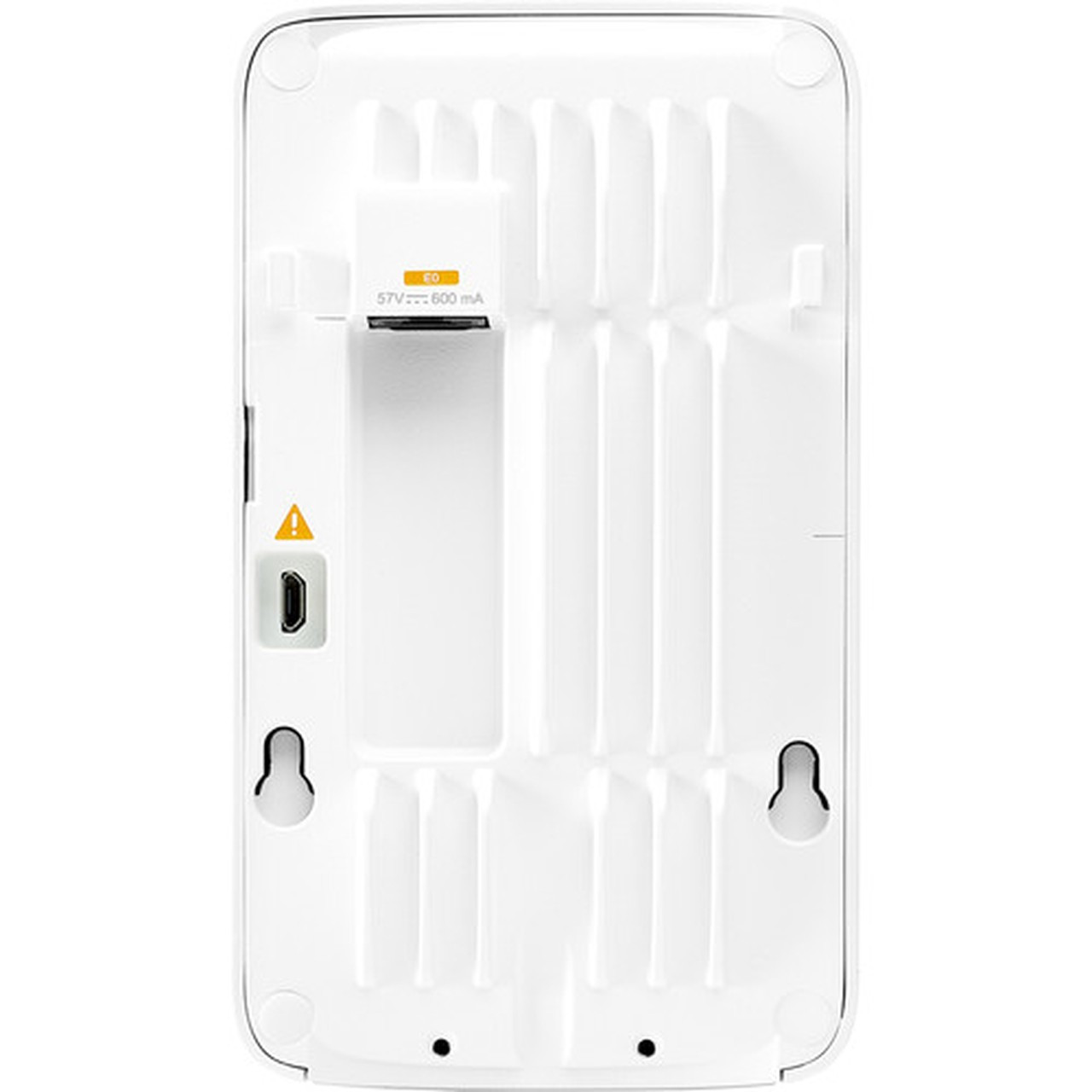

Form Factor: Wall Mountable,Desktop

Height: 5.91" (150 mm)

Width: 3.39" (86 mm)

Weight (Approximate): 360 g
