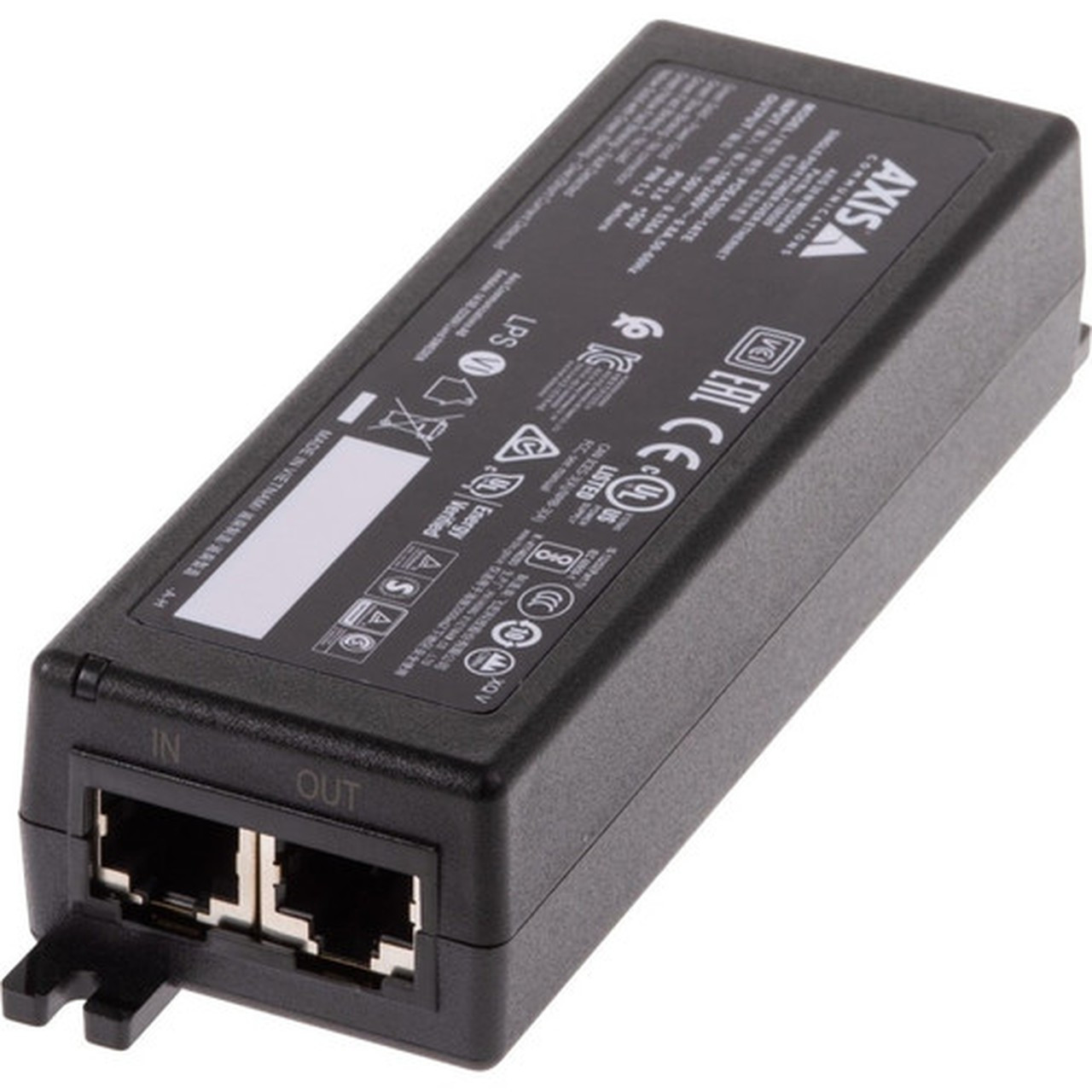

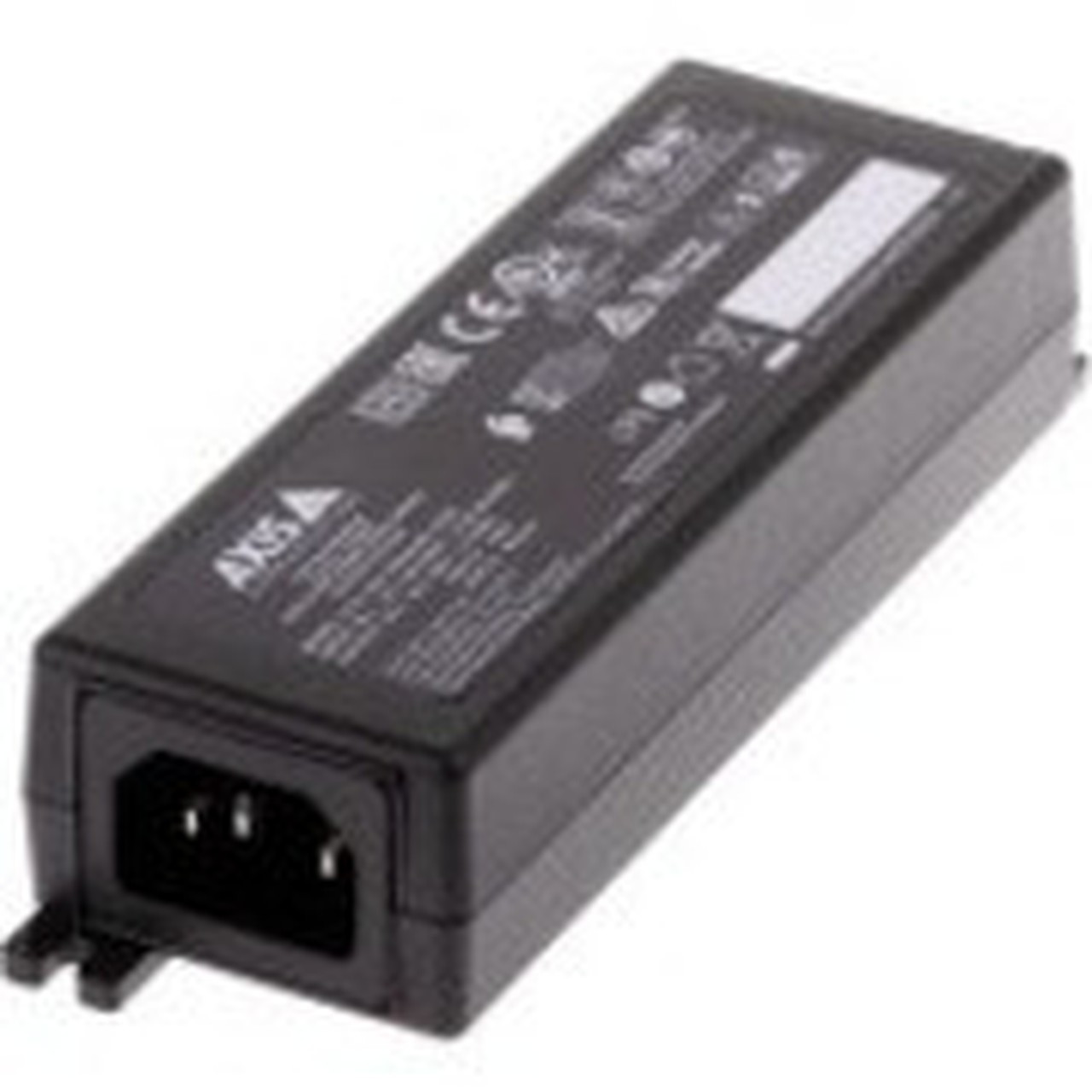

AXIS 30 W Midspan - 120 V AC, 230 V AC Input - 56 V DC Output - 1 x 10/100/1000 Mbps Input Port(s) - 1 x PoE Output Port(s) - 30 W - (02172-012)

Marketing Information:

AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE.

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. With a single network cable, a PoE midspan injects power to the network device with built-in PoE support and enables data communication between the device and the switch. No need to replace existing Ethernet switches and cabling infrastructure.

Input Voltage: 120 V AC,230 V AC

Maximum Output Voltage: 56 V DC

Maximum Output Power: 30 W

Input Ports: 1 x 10/100/1000 Mbps

Output Ports: 1 x PoE

Product Color: Black

Form Factor: Wall/Shelf/DIN Rail Mountable

Height: 1.18" (30 mm)

Width: 1.81" (46 mm)

Depth: 5.52" (140.10 mm)

Weight (Approximate): 145 g

Package Contents:

• 30 W Midspan
• Installation Guide
• Cable Mains IEC-C13

Compatibility: AXIS Door Controllers:

• A1001
• A1601

• M1065-L
• M1134
• M1135
• M1135-E
• M1137
• M1137-E
• M1145-L
• M2025-LE
• M2026-LE Mk II
• P1214
• P1214-E
• P1224-E
• P1244
• P1245
• P1254
• P1264
• P1265
• P1275
• P1375
• P1375-E
• P1377
• P1377-LE
• P1378
• P1378-LE
• P1447-LE
• P1448-LE
• P1455-LE
• P1455-LE-3
• Q1615 Mk III
• Q1615-LE Mk III
• Q1645
• Q1645-LE
• Q1647
• Q1647-LE
• Q1659
• Q1700-LE
• Q1785-LE
• Q1786-LE
• Q1798-LE

• M3015
• M3016
• M3057-PLVE Mk II
• M3058-PLVE
• M3064-V
• M3065-V
• M3066-V
• M3067-P
• M3068-P
• M3075-V
• M3077-PLVE
• M3115-LVE
• M3116-LVE
• M3205-LVE
• M3206-LVE
• P3245-LV
• P3245-LVE
• P3245-LVE-3
• P3245-V
• P3245-VE
• P3247-LV
• P3247-LVE
• P3248-LV
• P3248-LVE
• P3255-LVE
• P3375-LV
• P3375-LVE
• P3375-V
• P3375-VE
• P3715-PLVE
• P3719-PLE
• P3727-PLE
• P3807-PVE
• P3904-R Mk II
• P3905-R Mk II
• P3925-LRE
• P3925-R
• P3935-LR
• P9106-V
• Q3515-LV
• Q3515-LVE
• Q3517-LV
• Q3517-LVE
• Q3517-SLVE
• Q3518-LVE
• Q3527-LVE
• Q3615-VE
• Q3617-VE
• Q3819-PVE
• Q9216-SLV

• T92E20 Outdoor Housing
• T93F20 Outdoor Housing

• A9161
• A9188
• A9188-VE

• T90C20 Fixed Dome IR-LED
• T90D20 PoE IR-LED
• T90D25 PoE W-LED

• A8207-VE Mk II
• I8016-LVE

• F34 Main Unit
• F34 Surveillance system
• F41 Main Unit
• F44 Dual Audio Input
• FA51 Main Unit
• FA51-B Main Unit
• AXIS Mounts:
• T91G61 Wall Mount
• T91H61 Wall Mount

• M5054
• M5055
• M5065
• M5525-E
• P5414-E
• P5415-E
• P5654-E
• P5655-E
• Q6074
• Q6074-E
• Q6075
• Q6075-E
• Q6078-E
• Q6128-E
• Q6154-E
• Q6155-E

• D2110-VE Security Radar
• AXIS Speakers:
• C1310-E
• C1410

• P1280-E
• P1290-E
• Q1941-E
• Q1941-E PT Mount
• Q1942-E
• Q1942-E PT Mount
• Q1951-E
• Q1952-E
• Q2901-E
• Q2901-E PT Mount

• M7011
• M7104
• P7304
• Q7411
• Q7424-R Mk II

Certifications & Standards:

• IEEE 802.3af
• IEEE 802.3at

• UL 60950 - 1
• UL 62368 - 1
• CCC

• EN 55032Class A
• EN 6 1 000 - 6- 1
• EN 6 1 000- 6- 2, FCC P art 15 Subpart B Class A
• ICES - 3(A)/NMB - 3(A), KC KN32Class A
• KC KN35
• RCM AS/NZS CISPR 32Class A, VCCI Class A
• CISPR 24
• EAC

• IEC 60068 - 2- 1
• IEC 60068 - 2- 2
• IEC 60068 - 2- 6
• IEC 60068 - 2- 14
• IEC 60068 - 2- 27
• IEC 60068 - 2- 78

Environmentally Friendly: Yes

Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Vietnam

Limited Warranty: 3 Year
