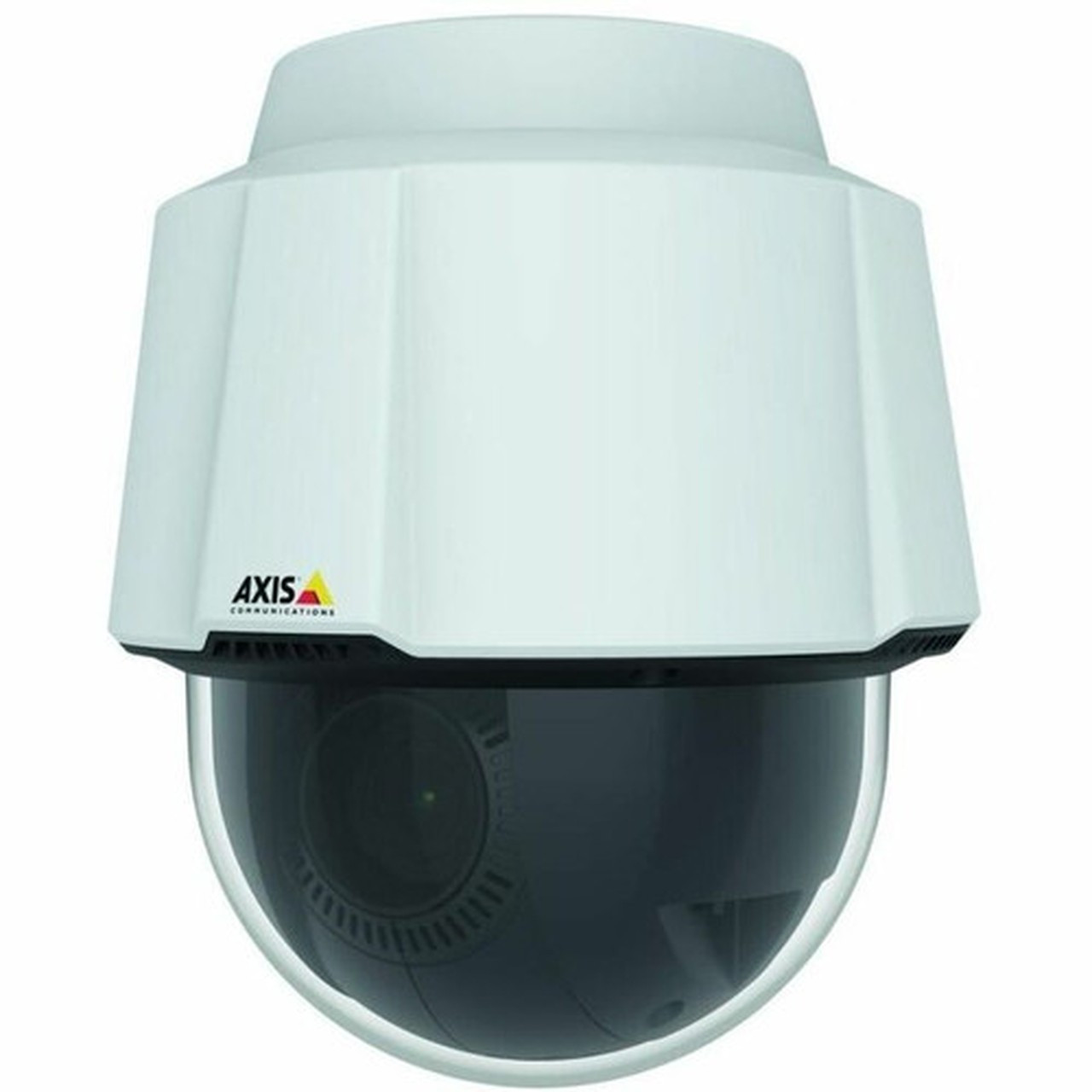

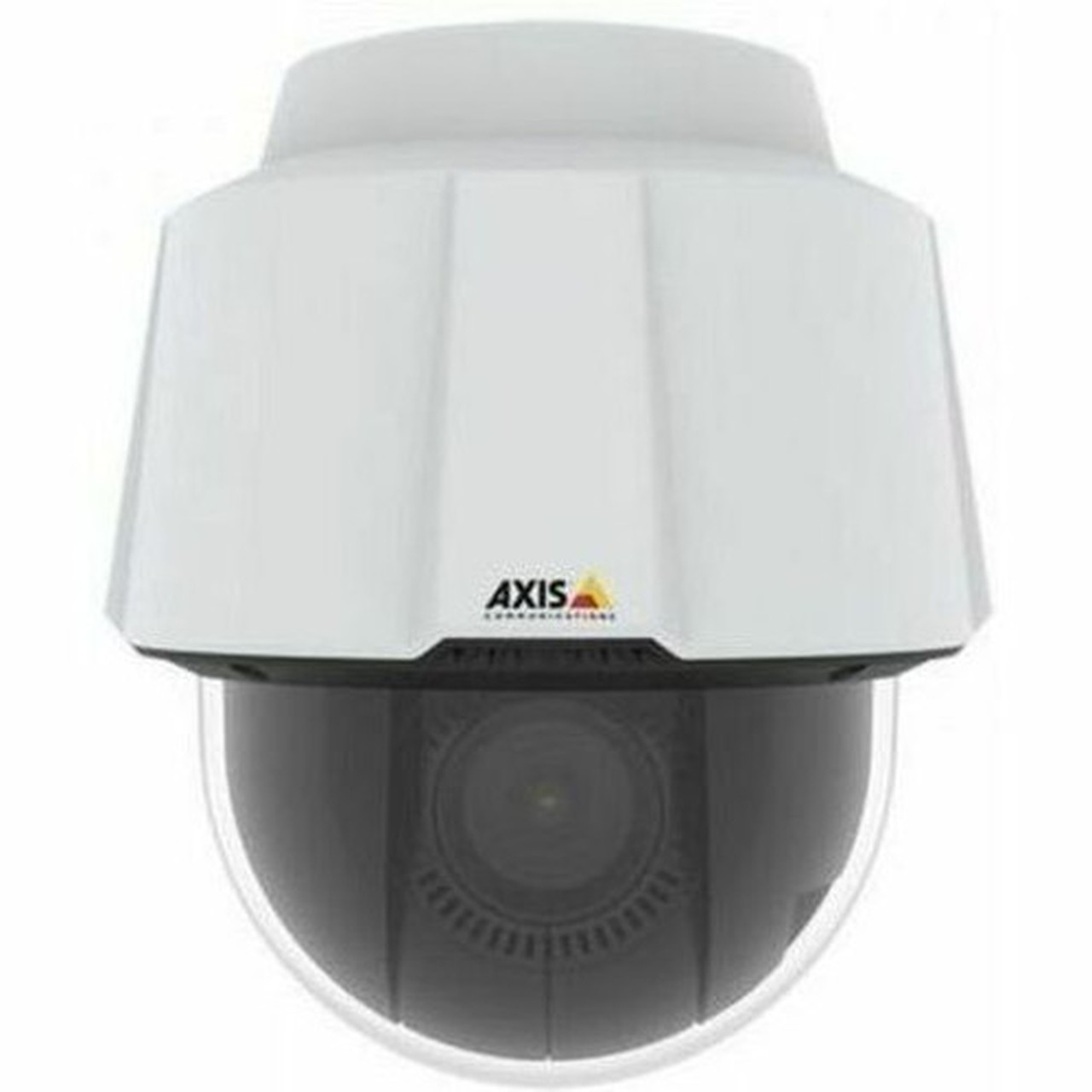

AXIS P5654-E Mk II Full HD Network Camera - Color - White - TAA Compliant - H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), - (02914-001)

Marketing Information:

This cost-effective PTZ camera offers great image quality in HDTV 1080p with 21x optical zoom and wide area coverage with 77° field of view. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. Including Axis Object Analytics, it can detect and classify people and vehicles- all tailored to specific needs. With IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can handle temperatures ranging from -30 °C to 50 °C (-22 °F to 122 °F). Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.

• HDTV 1080p with 21x optical zoom
• Wide 77° field of view
• Lightfinder 2.0 and Forensic WDR
• Support for advanced analytics
• Axis Edge Vault safeguards the device

HD Recording: Yes

Recording Formats: Full HD

Camera Iris: Auto

Image Sensor Type: RGB CMOS

Image Sensor Size: 1/2.8"

Color Supported: Color

Tilt: 0° to 350°

Field of View: Horizontal field of view: 77.0° - 3.6° / Vertical field of view: 43.1° - 2.0°

Video Formats: H.264 (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),Motion JPEG,H.264,H.265,Zipstream,H.264B,H.264H,H.264M

Maximum Video Resolution: 1920 x 1080

Maximum Frame Rate: 60 fps

Lens Type: Varifocal

Minimum Focal Length: 4 mm

Maximum Focal Length: 84.6 mm

Lens Included: Yes

Optical Zoom: 21x

Shortest Shutter Speed: 1/66500 Second

Longest Shutter Speed: 2 Second

Connectivity Technology: Wired

Remote Management: Yes

Ethernet Technology: Fast Ethernet

Protocols: IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,TLS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMP (v1/v2c/v3),SNMP (MIB-2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,NTCIP,LLDP,CDP,MQTT v3.1.1,RFC 3164/5424,UDP/TCP/TLS,ZeroConf,IEEE 802.1X,IEEE 802.1AR

Storage Type: Memory Card

Network (RJ-45): Yes

Maximum Power Consumption: 37 W

Input Voltage: 100 V AC,240 V AC

Power Source Type: PoE+,AC

Color Family: White

Product Color: White

Mount Type: Ceiling Mount

Durability: Weather Resistant,Impact Resistant

Weight (Approximate): 2.50 kg

Minimum Operating Temperature: -22°F (-30°C)

Maximum Operating Temperature: 122°F (50°C)

Maximum Operating Humidity: 100%

Features: Day/Night,Removable IR Cut-off Filter,Motion Detection,Electronic Image Stabilization,Defog,Shock Detection,Human Detection,Vehicle Detection,Cross Line Detection,Fence Detector,Password Protection

Package Contents:

• P5654-E Mk II PTZ Network Camera
• RJ45 Push-Pull Connector (IP66)
• Hard Ceiling Mount
• Spring Pipe Adaptor
• U-Profile Pipe Adaptor
• Installation Guide
• Windows® Decoder 1-User License
• Smoked Dome

Impact Protection Rating: IK10

Ingress Protection Rating: IP66

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Limited Warranty: 5 Year
