Bosch B208 Octo-Input Module - For Control Panel (B208)

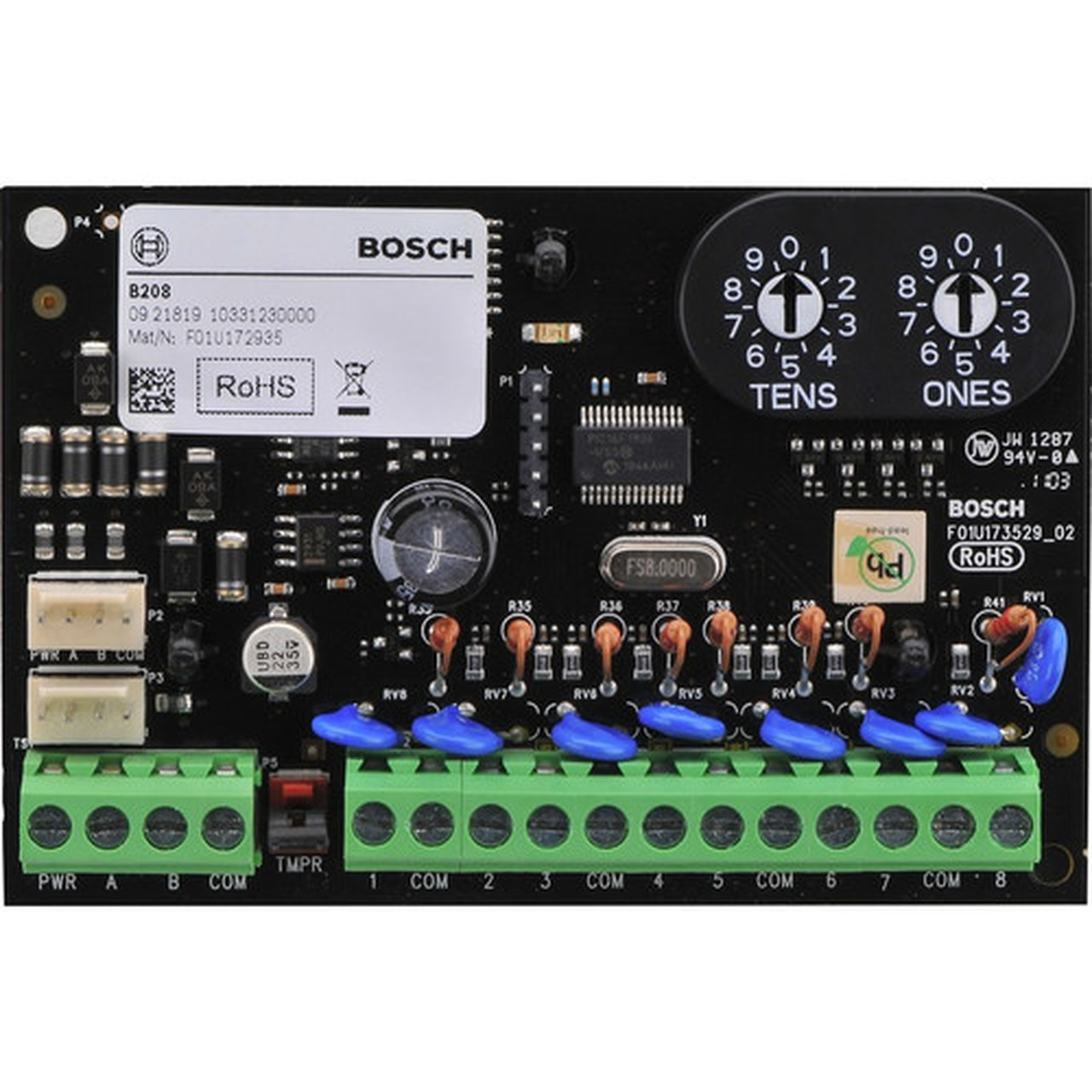

Marketing Information: The B208 Octo-input Module is an 8 point expansion device that connects to the control panel through the SDI2 bus. This module is fully supervised and communicates back to the control panel all point status changes. The module's expansion points operate the same as the points on the control. Industrial, commercial, and institutional facilities are typical installations for the B208 module. The B208 Octo-input Modules connect to the SDI2 bus on the control panel using Terminals 33 through 36, or using the interconnect cable. You can connect multiple B208 modules to a single control panel. The B208 switches allow for ease of use in device addressing.

System Overview
The B208 Octo-input Module connects to B5512, B4512, D9412GV4, D7412GV4 and D7212GV4 control panels through the SDI2 bus. This module is supervised and communicates back to the control panel all point status changes. The module's expansion points operate the same as the points on the control panel.

Device Supported: Control Panel

Input Voltage: 12 V DC

Height: 2.50" (63.50 mm)

Width: 3.80" (96.52 mm)

Depth: 0.60" (15.24 mm)

Package Contents:

• B208 Octo-Input Module
• 1 x Hardware Pack
• 1 x Interconnect Wiring Connector
• 1 x Literature Pack

Additional Information: SDI2 wiring:
Maximum distance - Wire size(unshielded wire only): 12 in (30.48 cm)

Wiring:
Maximum distance - Wire size(unshielded wire only): 1000 ft (305 m) - 22 AWG (0.65 mm) 1000 ft (305 m) - 18 AWG (2 mm) Unshielded wire only

Loop Inputs:
Up to eight inputs. Input contacts may be Normally Open (NO) or Normally Closed (NC) with 1kΩ EOL resistor(s) for supervision. Note: Normally Closed (NC) is not permitted in Fire installations.

Compatibility: Bosch Control Panels:

• B5512 (Up to 4 modules)
• B4512 (Up to 2 modules)
• D9412GV4 (Up to 24 modules)
• D7412GV4 (Up to 7 modules)
• D7212GV4 (Up to 3 modules)

Certifications & Standards:

• UL
• CSFM
• FDNY-CoA
• FCC Part 15 Class B

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
