Cisco Catalyst IW9167E Tri Band IEEE 802.11a/b/g/n/ac/ax/d/h/i/r/k/v/u 7.80 Gbit/s Wireless Access Point - Outdoor - 2.40 GHz, 5 GHz, (IW9167EH-B-AP)

Marketing Information:

The Catalyst IW9167 Series addresses the growing need to provide reliable wireless connectivity for missioncritical applications as organizations automate processes and operations. It comes with three 4x4 radios in a heavy-duty design that is IP67 rated and packed with advanced features.

The Catalyst IW9167 Series is designed to take advantage of the 6 GHz band expansion to deliver a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. The 6 GHz band support will be available with a future software upgrade and is subject to approvals and regulations by each countries' regulatory agencies for the use of the 6 GHz spectrum for outdoor standard power devices. Please refer to the Wi-Fi 6E white paper for more details on 6 GHz.

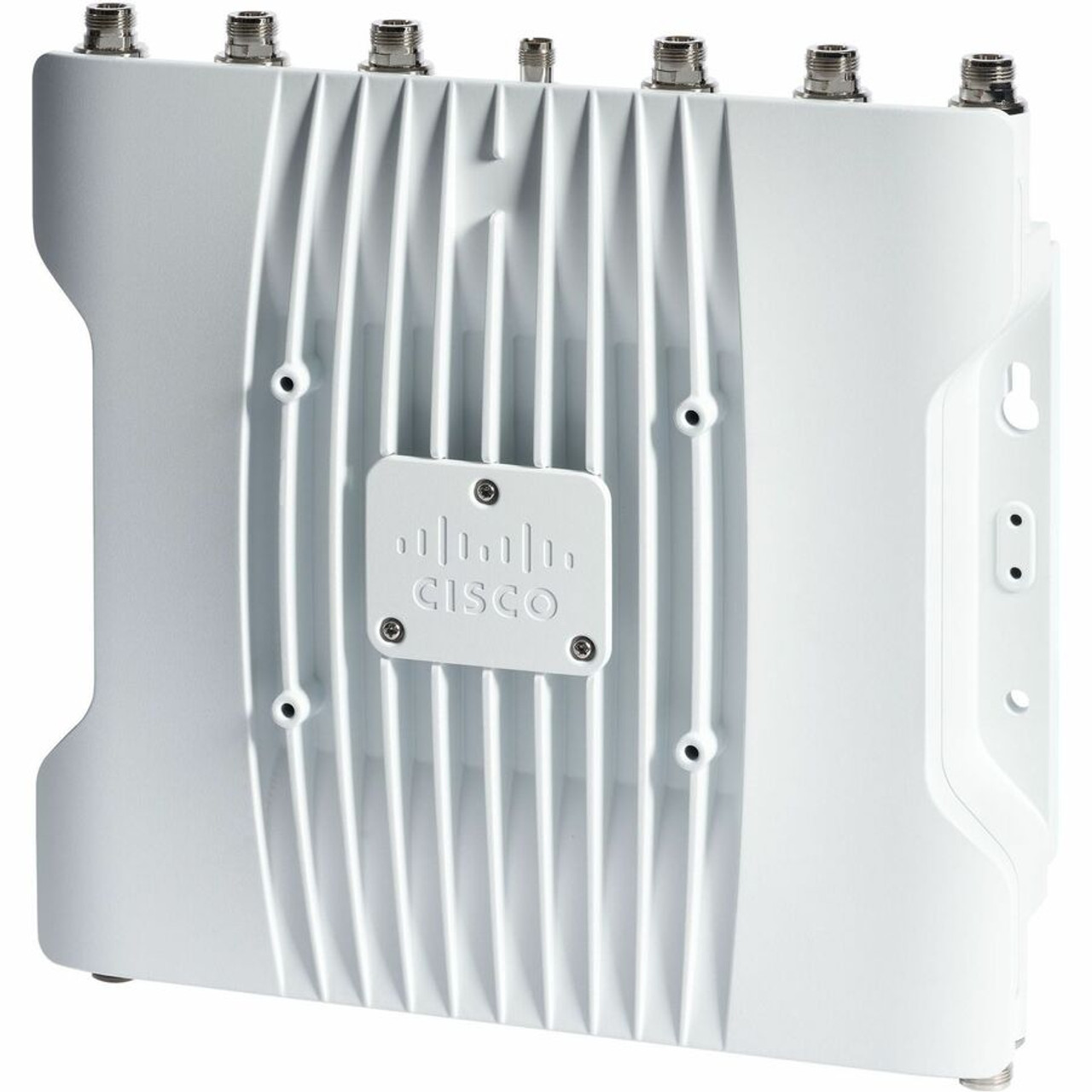

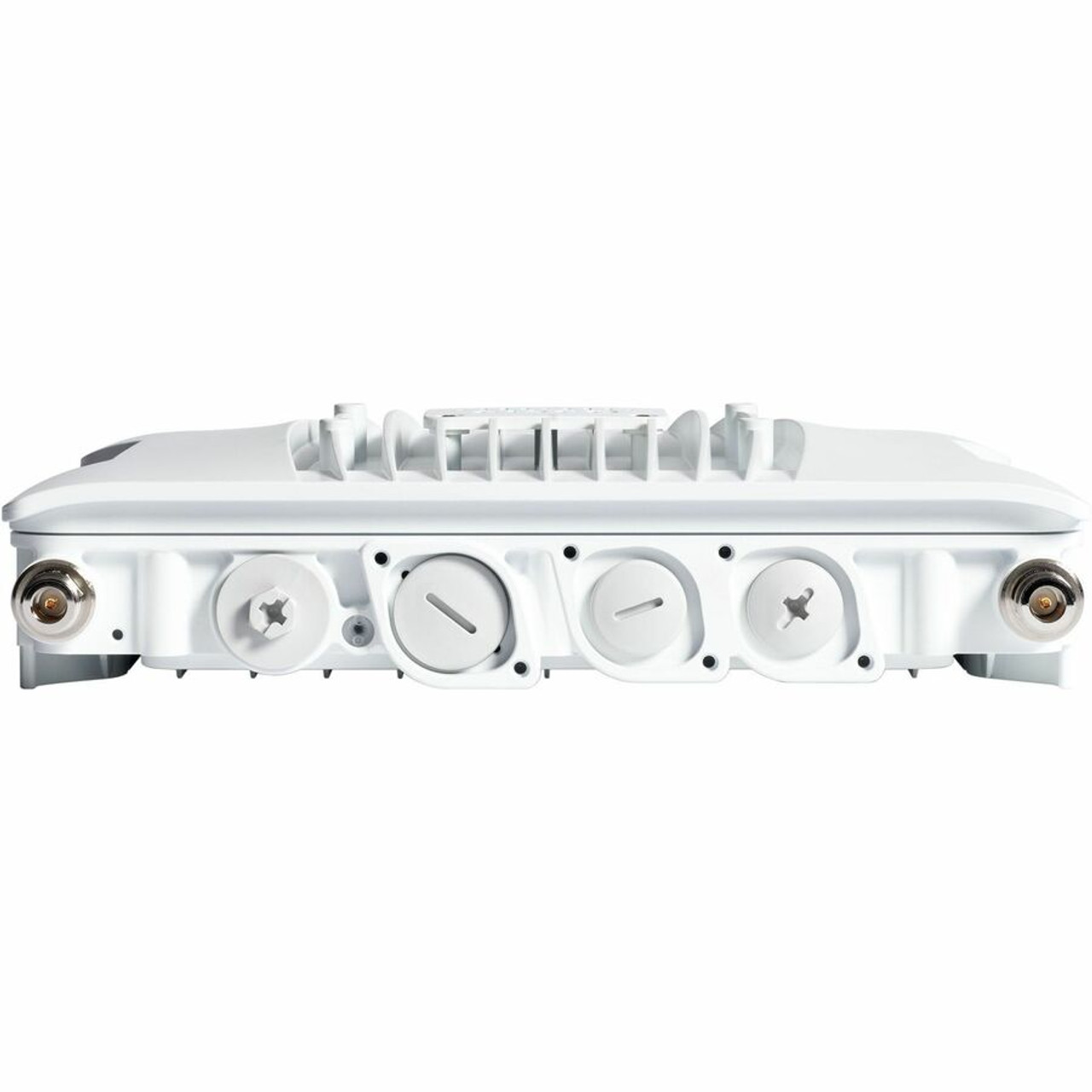

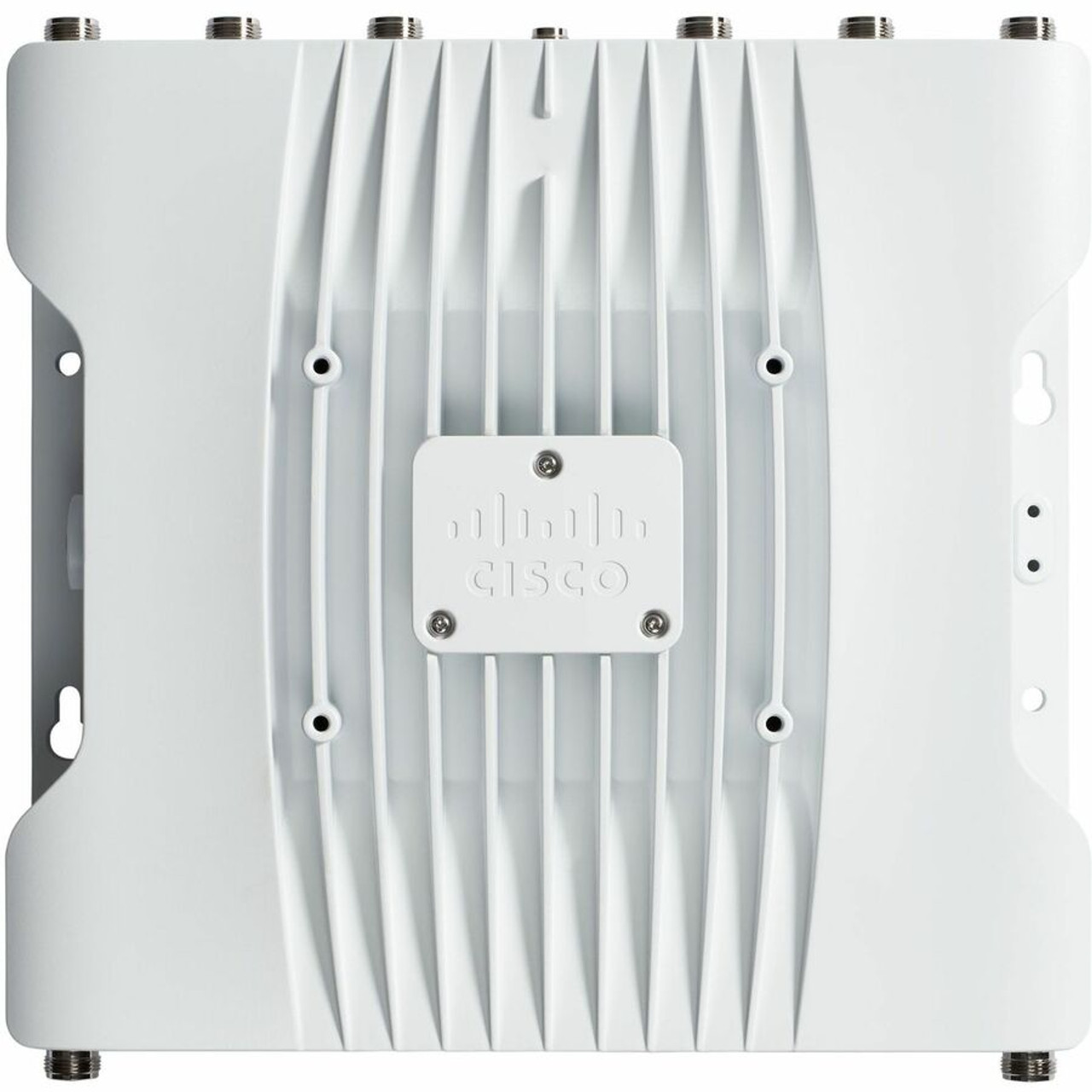

Cisco Catalyst IW9167E Heavy Duty Access Point

The Catalyst IW9167E is designed with external antenna ports and provides flexibility to choose the right antenna based on the use case. It offers unmatched flexibility, as it can operate in one of three different modes: Wi-Fi 6, WGB, or Cisco URWB:

• All the benefits of Wi-Fi 6 in industrial or outdoor spaces: Higher density, higher throughput, more channels, power efficiency, and improved security.
• WGB mode provides an arsenal of features and capabilities to help ensure continuous connectivity for static and mobile industrial applications in a Wi-Fi deployment.
• Cisco URWB provides ultra-reliable wireless connectivity for moving assets or to extend the network where running fiber isn't feasible or is too costly. It provides up to 99.995% availability, <10 ms latency, and zero packet loss with seamless handoffs. Cisco URWB is a proven technology that has been used by many customers, operates on unlicensed spectrum, deploys like Wi-Fi, and gives you full control of your network.

Wireless LAN Standard: IEEE 802.11a/b/g/n/ac/ax/d/h/i/r/k/v/u

Bluetooth Standard: Bluetooth 5

Network Band: Tri Band

Frequency Band: 2.40 GHz,5 GHz,6 GHz

Indoor/Outdoor: Outdoor

Wireless Transmission Speed: 7.80 Gbit/s

MIMO Technology: Yes

MIMO Type: Multi User MIMO

Beamforming Technology: Yes

Data Encryption: Yes

Encryption Standard: WPA3,WPA2,WPA,AES,TKIP,EAP-TLS,EAP-TTLS,EAP-FAST,PEAPv1,EAP-GTC,EAP-SIM,MSCHAPv2,EAP

Ingress Protection (IP) Rating: IP66/67

Ethernet Technology: 5 Gigabit Ethernet,10 Gigabit Ethernet,2.5 Gigabit Ethernet,Gigabit Ethernet,Fast Ethernet

Number of Network (RJ-45) Ports: 1

PoE PD Port: Yes

Management Port: Yes

Wi-Fi Generation: Wi-Fi 6E

Power Consumption: 48 W

Antenna Form Factor: External

Height: 2.80" (71.12 mm)

Width: 11.50" (292.10 mm)

Depth: 10.50" (266.70 mm)

Weight (Approximate): 9.20 lb (4173.05 g)

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

Limited Warranty: 1 Year
