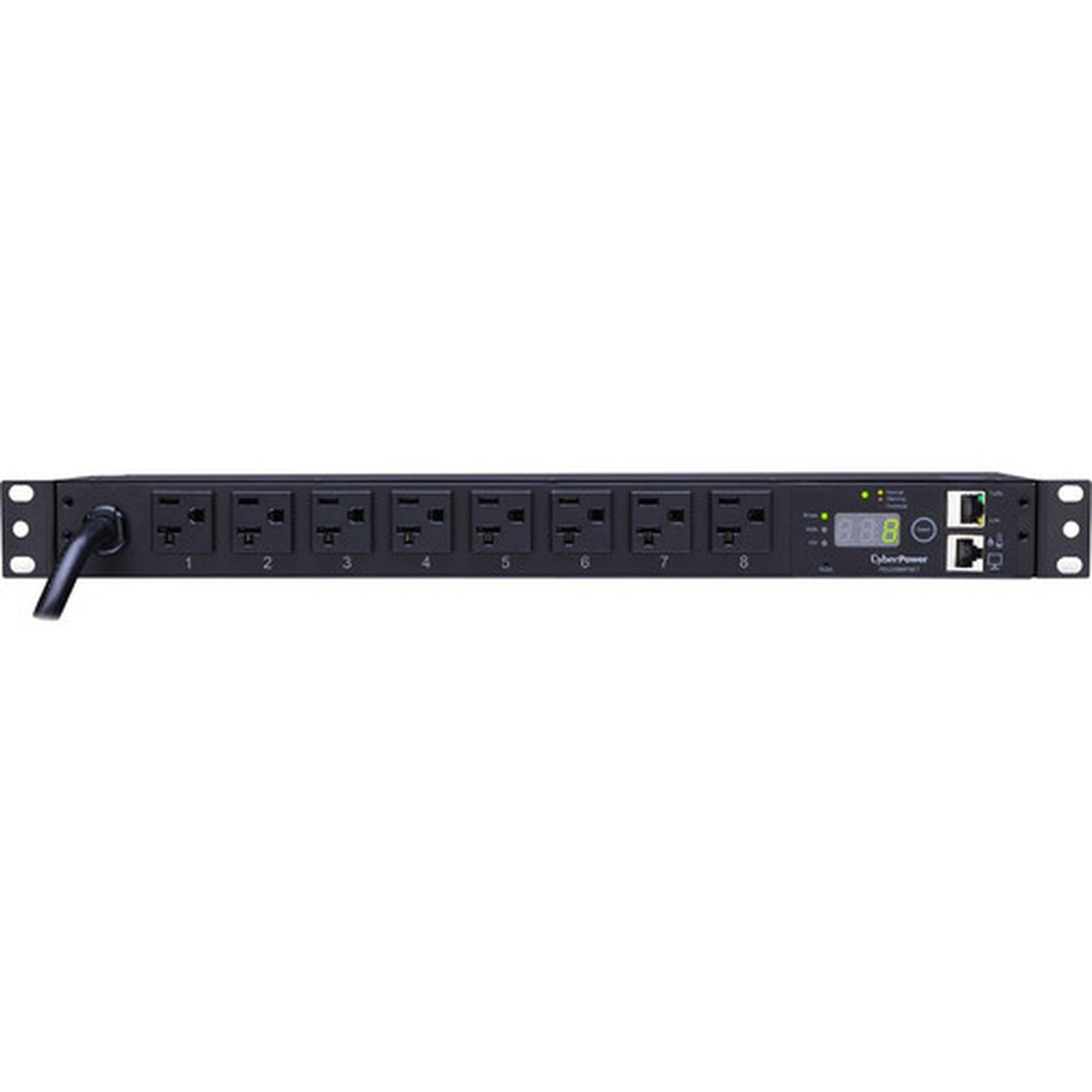

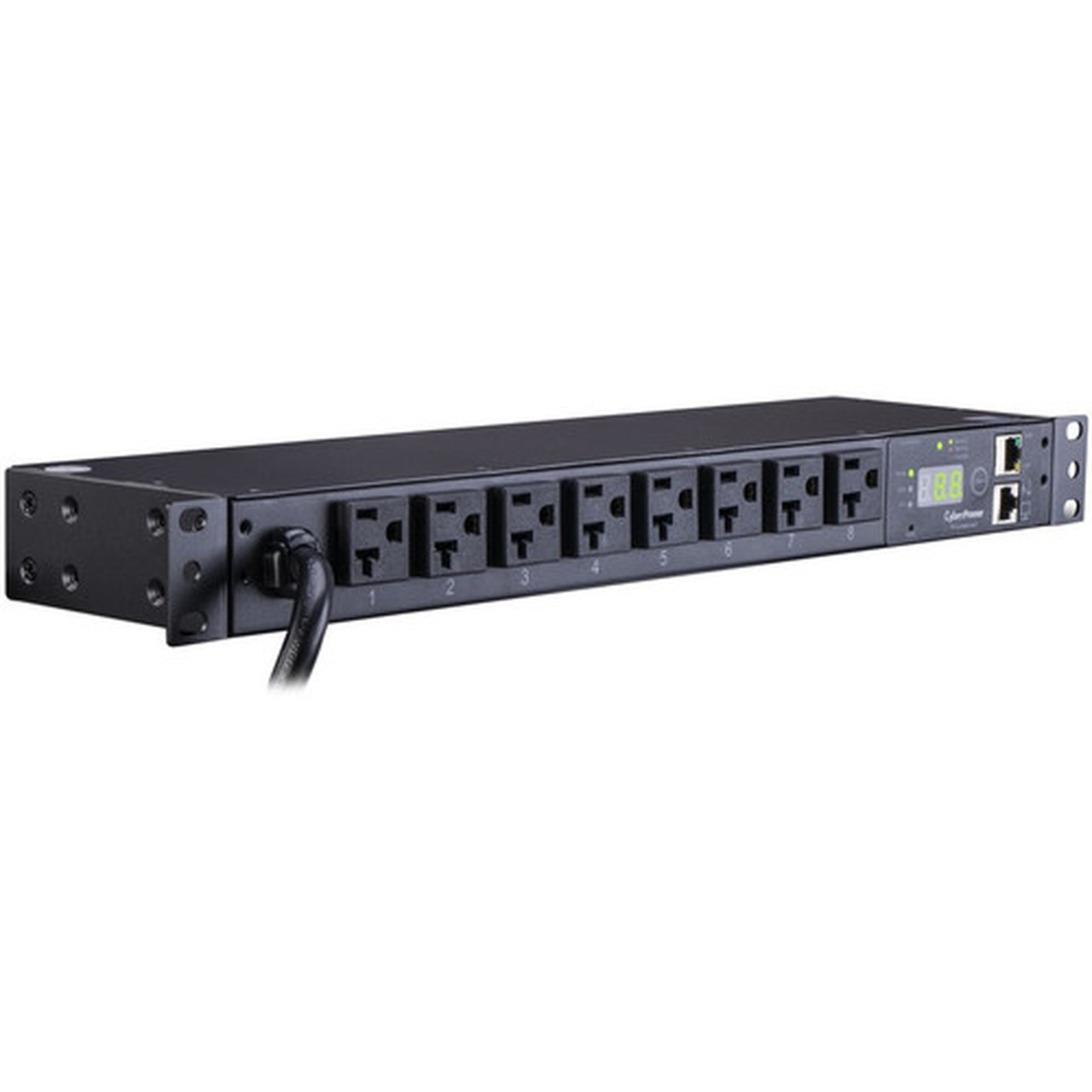

CyberPower Monitored PDU RM 1U PDU20M8FNET 20A 8-Outlet - Monitored - NEMA 5-20P - 8 x NEMA 5-20R - 120 V AC - Network (RJ-45) - 1U - (PDU20M8FNET)

Marketing Information:

The CyberPower (PDU20M8FNET) 8-outlet 1U rack mount monitored power distribution unit (PDU) provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20P plug, with unfiltered electrical pass-through. Power status can be monitored over the network, using CyberPower Management Console and the RJ45 Ethernet port for local network connection, or locally using the LCD. The front LCD displays the electrical current used by connected equipment in amps and can be toggled to display input voltage, power being consumed in watts, and the IP address of the network interface.

The unit has a rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted horizontally or vertically, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

PDU Type: Monitored

Plug/Connector Type: NEMA 5-20P

Receptacle Type: NEMA 5-20R

Receptacle Detail: 8 x NEMA 5-20R

Input Voltage: 120 V AC

Output Voltage: 120 V AC

Network (RJ-45): Yes

Product Color: Black

Mount Type: Rack-mountable

Rack Height: 1U

Height: 1.75" (44.45 mm)

Width: 17.05" (433.07 mm)

Length: 4.41" (112.01 mm)

Weight (Approximate): 2.60 kg

Package Contents:

• Monitored PDU RM 1U PDU20M8FNET 20A 8-Outlet
• Mounting Brackets (2 Sets)
• Cord Retention Tray
• Cord Organizers
• User Manual

Energy Star: No

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
