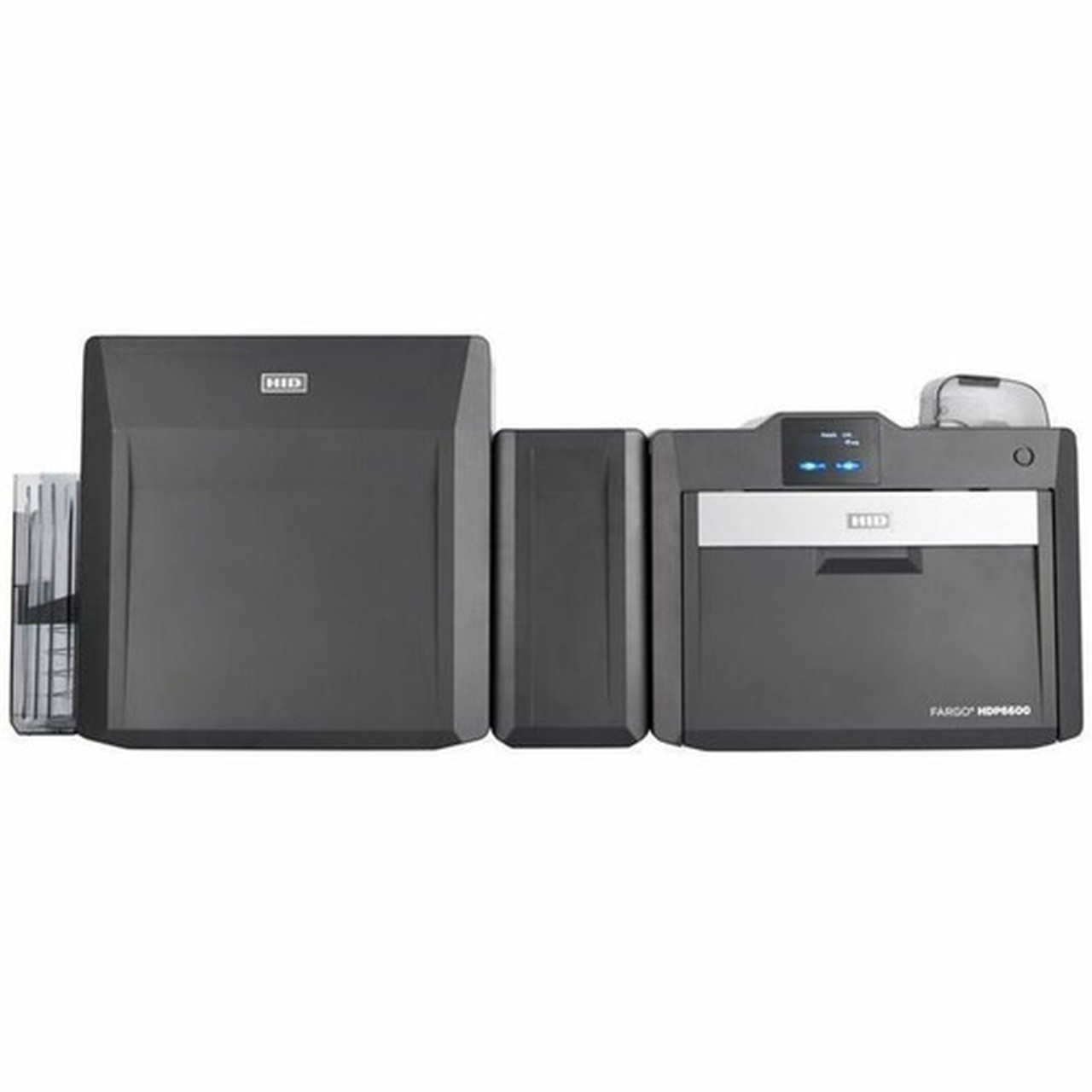

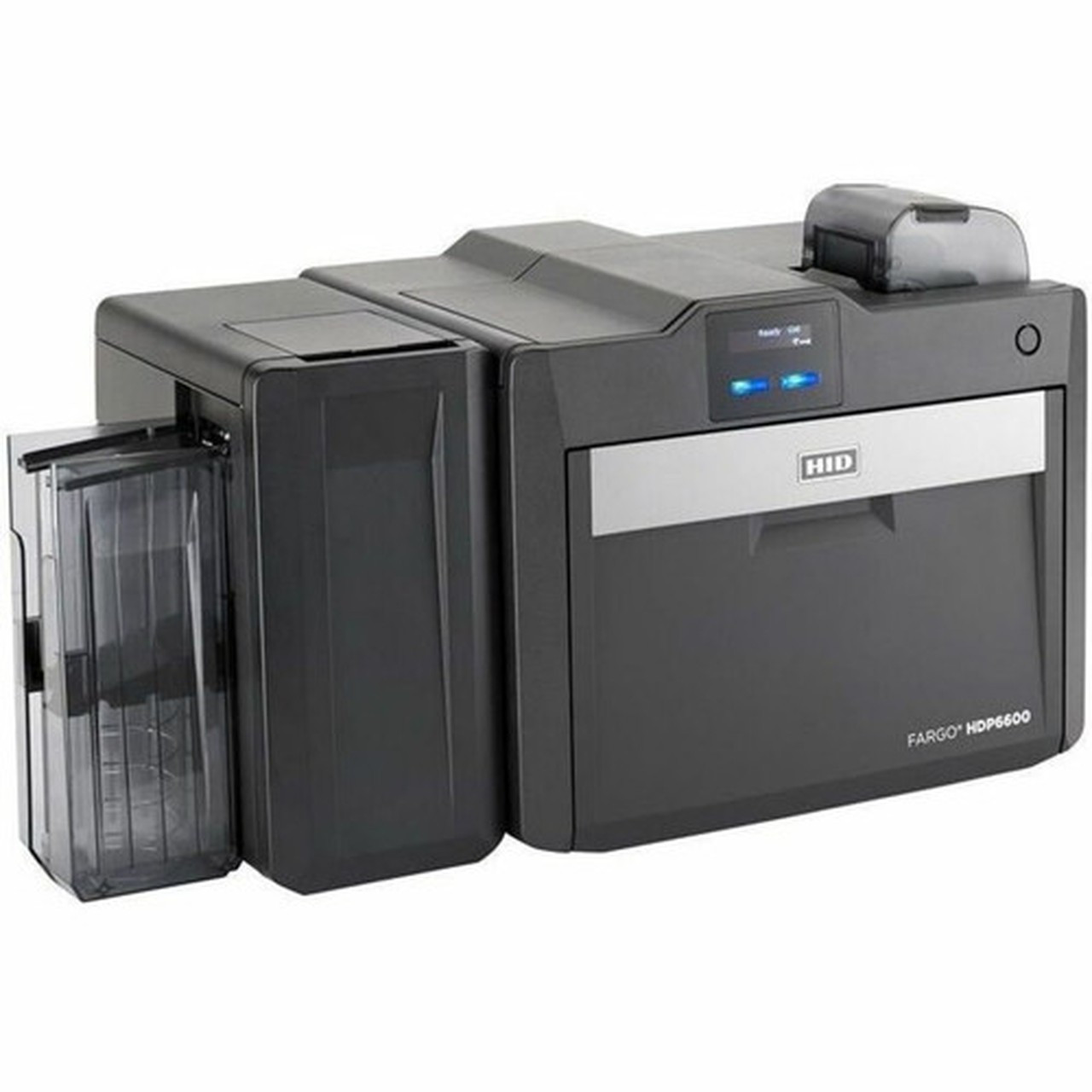

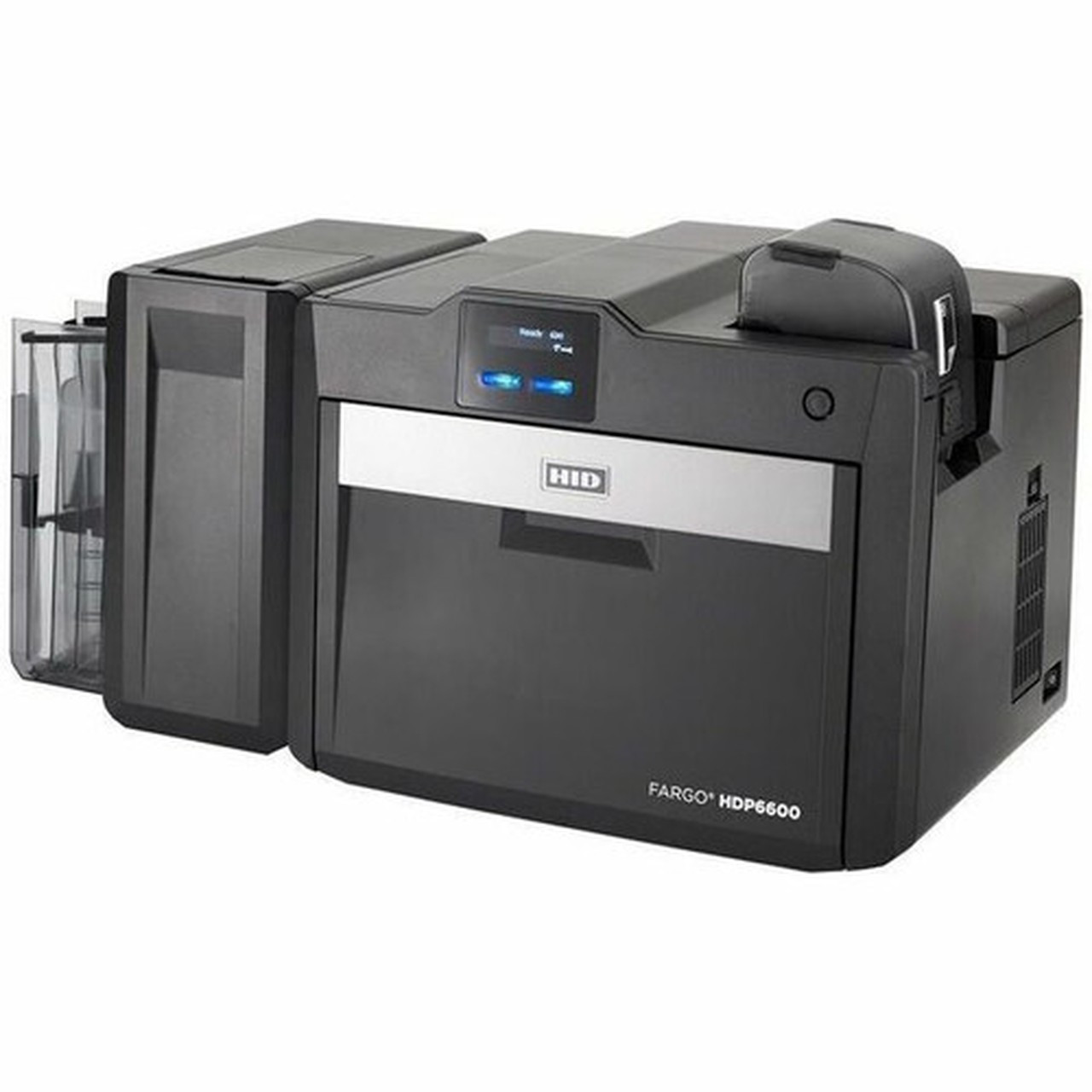

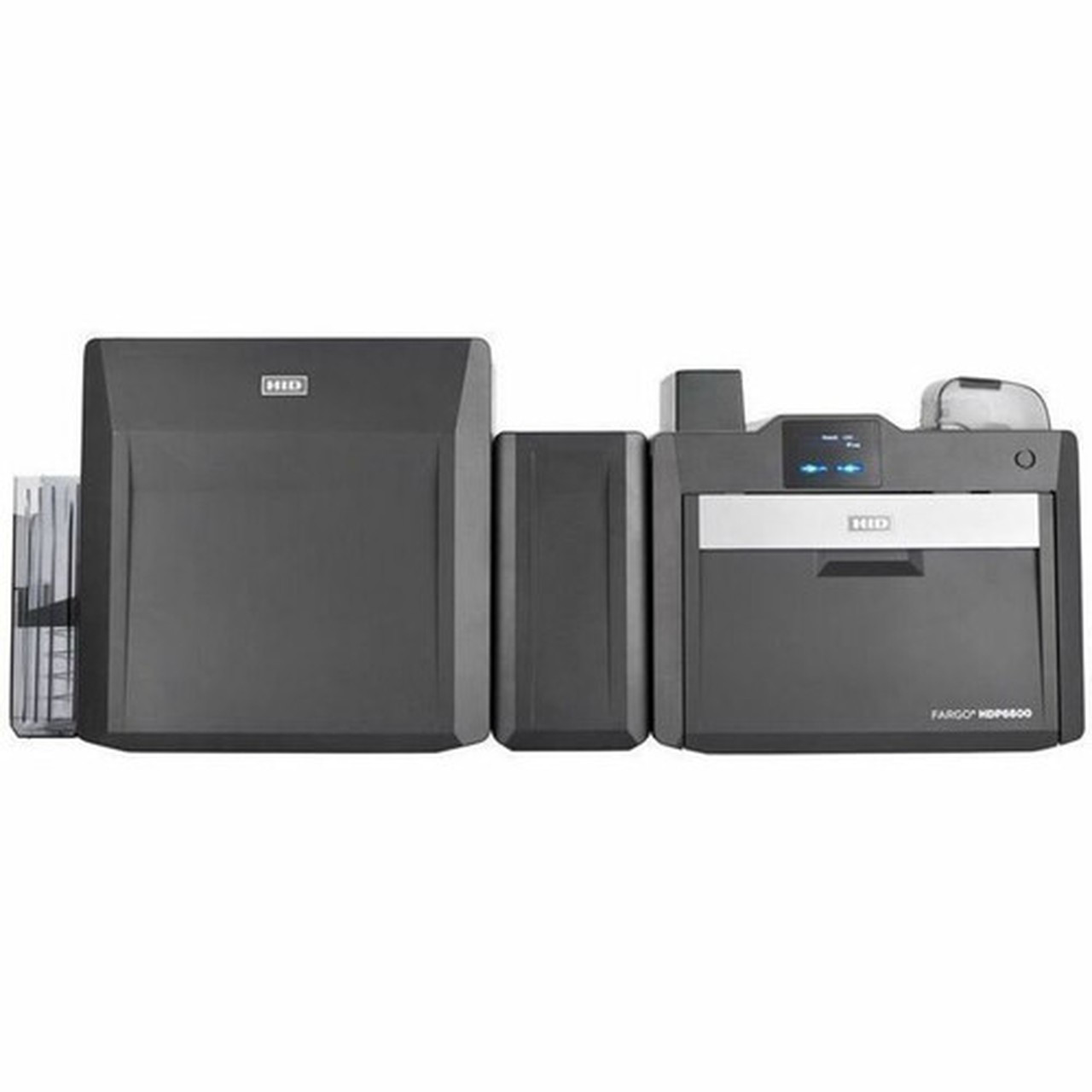

Fargo HDP6600 Double Sided Dye Sublimation/Thermal Transfer Printer - Color - Card Print - Ethernet - USB - OLED Display Screen - 16 - (094680)

Marketing Information:

The FARGO HDP6600 from HID Global is ideal for organizations of any size that need retransfer printing technology to routinely issue secure and durable, high definition IDs or cards at high speeds. As a cost-effective, eco-friendly and reliable solution, the HDP6600 provides high resolution 600 dpi printing capability for superior text and image quality.

Designed to meet the needs of cost- and efficiency-conscious organizations, the HDP6600 produces cards at unprecedented speeds and leverages HID Global's innovative wasteless lamination technology?helping cut your high-volume lamination materials costs by up to 40%.

The HDP6600 also features HID Global's patent-pending iON™ technology which allows the unit to reach optimal operating temperature in under 60 seconds, expediting the retransfer printing and lamination processes. With a built-in intelligent temperature control, the HDP6600 has been GreenCircle® Certified as significantly reducing energy consumption over comparable card printing and lamination systems. This provides unmatched energy efficiency and translates to significant energy savings for larger projects.

Only the HID FARGO HDP6600 offers all of the following in a single solution:

• Ability to print up to 230 cards per hour (YMCK with transfer)
• Patent-pending iON™ technology for unparalleled printer readiness and intelligent temperature control
• Retransfer-based wasteless lamination
• Simultaneous print and retransfer
• GreenCircle® certified energy savings

Built on six generations of proven retransfer technology, the HDP6600 offers the versatility to meet your card application needs today and in the future. Multiple field-upgradable encoder options are available for one-step, inline printing and encoding.

Fast, innovative, feature-rich and reliable ? the HID FARGO HDP6600 sets the new customer demanded standard in retransfer printing

Recommended Use: Card Print

Print Color Capability: Color

Printing Capability: Double Sided

Maximum Color Print Speed: 16 in/s (406.40 mm/s)

Maximum Print Resolution (dpi): 600

Connectivity Technology: Wired & Wireless

Printing Color: Yellow,Magenta,Cyan

Features: Magnetic Stripe Encoder,Contact Smart Card Encoder,Contactless Smart Card Encoder,Card Flattener Module

Standard Memory: 1 GB

USB: Yes

USB Standard: USB 2.0

Network Ready: Yes

Ethernet: Yes

Ethernet Technology: Ethernet

Display Screen: Yes

Display Screen Type: OLED

Media Type: Smart Card,ABS Card,PVC Card,PET Card,PETG Card,Proximity Card,Magnetic Stripe Card,Polycarbonate Card

Media Size: 3.38" (85.85 mm) x 2.12" (53.85 mm) - CR-80 Card

Media Thickness: 40 mil (1.016000 mm)

Power Source: AC Supply

Power Consumption: 2.50 A

Operating Temperature: 65°F (18.3°C) - 90°F (32.2°C)

Operating Relative Humidity: 20% - 80%

Height: 12.99" (330 mm)

Width: 19.76" (502 mm)

Depth: 12.01" (305 mm)

Weight (Approximate): 24.69 lb (11200 g)

Certifications & Standards:

• UL
• CE
• FCC
• BSMI
• MIC
• EAC
• RCM
• CCC
• KCC
• S-Mark

Environmentally Friendly: Yes

Environmental Certification: GreenCircle

Limited Warranty: 3 Year
