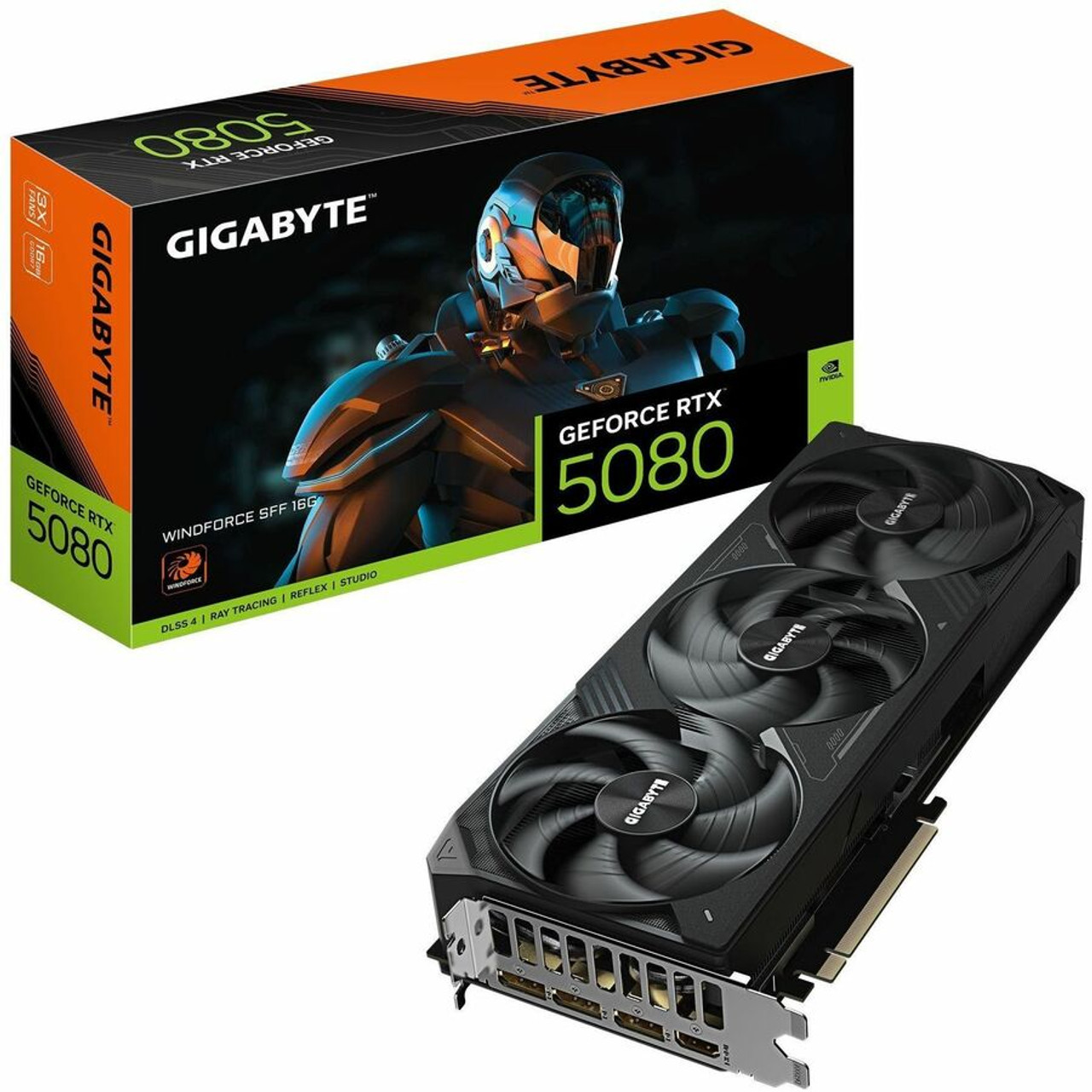

Gigabyte NVIDIA GeForce RTX 5080 Graphic Card - 16 GB GDDR7 - 7680 x 4320 - 256 bit Bus Width - PCI Express 5.0 - DisplayPort - 3 x - (GV-N5080WF3-16GD)

Marketing Information:

CORE CLOCK

TBD

NVIDIA Blackwell Architecture The Ultimate Platform for

Fifth-Gen Tensor Cores

• Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

• Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

• Built for Mega Geometry

AI-Enhanced Graphics and Performance

• NVIDIA DLSS 4 with Multi Frame Generation

Game-Winning Responsiveness

• NVIDIA Reflex 2 with Frame Warp

True-to-Life Graphics

• Full ray tracing with neural rendering

Digital Humans and AI Assistants

• NVIDIA ACE

Accelerate Your Creativity

• NVIDIA Studio creator tools and technology

Enhance Any Video with AI

• NVIDIA Broadcast and ninth-gen NVIDIA Encoder

Performance and Reliability

• NVIDIA app with Game Ready and Studio Drivers

The Ultimate Gaming Display Technologies

• NVIDIA G-SYNC

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

API Supported: DirectX 12,OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

Features: Triple-fan Cooler

AI-powered: Yes

Chipset Manufacturer: NVIDIA

Chipset Line: GeForce

Chipset Series: RTX

Chipset Model: RTX 5080

Standard Memory: 16 GB

Memory Technology: GDDR7

Bus Width: 256 bit

Host Interface: PCI Express 5.0

DisplayPort: Yes

Number of DisplayPort Outputs: 3

HDMI: Yes

Number of HDMI Outputs: 1

VGA: Yes

Power Supply Wattage: 850 W

Power Connector: 1x 16-pin

Form Factor: Plug-in Card

Cooler Type: Active Cooler

Height: 1.97" (50 mm)

Width: 4.96" (126 mm)

Length: 11.97" (304 mm)

Platform Supported: PC
