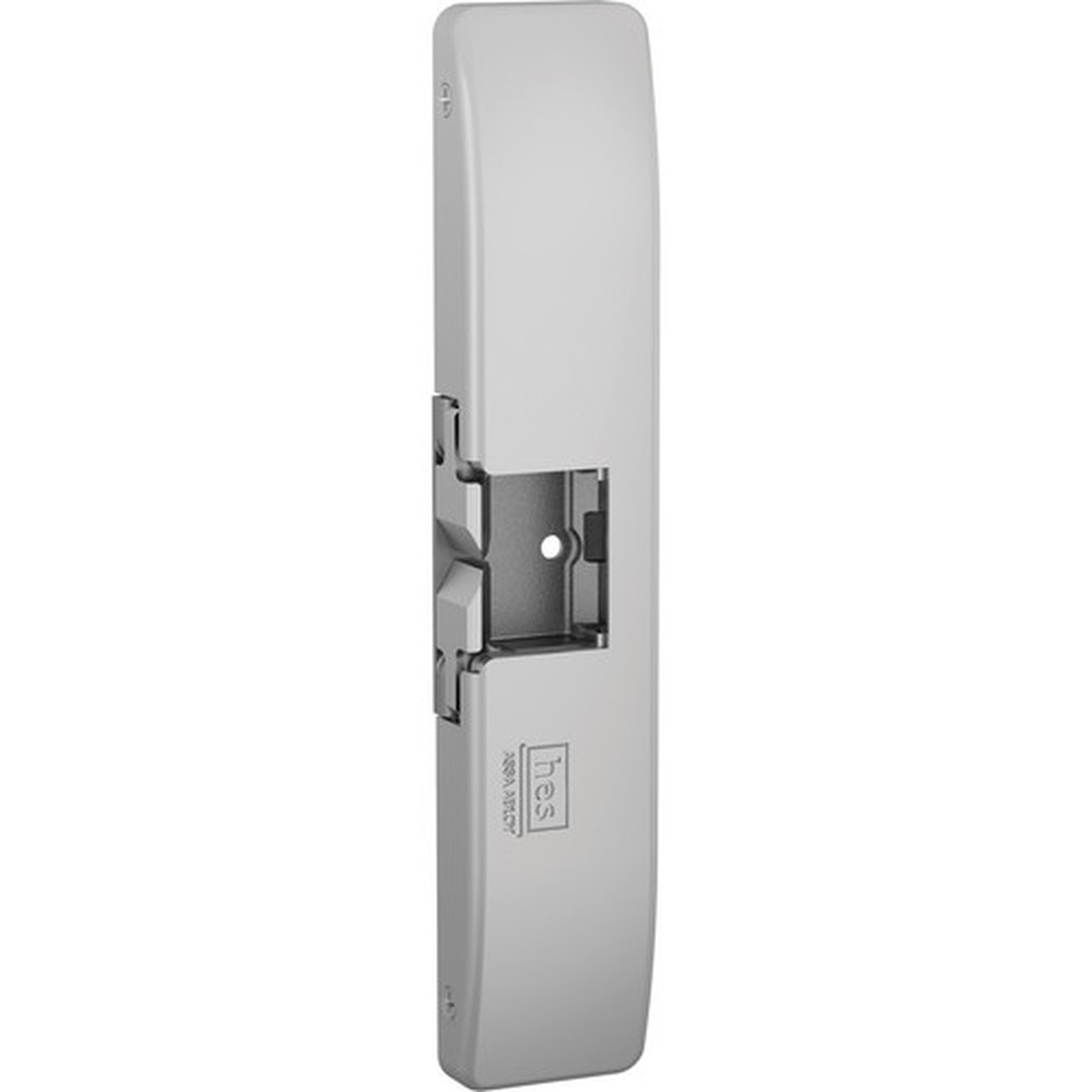

HES 9600 Electric Strike - Fail Safe, Fail Secure - 12 V DC, 24 V DC - 680.39 kg Holding Strength - Satin Stainless (9600-630)
Marketing Information:
The surface mounted, windstorm rated solution
The 9600 series Genesis™ is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.The 9600 is the only surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
Security Configuration: Fail Safe,Fail Secure
Holding Strength: 680.39 kg
Door Handling: Non Handed
Compatible Door Lock Type: Rim Exit
Compatible Door Frame Type: Aluminum,Metal,Wood
Features: Burglary Resistant,Horizontal Adjustment,Internally Mounted Solenoid,Static Strength,Tamper Resistant,Windstorm Resistant
Input Voltage: 12 V DC,24 V DC
Color Family: Gray
Product Color: Satin Stainless Steel
Product Material: Satin Stainless
Faceplate Height: 9" (228.60 mm)
Faceplate Width: 0.75" (19.05 mm)
Strike Height: 1.75" (44.45 mm)
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
[custom-specifications]
| Specifications | |
| Manufacturer | ASSA ABLOY |
| Manufacturer Part Number | 9600-630 |
| Manufacturer Website Address | http://www.assaabloy.com |
| Brand Name | HES |
| Product Series | 9600 |
| Product Name | 9600 Electric Strike |
| Product Type | Electric Strike |
| Technical Information | |
| Security Configuration | Fail Safe,Fail Secure |
| Holding Strength | 680.39 kg |
| Door Handling | Non Handed |
| Compatible Door Lock Type | Rim Exit |
| Compatible Door Frame Type | Aluminum,Metal,Wood |
| Features | Burglary Resistant,Horizontal Adjustment,Internally Mounted Solenoid,Static Strength,Tamper Resistant,Windstorm Resistant |
| Power Description | |
| Input Voltage | 12 V DC,24 V DC |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Satin Stainless Steel |
| Product Material | Satin Stainless |
| Faceplate Height | 9" (228.60 mm) |
| Faceplate Width | 0.75" (19.05 mm) |
| Strike Height | 1.75" (44.45 mm) |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
Warranty Infomartion
5 Year
