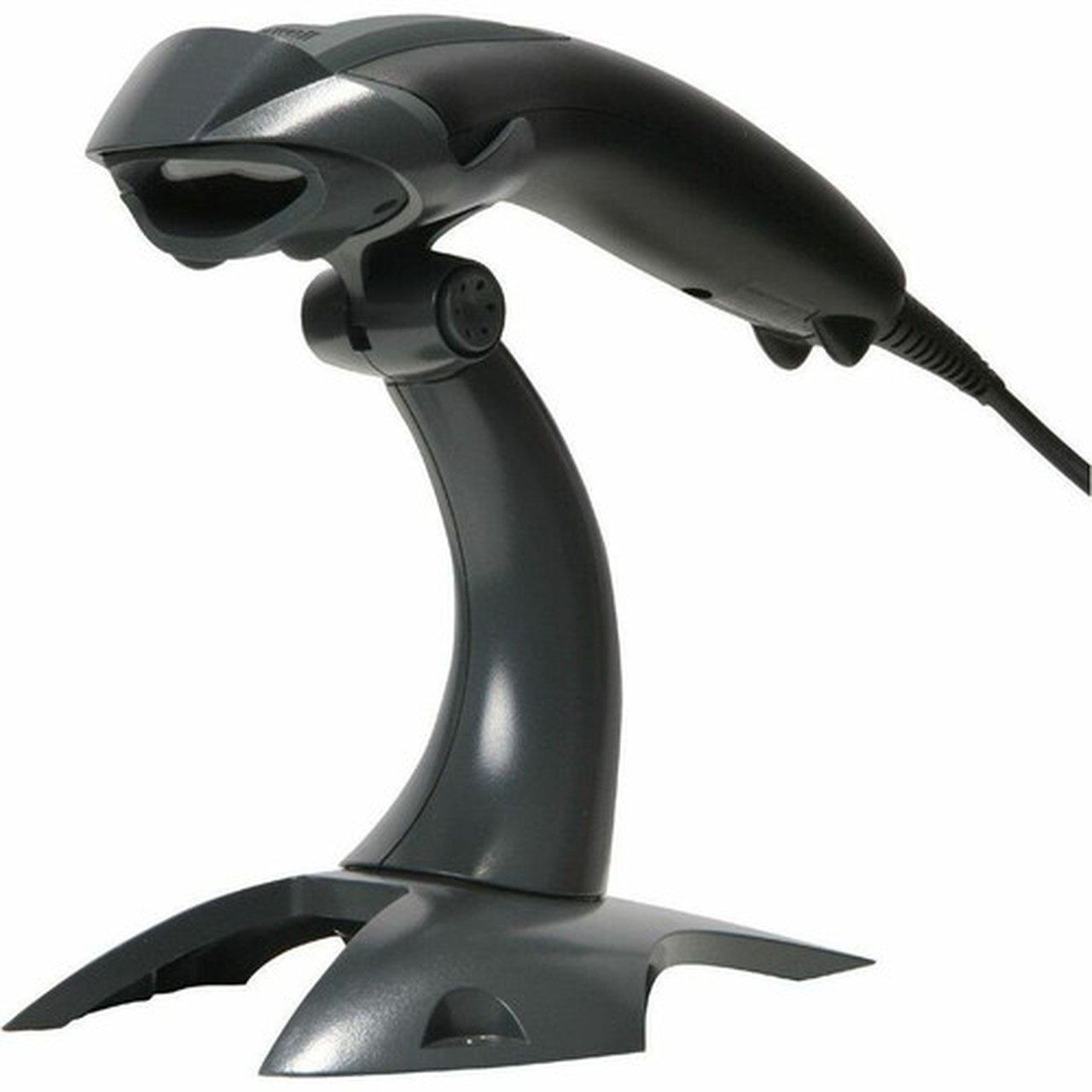

Honeywell Voyager 1200g Single-Line Laser Scanner - Wireless Connectivity - 100 scan/s - 14.40" (365.76 mm) Scan Distance - 1D - Laser (1202G-2USB-5-N)

Marketing Information:

Built on the platform of the world's best-selling single-line laser scanner, Honeywell's Voyager 1200g delivers aggressive scan performance on virtually all linear bar codes, including poor quality and damaged codes. Updated object detection, and automatic in-stand detection and configuration enable class-leading presentation scanning that maximizes throughput. Superior scan performance matched with a reliable design combine to provide a versatile linear scanning solution suitable for a wide variety of applications.

The intuitive Voyager 1200g provides fast and reliable scanning of linear bar codes across its full working range, minimizing the need for user training. Whether poorly printed, smudged or faded, the Voyager 1200g decodes difficult-to-read bar codes with ease. The Voyager 1200g also excels at scanning high density bar codes with resolution down to 3.5 mil, eliminating the need to purchase specialty scanners.

Designed to decrease downtime and service costs, the Voyager 1200g includes a single shock-mounted PCB that delivers greater impact resistance. A recessed button protected by an integrated rubber co-mold minimizes the impact of accidental drops. Added durability is provided in the form of a protected, scratch-resistant glass window and an IP42-rating.

The Voyager 1200g, the next installment in the world-renowned Voyager series, provides outstanding scan performance and reliability for end users seeking an exceptional linear scanning solution.

Connectivity Technology: Wireless

Scanning Capability: 1D

Barcode Symbology Supported:

• Reads standard 1D and GS1 DataBar symbologies

Light Source: Laser

Image Sensor Type: Linear

Scan Rate: 100 scan/s

Scan Pattern: Single Line

Scanner Range: Short Range

Scanning Distance: 14.40" (365.76 mm)

Cable Type Included: USB

Stand Included: Yes

Field of View (Horizontal): 30°

Reading Angle (Skew): 60°

Reading Angle (Pitch): 60°

Maximum Ambient Light: 70000 lux

Drop Specification:

• Designed to withstand 30 drops to concrete from 1.5 m

Minimum Print Contrast: 10%

Minimum Element Resolution (Code 39): 5 mil (0.13 mm)

Maximum Element Resolution (Code 39): 20 mil (0.51 mm)

Bluetooth: Yes

Host Interface: Serial,USB,Keyboard Wedge

Maximum Operating Power Consumption: 700 mW

Standby Current: 70 mA

Operating Temperature: 32°F (0°C) to 122°F (50°C)

Storage Temperature: -4°F (-20°C) to 140°F (60°C)

Humidity (Non-condensing): 0% to 95%

Form Factor: Handheld

Rugged: Yes

Color Family: Black

Product Color: Black

Height: 3.82" (97 mm)

Width: 7.09" (180 mm)

Length: 2.60" (66 mm)

Weight (Approximate): 125 g

Package Contents:

• 1 x Voyager 1200g Single-Line Laser Scanner
• charge & communication base
• USB Type A 3m straight cable
• Documentation
• Goose Neck Stand

Ingress Protection (IP) Rating: IP42

TAA Compliant: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Limited Warranty: 5 Year
