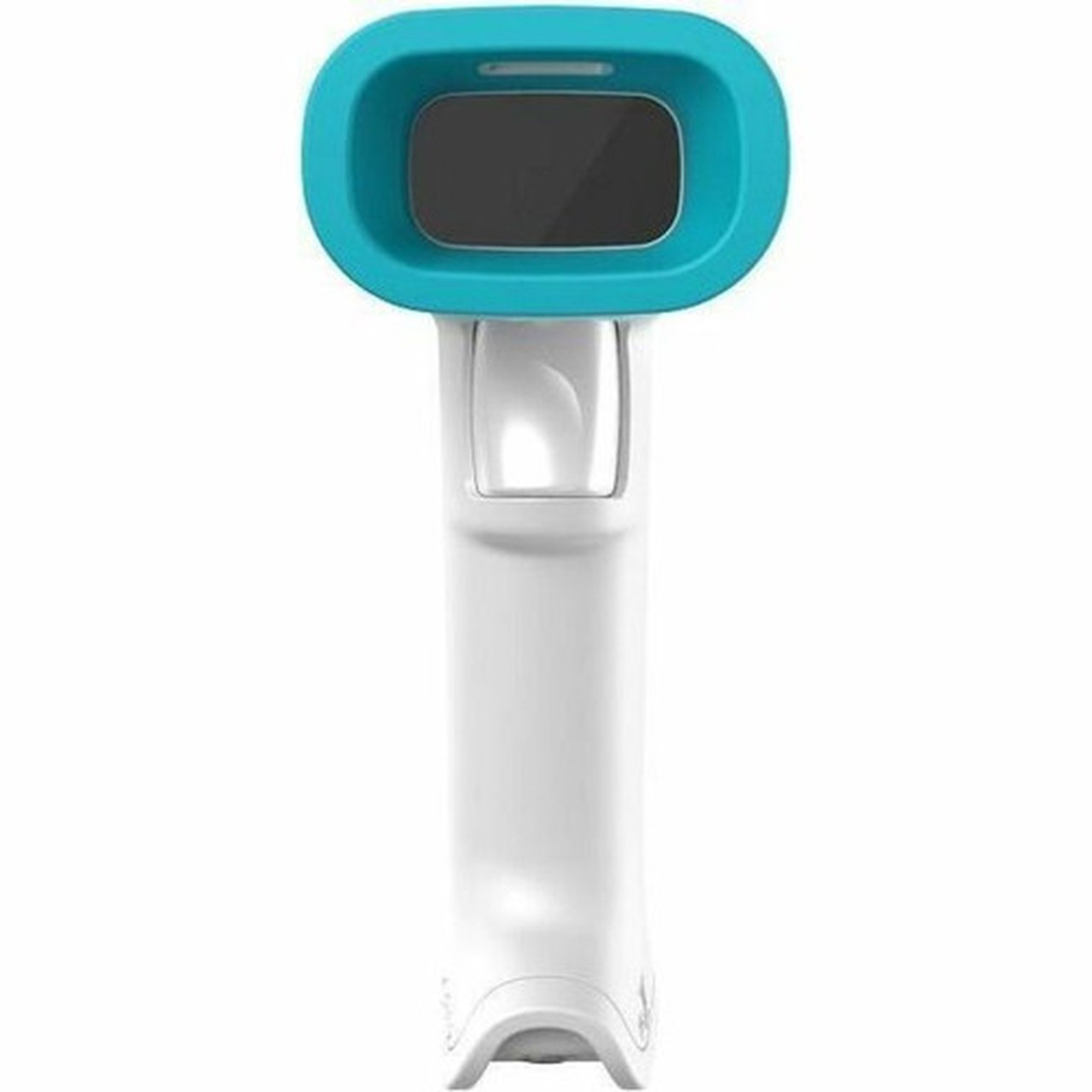

Honeywell Xenon Ultra 1962h Healthcare Scanner - Wireless Connectivity - 1 scan/s - 1D, 2D - LED - Imager - Bluetooth, Radio Frequency (1962HSR-5USB-5-N)

Marketing Information:

Continuing the legacy of barcode technology, Honeywell's Xenon Ultra helps to ensure clinicians are delivering fast, accurate and reliable patient care.

The Xenon Ultra 1962h incorporates Honeywell's next generation of scanning capability- allowing patient care to stay top priority for clinicians, helping improve retention of employees and helping lower the total cost of ownership for hospitals.

Developed with the healthcare environment in mind, the Xenon Ultra offers an improved design which reduces the amount of nooks or crannies, helping to limit areas where germs could linger and hide.

Freedom of movement around patients, family members, and expensive equipment - particularly in congested patient rooms or ICUs - is a continued challenge for today's clinician. As more and more technology is packed into the modern-day patient room, free space comes at a premium. The Xenon Ultra 1962h scanner takes up minimal space, can be mounted or stored in a variety of different places, ensuring nurses' focus is on patient safety and comfort. One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations.

The battery-free technology runs on supercapacitors versus a battery and is capable of achieving a full charge in less than four minutes via the USB Port (under 60 seconds when using a powered USB port or external wall adapter). The Xenon Ultra 1962h scanner typically provides at least 450 scans of UPC/EAN Codes without recharging. This makes the scanner ideal for scanning applications at the bedside such as medicines administration or specimen collection.

Connectivity Technology: Wireless

Scanning Capability: 1D,2D

Barcode Symbology Supported:

• Reads standard 1D
• PDF
• 2D
• Postal Digimarc
• DOT Code
• OCR

Light Source: LED

Image Sensor Type: Imager

Scan Rate: 1 scan/s

Scanner Range: Standard Range

Field of View (Horizontal): 42°

Field of View (Vertical): 36°

Reading Angle (Skew): 65°

Reading Angle (Pitch): 65°

Reading Angle (Roll): 360°

Motion Tolerance: 4000 mm/s

Maximum Ambient Light: 100000 lux

Drop Specification:

Engineered to withstand 50 1.8 m drops to concrete across operating temp range

Minimum Element Resolution (Code 39): 3 mil (0.08 mm)

Maximum Element Resolution (Code 39): 20 mil (0.51 mm)

Minimum Element Resolution (DataMatrix): 5 mil (0.13 mm)

Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)

Minimum Element Resolution (PDF417): 5 mil (0.13 mm)

Maximum Element Resolution (PDF417): 6.70 mil (0.17 mm)

Image Sensor Resolution: 1280 x 1088

Illumination Color: White

Bluetooth: Yes

Radio Frequency: Yes

Host Interface: USB

Maximum Operating Power Consumption: 2.50 W

Battery Chemistry: Lithium Ion (Li-Ion)

Battery Capacity: 3300 mAh

Maximum Battery Recharge Time: 4.50 Hour

Operating Temperature: 41°F (5°C) to 95°F (35°C)

Storage Temperature: -40°F (-40°C) to 158°F (70°C)

Humidity (Non-condensing): 95%

Form Factor: Handheld

Height: 6.31" (160.20 mm)

Width: 2.77" (70.40 mm)

Length: 4.26" (108.20 mm)

Weight (Approximate): 255 g

Package Contents:

Ingress Protection (IP) Rating: IP52,IP41

Application/Usage: Healthcare,Inventory,Asset Tracking,Pharmacy,Specimen Collection

Limited Warranty: 3 Year
