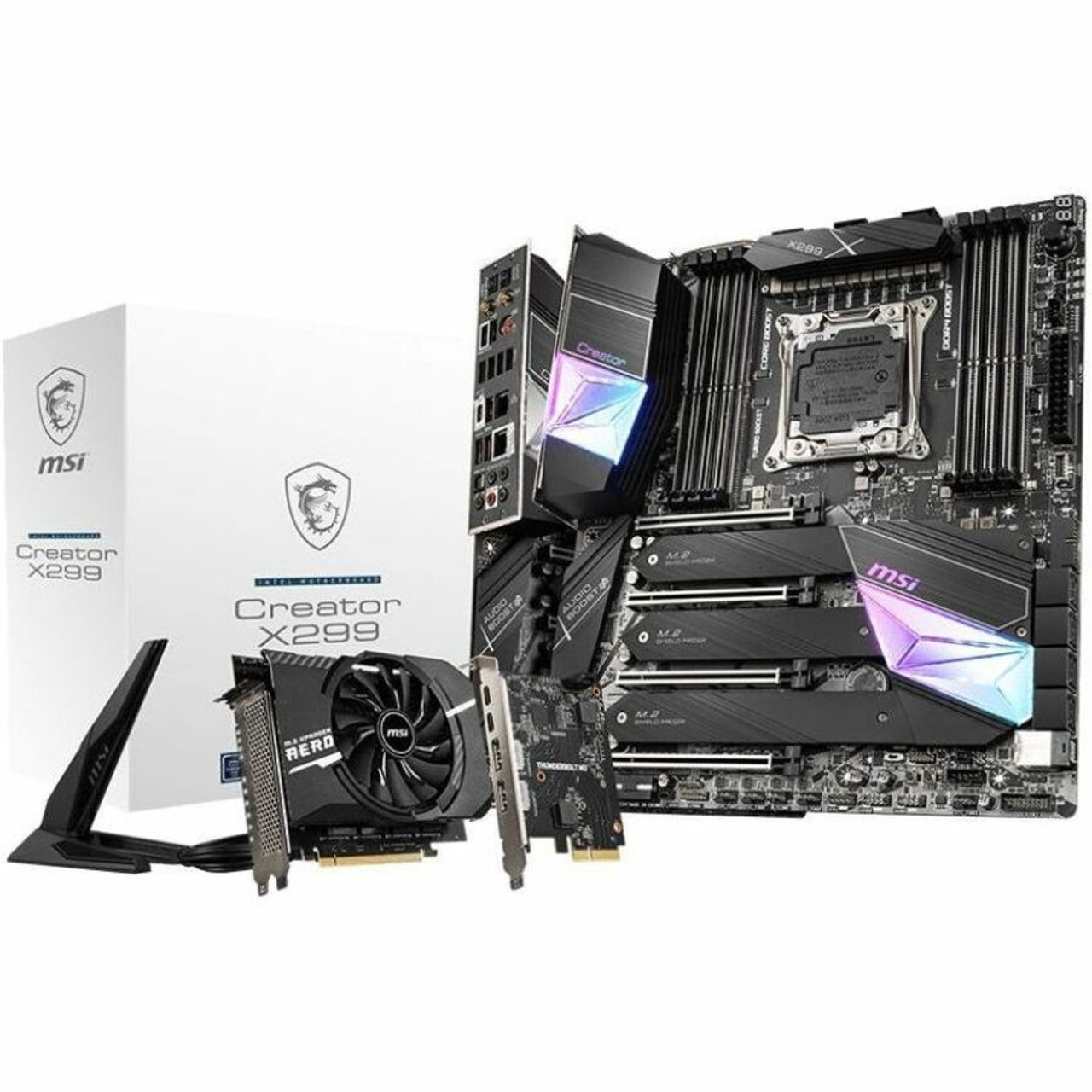

MSI Creator X299 Gaming Desktop Motherboard - Intel X299 Chipset - Socket R4 LGA-2066 - Intel Optane Memory Ready - Extended ATX - i9 (CREATORX299-BULK)

Marketing Information:

Unique look and feel inspired by the craft of crystal for all Creators. Features the latest USB3.2 Gen2x2 and 10G LAN, Wi-Fi 6, Triple Turbo M.2 with Shield Frozr, Core Boost, Audio Boost 4 with Nahimic, ThunderboltM3 card and M.2 Xpander-Aero card, Mystic Light.

• Supports Intel^®Core™ X-series Processors 10000/9000/78xx(above)series for LGA2066 Socket
• Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4266+(OC)
• More Powerful than Enough: dedicate 12 phases 90A digital power to CPU, with all aluminum design
• More Efficency for Data Transfer: 10G LAN + Intel^®Gigabit LAN with Intel^®WIFI 6 and bandwidth management
• More Compatibility for Storage: 7 x Turbo M.2 with M.2 XPANDER-AERO, 1 x Turbo U.2
• More Flexibility for Temperature Control: Full fan control with 8 PWM fan headers and 1 dedicated thermal sensor
• Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
• M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 safer and faster
• Core Boost: With premium layout and full digital power design to support more cores and provide better performance
• Triple 8 Pin Power Supply: By providing triple 8 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance
• Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, Raibow and Corsair LED strip
• Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality
• DDR4 Boost with Steel Armor: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost
• Multi-GPU: With Steel Armor PCI-E slots. Supports up to 4-Way NVIDIA SLI™ & 4-Way AMD Crossfire™
• THUNDERBOLTM3: Exclusive expansion card offering dual DisplayPort and dual Thunderbolt 3 for the full 4K video experience.

DIY FRIENDLY

MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.

STAY COOL AND SUSTAIN PERFORMANCE

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

OUTSTANDING TEMPERATURE MANAGEMENT

Multiple fan connectors allow you to set up a cool & silent system through automatic or manual control of your FANs.

Chipset Manufacturer: Intel

Chipset Model: X299

Total Processor Supported: 1

Processor Socket: Socket R4 LGA-2066

Processor Supported: Core X-Series,Core i9

Multi GPU Supported: SLI,CrossFire

Number of Memory Slots: 8

Memory Form Factor: DIMM

Maximum Memory Supported: 256 GB

Memory Speed Supported: 4266 MHz,4133 MHz,4000 MHz,3866 MHz,3733 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3300 MHz,3200 MHz,3000 MHz,2933 MHz,2666 MHz,2400 MHz,2133 MHz

Memory Technology: DDR4 SDRAM

Intel Optane Memory Ready: Yes

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,5,10

Onboard Video: CPU Dependent Video

Audio Channels: 7.1

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5

Gigabit Ethernet: Yes

10Gigabit Ethernet: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

Total Number of Expansion Slots: 4

Total Number of PCI Express Slots: 4

Number of PCI Express x16 Slots: 4

PCI Express Standard: PCI Express 3.0

Total Number of USB Ports: 10

Number of USB 2.0 Ports: 2

Number of USB 3.2 Gen 1 Type-A Ports: 7

S/PDIF: Yes

Number of Network (RJ-45) Ports: 2

Thunderbolt: Yes

Number of SATA Interfaces: 8

Number of M.2 Interfaces: 3

Total Number of Onboard USB Ports: 9

Number of Onboard USB 2.0 Ports: 4

Form Factor: Extended ATX

Width: 12.01" (305 mm)

Depth: 10.71" (272 mm)

Limited Warranty: 3 Year
