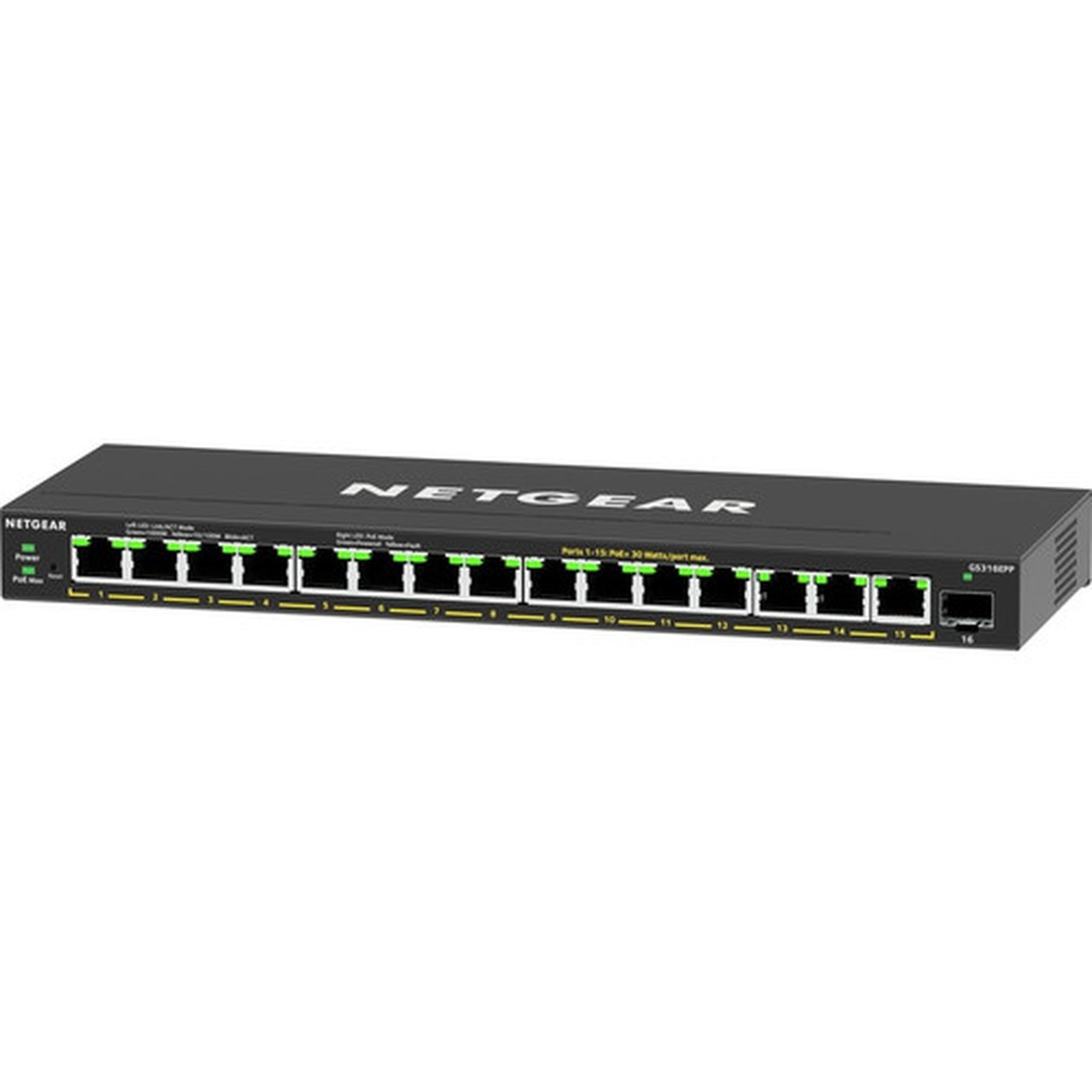

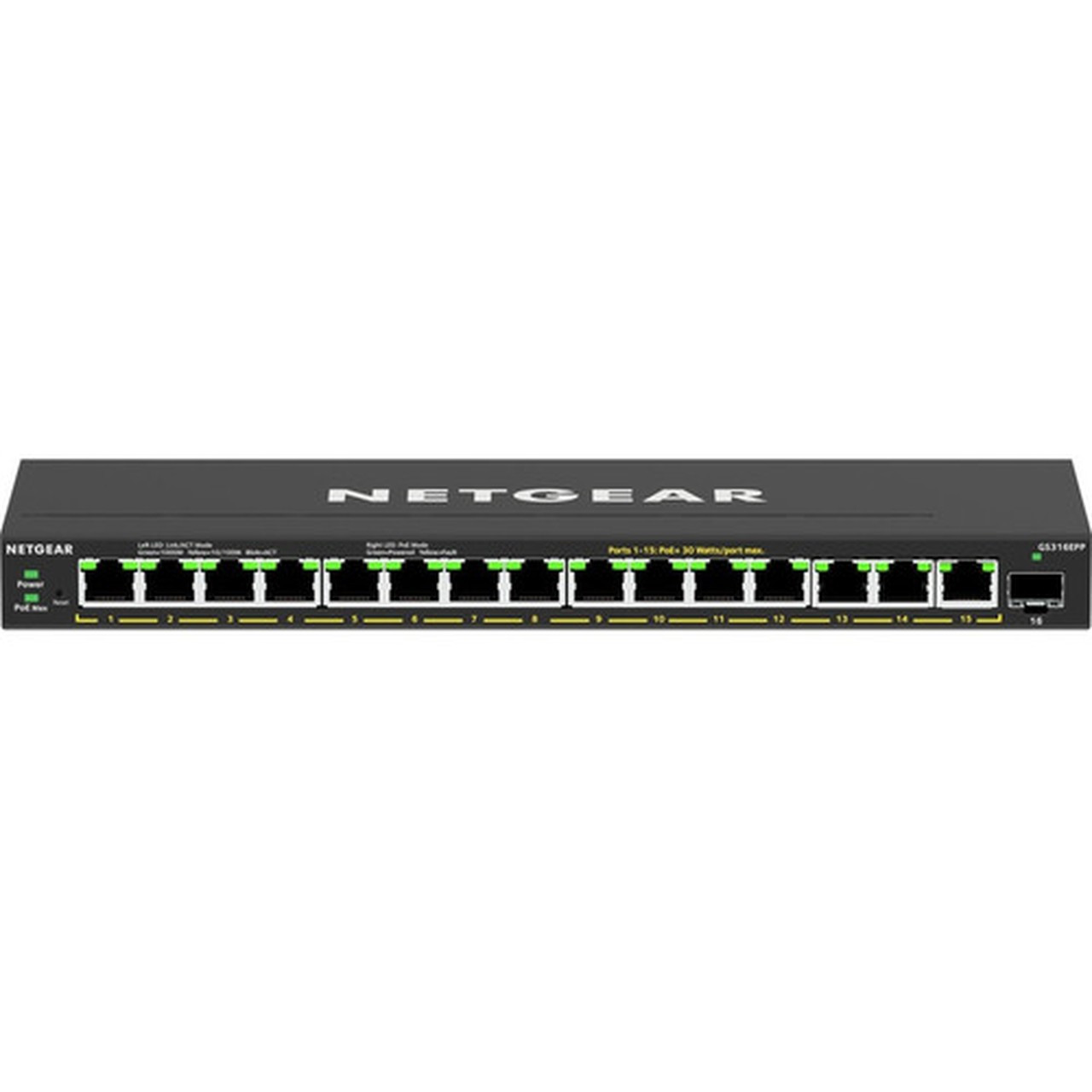

Netgear 16-Port High-Power PoE+ Gigabit Ethernet Plus Switch (231W) with 1 SFP Port - 15 Ports - Manageable - 3 Layer Supported - - 1 (GS316EPP-100NAS)

Marketing Information: NETGEAR Plus Switches with PoE meets business networks growing need by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plugand-play unmanaged switch, delivering essential networking features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points and many other applications. These new PoE+ Gigabit Ethernet Plus switches models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-inone solution, providing management and power to these applications would be ideal.

Highlights

• Enable network configuration and management at the price point of unmanaged switches
• Simple, yet useful network set-up on top of plug-and-play connectivity
• Business-friendly and easy-to-use web browser-based management GUI
• VLAN support for traffic segmentation
• Quality of Service (QoS) for traffic prioritization
• Auto "denial-of-service" (DoS) prevention
• Troubleshoot connection issues via cable test
• Loop prevention, loop detection, and broadcast storm controls
• Rate limiting for better bandwidth allocation
• Port mirroring for network monitoring
• Jumbo frame support
• Advanced features such as per port PoE controls
• Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot.
• 802.3at standard offering 30W/port
• Fanless and versatile mounting option (desktop and wall-mountable)

Total Number of Network Ports: 15

Modular: Yes

Port/Expansion Slot Details: 15 x Gigabit Ethernet HPoE+,1 x Gigabit Ethernet Expansion Slot

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T,1000Base-X

Total Number of Expansion Slots: 1.0

Expansion Slot Type: SFP (mini-GBIC)

Number of SFP Slots: 1

Layer Supported: 3

Manageable: Yes

PoE (RJ-45) Port: Yes

PoE Budget: 231 W

Power Source: Power Adapter

Form Factor: Desktop,Wall Mountable

Height: 1.06" (27 mm)

Width: 11.26" (286 mm)

Depth: 4.02" (102 mm)

Weight (Approximate): 883 g

Package Contents:

• 16-Port High-Power PoE+ Gigabit Ethernet Plus Switch (231W) with 1 SFP Port
• Power Adapter (Power Cable Varies by Region)
• Wall Installation Kit
• Rubber Feet
• Installation Guide

Environmentally Friendly: Yes

Energy Efficiency Compliance: Energy-related Products Directive (ErP)

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Country of Origin: Thailand

Limited Warranty: 5 Year Lifetime
