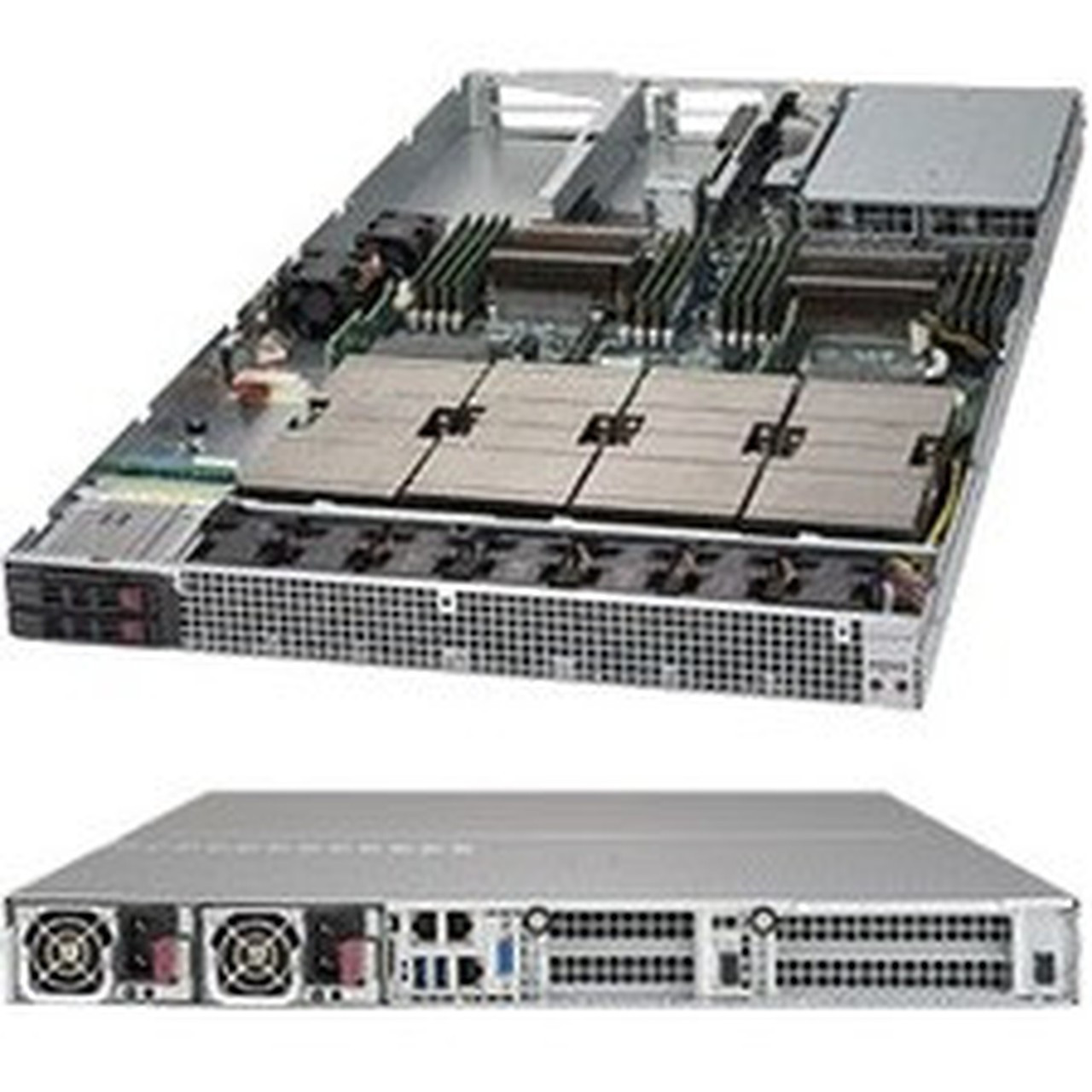

Supermicro SuperServer 1028GQ-TXRT Server Barebone System - 1U Rack-mountable - Socket R3 LGA-2011 - 2 x Processor Support - Intel - 2 (SYS-1028GQ-TXRT)

Marketing Information: Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.

Number of Processors Supported: 2

Processor Socket: Socket R3 LGA-2011

Processor Supported: Xeon

64-bit Processing: Yes

Chipset Manufacturer: Intel

Chipset Model: C612

Maximum Memory Supported: 2 TB

Memory Technology: DDR4 SDRAM

Memory Standard: DDR4-2400/PC4-19200

Total Number of Memory Slots: 16

Controller Type: Serial ATA/600

RAID Supported: Yes

Graphics Controller Model: AST2400

Ethernet Technology: 10 Gigabit Ethernet

Number of Total Expansion Bays: 4

Total Number of Expansion Slots: 4

Number of PCI Express x8 Slots: 1

Number of PCI Express x16 Slots: 3

Total Number of USB Ports: 2

Number of USB 3.0 Ports: 2

Number of SATA Interfaces: 6

Input Voltage: 120 V AC,230 V AC

Number of Power Supplies Installed: 2

Maximum Power Supply Wattage: 2 kW

Color Family: Black

Product Color: Black

Form Factor: Rack-mountable

Rack Height: 1U

Height: 1.70" (43.18 mm)

Width: 17.20" (436.88 mm)

Depth: 35.20" (894.08 mm)

Weight (Approximate): 45 lb (20411.66 g)

Package Contents:

• SuperServer 1028GQ-TXRT (Black)
• 1 x Super X10DGQ Motherboard
• 1 x CSE-118GQP-R2K05B Chassis
• 1 x AOM-PIO-I2XT
• 1 x 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
• 1 x PCIe 8 pin female(black) to CPU 8 pin female(white), K80/M60/M40 GPU power cable, 30cm, 18AWG,RoHS/REACH
• 1 x GPU,2x4F/RA/PCIe to 2x4F/CPU, P4.2, 42CM,17AWG
• 2 x GPU,2x4F/RA/PCIe to 2x4F/RA/CPU, P4.2, 5.5CM,17AWG
• 4 x 55cm 30AWG SATA S-S cable
• 4 x Oculink-Oculink 8 lanes Pascal Cable 50cm 34AWG
• 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
• 1 x SYS-1028GQ-TR(T) Quick Reference Guide,HF,RoHS/REACH
• 1 x [NR]RSC-G-68
• 1 x [NR]RSC-G-66
• 4 x 1U Passive GPU Heat Sink for NVIDIA SXM2 Module in SYS-1028GQ-TXR(T) Series Servers
• 2 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB
• 2 x 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
• 7 x 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan

Environmentally Friendly: Yes

Limited Warranty: 3 Year
