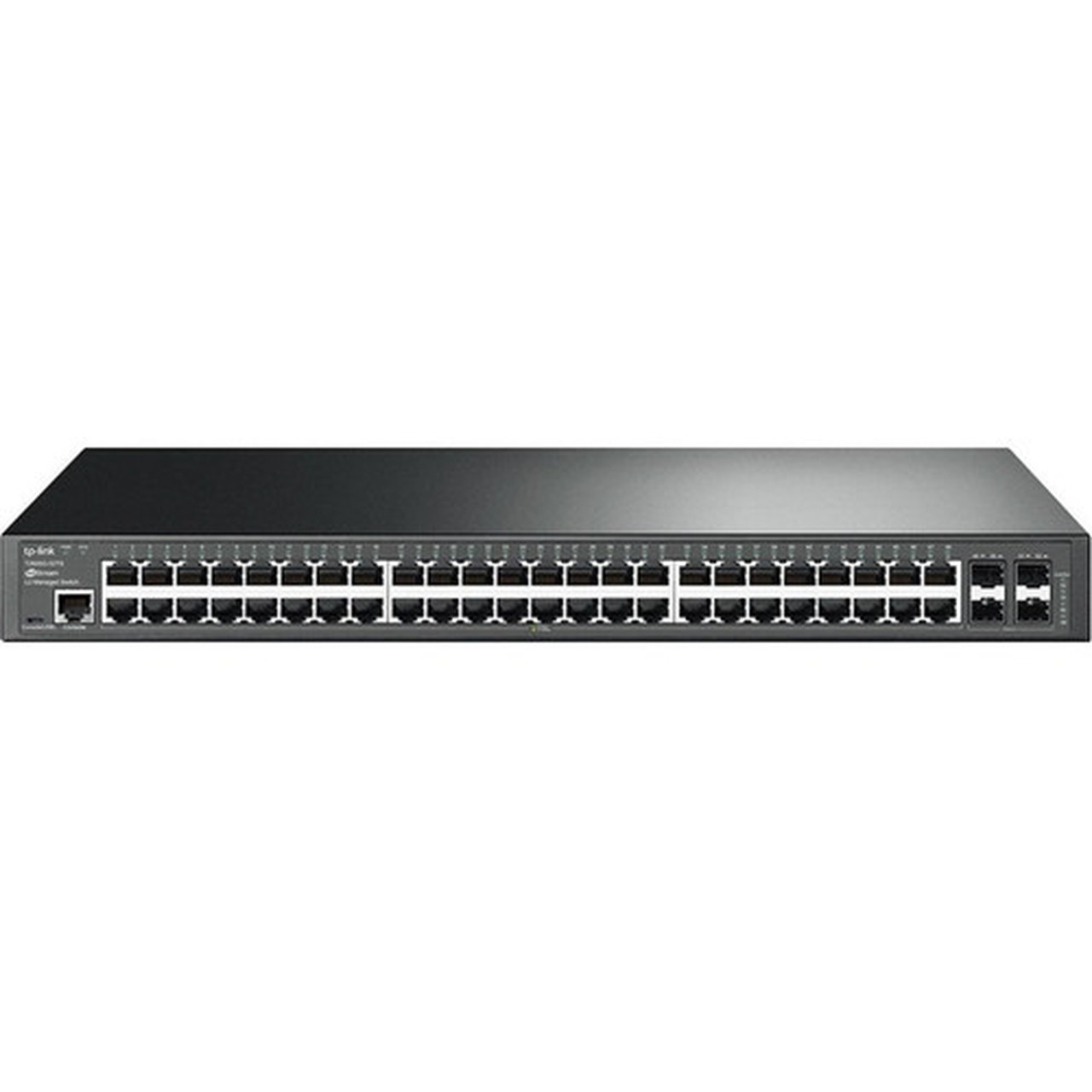

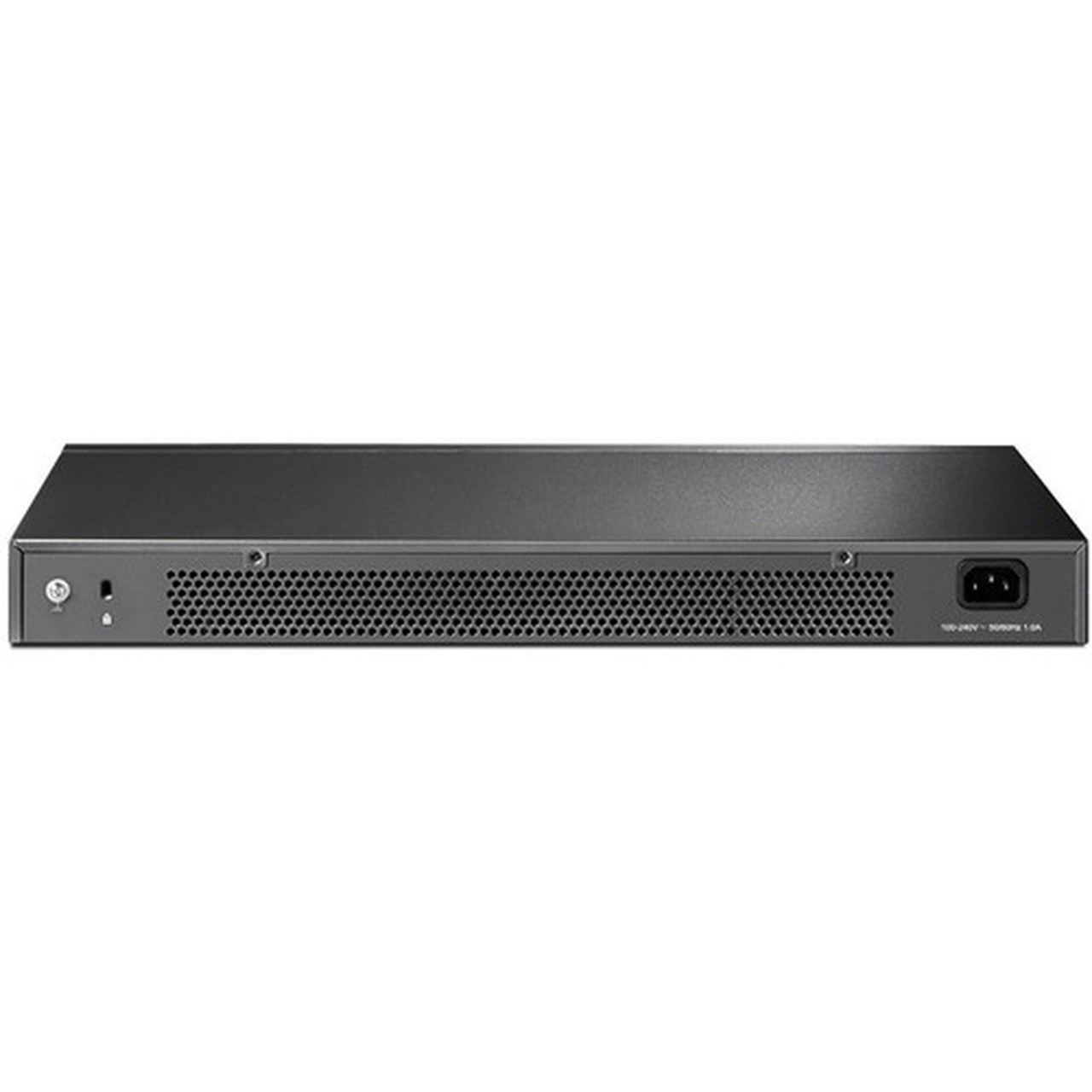

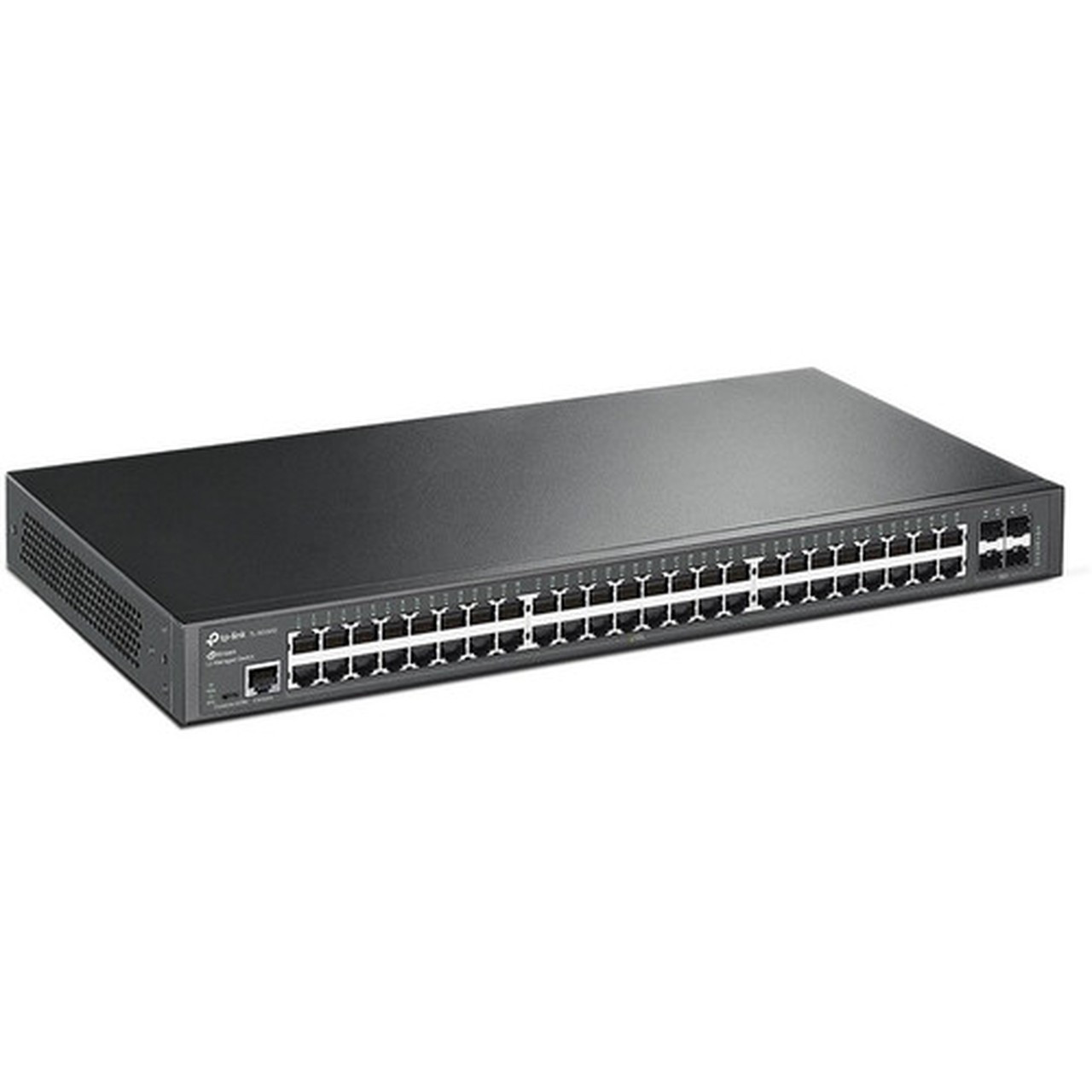

TP-Link JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots - 48 Ports - Manageable - 2 Layer Supported - Modular - 4 SFP - W (TL-SG3452)

Marketing Information:

What This Product Does

TP-Link JetStream Gigabit L2 managed switch T2600G-52TS provides 48 10/100/1000Mbps ports and 4 Gigabit SFP Slots. The switch provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and other advanced security strategies. The IP-MAC-Port Binding and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP, RMON and Dual Image mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2 Switch and gigabit capability, TP-Link JetStream 48-Port Gigabit L2 managed Switch T2600G-52TS provides you the ideal network solution.

Secure Networking

TP-Link JetStream L2 managed switch T2600G-52TS provides IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.

Advanced QoS features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.

Abundant L2 and L2+ features

T2600G-52TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance, such as Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T2600G-52TS supports L2+ feature-static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.

IPv6 Support

T2600G-52TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery, which guarantees your network is ready for the Next Generation Network (NGN) without upgrading your network equipment.

OAM

The T2600G-52TS provides 802.3ah OAM and Device Link Detection Protocol (DLDP) functions improving monitor and troubleshoot Ethernet networks, help facilitate network management.

Total Number of Network Ports: 48

Network (RJ-45): Yes

Uplink Port: No

Modular: Yes

Stack Port: No

Port/Expansion Slot Details: 48 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot

Media Type Supported: Optical Fiber,Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T,1000Base-X

Total Number of Expansion Slots: 4.0

Expansion Slot Type: SFP

Shared SFP Slot: No

Number of SFP Slots: 4

Layer Supported: 2

Networking Standards: IEEE 802.1p,IEEE 802.3ad,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1x,IEEE 802.1ab

Manageable: Yes

Power Source: Power Supply

Redundant Power Supply Supported: No

Power Consumption: 32.80 W

Form Factor: Desktop,Rack-mountable

Height: 1.73" (43.94 mm)

Width: 17.32" (439.93 mm)

Depth: 8.70" (220.98 mm)

Weight (Approximate): 4.22 kg

Package Contents:

• JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: China

Limited Warranty: 5 Year
