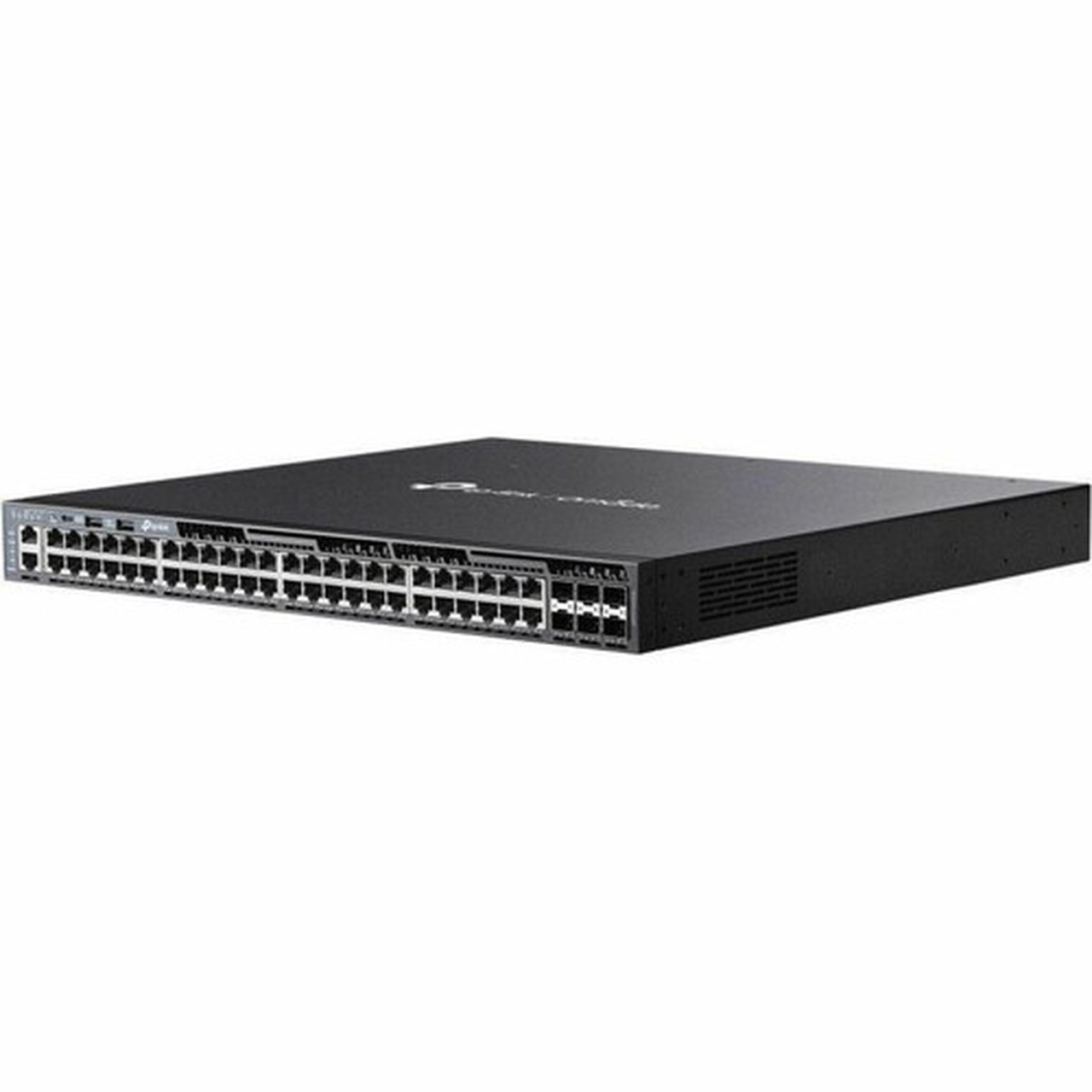

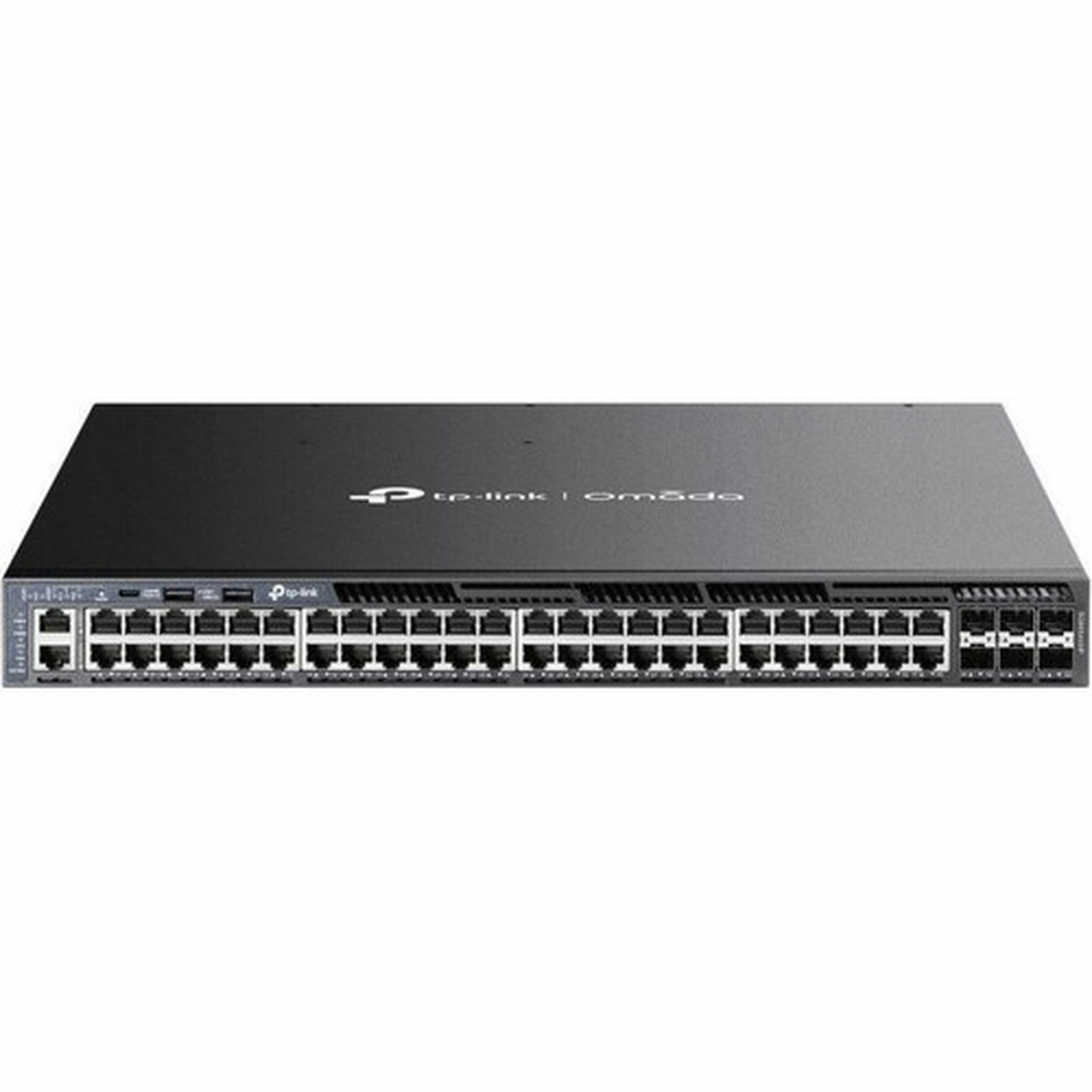

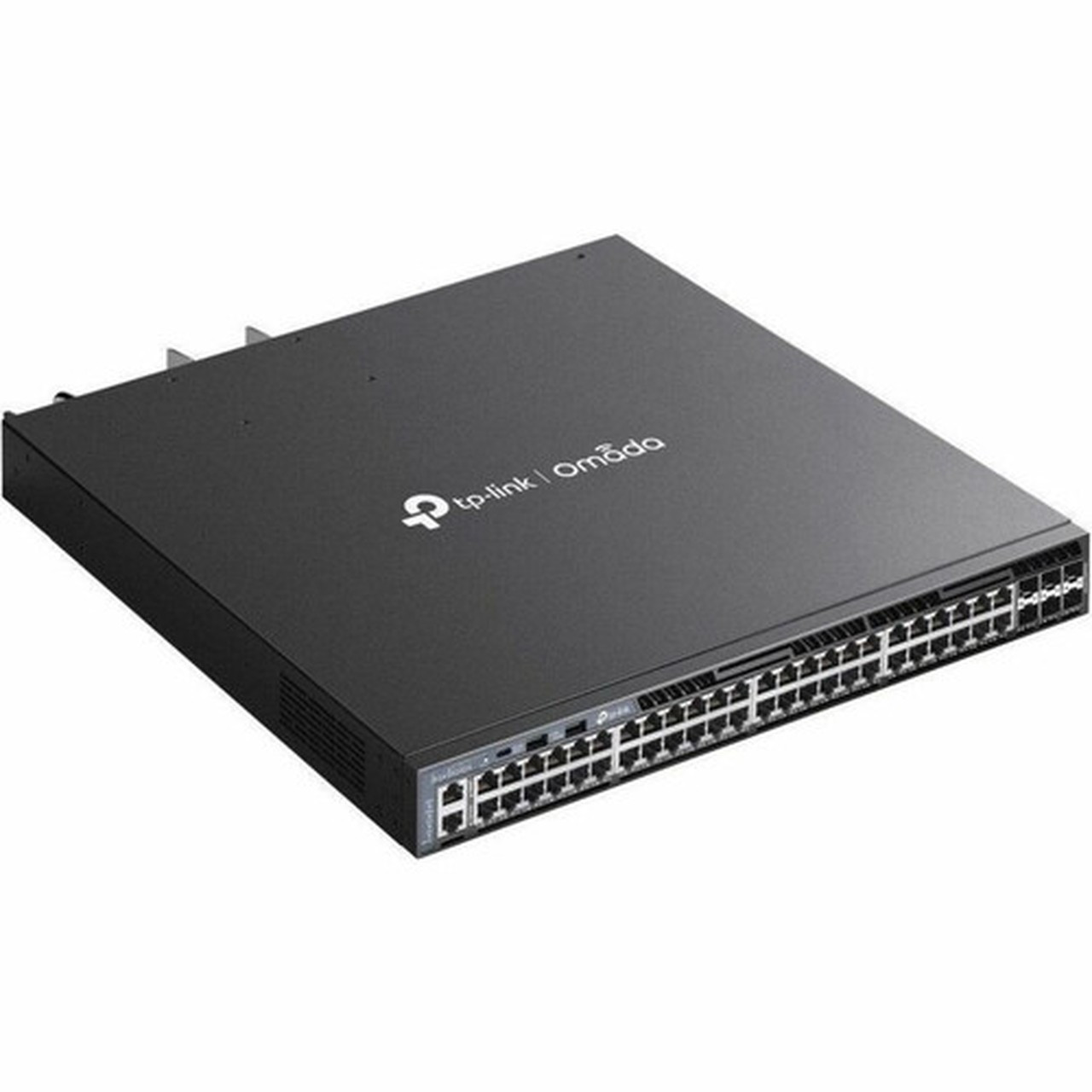

TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit (SG6654XHP)

Marketing Information:

What This Product Does

Omada SG6654XHP, an advanced L3 managed PoE+ switch, is crafted for convergence layer requirements with features like L3 routing, rapid 10 Gbps wired connectivity, stacking, and redundant power supplies. It offers an impressive 1440 W PoE budget, 48× gigabit RJ45 PoE+ ports, 6× 10 Gbps SFP+ slots, and physical stacking. Combined with centralized management, strong security, and comprehensive management features, SG6654XHP is an ideal, reliable network solution for SMBs, enterprises, and ISPs.

IEEE 802.3at/af-compliant Power over Ethernet

48× IEEE 802.3at/af-compliant PoE ports supply up to 1440 W total power to 802.3at and 802.3af devices,* with each port supplying up to 30 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling.

High-speed Connectivity and Powerful Stacking

48 gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 864 Gbps switching capacity empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.

Highly Available

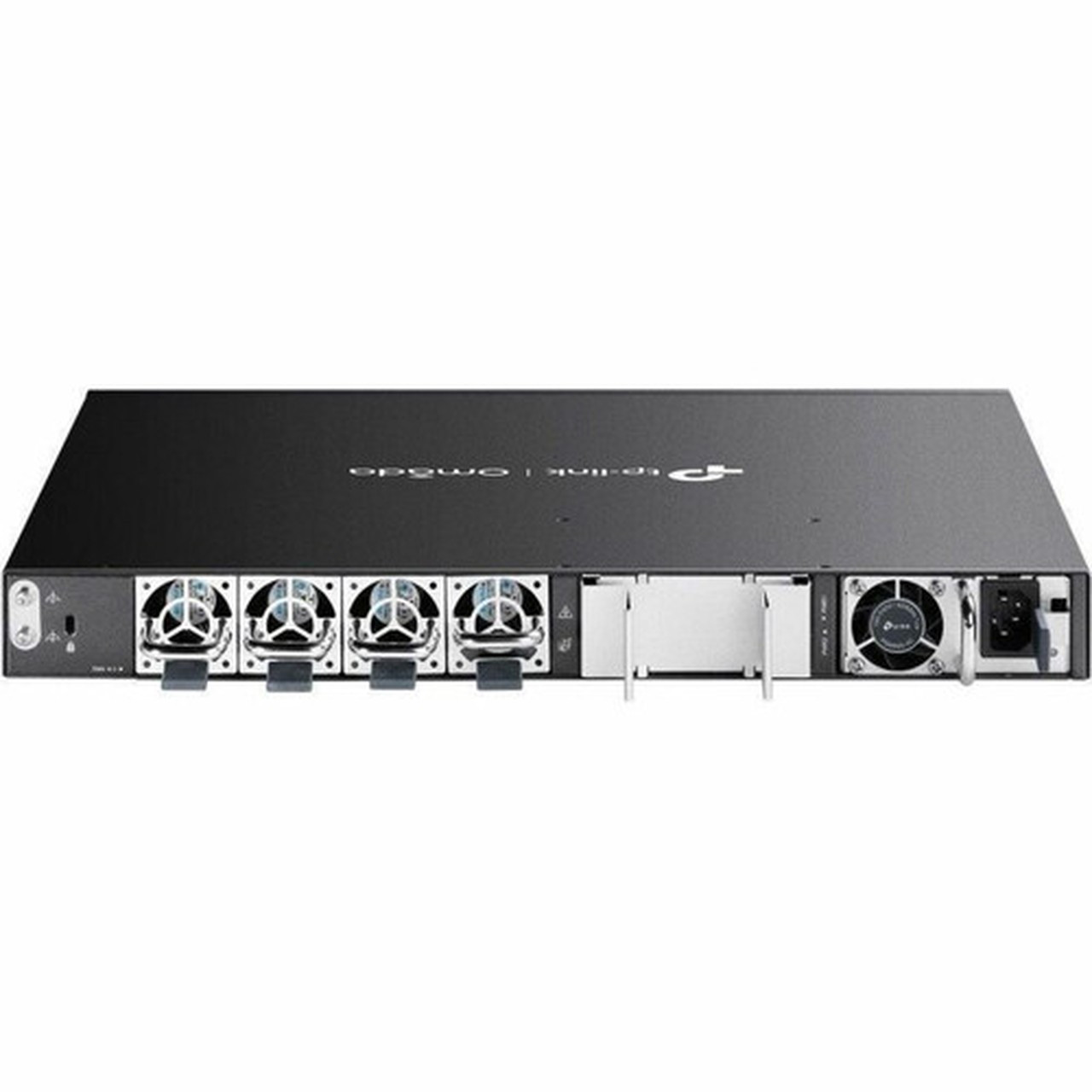

Optional field-replaceable and hot-swappable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.

Enhanced Security Functions

Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Total Number of Network Ports: 48

Network (RJ-45): Yes

Uplink Port: Yes

Modular: Yes

Stack Port: Yes

Port/Expansion Slot Details: 48 x Gigabit Ethernet PoE+,6 x 10 Gigabit Ethernet Expansion Slot

Media Type Supported: Twisted Pair,Optical Fiber

Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet

Network Technology: 10/100/1000Base-T,10GBase-X

Expansion Slot Type: SFP+

Number of SFP+ Slots: 6

Layer Supported: 3

Networking Standards: IEEE 802.1p,IEEE 802.3x,IEEE 802.3ah,IEEE 802.1Q,IEEE 802.3at,IEEE 802.1x,IEEE 802.3af

Manageable: Yes

PoE (RJ-45) Port: Yes

PoE Budget: 1.44 kW

Input Voltage: 120 V AC,230 V AC

Power Source: PoE,Power Supply

Redundant Power Supply Supported: Yes

Number of Power Supplies Supported: 2

Power Consumption: 67.24 W

Form Factor: Desktop,Rack-mountable

Height: 1.70" (43.18 mm)

Width: 17.30" (439.42 mm)

Depth: 16.50" (419.10 mm)
