Tripp Lite by Eaton DVI Over Cat5 Active Extender Remote Unit - 1 Input Device - 1 Output Device - 200 ft (60960 mm) Range - 1 x - 1 x (B140-1A0)

Marketing Information:

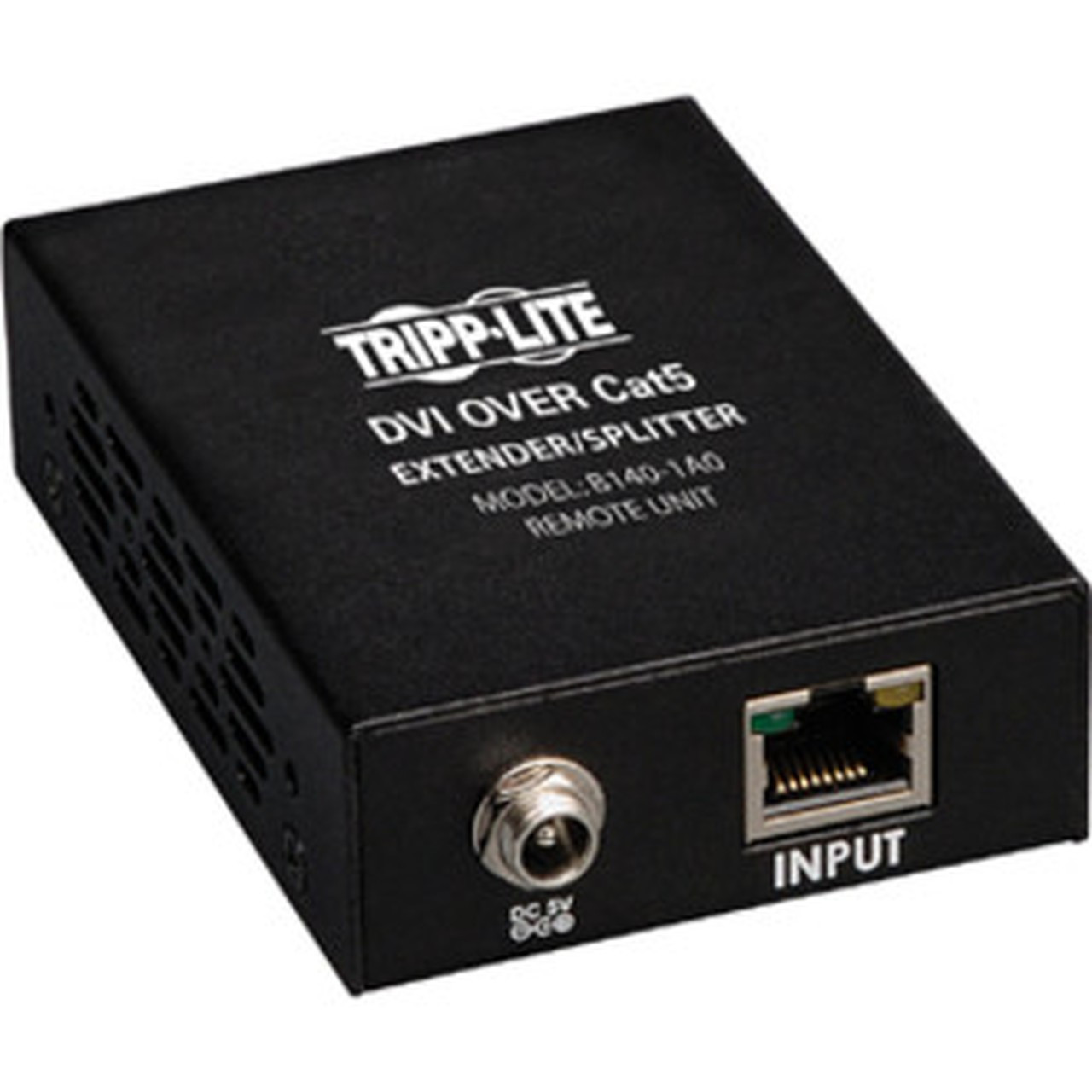

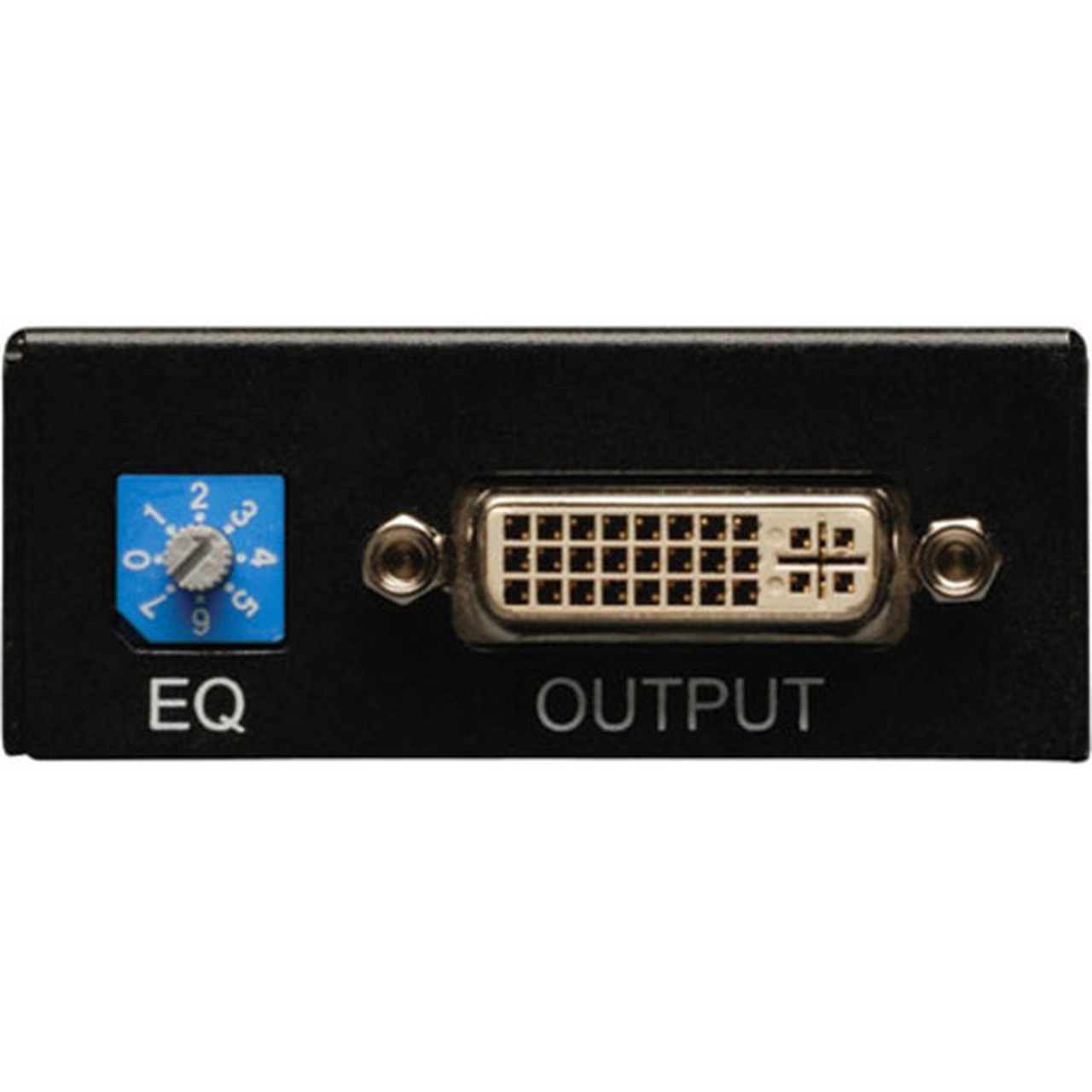

The B140-1A0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1A0 is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1A0 to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002 or B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

More from the Manufacturer

Connectivity Technology: Wired

Number of Input Devices Supported: 1

Number of Output Devices Supported: 1

Maximum Operating Distance: 200 ft (60960 mm)

Graphics Modes: Full HD

Maximum Video Resolution: 1920 x 1080

Network (RJ-45): Yes

DVI Out: Yes

Number of Network (RJ-45) Ports: 1

Number of DVI Outputs: 1

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 6

Receiver Height: 1" (25.40 mm)

Receiver Width: 2.50" (63.50 mm)

Receiver Depth: 3.60" (91.44 mm)

Package Contents:

• B140-1A0 DVI over Cat5 Active Extender Remote Unit
• Mounting Hardware
• Screwdriver for adjustment of Equalization
• External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
• Owner's Manual

Country of Origin: Taiwan

TAA Compliant: Yes

Environmentally Friendly: Yes

Limited Warranty: 1 Year
