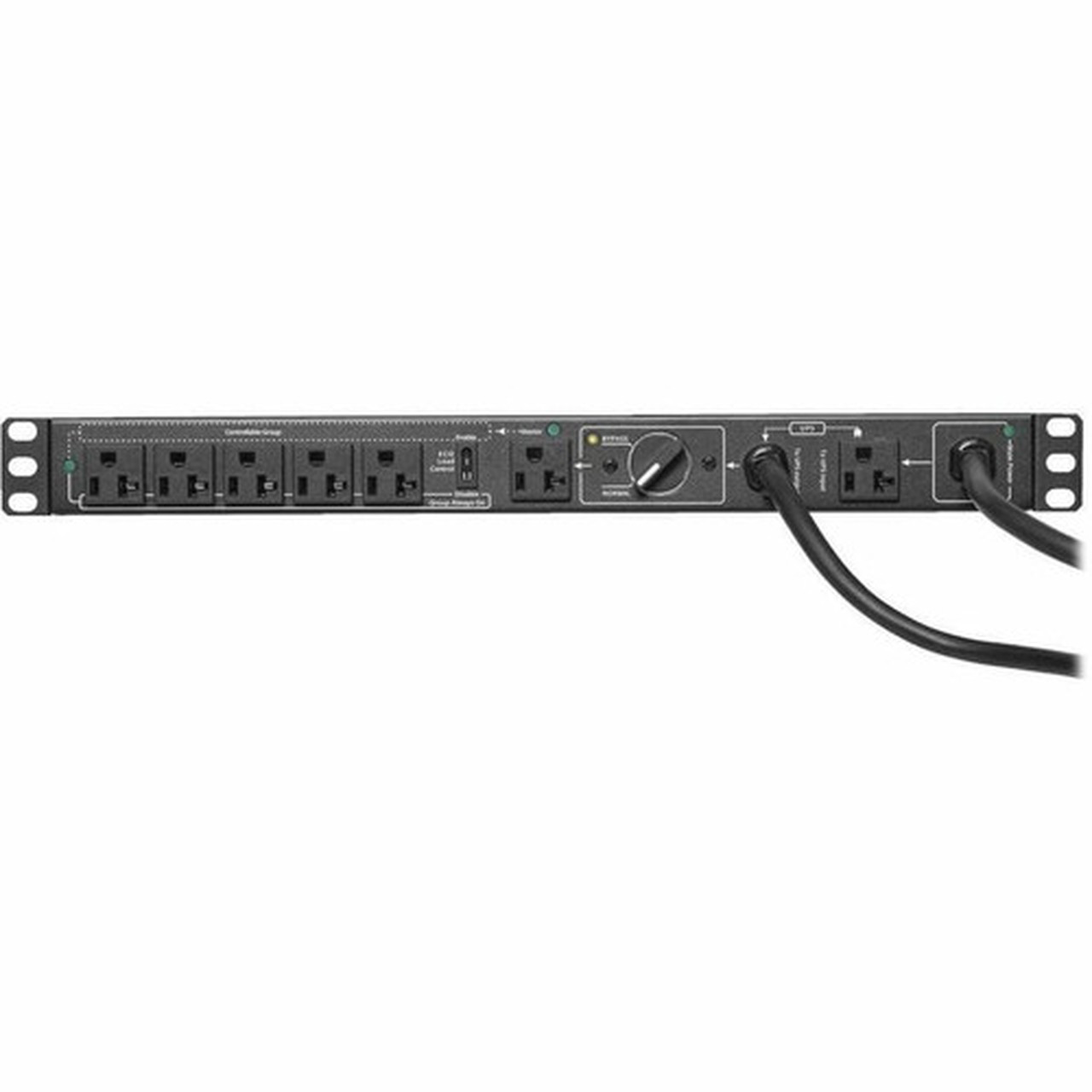

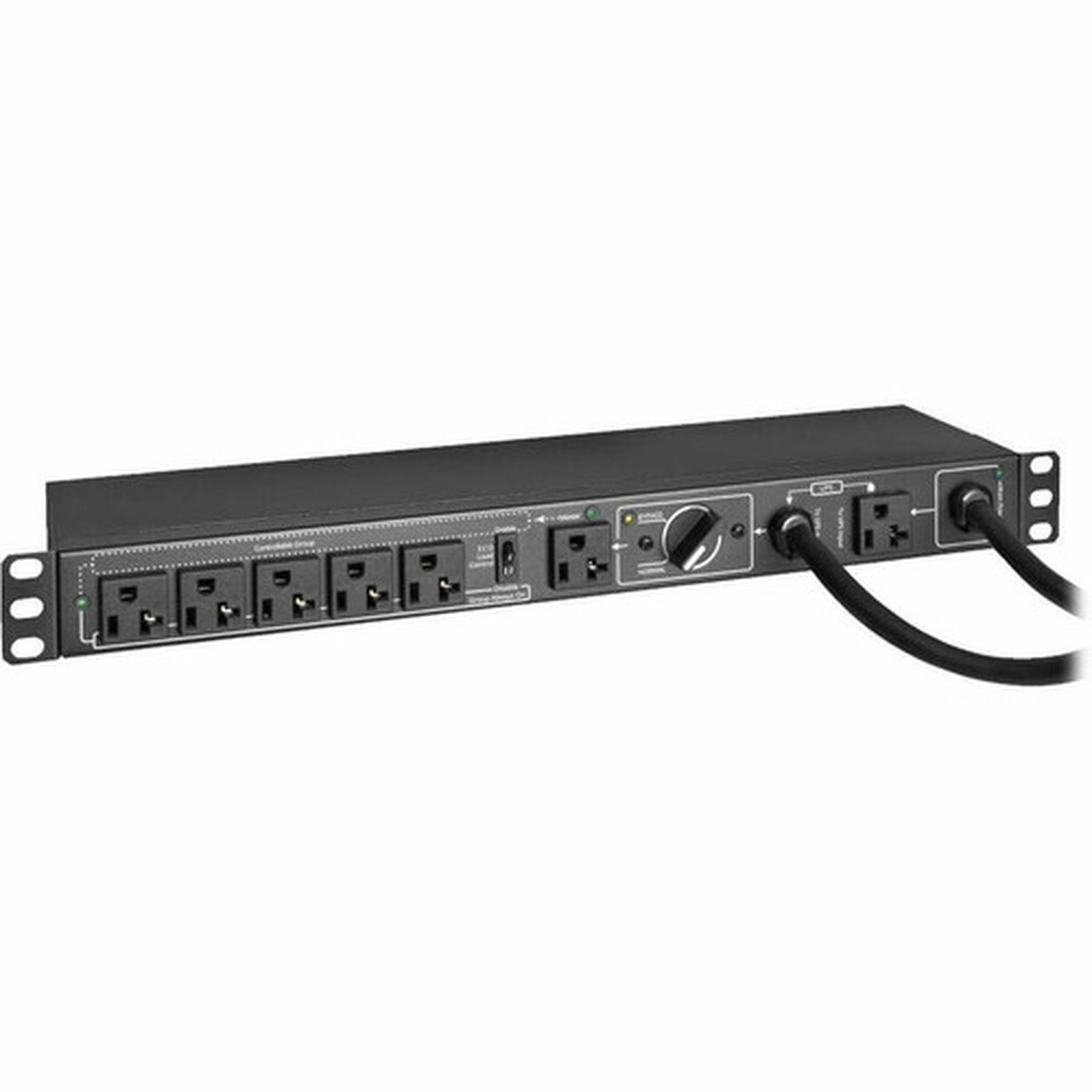

Tripp Lite by Eaton PDUB201U 6-Outlets PDU - Manual Bypass - NEMA 5-20P - 6 x NEMA 5-20R - 120 V AC - 1U - Horizontal - Rack-mountable (PDUB201U)

Sold out

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

Write a Review
MSRP: $464.02
$464.02
$271.92
You save $192.10
SKU: PDUB201U
UPC: 0037332256201
Availability: Stock In Canada - Ship UPS & Purolator
Weight: 7.58 LBS
Shipping: Calculated at Checkout

Ask for ETA! 🗨️

    Marketing Information:

    Bypass PDU Recommended for Maintaining Continuous Power During UPS Maintenance
    Keeping mission-critical data center equipment operating at its optimal level often means scheduled maintenance. But what if you are unable to afford the costly downtime involved in powering down for regular upkeep? This 120V 20A single-phase hot-swap PDU works in conjunction with your UPS system to keep everything running 24/7/365. It allows you to manually transfer connected equipment to utility power via the PDU's bypass switch, permitting maintenance or equipment replacement with no interruption of performance.

    Features Dual Inputs and a Manual Transfer Switch for Uninterrupted Operation

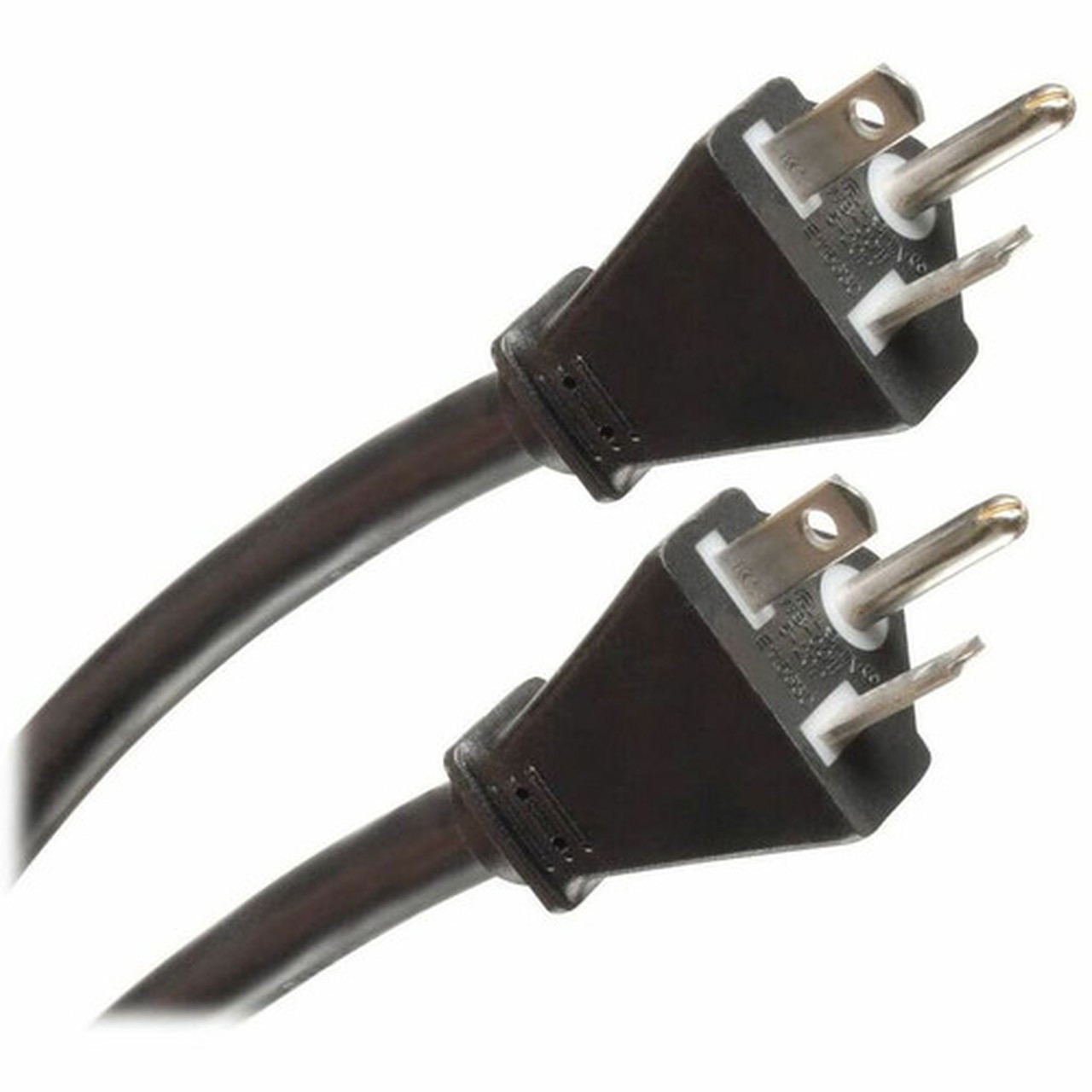

    The PDUB201U includes separate UPS and utility input cables with NEMA 5-20P plugs. The manual transfer switch allows PDU output power to flow from either input. Flip the switch to Bypass to replace the UPS and flip back to Normal once the maintenance or UPS replacement is complete. Equipment connected to the six NEMA 5-20R outlets will continue to operate without interruption.

    Optional ECO Switching Feature Enables Cost-Cutting Power Savings
    By enabling the ECO power saving feature, you can power off a single bank of five controlled 5-20R outlets all at once when the device connected to the master 5-20R outlet is powered off or goes into a low-power consumption mode.

    Mounts into 1U of Rack Space or Wall
    Use the included mounting hardware to install the PDUB201U's all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall.

    PDU Type: Manual Bypass

    Phase: Single Phase

    Plug/Connector Type: NEMA 5-20P

    Plug/Connector Detail: 2 x NEMA 5-20P

    Receptacle Type: NEMA 5-20R

    Receptacle Detail: 6 x NEMA 5-20R

    Input Voltage: 120 V AC

    Output Voltage: 100 V AC,120 V AC,127 V AC

    Power Rating (Watt): 2.03 kW

    Input Current: 20 A

    Mounting Orientation: Horizontal

    Mount Type: Wall-mountable,Rack-mountable

    Form Factor: Hot-swappable

    Rack Height: 1U

    Height: 1.73" (43.94 mm)

    Width: 17.24" (437.90 mm)

    Depth: 3.94" (100.08 mm)

    Weight (Approximate): 2.36 kg

    Package Contents:

    • PDUB201U 6-Outlets PDU
    • Mounting Hardware
    • Owner's Manual

    Country of Origin: China

    Environmentally Friendly: Yes

    Environmental Compliance: Restriction of Hazardous Substances (RoHS)

    Limited Warranty: 2 Year

[custom-highlights][/custom-highlights]

[custom-specifications]

Specifications
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberPDUB201U
Manufacturer Website Addresshttps://tripplite.eaton.com/
Brand NameTripp Lite by Eaton
Product ModelPDUB201U
Product NamePDUB201U 6-Outlets PDU
Product TypePDU
Technical Information
PDU TypeManual Bypass
PhaseSingle Phase
Plug/Connector TypeNEMA 5-20P
Plug/Connector Detail2 x NEMA 5-20P
Receptacle TypeNEMA 5-20R
Receptacle Detail6 x NEMA 5-20R
Power Description
Input Voltage120 V AC
Output Voltage100 V AC,120 V AC,127 V AC
Power Rating (Watt)2.03 kW
Input Current20 A
Physical Characteristics
Mounting OrientationHorizontal
Mount TypeWall-mountable,Rack-mountable
Form FactorHot-swappable
Rack Height1U
Height1.73" (43.94 mm)
Width17.24" (437.90 mm)
Depth3.94" (100.08 mm)
Weight (Approximate)2.36 kg
Miscellaneous
Package Contents
  • PDUB201U 6-Outlets PDU
  • Mounting Hardware
  • Owner's Manual
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty2 Year

[/custom-specifications]

[custom-options]











[/custom-options]

[custom-user-manual]

Available Documentation:


User-Manual
Manufacturer-Brochure

[/custom-user-manual]

Warranty Infomartion

2 Year
