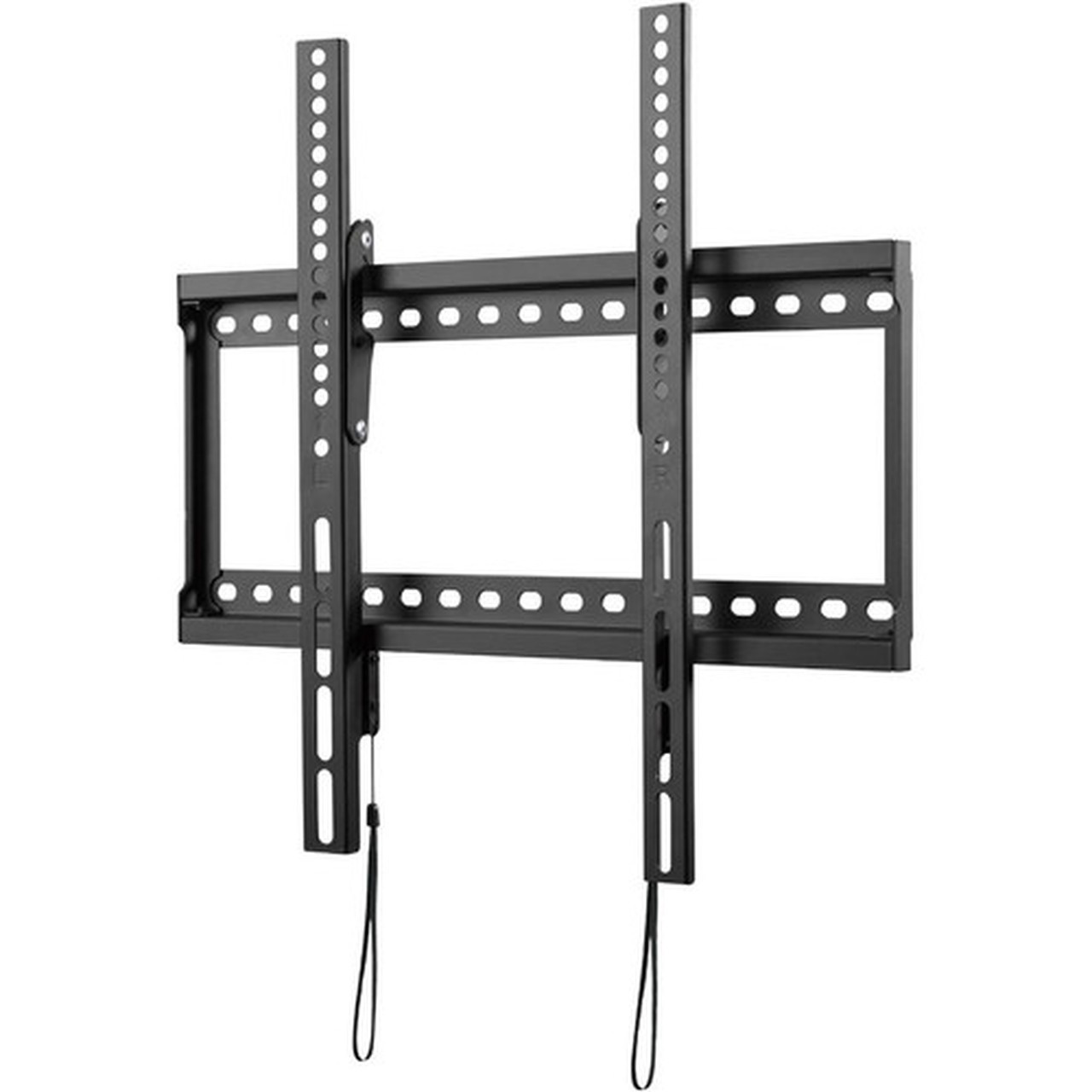

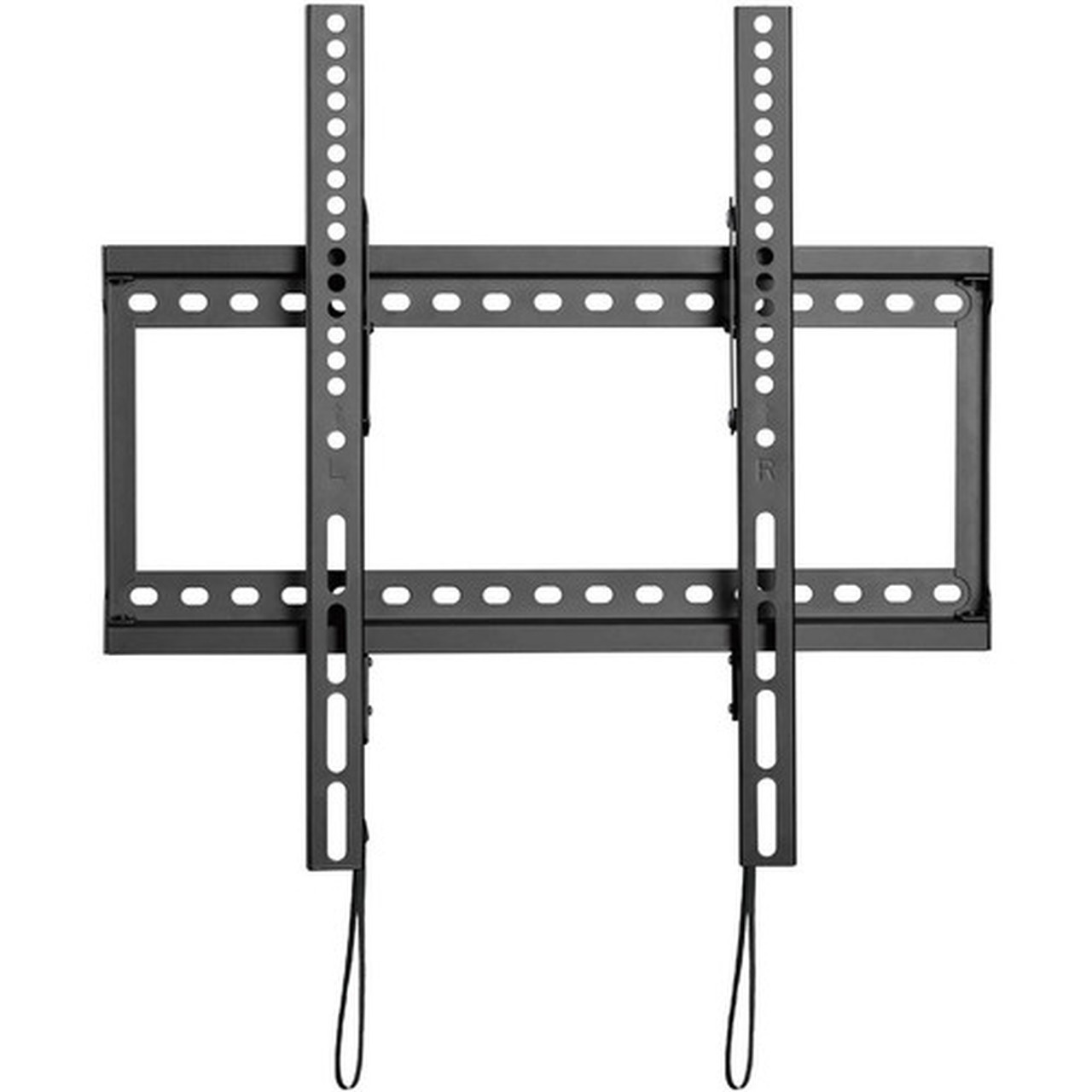

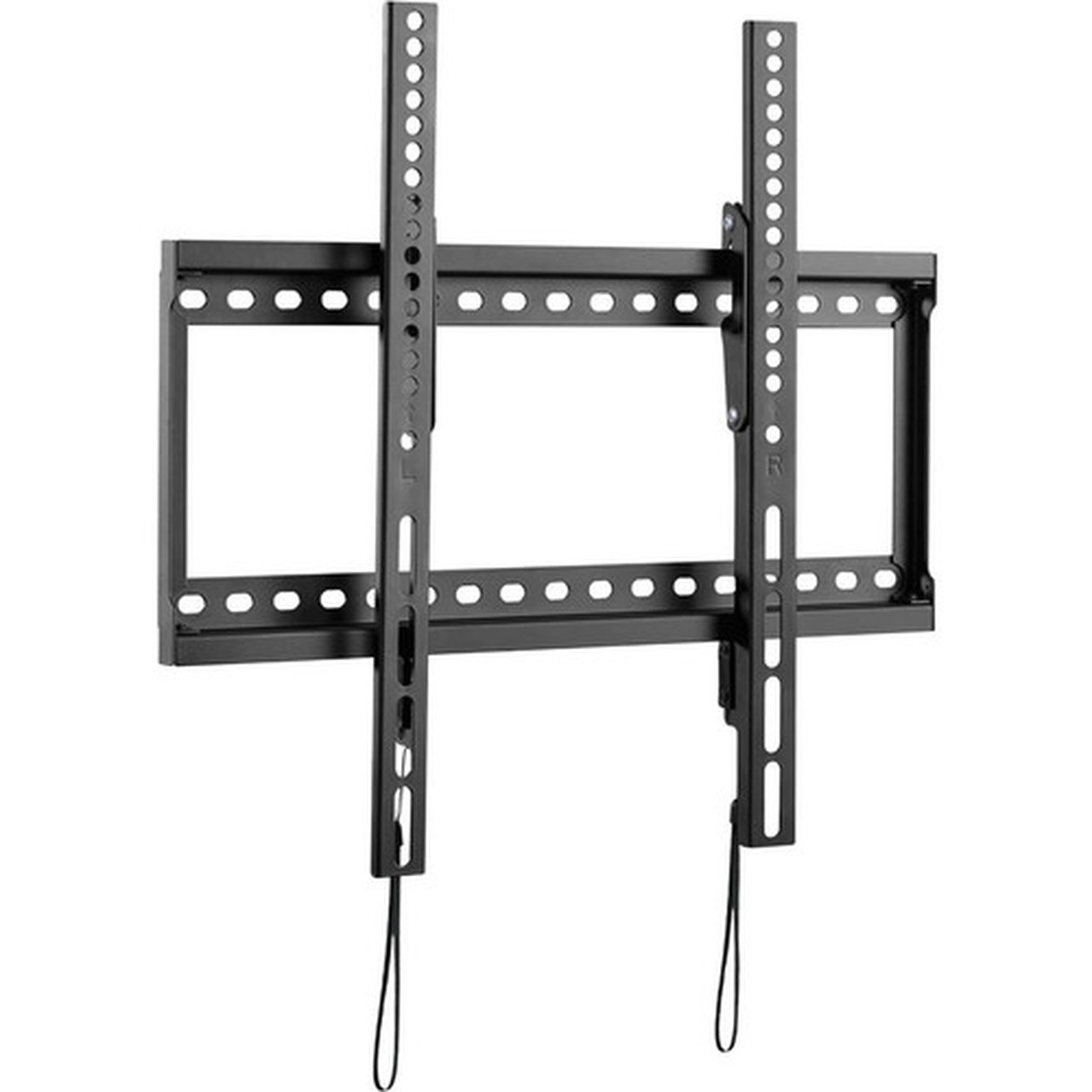

Tripp Lite DWT2670XE Wall Mount for Curved Screen Display, Monitor, HDTV, Flat Panel Display - Black - 1 Display(s) Supported - 26" to (DWT2670XE)

Marketing Information:

Mounts Your TV or Monitor on the Wall for a Perfect Viewing Angle
Recommended for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this low-profile TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most curved- and flat-screen displays from 26 to 70 inches and up to 165 pounds (75 kilograms).

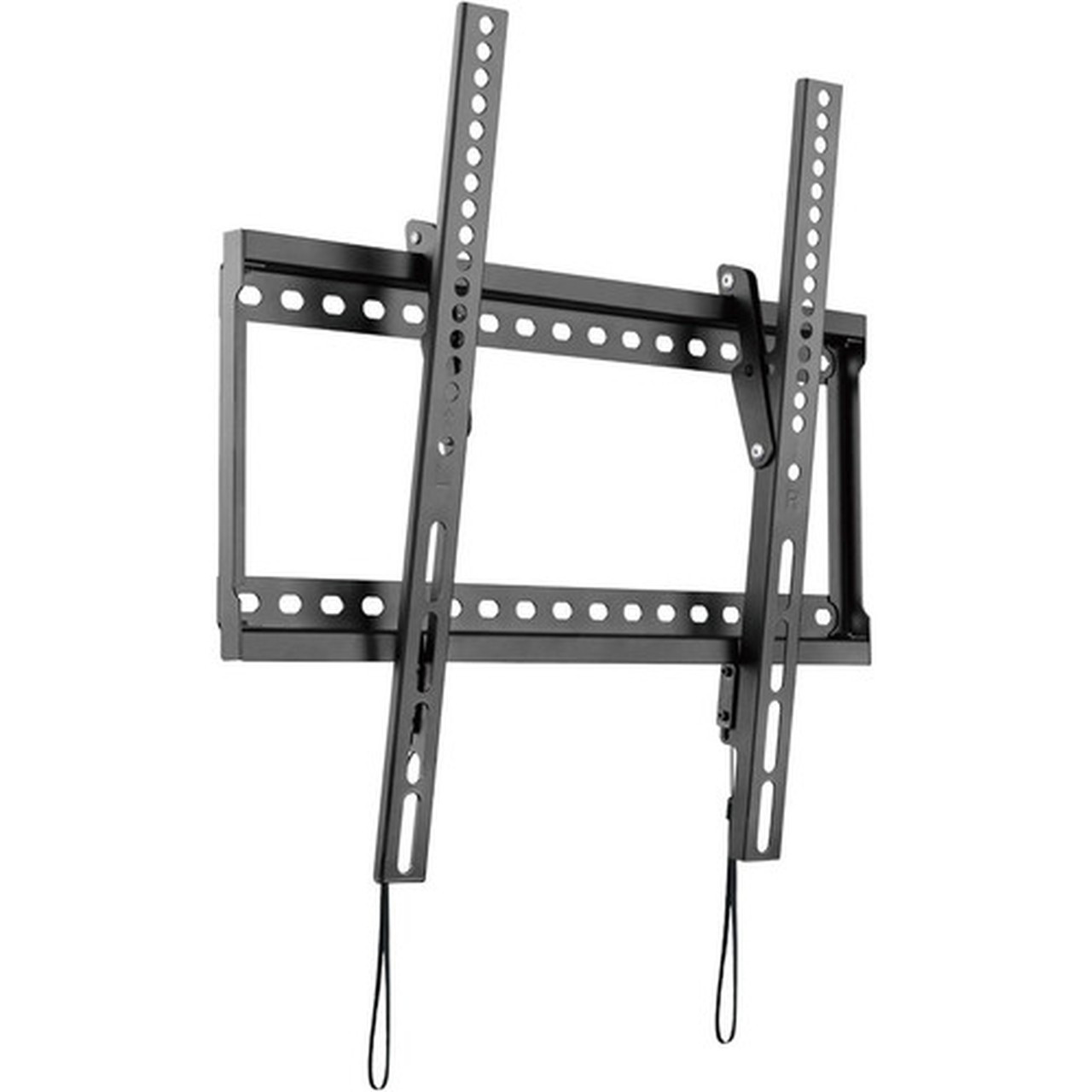

Tilt Feature Lets You Adjust the Viewing Angle to Your Specifications
You can adjust the horizontal angle of your display from -8° to +0°. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.

Durable All-Metal Construction Provides Convenient Cable Access
The DWT2670XE is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Its open frame design with smooth edges enables easy access to cabling. Horizontal mounting rails adjust to compensate for off-center wall studs. Removing and replacing the display is fast and simple using the automatic spring locks with quick-release cords.

VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this mount supports the following VESA mounting hole patterns: 50 x 50, 75 x 75, 100 x 100, 100 x 150, 100 x 200, 150 x 100, 150 x 150, 200 x 100, 200 x 200, 200 x 400, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 300 and 400 x 400. Mounting hardware is included.

Device Supported: Curved Screen Display,Monitor,HDTV,Flat Panel Display

Number of Displays Supported: 1

Maximum Load Capacity: 74.84 kg

Minimum Screen Size Supported: 26"

Maximum Screen Size Supported: 70"

Features: Tilt,Quick Release Mechanism,Horizontal Adjustment,Adjustable Angle,Heavy Duty,Scratch Resistant,Spring Lock,-8°/0° Tilt

Mount Profile: Low Profile

Color Family: Black

Product Color: Black

Product Material: Steel

VESA Mount Compatible: Yes

Mounting Pattern: 50 x 50,75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400

Height: 16.54" (420.12 mm)

Width: 17.20" (436.88 mm)

Depth: 1.50" (38.10 mm)

Weight (Approximate): 1.20 kg

Package Contents:

• Heavy-Duty Tilt Wall Mount for 26" to 70" Curved or Flat-Screen Displays
• Mounting hardware
• Owner's manual

Application/Usage: Wall,Stud

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) 3

Limited Warranty: 5 Year
