Tripp Lite PDUMH20 PDU Metered 120V 20A 12 Outlet - 12 x NEMA 5-15/20R - 1U 19" Rack-mountable, Zero U 19" Vertical Rackmount (PDUMH20)

Marketing Information:

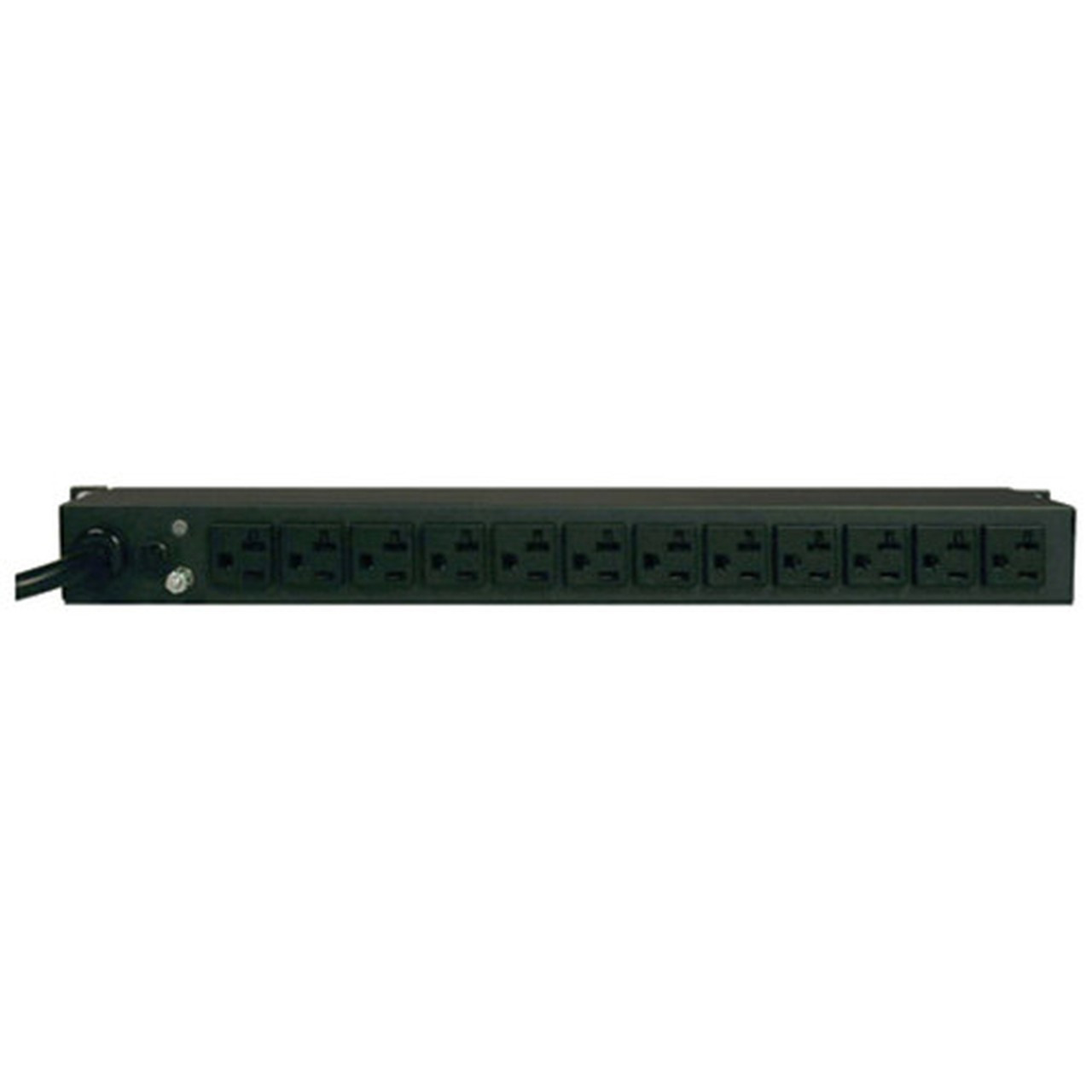

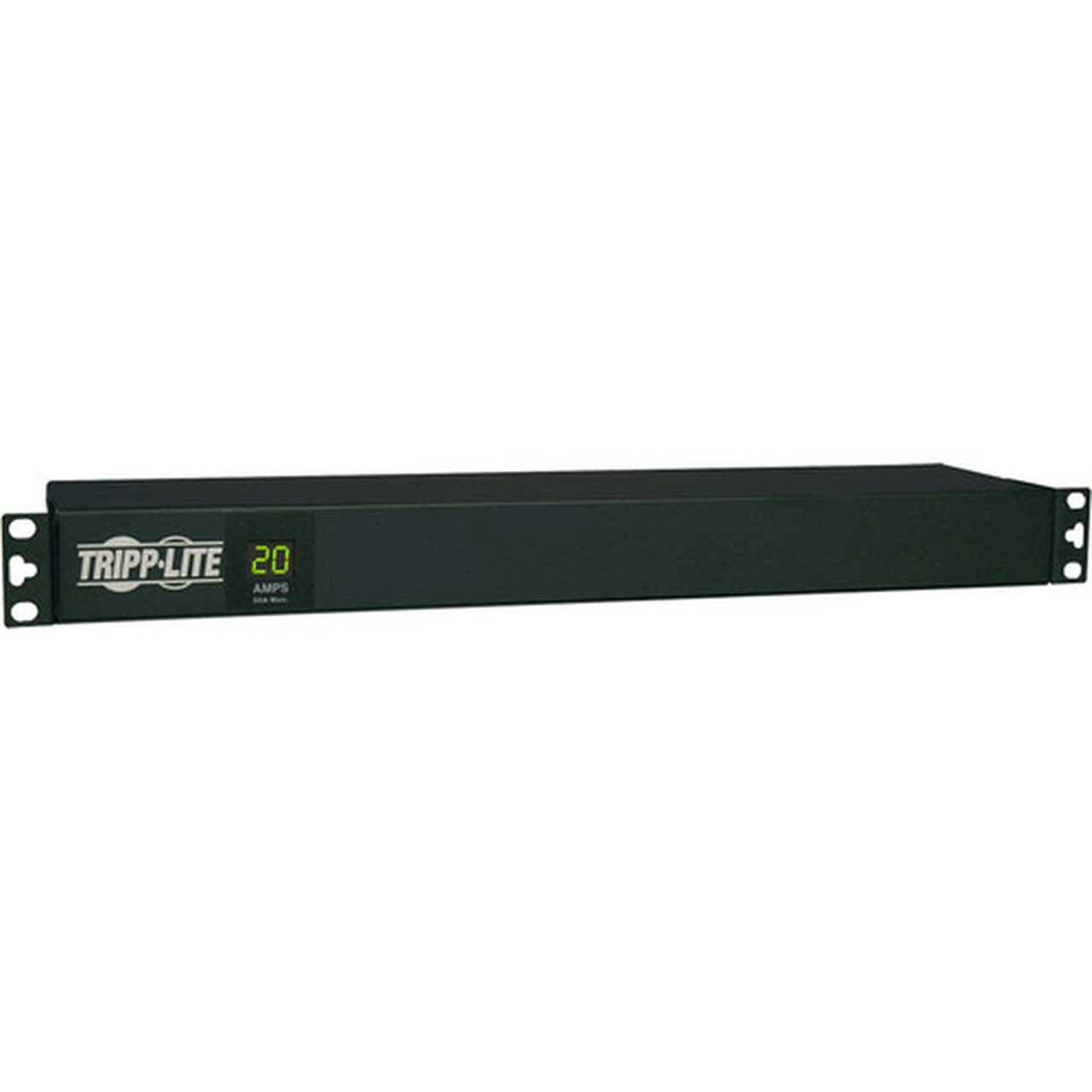

Tripp Lite's PDUMH20 AC power distribution unit offers a digital current monitor and provides 20 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH20 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-20P input plug. Comes wih 6-inch L5-20P-to-5-20P adapter, 20 amp breaker, TVSS grounding lug, and rugged all-metal rackmount case design.

More from the Manufacturer

Plug/Connector Type: NEMA L5-20P

Receptacle Type: NEMA 5-15/20R

Receptacle Detail: 12 x NEMA 5-15/20R

Protection Type: Overload Protection

Input Voltage: 120 V AC

Output Voltage: 120 V AC

Mounting Orientation: Vertical

Mount Type: Rack-mountable

Rack Height: 1U

Height: 1.75" (44.45 mm)

Width: 17.50" (444.50 mm)

Depth: 4.50" (114.30 mm)

Weight (Approximate): 1.36 kg

Package Contents:

• PDUMH20 PDU Metered 120V 20A 12 Outlet
• PDUMH20 Metered rackmount PDU
• Owner's manual with warranty information

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
