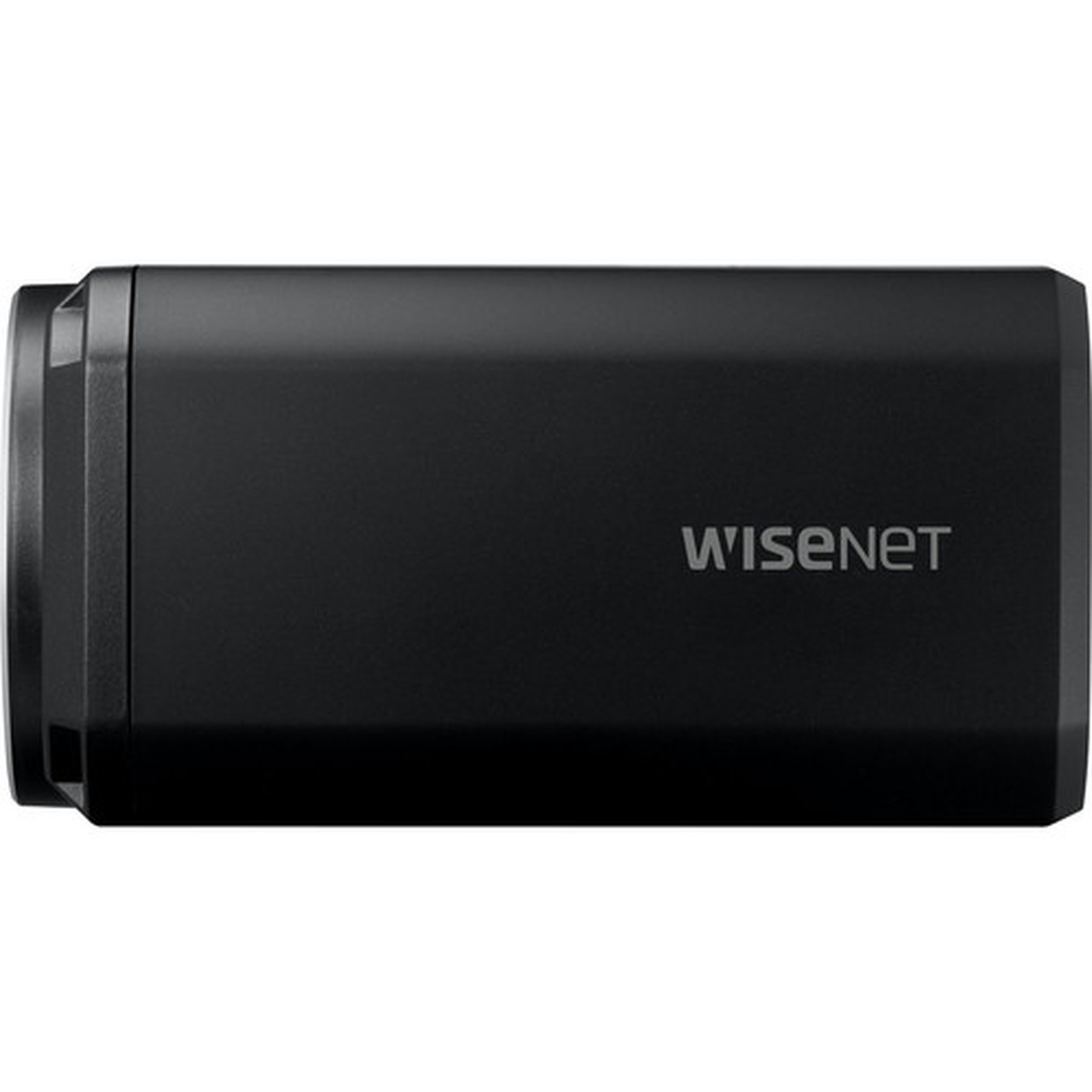

Wisenet XNZ-6320A 2 Megapixel Full HD Network Camera - Color - Box - MJPEG, H.264, H.265B, H.265, H.265H, H.265M, H.264M, H.264B, - x (XNZ-6320A)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
HD Recording: Yes
Recording Formats: Full HD
Image Sensor Type: CMOS
Color Supported: Color
Field of View: H: 64.66(Wide)~2.29(Tele) / V: 38.08(Wide)~1.30(Tele)
Effective Camera Resolution: 2 Megapixel
Video Formats: MJPEG,H.264,H.265B,H.265,H.265H,H.265M,H.264M,H.264B,H.264H
Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 60 fps
Analog Video Signal Format: CVBS
Lens Type: Varifocal
Minimum Focal Length: 4.4 mm
Maximum Focal Length: 142.6 mm
Lens Included: Yes
Minimum Aperture: f/4.4
Maximum Aperture: f/1.6
Optical Zoom: 32x
Shortest Shutter Speed: 1/12000 Second
Longest Shutter Speed: 2 Second
Connectivity Technology: Wired
Remote Management: Yes
Storage Type: Memory Card
Network (RJ-45): Yes
Input Voltage: 12 V DC
Power Source Type: DC,PoE
Color Family: Gray
Product Color: Dark Gray
Mount Type: Bracket Mount
Form Factor: Box
Weight (Approximate): 578 g
Minimum Operating Temperature: 14°F (-10°C)
Maximum Operating Temperature: 140°F (60°C)
Maximum Operating Humidity: 90%
Features: SD Card Local Storage,Day/Night,Wide Dynamic Range,Built-in Mechanical ICR,Defog,Digital Noise Reduction,Digital Image Stabilization,Privacy Masking,Gain Control,White Balance
- Up to 1920 x 1080 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
[custom-specifications]
Specifications | |
Manufacturer | Hanwha Group |
Manufacturer Part Number | XNZ6320A |
Manufacturer Website Address | http://www.hanwha.com |
Brand Name | Wisenet |
Product Series | X |
Product Model | XNZ-6320A |
Product Name | 2MP 32x Zoom Box |
Product Type | Network Camera |
Technical Information | |
HD Recording | Yes |
Recording Formats | Full HD |
Display & Graphics | |
Image Sensor Type | CMOS |
Color Supported | Color |
Field of View | H: 64.66(Wide)~2.29(Tele) / V: 38.08(Wide)~1.30(Tele) |
Effective Camera Resolution | 2 Megapixel |
Video | |
Video Formats | MJPEG,H.264,H.265B,H.265,H.265H,H.265M,H.264M,H.264B,H.264H |
Maximum Video Resolution | 1920 x 1080 |
Maximum Frame Rate | 60 fps |
Analog Video Signal Format | CVBS |
Lens | |
Lens Type | Varifocal |
Minimum Focal Length | 4.4 mm |
Maximum Focal Length | 142.6 mm |
Lens Included | Yes |
Minimum Aperture | f/4.4 |
Maximum Aperture | f/1.6 |
Optical Zoom | 32x |
Exposure | |
Shortest Shutter Speed | 1/12000 Second |
Longest Shutter Speed | 2 Second |
Network & Communication | |
Connectivity Technology | Wired |
Remote Management | Yes |
Storage | |
Storage Type | Memory Card |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Power Description | |
Input Voltage | 12 V DC |
Power Source Type | DC,PoE |
Physical Characteristics | |
Color Family | Gray |
Product Color | Dark Gray |
Mount Type | Bracket Mount |
Form Factor | Box |
Weight (Approximate) | 578 g |
Environmental Conditions | |
Minimum Operating Temperature | 14°F (-10°C) |
Maximum Operating Temperature | 140°F (60°C) |
Maximum Operating Humidity | 90% |
Miscellaneous | |
Features | SD Card Local Storage,Day/Night,Wide Dynamic Range,Built-in Mechanical ICR,Defog,Digital Noise Reduction,Digital Image Stabilization,Privacy Masking,Gain Control,White Balance |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
