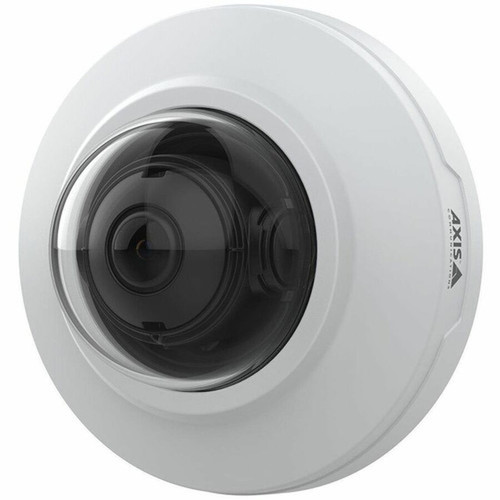

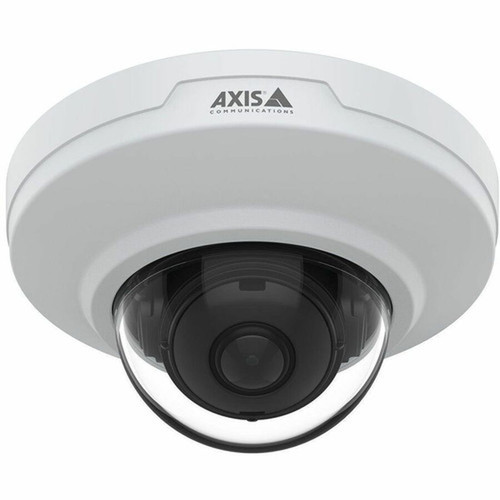

AXIS M3086-V 4 Megapixel Indoor Color Mini Dome Network Camera White H.264M H.264H 10/AVC MPEG-4 Part 02832-001
Write a Review
AXIS
AXIS M3086-V 4 Megapixel Indoor Color Mini Dome Network Camera White H.264M H.264H 10/AVC MPEG-4 Part 02832-001
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
HD Recording: Yes
Camera Iris: Fixed
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.7"
Color Supported: Color
Field of View: Horizontal field of view: 130° Vertical field of view: 93°
Effective Camera Resolution: 4 Megapixel
Video Formats: H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),Motion JPEG,H.264B (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile,H.264,H.265,Zipstream
Maximum Video Resolution: 2688 x 1512
Maximum Frame Rate: 30 fps
Lens Type: Fixed
Maximum Focal Length: 2.4 mm (0.09")
Lens Included: Yes
Maximum Aperture: f/2.1
Shortest Shutter Speed: 1/38500 Second
Longest Shutter Speed: 1/5 Second
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: ONVIF,IPv4,MQTT,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,TLS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,SIP,CDP,MQTT v3.1.1,ZeroConf
Storage Type: Memory Card
Network (RJ-45): Yes
Maximum Power Consumption: 4.20 W
Power Source Type: PoE
Color Family: White
Product Color: White
Form Factor: Mini Dome
Durability: Vandal Resistant,Water Resistant,Impact Resistant,Dust Resistant
Height: 2.20" (56 mm)
Diameter: 3.98" (101 mm)
Weight (Approximate): 5.29 oz (150 g)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 113°F (45°C)
Maximum Operating Humidity: 85%
Features: Wide Dynamic Range,Day/Night,Video Management System,Motion Detection,Multi-view Stream,Audio Compression,HTTPS Encryption,Privacy Masking,Mirror,White Balance
Indoor/Outdoor: Indoor
Impact Protection Rating: IK08
Ingress Protection Rating: IP42
- Network camera - Helps achieve high-quality video results
- Up to 2688 x 1512 resolution for surveillance in real-time
- Features RGB CMOS sensor
[custom-specifications]
| Specifications | |
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02832001 |
| Manufacturer Website Address | http://www.axis.com |
| Brand Name | AXIS |
| Product Model | M3086-V |
| Product Name | Fixed 4 MP Mini Dome with Deep Learning Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Camera Iris | Fixed |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.7" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 130° Vertical field of view: 93° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),Motion JPEG,H.264B (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile,H.264,H.265,Zipstream |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.4 mm (0.09") |
| Lens Included | Yes |
| Maximum Aperture | f/2.1 |
| Exposure | |
| Shortest Shutter Speed | 1/38500 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | ONVIF,IPv4,MQTT,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,TLS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,SIP,CDP,MQTT v3.1.1,ZeroConf |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 4.20 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Mini Dome |
| Durability | Vandal Resistant,Water Resistant,Impact Resistant,Dust Resistant |
| Height | 2.20" (56 mm) |
| Diameter | 3.98" (101 mm) |
| Weight (Approximate) | 5.29 oz (150 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,Video Management System,Motion Detection,Multi-view Stream,Audio Compression,HTTPS Encryption,Privacy Masking,Mirror,White Balance |
| Indoor/Outdoor | Indoor |
| Impact Protection Rating | IK08 |
| Ingress Protection Rating | IP42 |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
