4 Pair CAT6 26AWG Stranded FFTP Shielded Bulk Cable Black CMR FN-BK-C6SM-4BKS
Write a Review
Fleet Network
4 Pair CAT6 26AWG Stranded FFTP Shielded Bulk Cable Black CMR FN-BK-C6SM-4BKS
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Overview

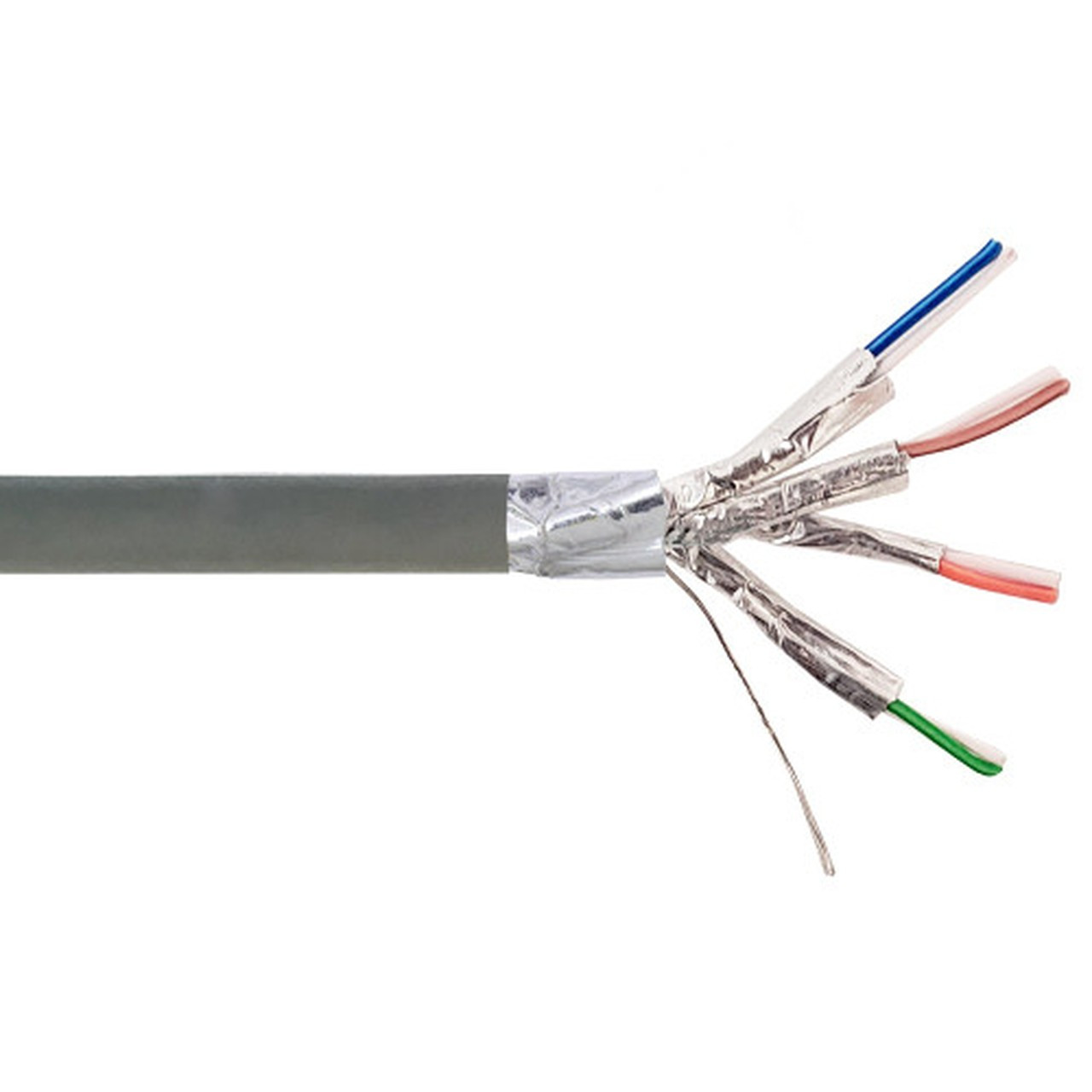

This bulk riser rated Cat6 cable is 1000 feet in length and consists of 4 pairs of 26AWG stranded wires with individually foil shielded pairs plus an overall foil shield. It is typically used to manufacture Cat6 shielded patch cables and terminated with shielded RJ45 plugs.
 |
100% Bare Copper Stranded ConductorsThis cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The stranded wires gives the cable more flexibility, makes it easier to handle and makes it perfect for touring and short patch links. Great for High Speed NetworksOur CAT6 bulk cable is the most practical and economical solution for all your networking applications, it provides 550 MHz of bandwidth, and offers high speed, uninterrupted connection. The Quality and Convenience You NeedThis cable comes in a pull box for easy pulling, it features color striped pairs for easy identification, and a rip cord for easy stripping. also it uses a shielded twisted pair (FFTP) structure to retain a high quality signal when passing near high voltage or power cables.
|
Application
Specifications
|
Physical Characteristics
|
|
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.80 mm |
| Number of Pairs | 4 Pairs |
| Twisted Pair Diameter | 3.80 mm (±0.20 mm) |
| Color of Pairs | White-Blue White-Green White-Orange White-Brown |
| Wire Gauge | 26AWG Stranded |
| Stranding Count & Diameter | 7x0.32 mm |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Cable Shielding | FFTP (Overall Foil and Individually Foil Shielding Pairs) |
| Operating Temperature | -20ºC ~ 80ºC |
| Installation Temperature | -10ºC ~ 50ºC |
| Storage Temperature | -20ºC ~ 80ºC |
|
Electrical Characteristics
|
|
| Max. Conductor DC Resistance (/KM) | 26:138 |
| Min. Conductor DC Resistance (/KM) | PE:100M |
| Dielectric Strength | AC-500V/1 Min No Breakdown |
| DC Resistance Unbalance | Max. 2% |
| Pair-to-Ground Capacitance Unbalance | Max. 330PF/100M |
| Input Impendence |
4-100MHz 100+/-15ohm |
| Mean Characteristic Impedance | @100MHz: 100+/-5 Ohms |
| Nominal Velocity of Propagation (NVP) | 68±2% |
| Propagation Delay | @ 100MHz ≧ 537.6 ns/100m |
| Propagation Delay Skew | Max. ≧ 45 ns/100m |
|
Approvals
|
|
| UL | Yes |
| CSA | Yes |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
|
Product Weight |
29.9 lbs [13.5kg] |
