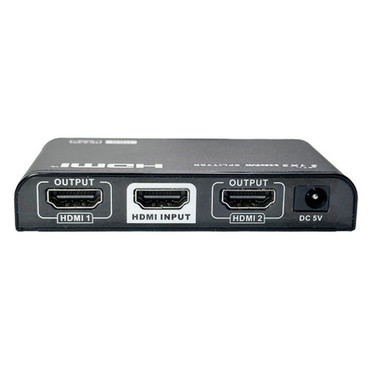

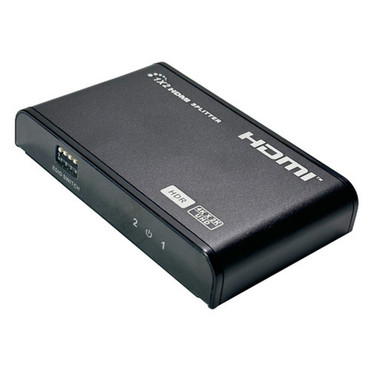

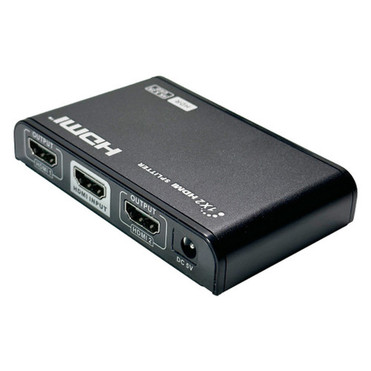

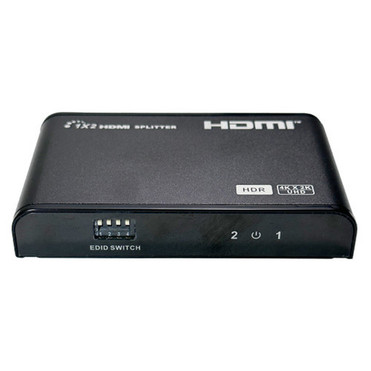

This 1x2 HDMI splitter enables you to display one HDMI device to two HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors. The splitter performs at HDMI 2.0 resolutions - 4K at 60Hz with 4:4:4 chroma subsampling and a transmit bandwidth up to 18Gbps. It also supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays.
|
Physical Characteristics
|
| Input Voltage |
240V |
| Power Supply |
5V/1A DC |
| Power Consumption |
<2.5W |
|
Compatibility
|
| PC to Monitor |
Yes |
| PC to TV |
Yes |
| DVD to Monitor |
Yes |
| DVD to TV |
Yes |
|
Connector(s)
|
| Input |
1 x HDMI Female |
| Output |
2 x HDMI Female |
|
Performance
|
| HDMI Resolution |
480i/480p/576i/576p/720p/1080i/1080p/ 4Kx2K@24/25/30/60Hz |
| HDMI Version |
Compatible with HDMI1.4,HDMI2.0 |
| 3D Video |
Yes |
| HDCP Compliant |
Yes, Supports HDCP2.2/1.4 |
| HDR Support |
Yes |
| Audio |
Support standard audio and DSDï1/4Direct Stream Digital) and HD(HBR) audio |
| Frequency Range |
25MHz~594MHz |
| Input and output TMDS signal |
0.7~1.2Vp-p(TMDS) |
| Input and output DDC signal |
5Vp-p(TTL) |
| EDID management |
Support smart EDID management, available to display different resolution monitors at the same time |
|
Approvals
|
| Power Adapter |
c(UL)us |
|
Environmental
|
| RoHS |
Yes |
|
Certification(s)
|
| CE |
Yes |
| FCC |
Yes |
|
Packaging Information
|
| Included in Package |
1 - HDMI Splitter |
|
1 - DC5V Power Adapter |
|
1 - Manual |
Spec Sheets
Download attachment
