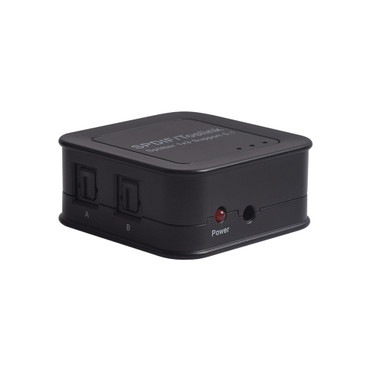

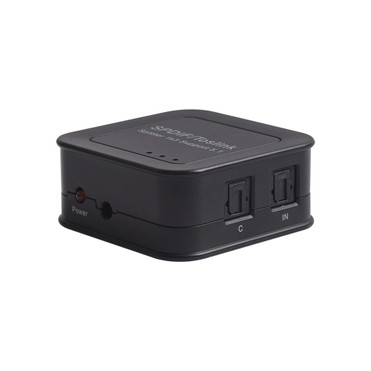

1x3 Toslink/Optical Digital Audio Splitter

Name: 1x3 Toslink/Optical Digital Audio Splitter
Brand: Fleet Network
SKU: FN-VP-TOS-03
Price: 37 CAD
Availability: InStock

(No reviews) Write a Review

$37.05

$37.00

SKU: FN-VP-TOS-03

Availability: Stock Toronto

Weight: 0.07 LBS

Current Stock:

Quantity:

Adding to cart… The item has been added

This 1x3 Toslink/Optical audio splitter connects and distributes one digital optical SPDIF Toslink source to three amplifiers.

Features

One way of optical fiber signal input splitter to three sets of SPDIF/Toslink signal receiving device
Audio format support: LPCM2.0/DTS/Dolby-AC3
Support signal retiming
Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m
Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
No loss of quality
Installs in minutes
Needs DC5V/500mA power supply

Physical Characteristics
Color	Black
Housing	Plastic
Dimensions (L x W x H)	54 x 54 x 23.5mm
Operating Temperature	0 to +40 degree C
Operating Humidity Range	5 to 90%RH (No Condensation)
Power
Power Adapter Format (Not included)	Input: AC (50HZ, 60HZ) 100V-240V Output: DC5V/500mA
Max Working Current	100mA
Power Barrel Size	5.5 x 2.1mm
Performance
Supported Audio Format	LPCM2.0/DTS/Dolby-AC3
Peak Wavelength	650nm
Max Baud Rate	16Mbps
Output Cable Distance	?40m (Use the optical fiber cable loss less the 0.2Db/m)
Environmental
RoHS	Yes
Certification(s)
CE	Yes
FCC	Yes
Packaging Information
Package Quantity	1
Product Weight	0.07 lbs [0.03kg]
Contents
Included in Package	1 - Toslink/Optical Digital Audio Splitter
	1 - USB Power Cable
	1 - Manual
