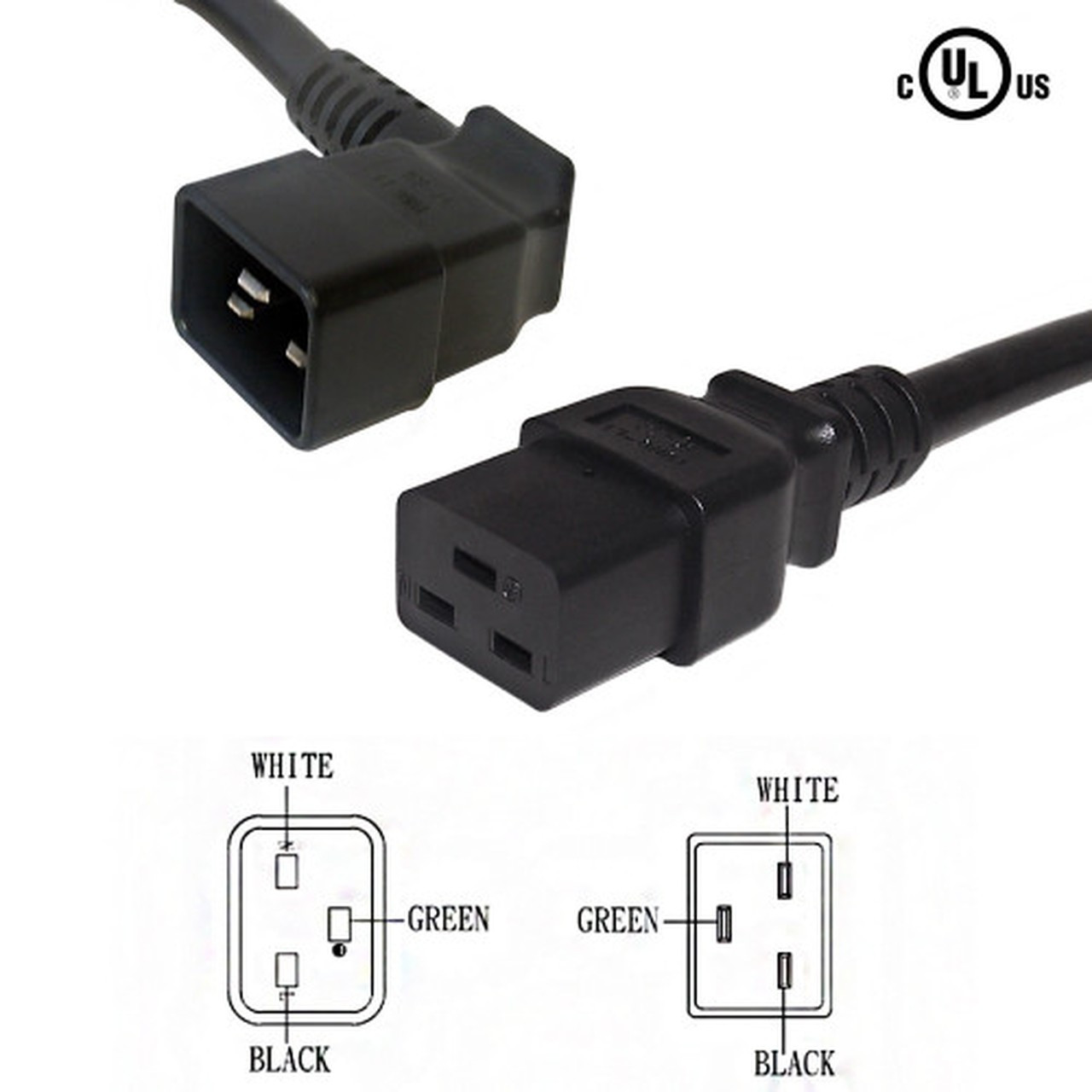

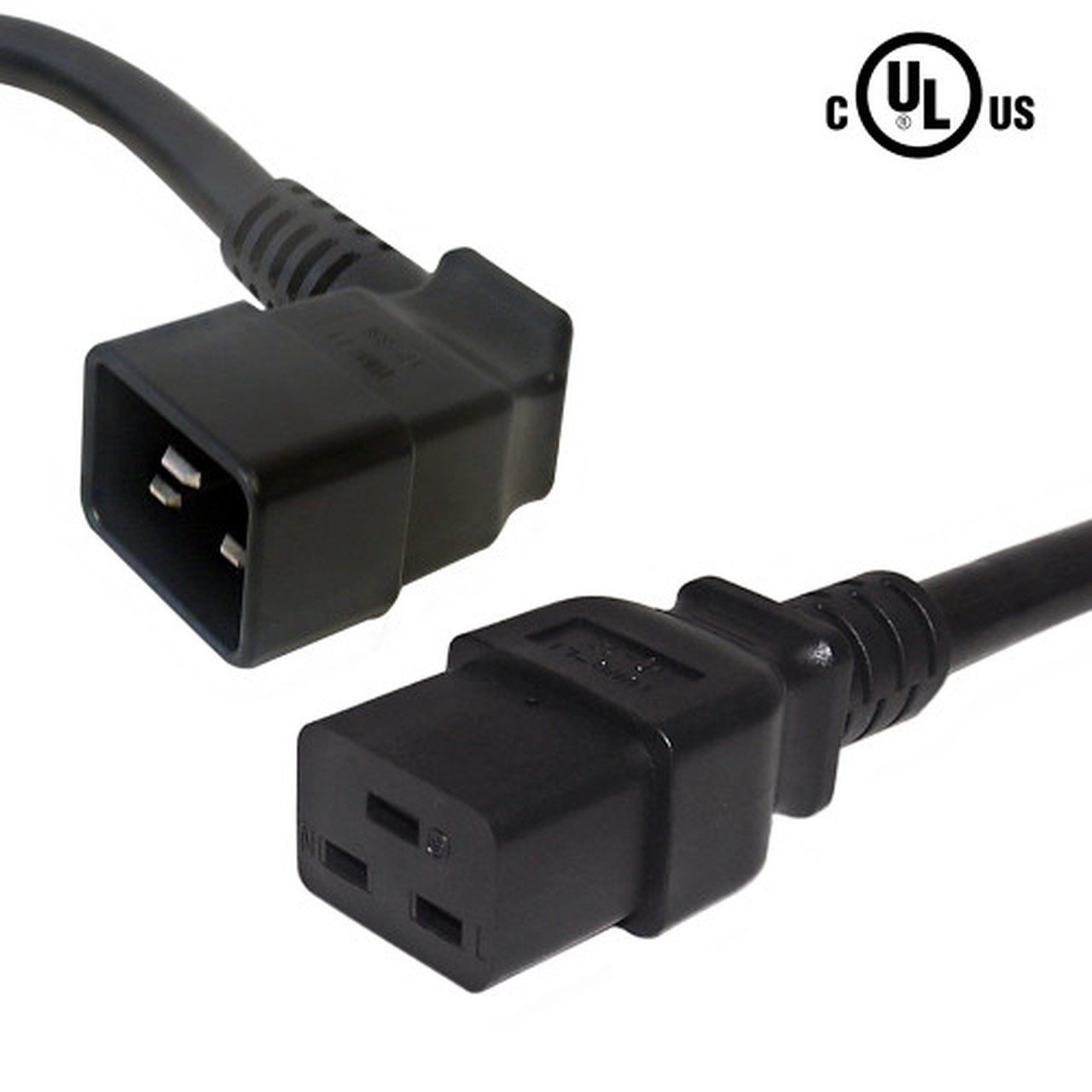

This power cord consists of a C20 right angle male on one end and a C19 female on the other end. It is typically used to connect a server to a PDU in a data center environment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Physical Characteristics |
---|
Cable Length | 2 foot [0.6m] |
Color | Black |
Number of Conductors | 3 Conductor |
Wire Gauge | 12 AWG |
Jacket | Heavy duty SJT |
Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
Jacket Fire Rating | FT2 |
Strain Relief | Molded 100% Virgin PVC |
Temperature Rating | -20 deg C to 105 deg C |
Connector(s) |
---|
Connector A | IEC 60320 C19 |
Connector B | IEC 60320 C20 Right Angle |
Performance |
---|
Power Rating | 20 Amp / 250 Volt |
Approvals |
---|
C19 | c(UL)us |
C20 | c(UL)us |
Cable | c(UL)us, CSA |
ISO | ISO 9001:2000, ISO 14000 |
Environmental |
---|
RoHS | Yes |
Reach | Yes |
Conflict Minerals | Yes |
Packaging Information |
---|
Package Quantity | 1 |
Product Weight | 0.6 lbs [0.2kg] |
Warranty Information |
---|
Warranty | Limited Lifetime |
